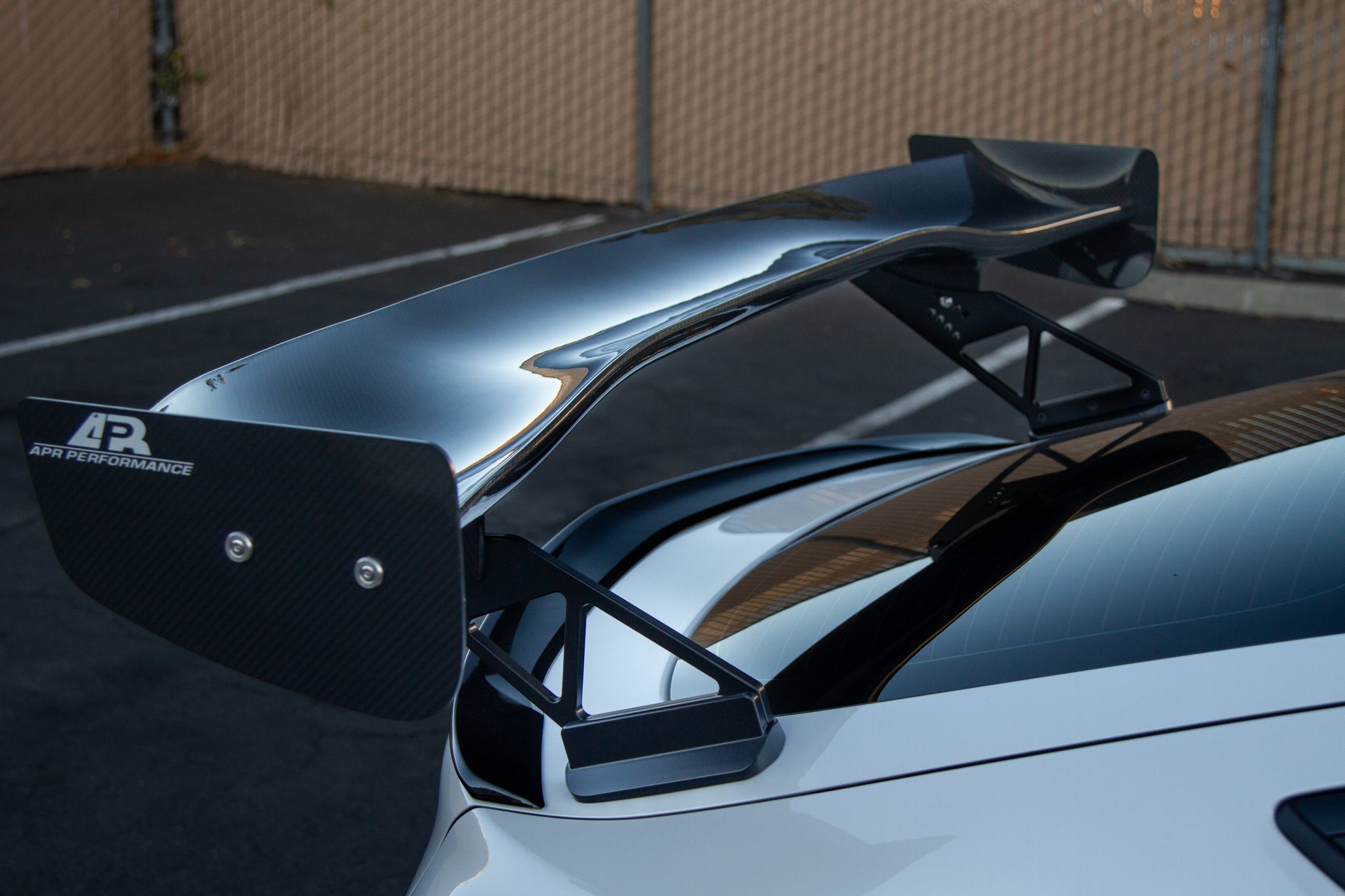

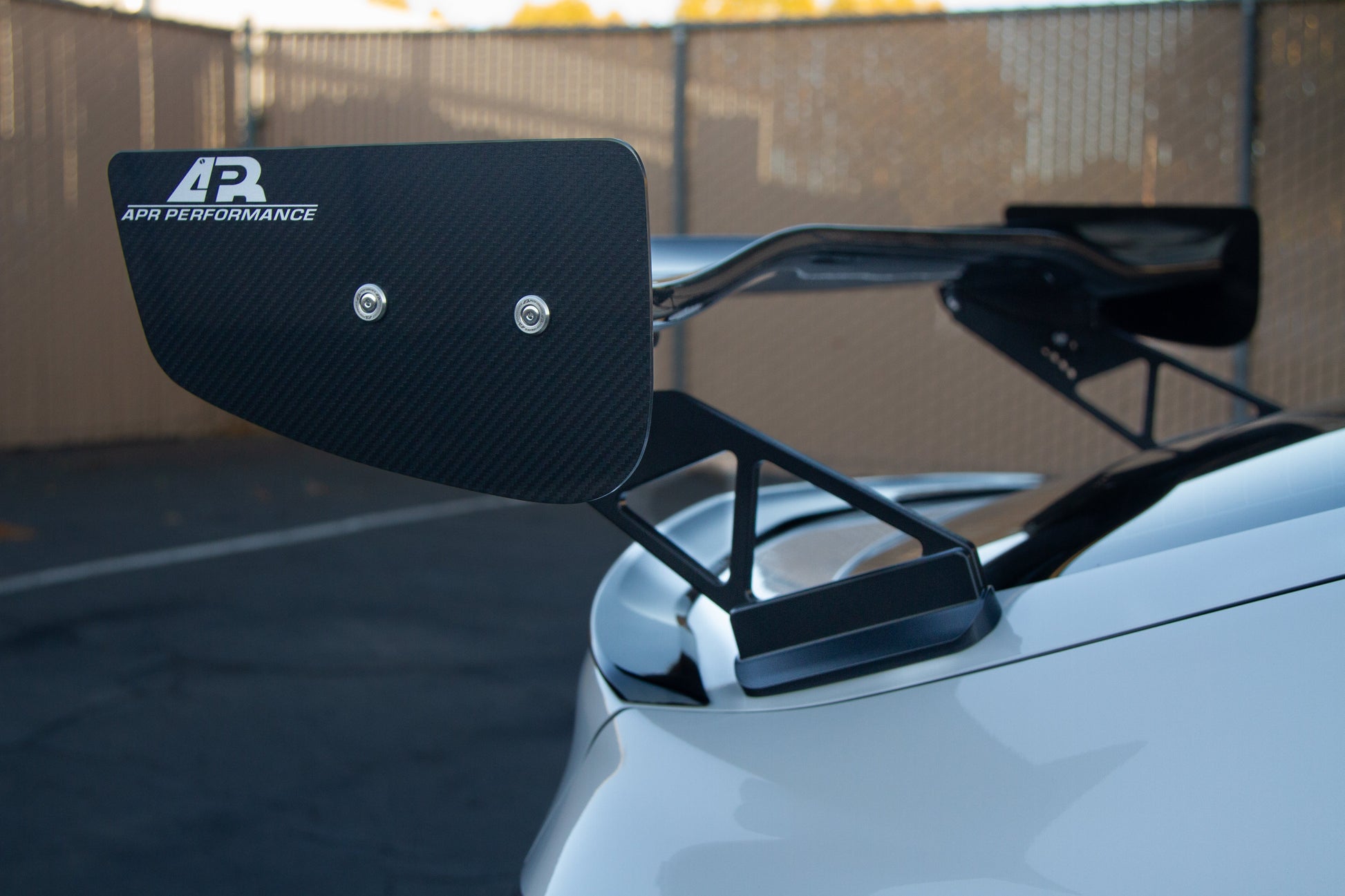

Acura DE5 Integra Type S GTC-300 Carbon Fiber Adjustable Wing 2024 - Current

This item is made to order, normal lead time is 1-2 weeks.

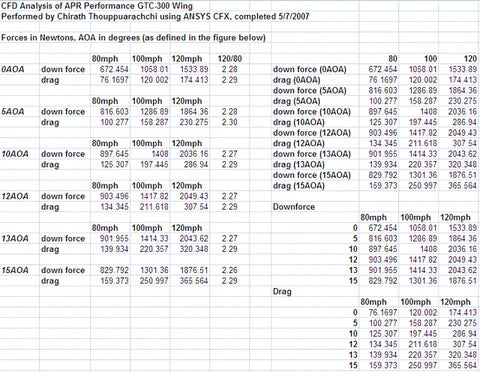

Enhance the aerodynamic performance of your Acura DE5 Integra Type S (2024–Current) with the APR Performance GTC-300 Carbon Fiber Adjustable Wing. Designed through Computational Fluid Dynamics (CFD) analysis, this advanced aerodynamic component generates efficient downforce with minimal drag — improving cornering grip, braking stability, and high-speed balance for both track and performance street applications.

The GTC-300 utilizes a cambered airfoil profile, engineered to create an ideal pressure differential between the upper and lower surfaces, resulting in high rear downforce while maintaining aerodynamic efficiency. Constructed from autoclave-cured pre-preg carbon fiber, the wing combines ultra-lightweight strength with rigidity to ensure consistent aerodynamic performance, even under heavy load.

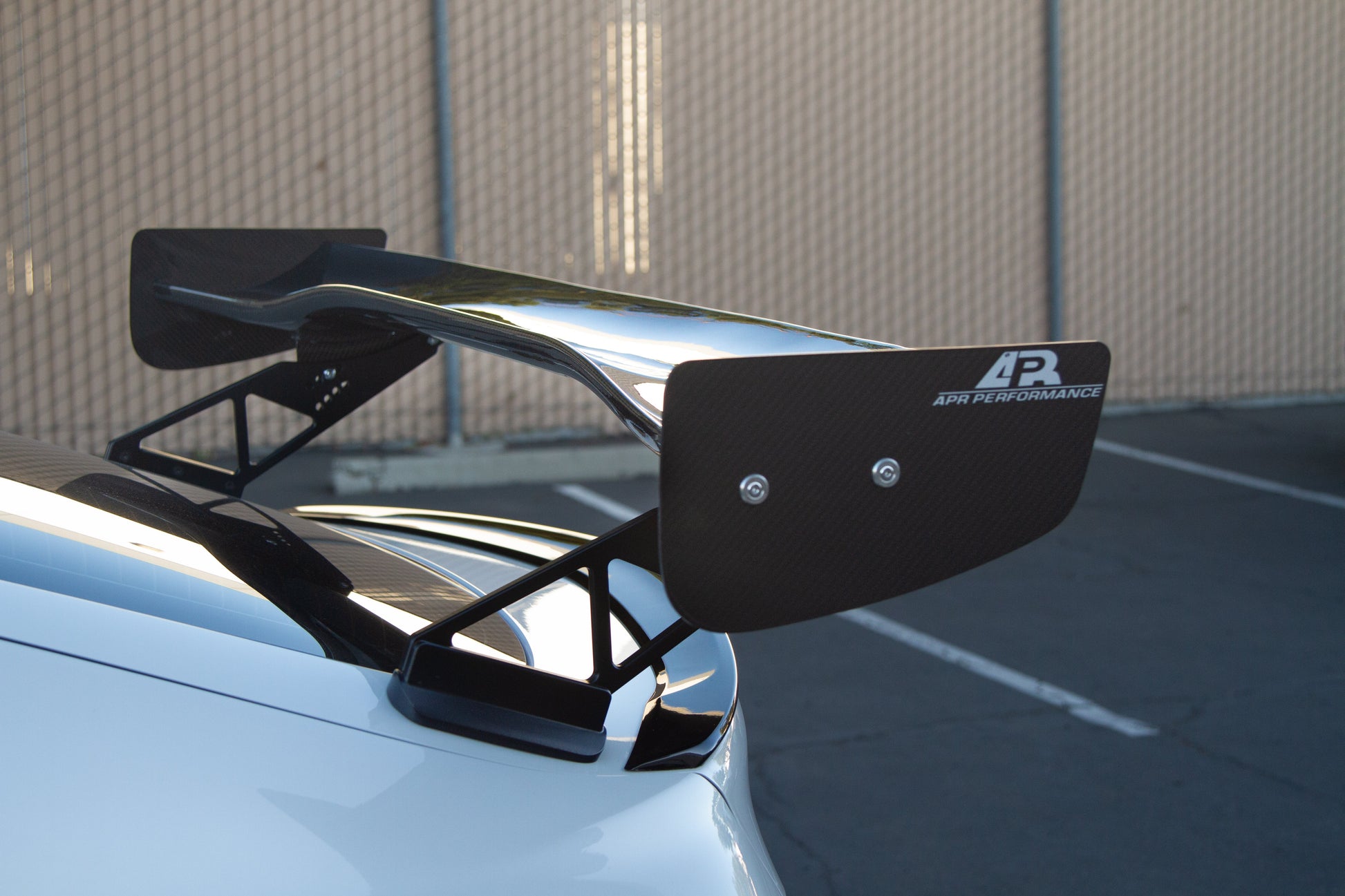

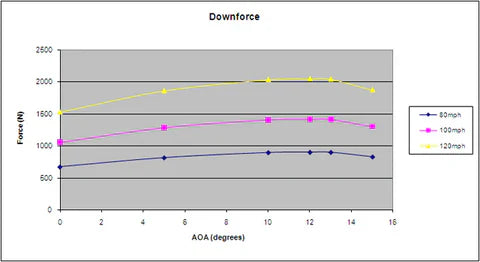

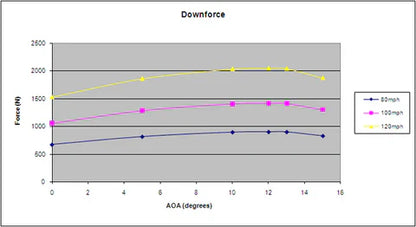

The adjustable angle of attack (0°–15°) allows precise fine-tuning of aerodynamic balance — increase downforce for maximum grip on tight circuits or reduce drag for improved straight-line speed. Mounted on 6061 billet aluminum pedestals, the wing offers height and position adjustments for tailored aerodynamic control.

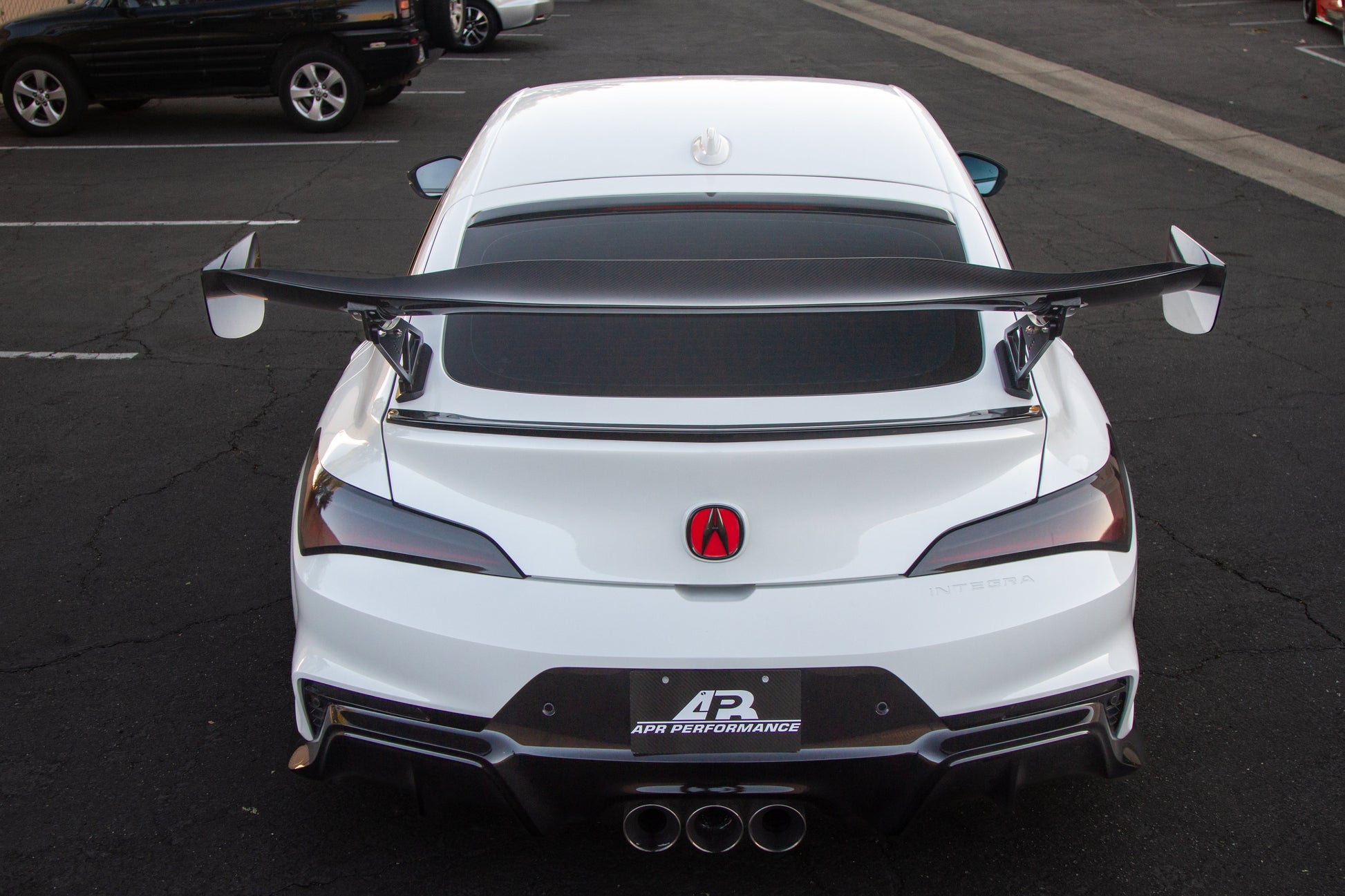

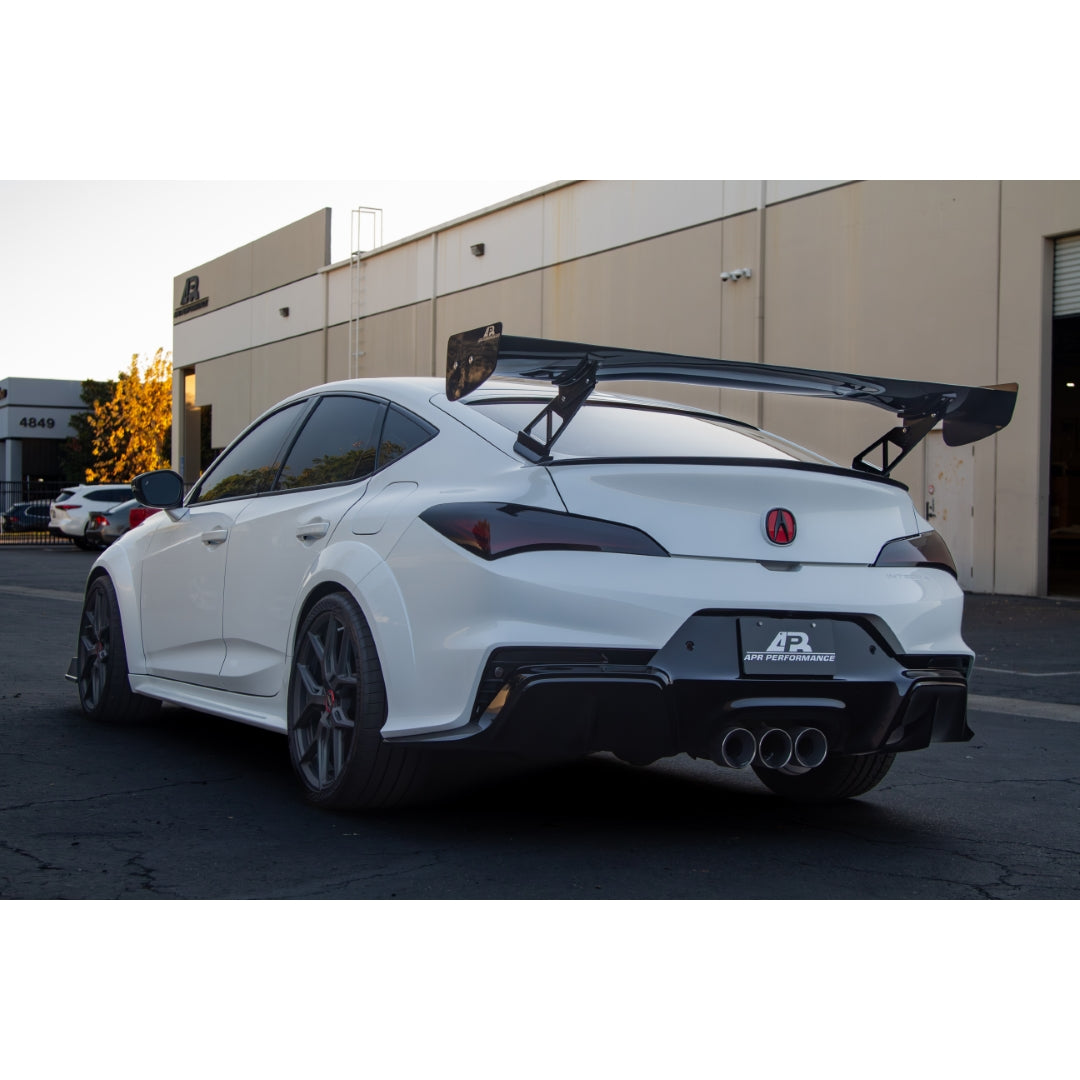

The GTC-300 is perfectly suited for the Integra Type S chassis, blending aggressive styling with genuine motorsport functionality — delivering the stability and aerodynamic advantage that serious drivers demand.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for superior rigidity, lightweight strength, and high durability.
• CFD-Engineered Airfoil Profile – Provides high-efficiency downforce with minimal drag for track-proven stability.
• Adjustable Angle of Attack (0°–15°) – Tune aerodynamic performance for cornering, braking, or top-speed efficiency.

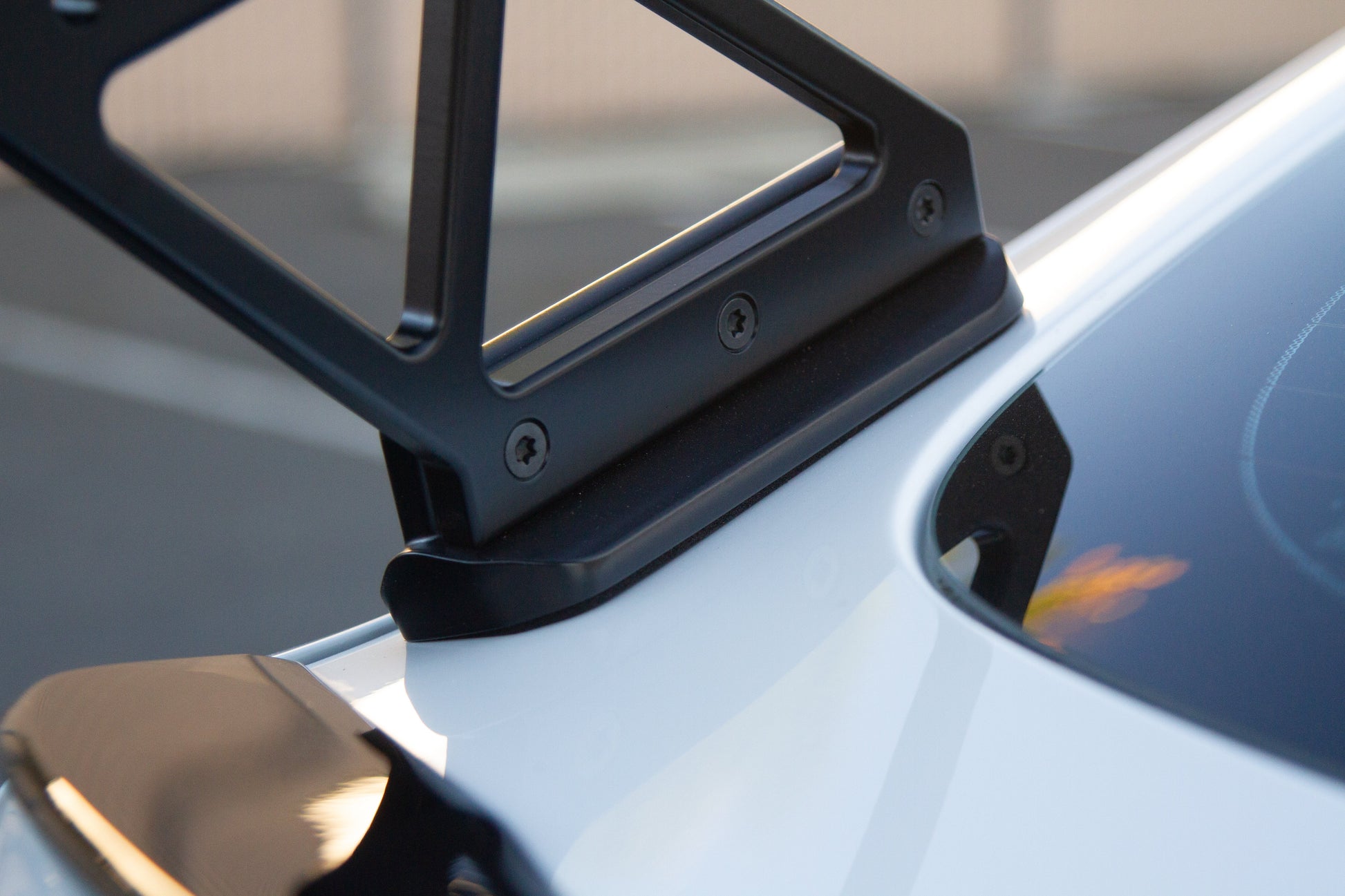

• Billet Aluminum Mounts – 10mm 6061 aircraft-grade pedestals provide precision and strength.

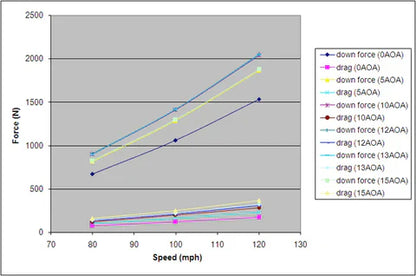

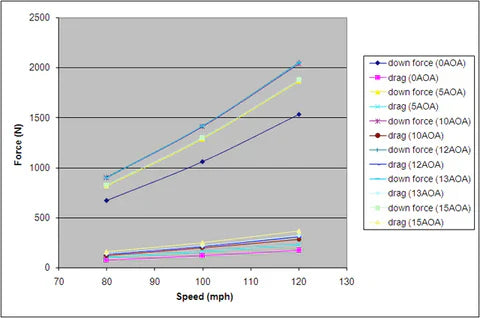

• Optimized Downforce Ratio (8.8 : 1) – Achieves excellent rear traction and high-speed stability without excessive drag.
• Perfect Fit for Integra Type S – Designed for a balanced aerodynamic setup on the DE5 chassis.
• Optional Carbon Fiber Gurney Flap – Adds additional downforce for enhanced grip during high-speed cornering.
• UV-Resistant Gloss Finish – Protects against fading while preserving the premium carbon fiber weave.

Specifications:
• Span: 61” or 67” (1549 mm / 1702 mm)
• Chord Depth: 10”–12” (254–305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber airfoil, 6061 billet aluminum risers
• Angle Adjustment: 0°–15° range

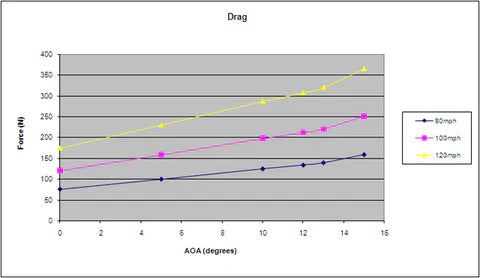

• Downforce-to-Drag Ratio: 8.8 : 1
• Optional Accessory: Carbon fiber Gurney Flap (½” height, 3M VHB mounting)

Fitment:
Acura Integra Type S (DE5) — 2024 – Current
