Acura NSX GTC-500 Carbon Fiber Adjustable Wing 1990-2005

This item is made to order, normal lead time is 2-3 weeks.

Elevate the aerodynamic performance of your Acura NSX (1990–2005) with the APR Performance GTC-500 Carbon Fiber Adjustable Wing, a high-performance aerodynamic system developed for motorsport and professional track use. Engineered through Computational Fluid Dynamics (CFD), the GTC-500 provides exceptional rear downforce and high-speed stability while maintaining low drag — giving your NSX superior handling balance, braking control, and cornering precision.

Constructed using autoclave-cured pre-preg carbon fiber, the GTC-500 airfoil offers outstanding rigidity and strength-to-weight efficiency. Its cambered profile creates an optimized pressure differential across the wing surfaces, ensuring maximum airflow attachment and minimal drag loss at speed.

With a fully adjustable angle of attack (0°–15°), the wing allows tuners to tailor aerodynamic performance — from high downforce for technical track layouts to reduced drag for high-speed straight-line performance. The 6061 billet aluminum risers provide precision height and angle adjustments, ensuring aerodynamic accuracy and long-term durability.

Designed as a large-format wing with a 71” or 74” span, the GTC-500 delivers significant downforce without compromising the NSX’s elegant lines. Perfect for track builds, time-attack applications, and performance-focused street cars, this system provides a race-proven aerodynamic advantage with premium styling.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for superior strength, stiffness, and lightweight performance.
• CFD-Engineered Airfoil – Optimized profile generates maximum downforce with minimal drag.
• Adjustable Angle of Attack (0°–15°) – Fine-tune aerodynamic load for different driving environments.

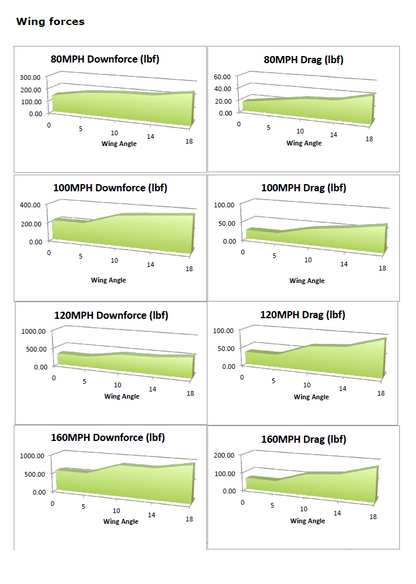

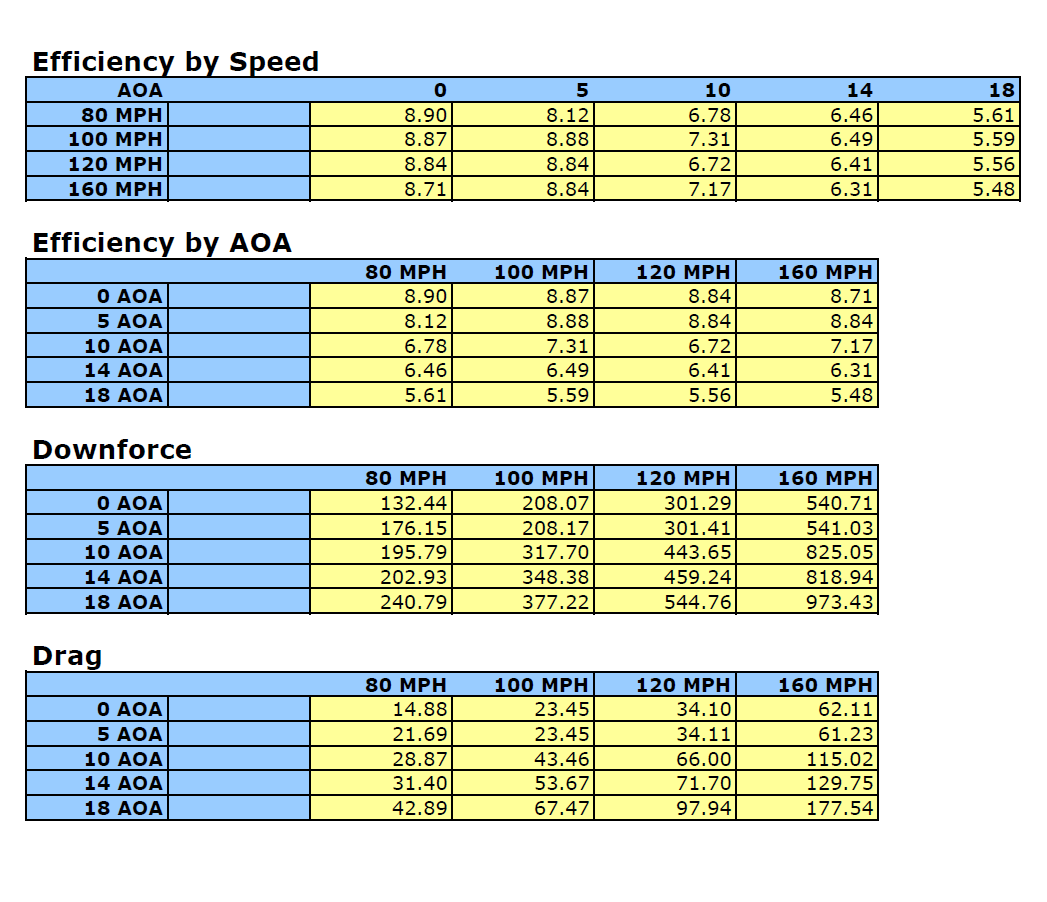

• High Downforce Efficiency (8.88 : 1 Ratio) – Achieves exceptional aerodynamic performance and rear traction.
• Billet Aluminum Mounts – 10mm 6061 aircraft-grade risers provide secure, adjustable mounting.
• Large-Span Design (71” or 74”) – Maximizes rear-end stability and control for high-speed track use.
• Optional Carbon Fiber Gurney Flap – Adds additional downforce and reduces flow separation.
• UV-Resistant Gloss Finish – Protects the carbon fiber weave from fading and discoloration.

Specifications:
• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2”–12” (259–305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber airfoil, 6061 billet aluminum risers
• Angle Adjustment: 0°–15°

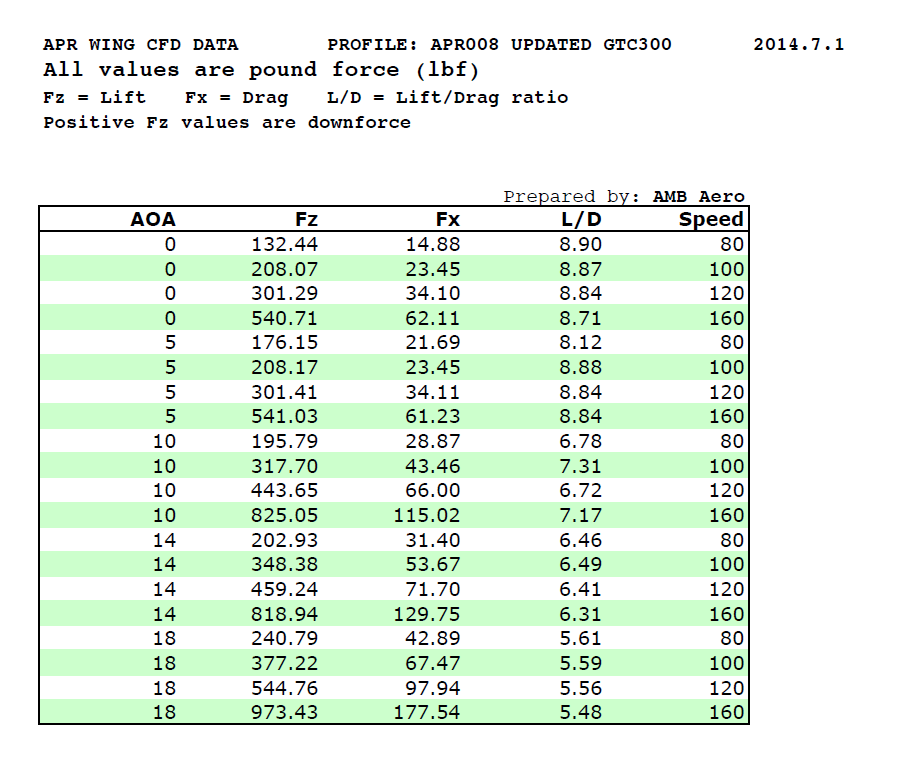

• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon fiber Gurney Flap (½” height, 3M VHB mounting)

Fitment:
Acura NSX — 1990 – 2005
