Acura NSX GTC-500 Carbon Fiber Adjustable Wing 2016 - 2022

This item is made to order, normal lead time is 2-3 weeks.

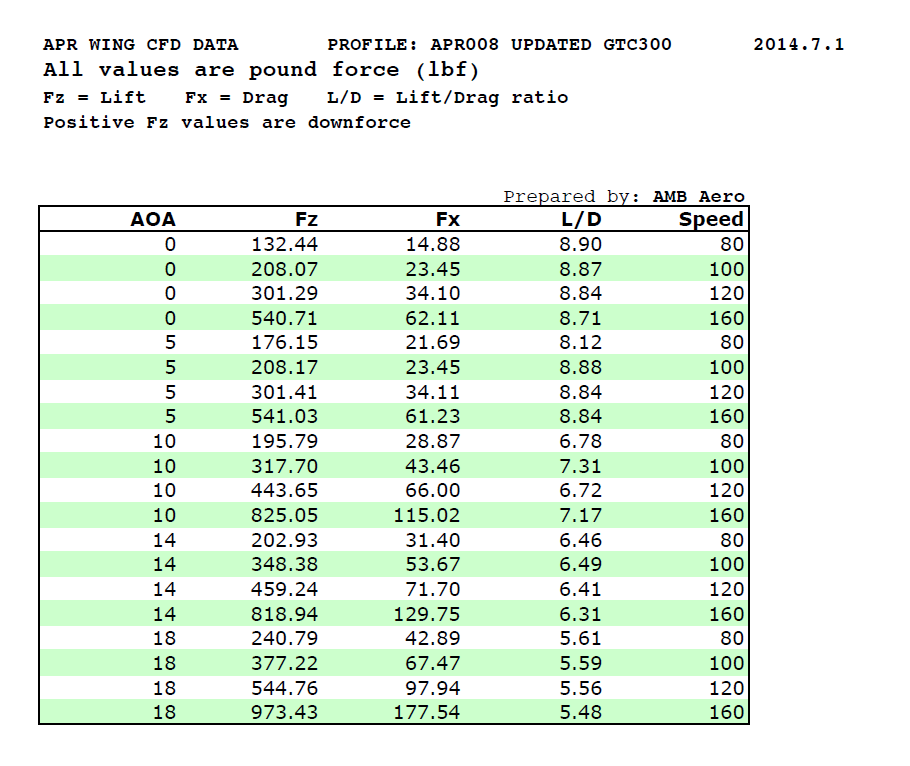

Enhance the aerodynamic precision and high-speed stability of your Acura NSX (2016–2022) with the APR Performance GTC-500 Carbon Fiber Adjustable Wing — a track-proven aerodynamic solution built for professional performance. Designed through Computational Fluid Dynamics (CFD), the GTC-500 delivers an exceptional balance between high downforce and low drag, optimizing cornering grip, braking balance, and overall handling stability for advanced track or street use.

The GTC-500 airfoil features a cambered carbon fiber profile, engineered to create maximum pressure differential across the wing surfaces for consistent downforce and aerodynamic efficiency. Constructed from autoclave-cured pre-preg carbon fiber, the wing offers unmatched rigidity and lightness — ensuring stable aero performance at extreme speeds.

With a fully adjustable angle of attack (0°–15°), the GTC-500 allows fine-tuning of aerodynamic balance for any driving condition. The 6061 billet aluminum risers provide strength, precision, and adjustability for perfect fitment and load distribution.

Ideal for track builds, time-attack cars, and high-performance street NSXs, the GTC-500 combines race-proven aerodynamics with luxury design, giving your supercar the aggressive performance edge it deserves.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for maximum strength, lightweight durability, and precision finish.
• CFD-Optimized Airfoil Design – Maximizes downforce while maintaining low drag for high-speed efficiency.
• Adjustable Angle of Attack (0°–15°) – Allows customizable aerodynamic tuning for different tracks or driving styles.

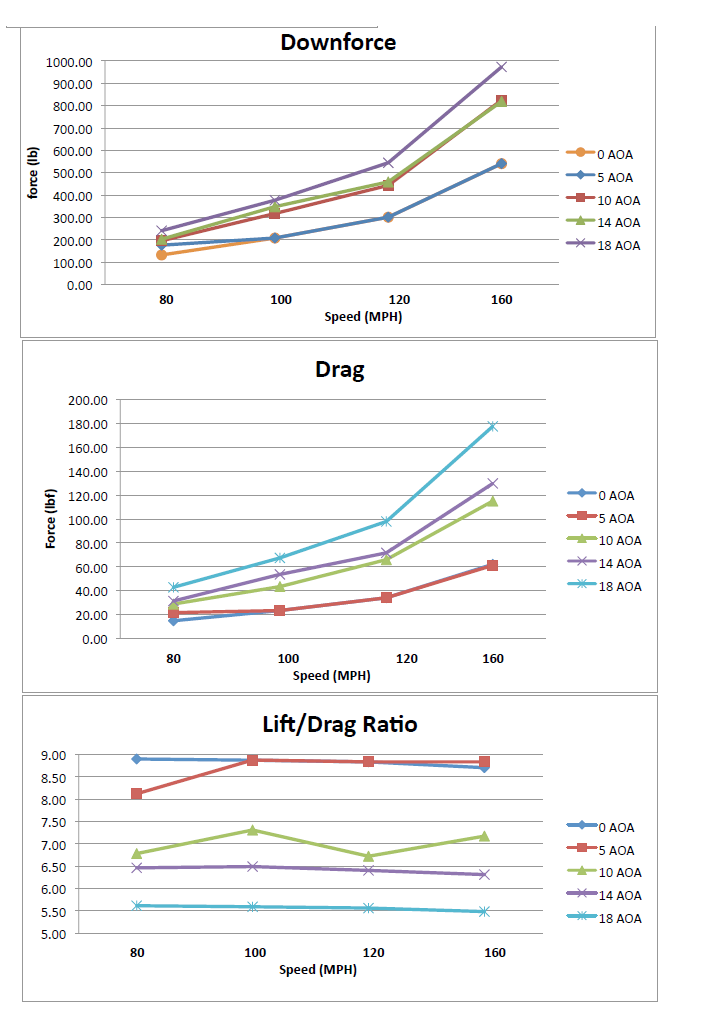

• High Downforce Efficiency (8.88 : 1 Ratio) – Provides exceptional aerodynamic performance and rear stability.
• 6061 Billet Aluminum Risers – Aircraft-grade 10mm mounts for superior strength and adjustability.
• Large-Span Wing (71” or 74”) – Delivers high rear-end stability and precise aerodynamic control.
• Optional Carbon Fiber Gurney Flap – Increases downforce and improves aerodynamic flow separation.
• UV-Resistant Gloss Finish – Protects carbon fiber from fading and preserves premium aesthetics.

Specifications:
• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2”–12” (259–305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber, 6061 billet aluminum risers
• Angle Adjustment: 0°–15° range
• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon fiber Gurney Flap (½” height, 3M VHB mounting)

Fitment:
Acura NSX (2016 – 2022)
