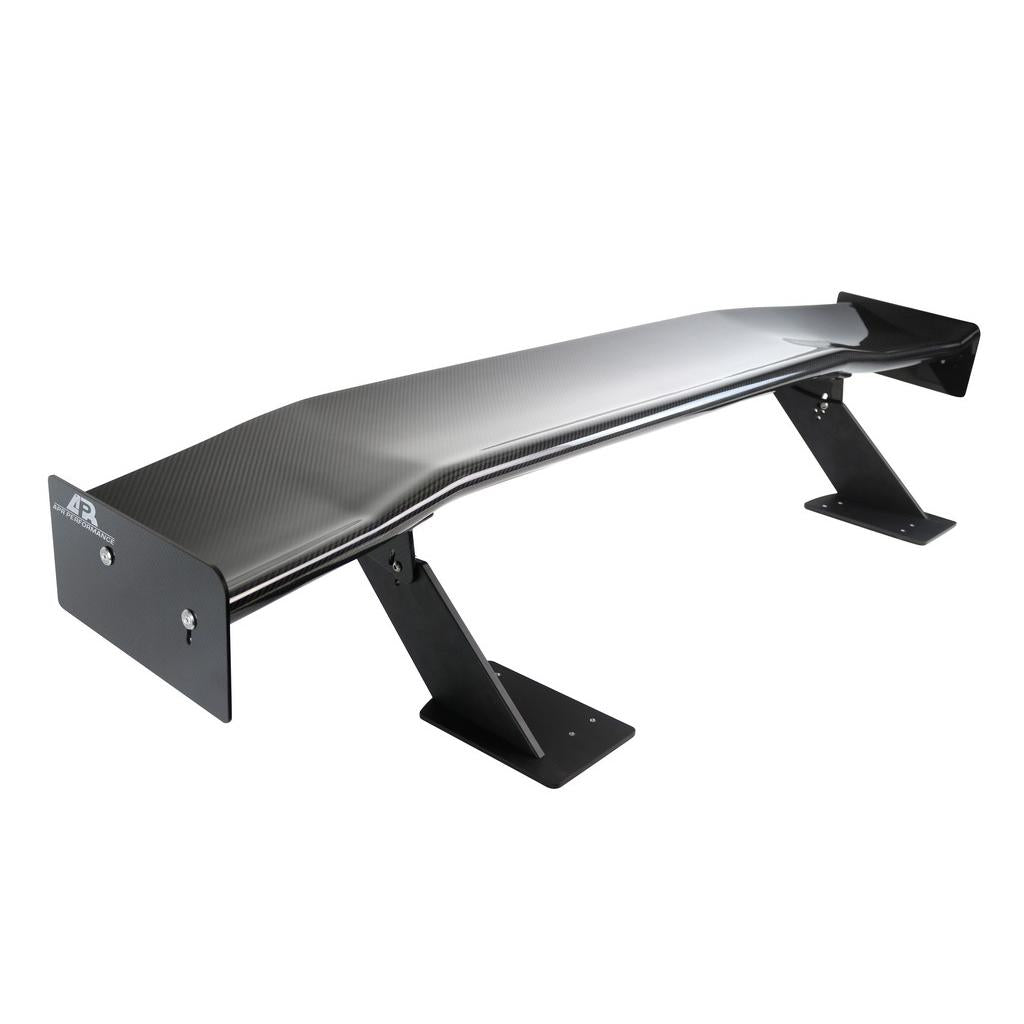

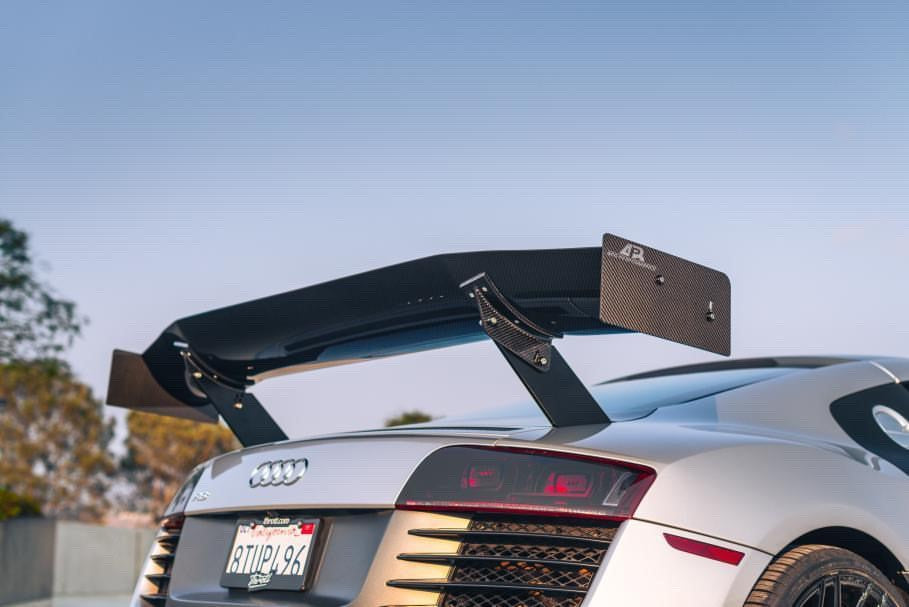

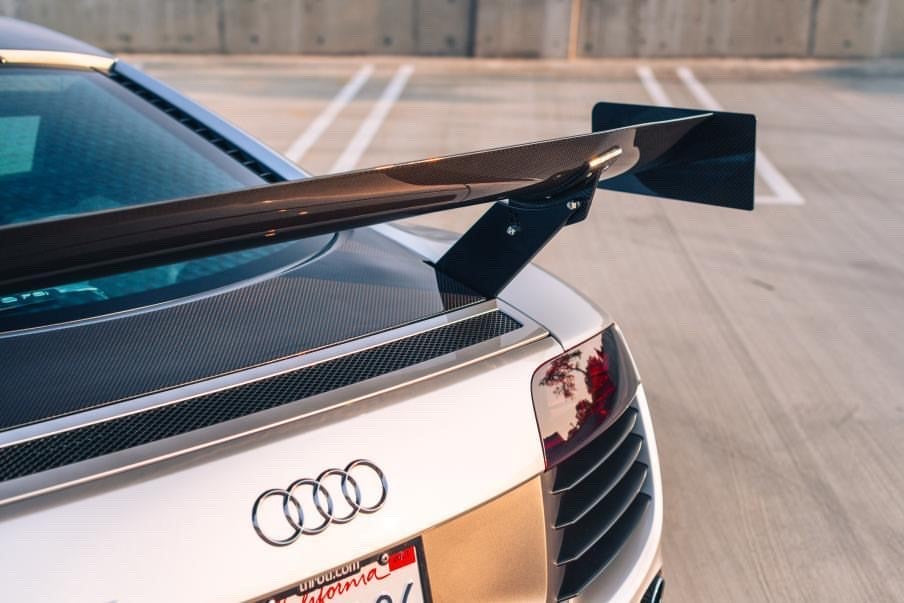

Audi R8 GTC-500 Carbon Fiber Adjustable Wing 2006-2014

This item is made to order, normal lead time is 2-3 weeks.

This is a chassis mount wing, and you will need to slot the factory trunk in order to properly install this wing

DOES NOT FIT CONVERTIBLE

Take your Audi R8 (2006–2014) to the next level of aerodynamic performance with the APR Performance GTC-500 Carbon Fiber Adjustable Wing — a competition-grade aerodynamic component engineered for precision, stability, and track-ready control. Developed using Computational Fluid Dynamics (CFD) analysis, the GTC-500 maximizes rear-end downforce while minimizing drag, resulting in superior cornering grip, improved braking balance, and unmatched high-speed stability.

The GTC-500 airfoil features a cambered CFD-optimized profile that creates an ideal pressure differential between upper and lower surfaces, ensuring smooth airflow attachment and consistent downforce generation. Built with autoclave-cured pre-preg carbon fiber, this wing combines ultra-low weight with race-grade rigidity, ensuring aerodynamic efficiency and stability even under heavy load.

Its fully adjustable angle of attack (0°–15°) allows for tailored aerodynamic performance — from maximum downforce for track use to reduced drag for high-speed straight-line runs. The 6061 billet aluminum risers deliver exceptional mounting strength and precision adjustment, making it the ideal aerodynamic solution for both track-tuned and performance-street R8s.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for superior strength, light weight, and rigidity.
• CFD-Optimized Airfoil Design – Delivers high downforce with minimal drag for maximum aerodynamic efficiency.
• Adjustable Angle of Attack (0°–15°) – Fine-tune your setup for track grip or top-speed efficiency.

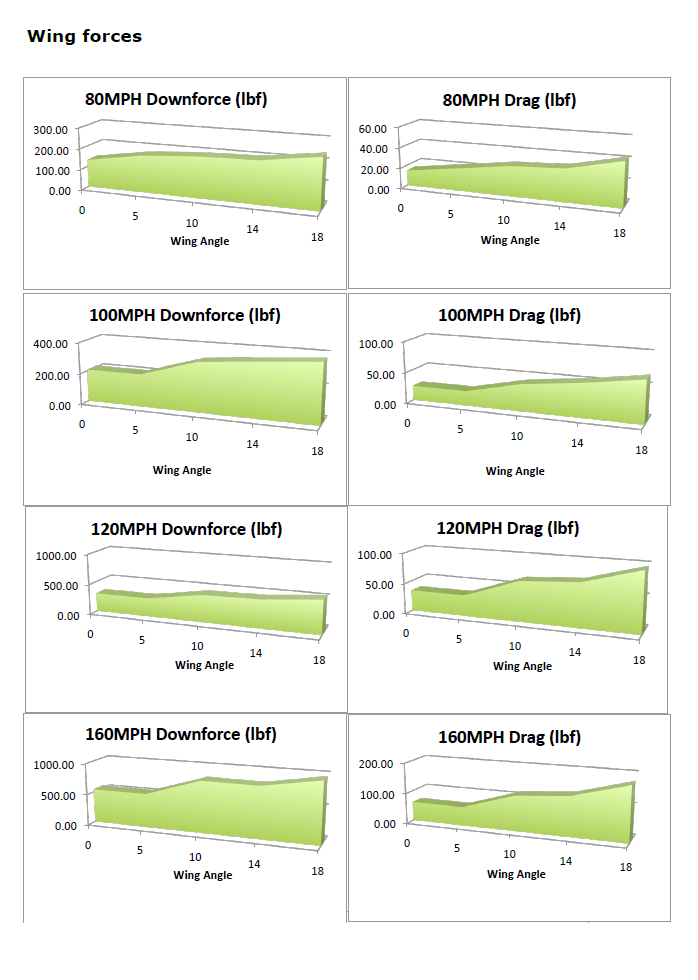

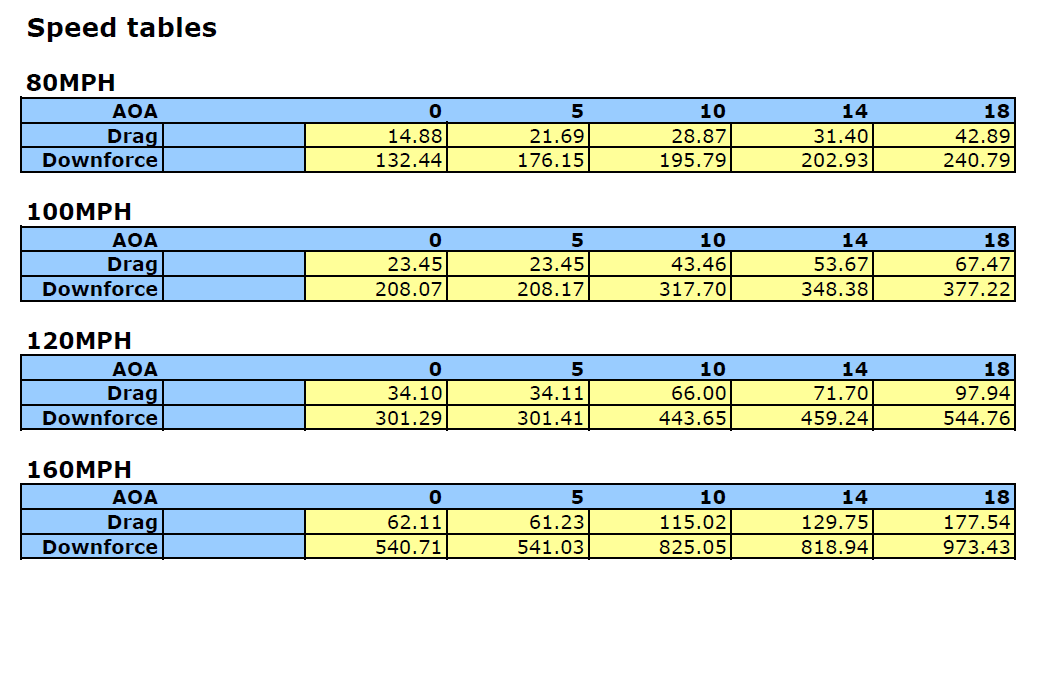

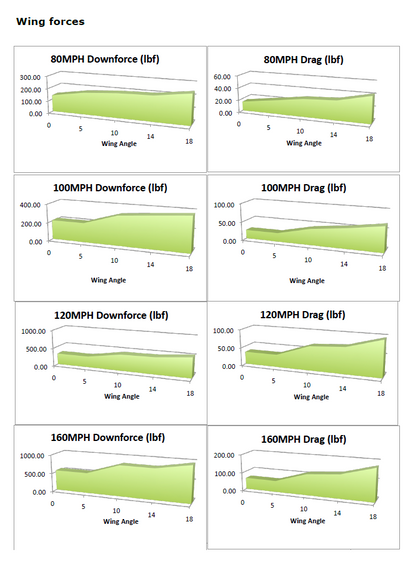

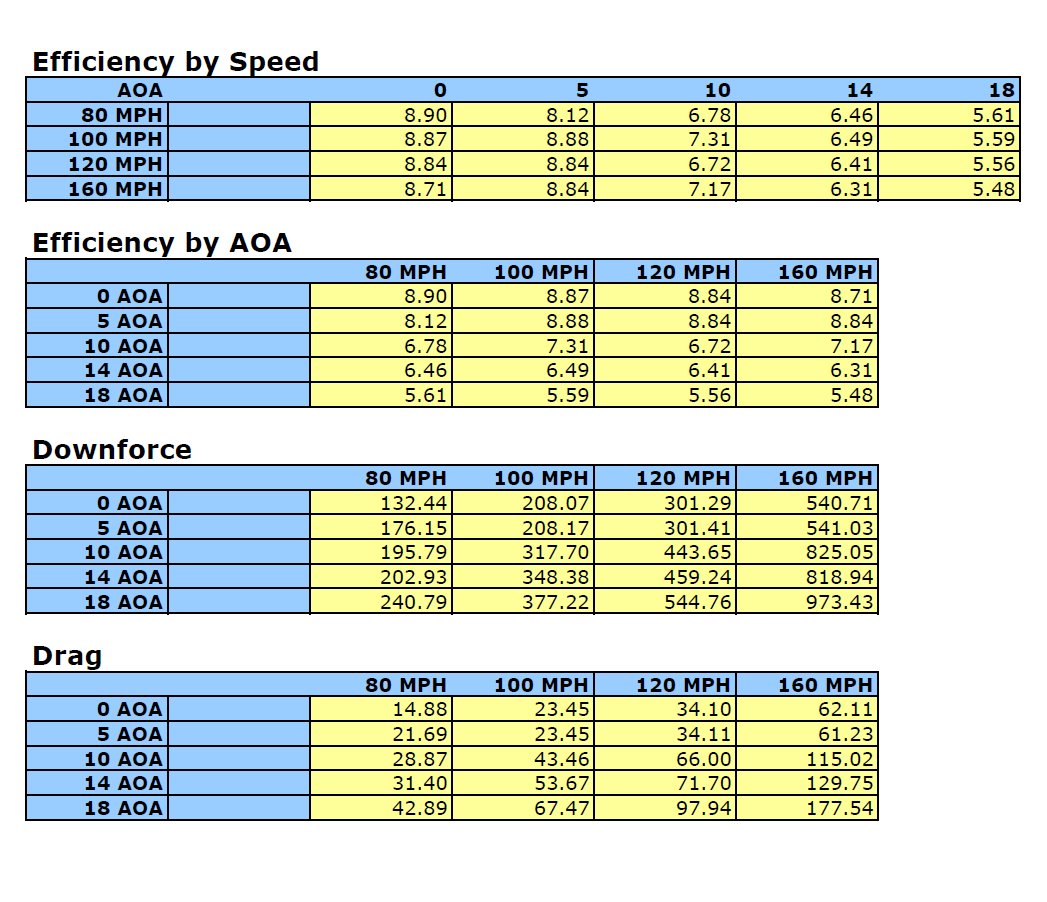

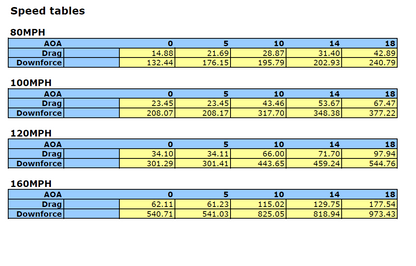

• High Downforce Efficiency (8.88 : 1) – Optimized balance between drag and traction for ultimate performance.

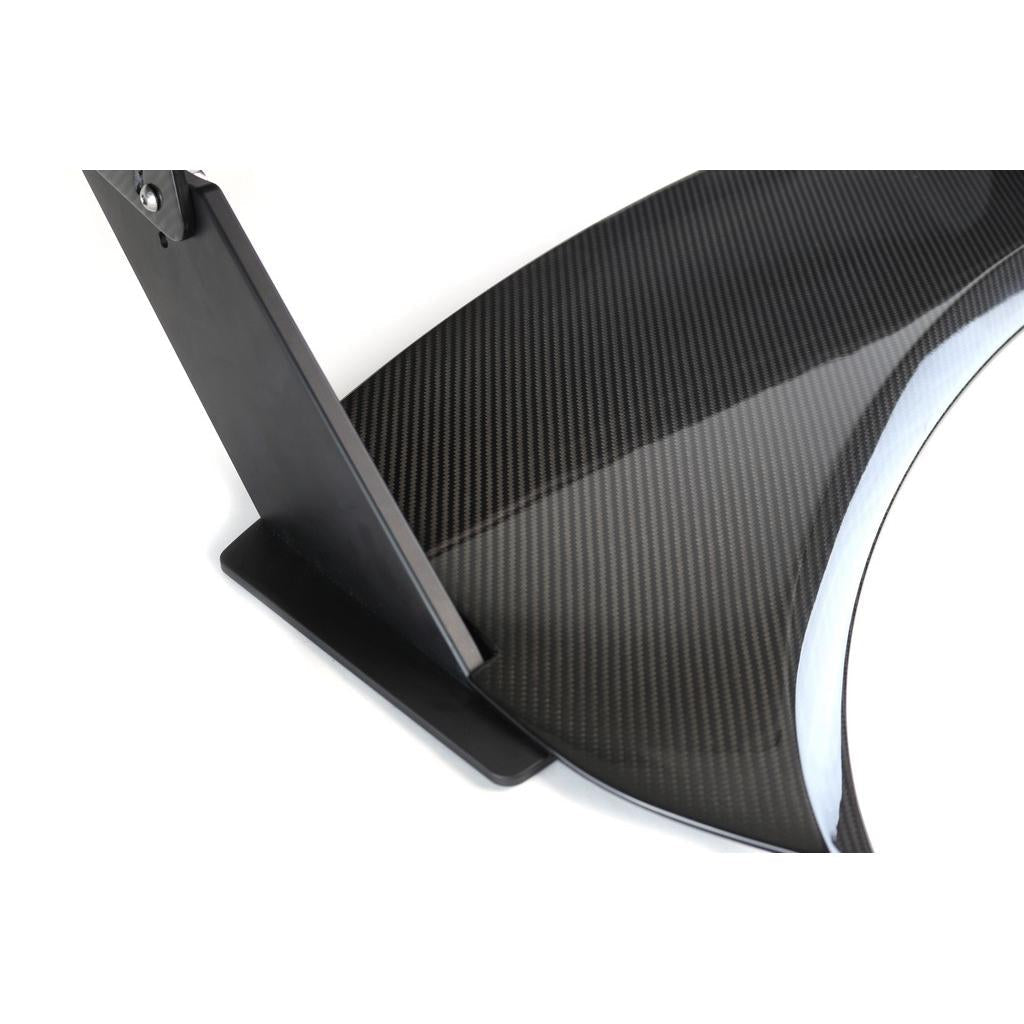

• 6061 Billet Aluminum Risers – 10 mm aircraft-grade mounts provide precision and durability.
• Large-Span Wing (71” or 74”) – Provides significant rear stability for high-speed control.
• Optional Carbon Fiber Gurney Flap – Adds extra downforce for enhanced cornering grip.
• UV-Resistant Gloss Finish – Protects carbon fiber from fading and retains its premium look.

Specifications:
• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2”–12” (259–305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber airfoil with 6061 billet aluminum risers
• Angle Adjustment: 0°–15°

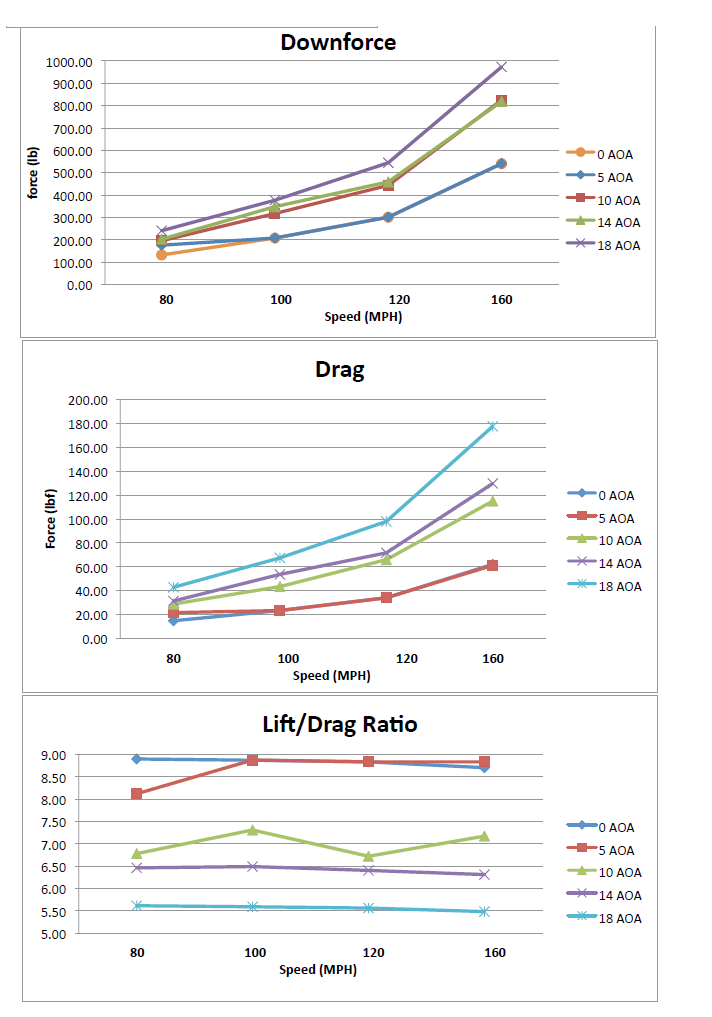

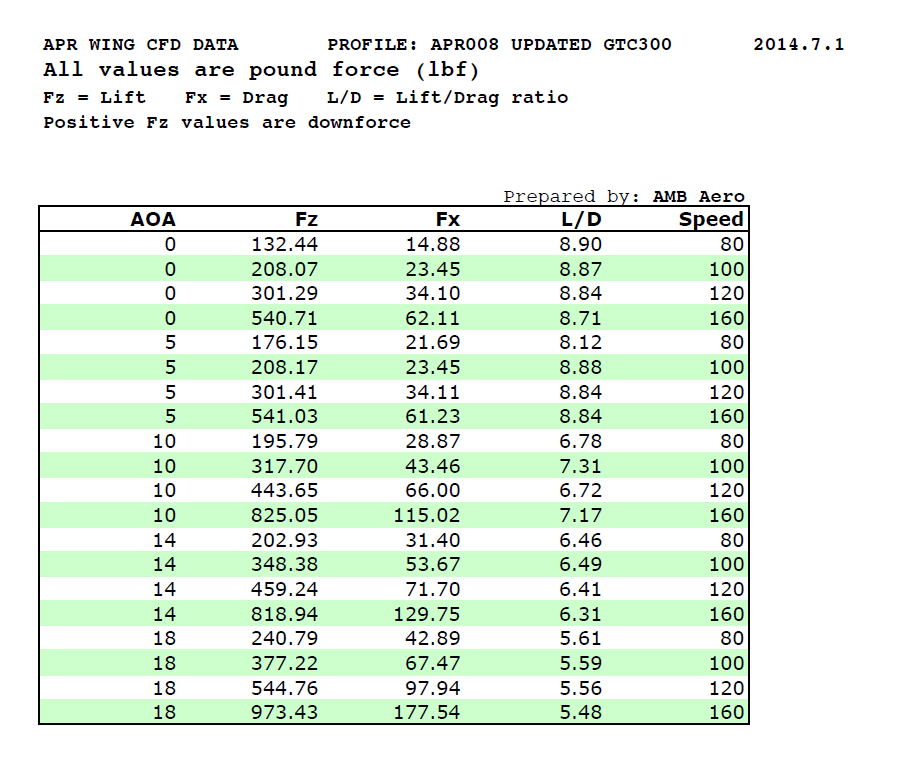

• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon Fiber Gurney Flap (½” height, 3M VHB mounting)

Fitment:
Audi R8 — 2006 – 2014
