Audi R8 GTC-500 Carbon Fiber Adjustable Wing and Trunk Panel Replacement 2016-2022

This item is made to order, normal lead time is 2-3 weeks.

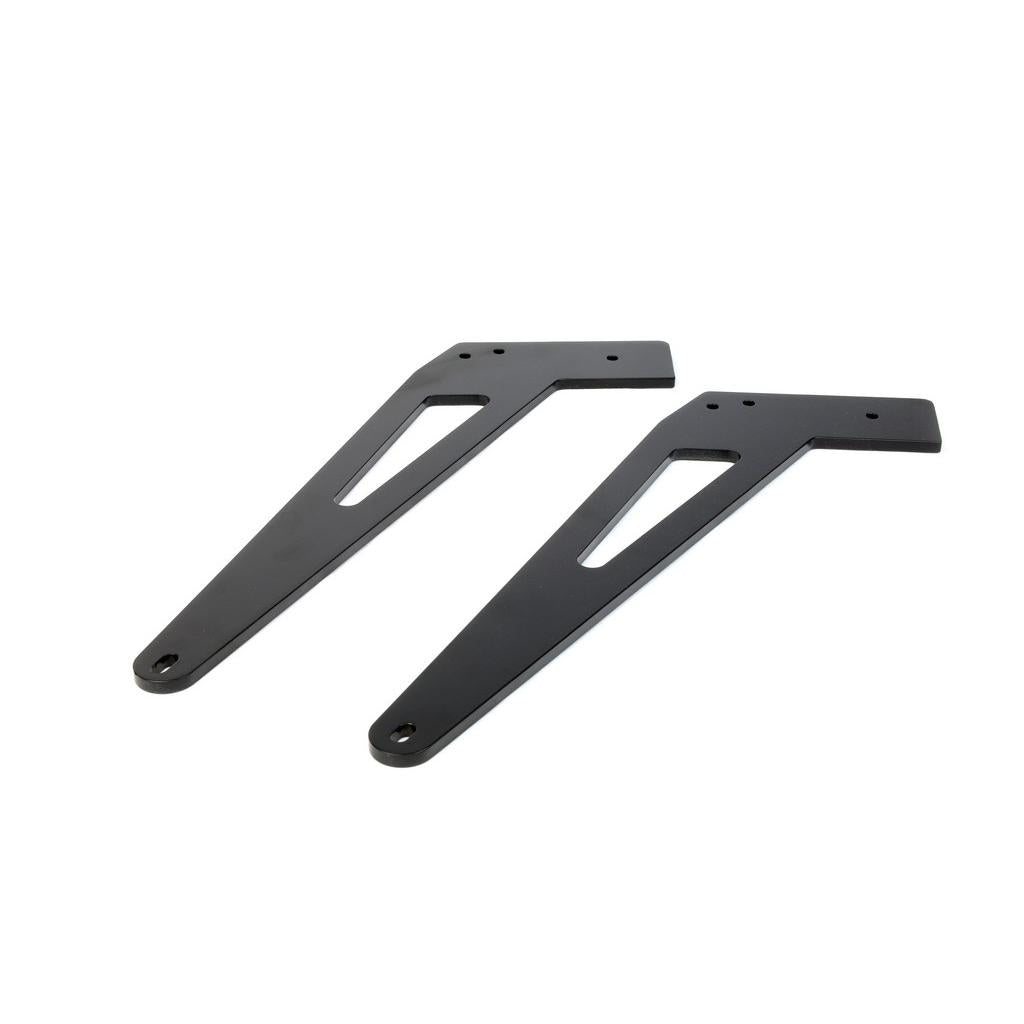

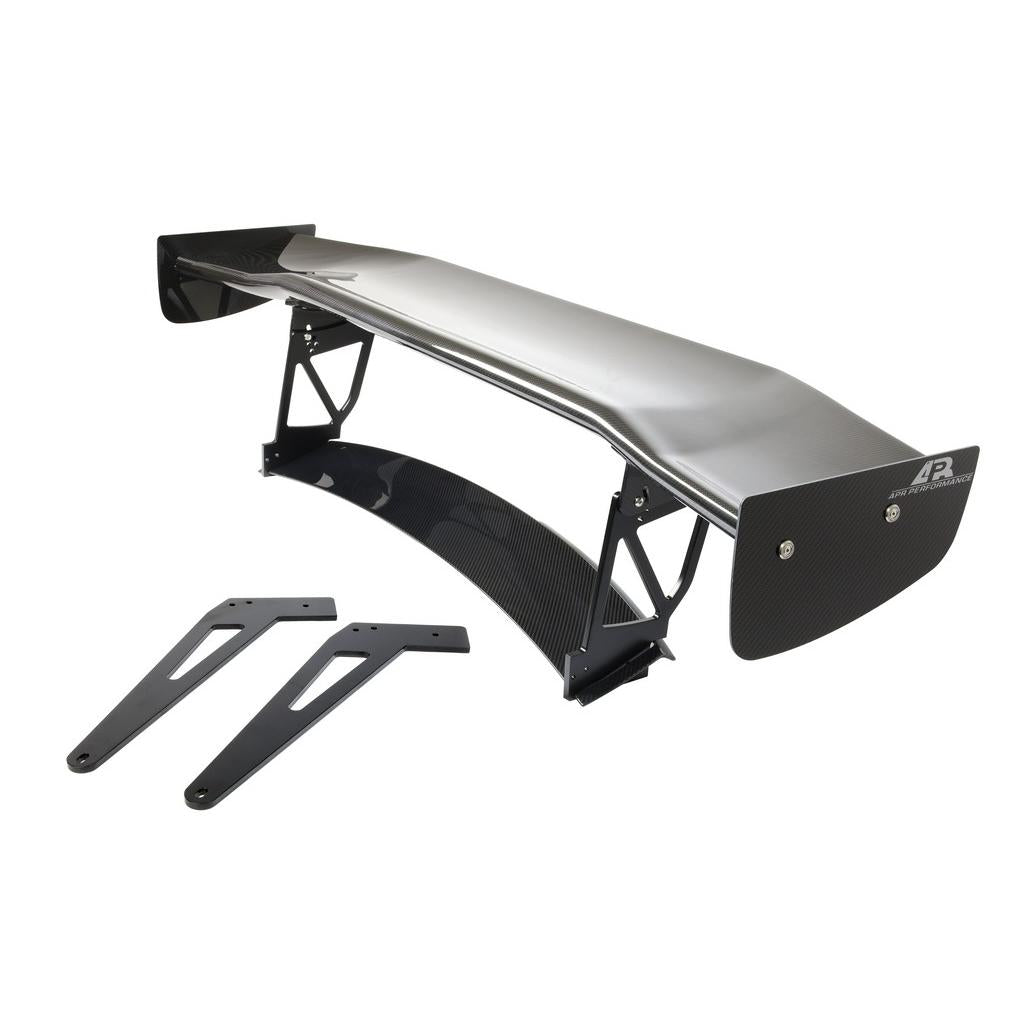

This is a chassis mounted wing. Comes with Carbon Fiber Active Spoiler Panel Replacement, and Addtional Chassis Support Brackets.

DOES NOT FIT CONVERTIBLE.

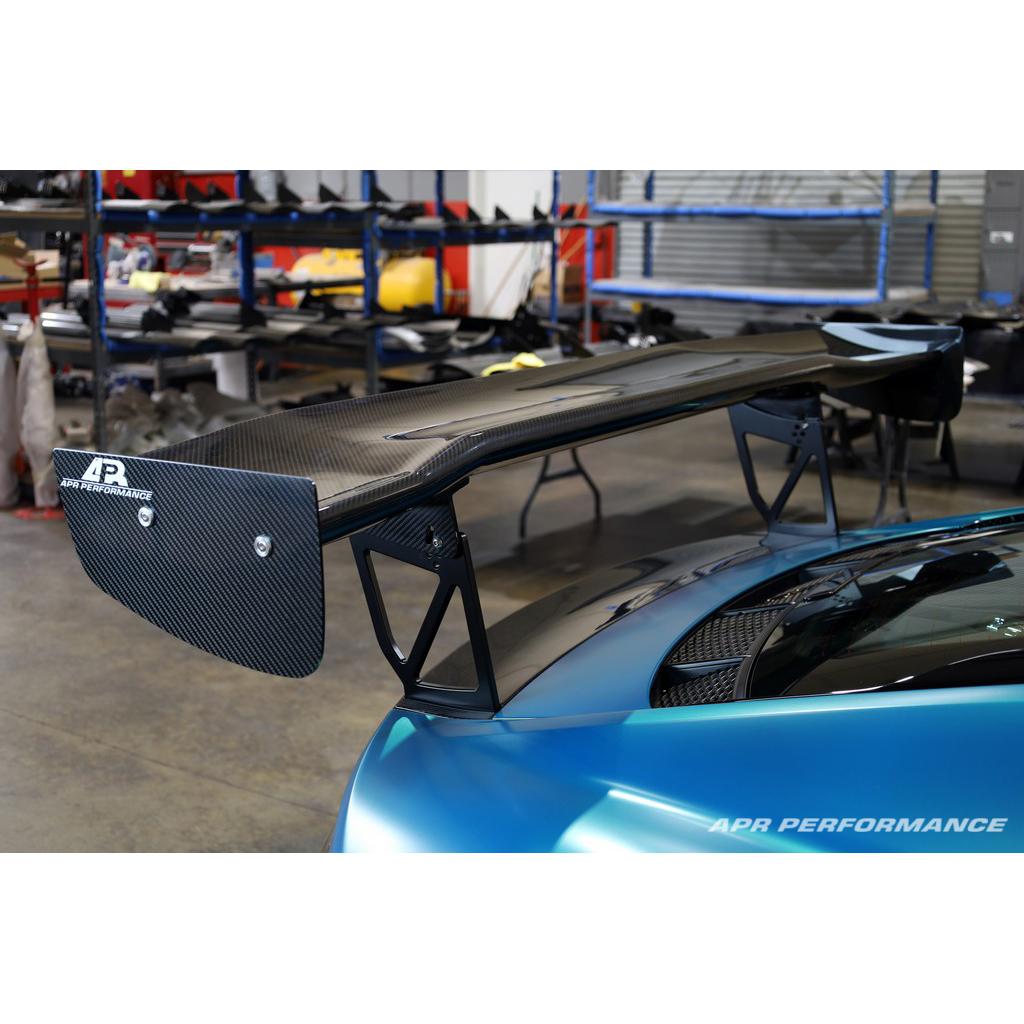

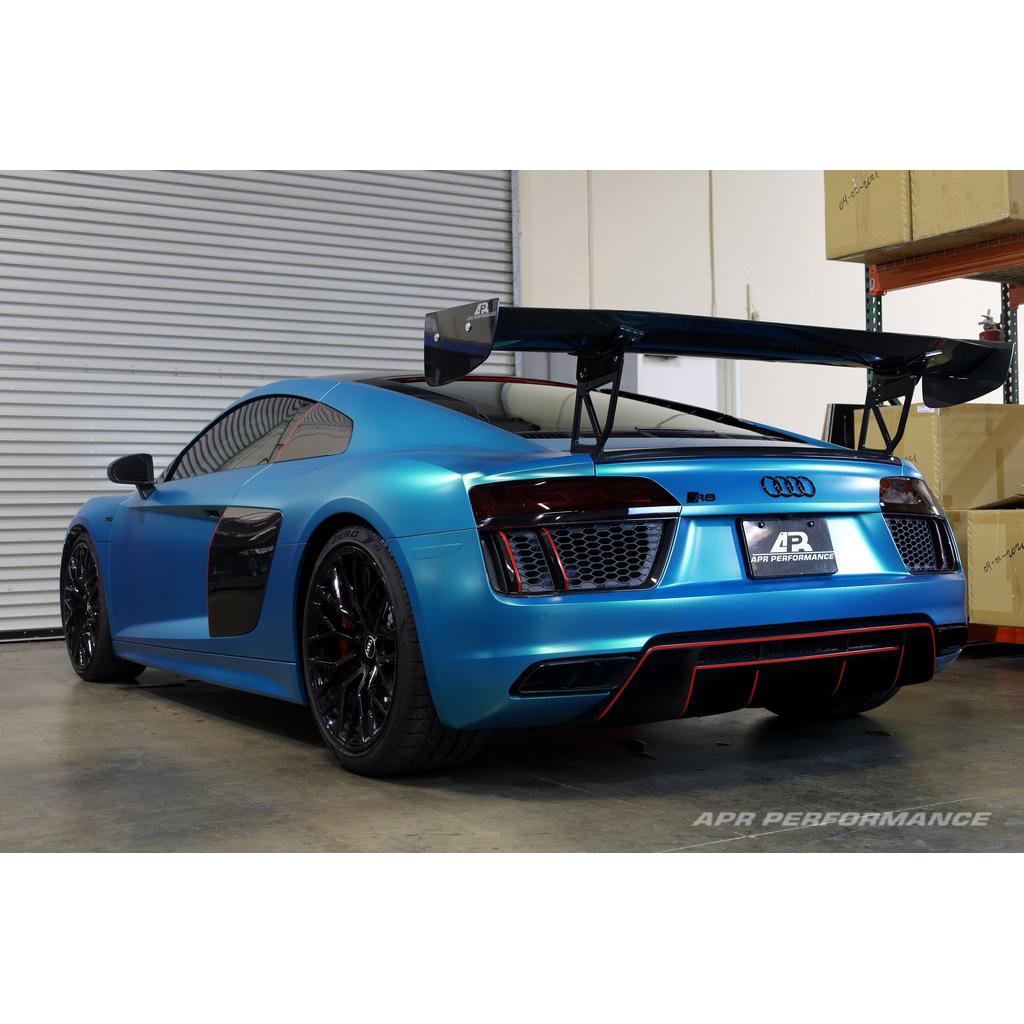

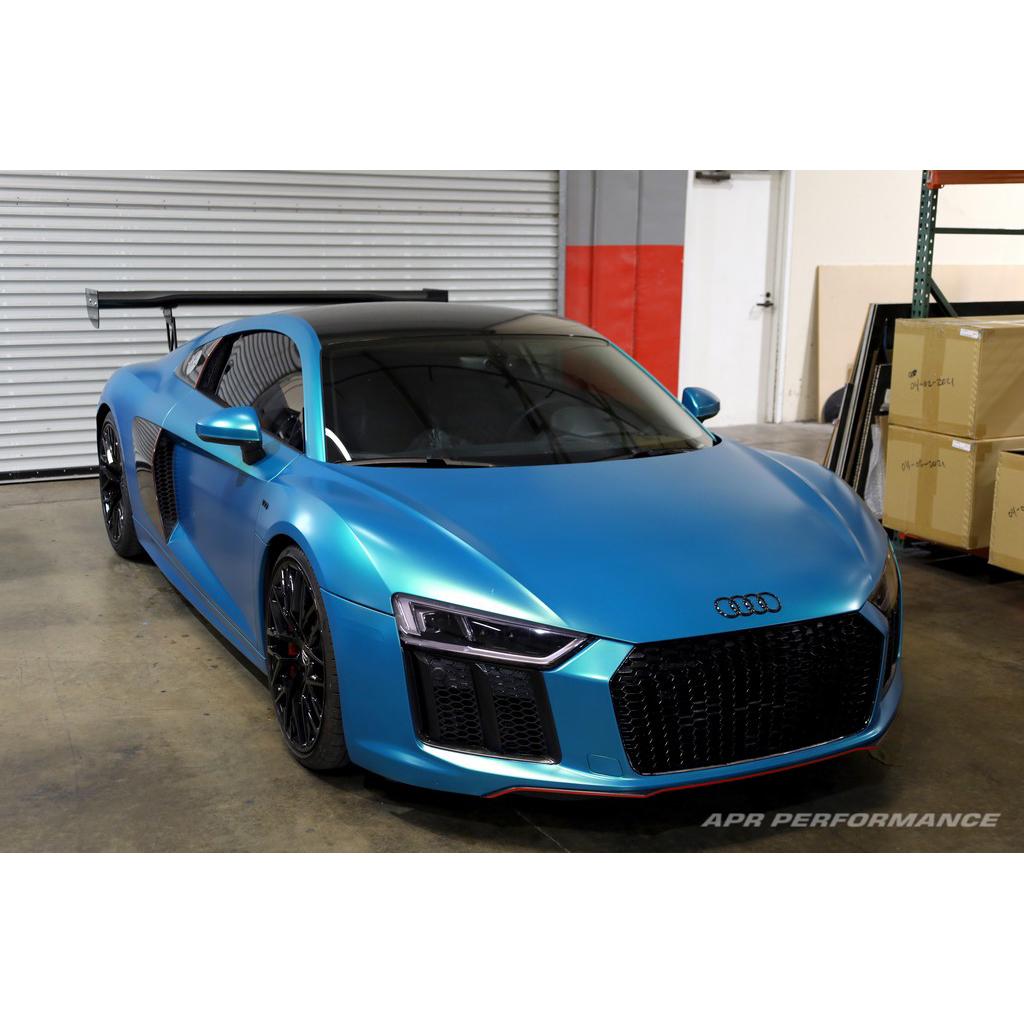

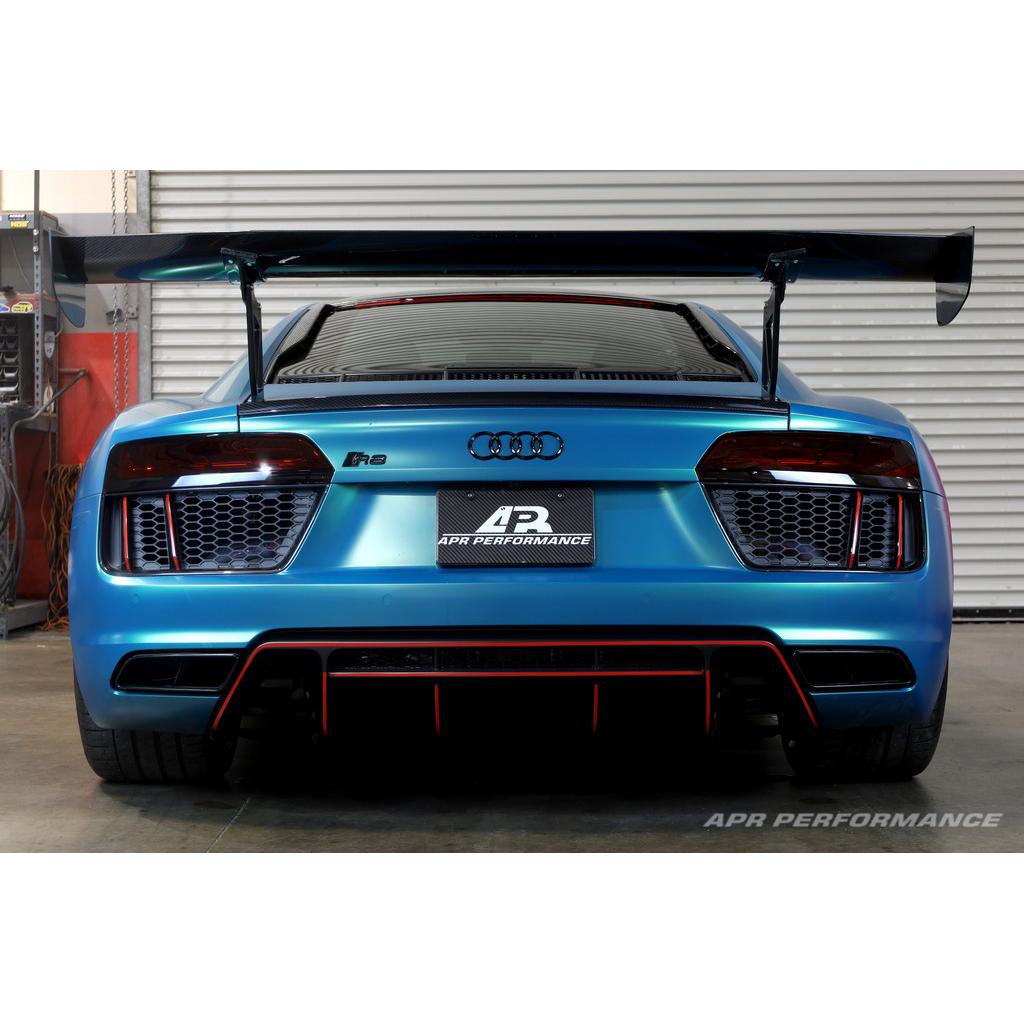

Transform the aerodynamic performance and visual impact of your Audi R8 (2016–2022) with the APR Performance GTC-500 Carbon Fiber Adjustable Wing and Trunk Panel Replacement Kit. This premium system combines a race-engineered adjustable rear wing with a full carbon fiber replacement trunk panel, designed to provide seamless OEM-level fitment while delivering uncompromising aerodynamic efficiency.

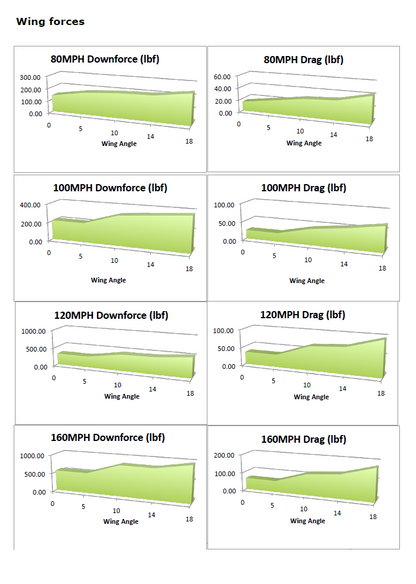

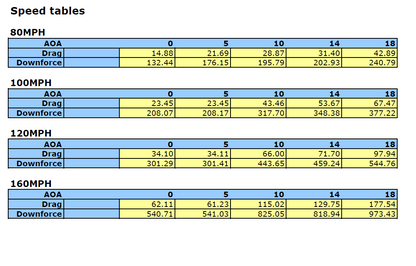

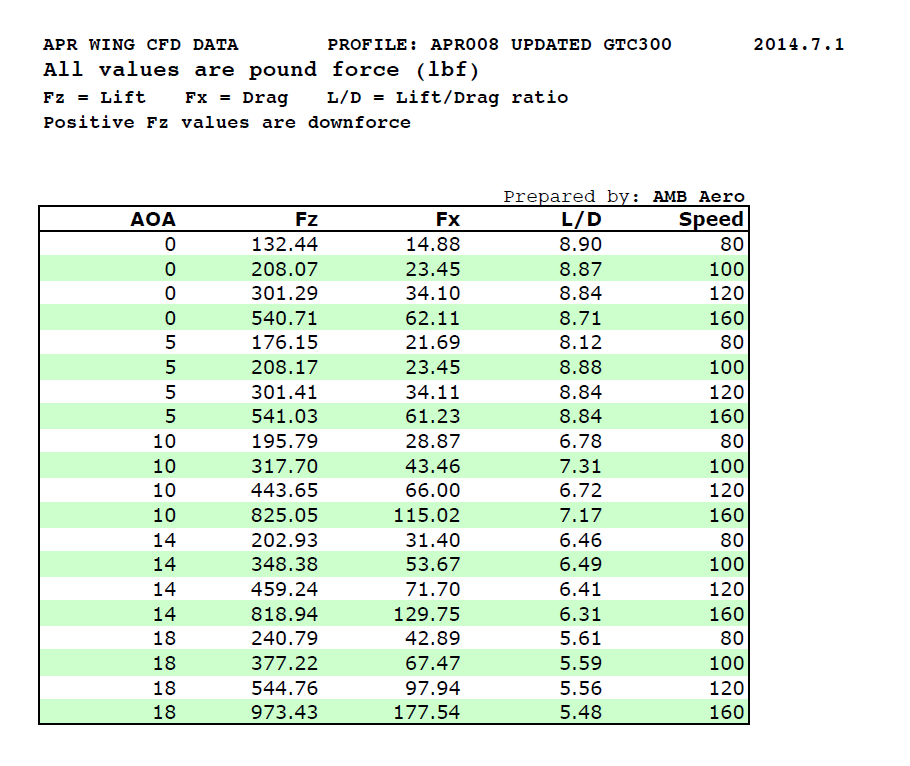

Developed through Computational Fluid Dynamics (CFD), the GTC-500 offers high downforce generation with minimal drag — optimizing rear traction, high-speed stability, and braking control. Its cambered airfoil profile produces a superior pressure differential between the upper and lower surfaces, ensuring maximum downforce without sacrificing straight-line performance.

Constructed using autoclave-cured pre-preg carbon fiber, both the airfoil and trunk panel achieve exceptional stiffness-to-weight ratio, ensuring stability under extreme aerodynamic loads. The 6061 billet aluminum adjustable risers allow precise tuning of angle and height for optimal aerodynamic balance on both road and track applications.

This kit is ideal for track builds, time-attack setups, and performance-focused street R8s, combining lightweight design, high aerodynamic efficiency, and aggressive race styling in one cohesive system.

Key Features:

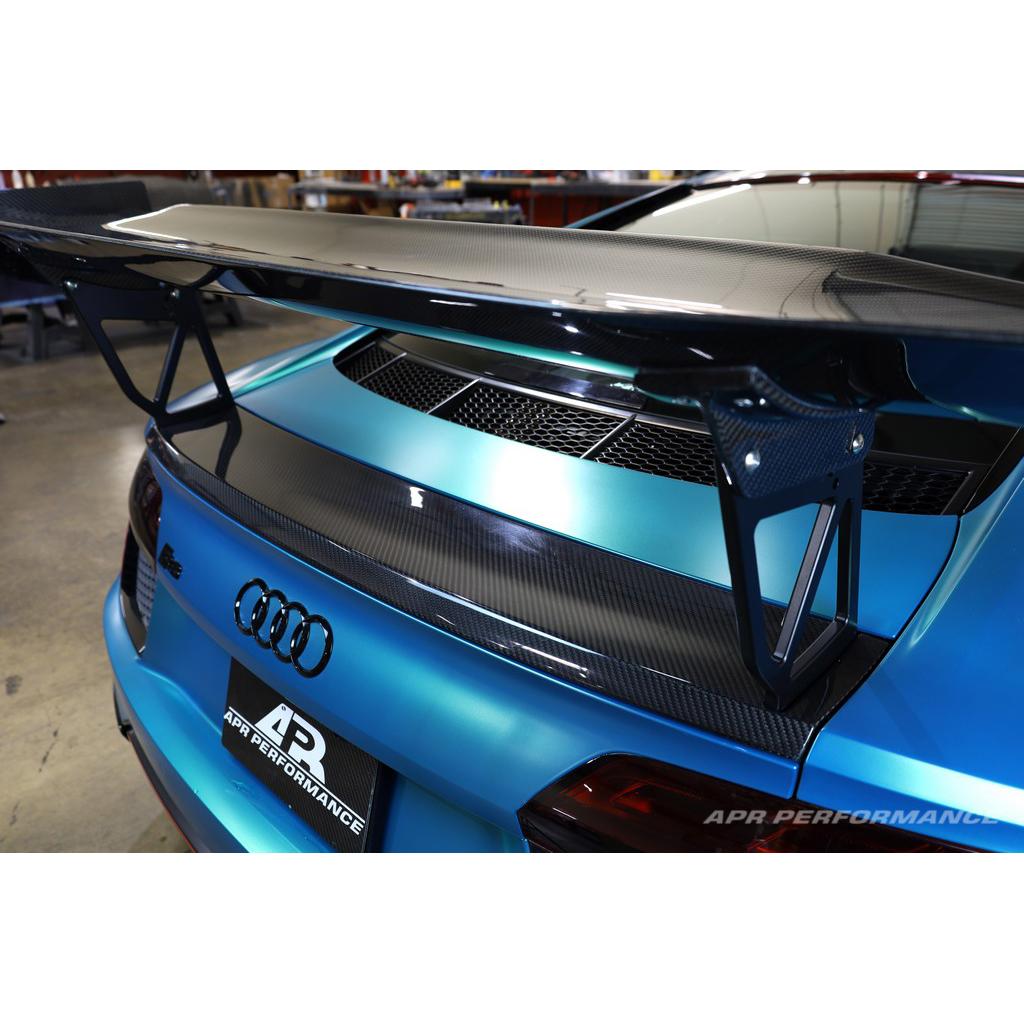

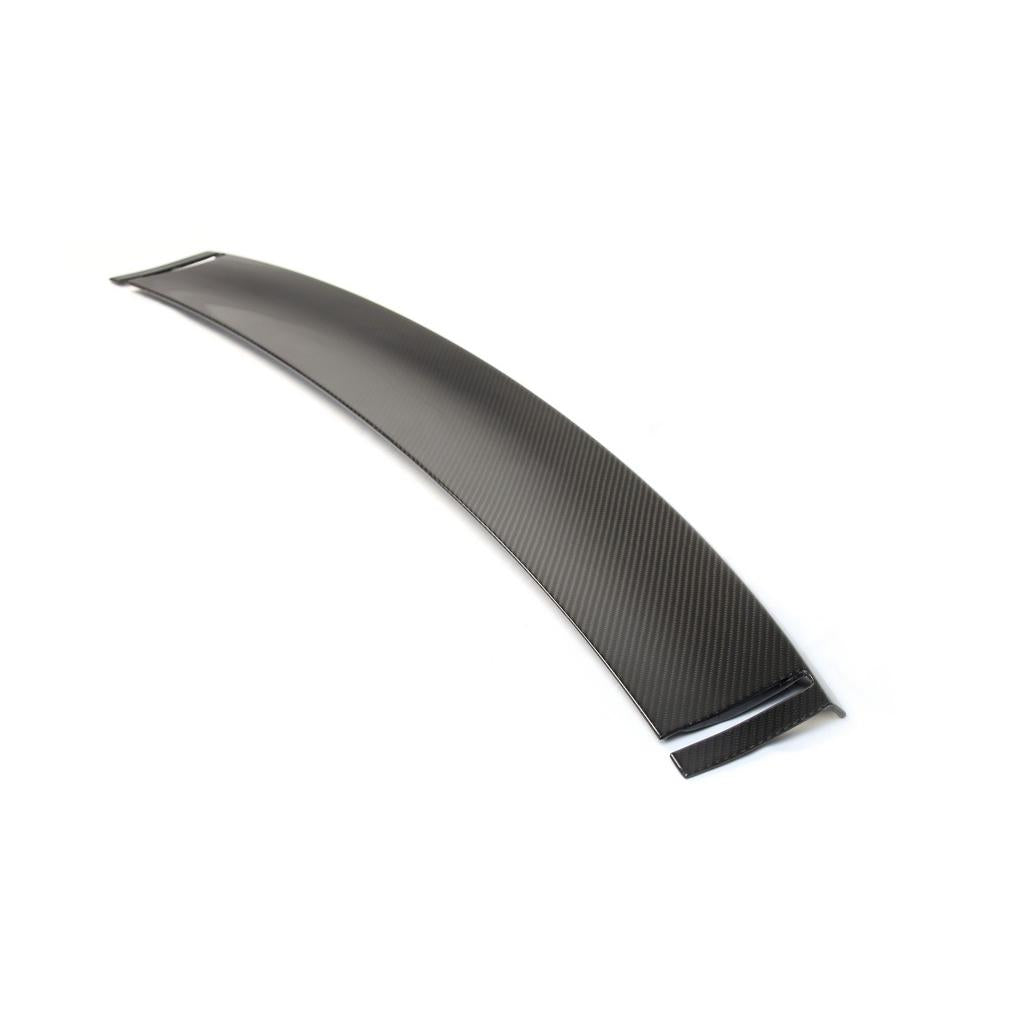

• Complete System – Includes GTC-500 Carbon Fiber Wing and Carbon Fiber Trunk Panel Replacement for perfect fit and integration.
• Pre-Preg Carbon Fiber Construction – Autoclave-cured components for superior strength, lightweight performance, and rigidity.
• CFD-Engineered Airfoil Design – Maximizes aerodynamic efficiency with high downforce and minimal drag.
• Adjustable Angle of Attack (0°–15°) – Fine-tune aerodynamic performance for varying driving and track conditions.

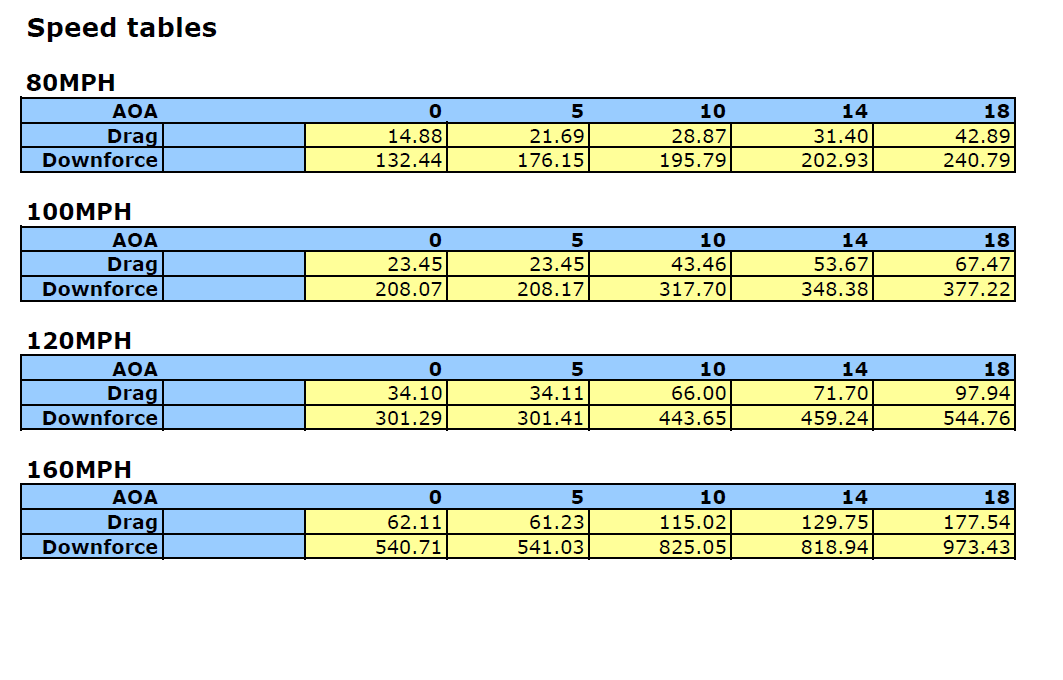

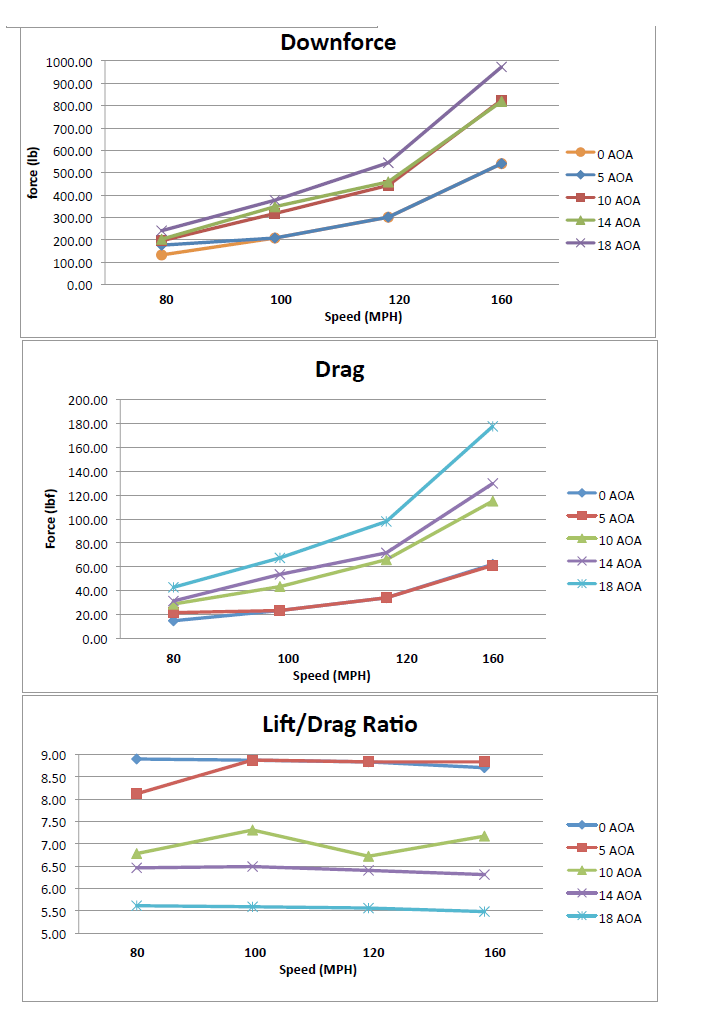

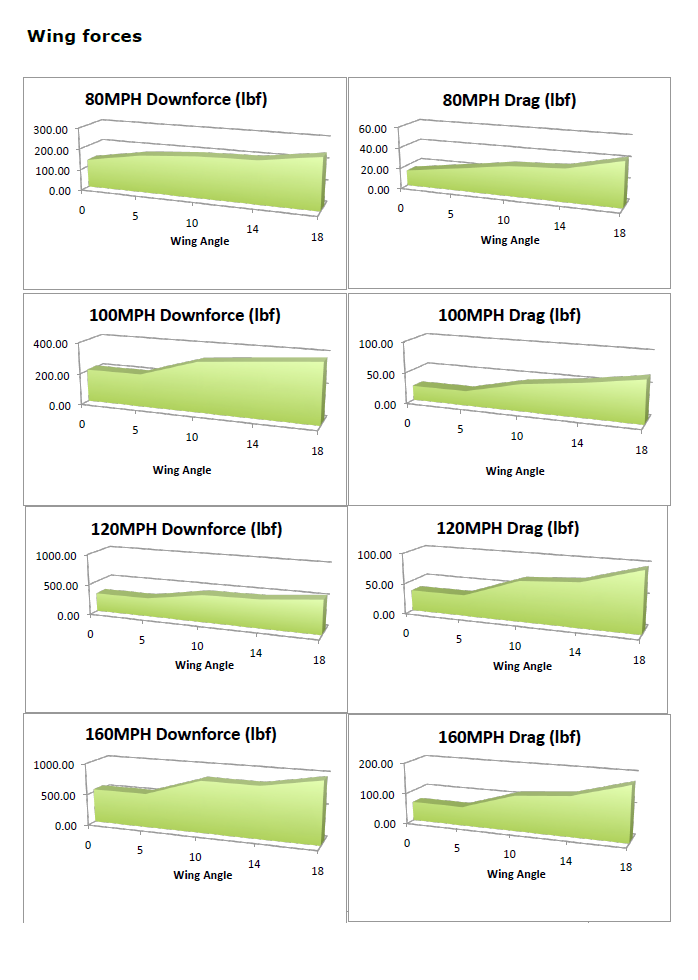

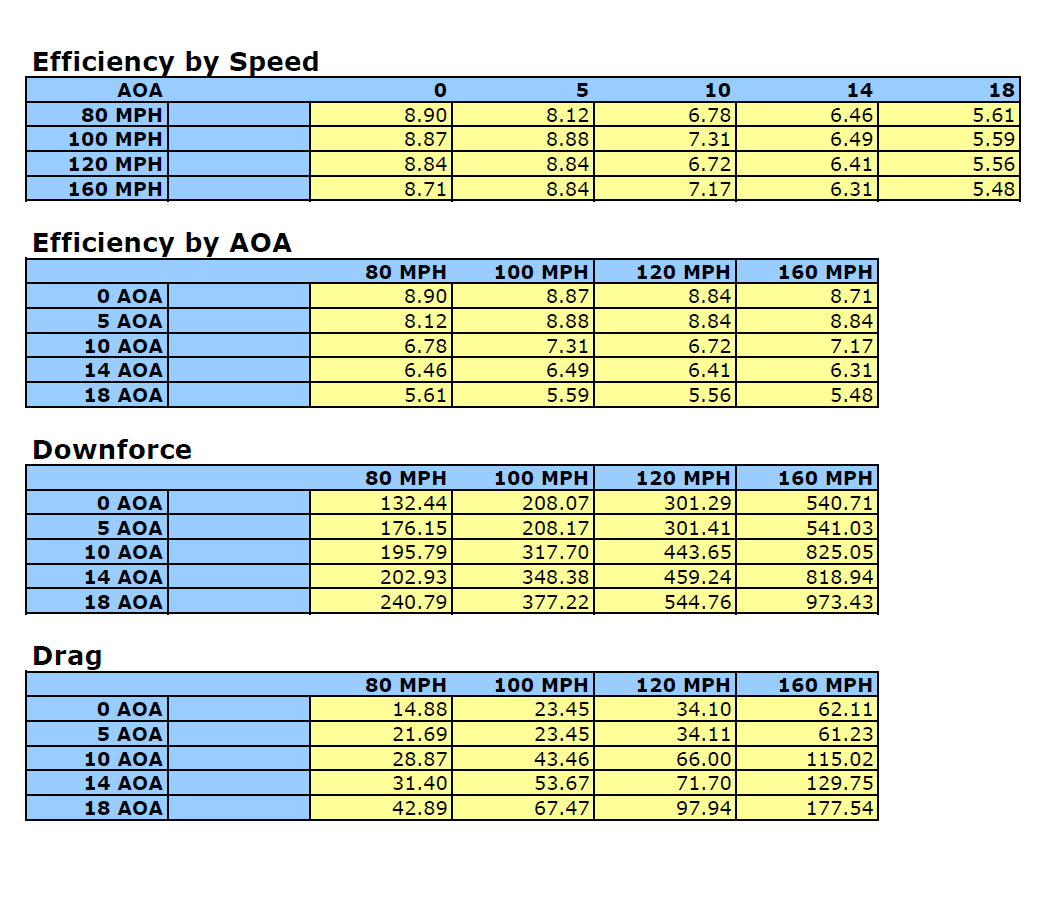

• High Downforce Efficiency (8.88 : 1 Ratio) – Exceptional aerodynamic balance between traction and drag.
• 6061 Billet Aluminum Risers – Aircraft-grade 10mm mounts ensure precise fitment and adjustment.
• Optional Carbon Fiber Gurney Flap – Enhances downforce and aerodynamic response during cornering.
• UV-Resistant Gloss Finish – Provides a deep carbon weave appearance and long-term surface protection.

Specifications:
• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2”–12” (259–305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber airfoil and trunk panel, 6061 billet aluminum risers
• Angle Adjustment: 0°–15°
• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon fiber Gurney Flap (½” height, 3M VHB mounting)

Fitment:
Audi R8 — 2016 – 2022
