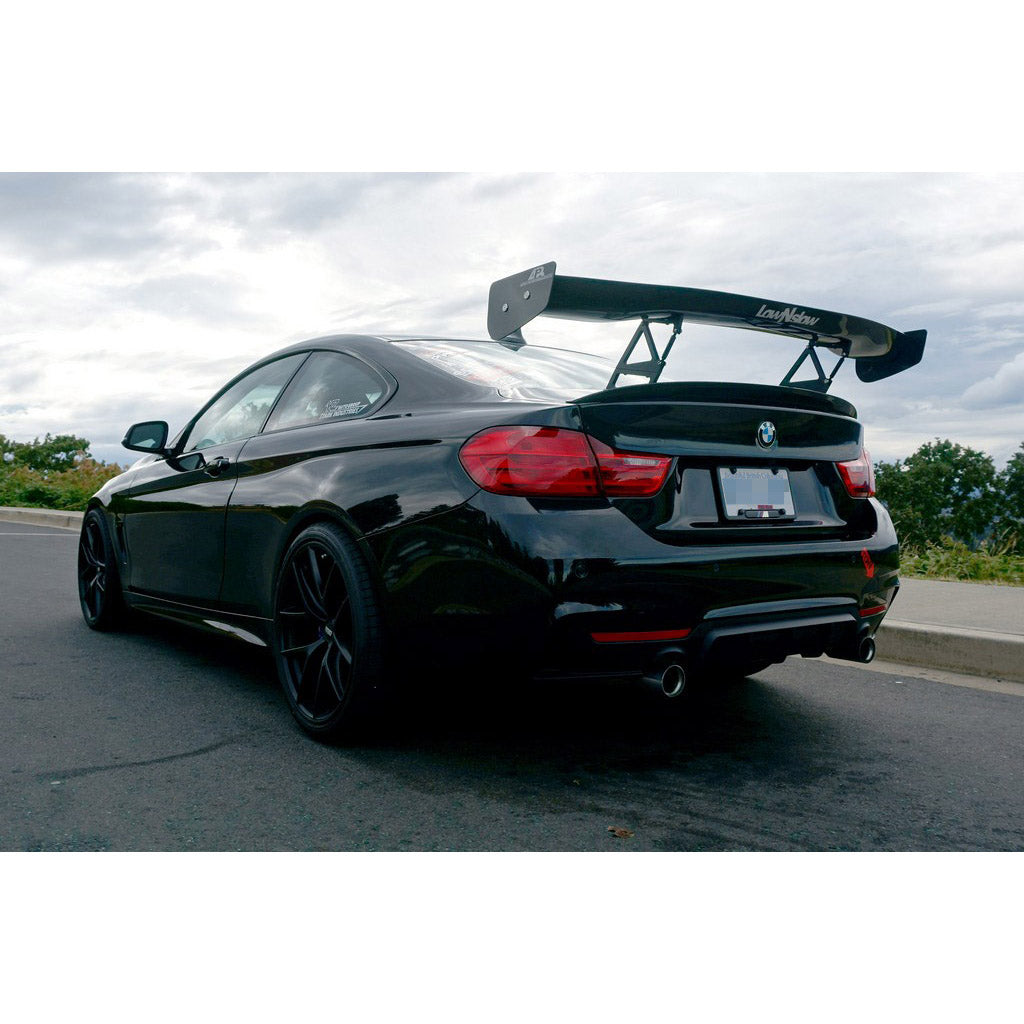

BMW F32 4 Series GTC-200 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 2 weeks.

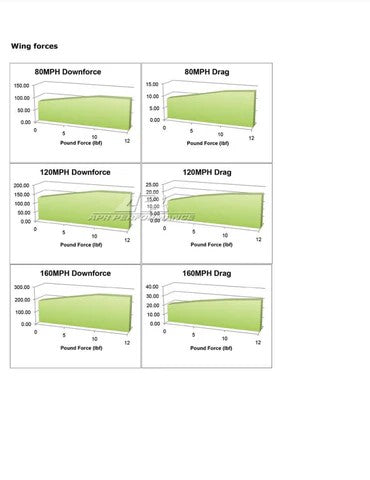

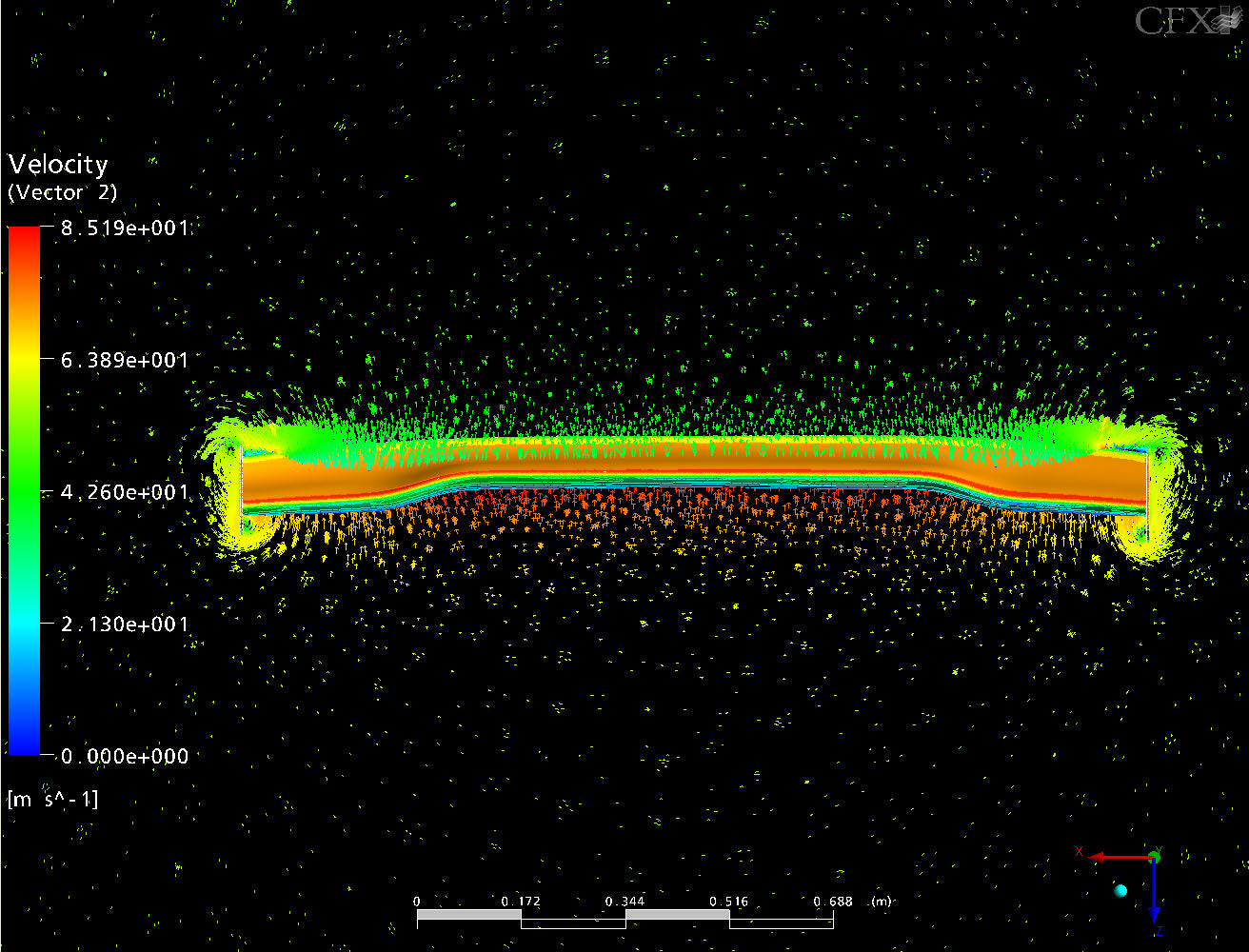

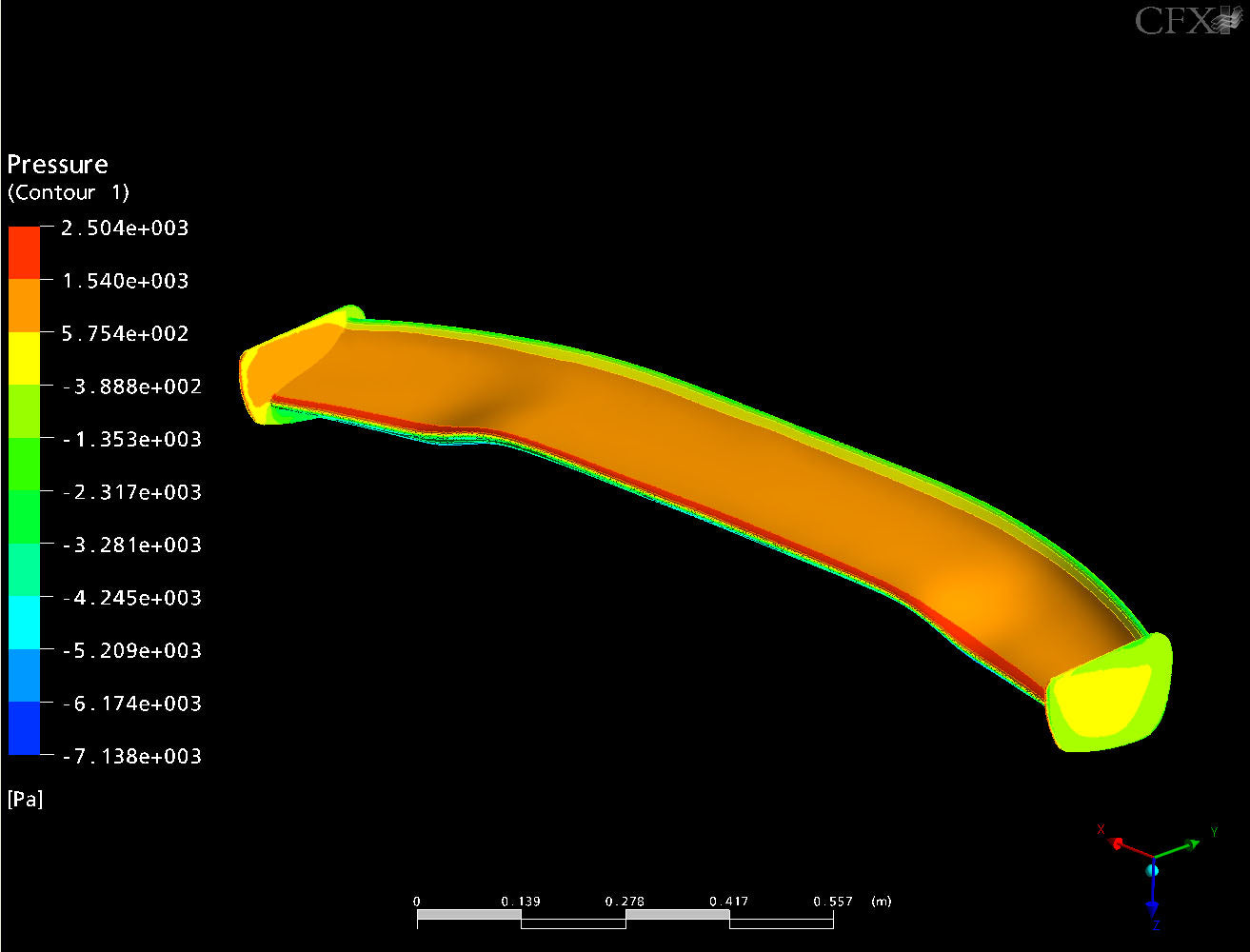

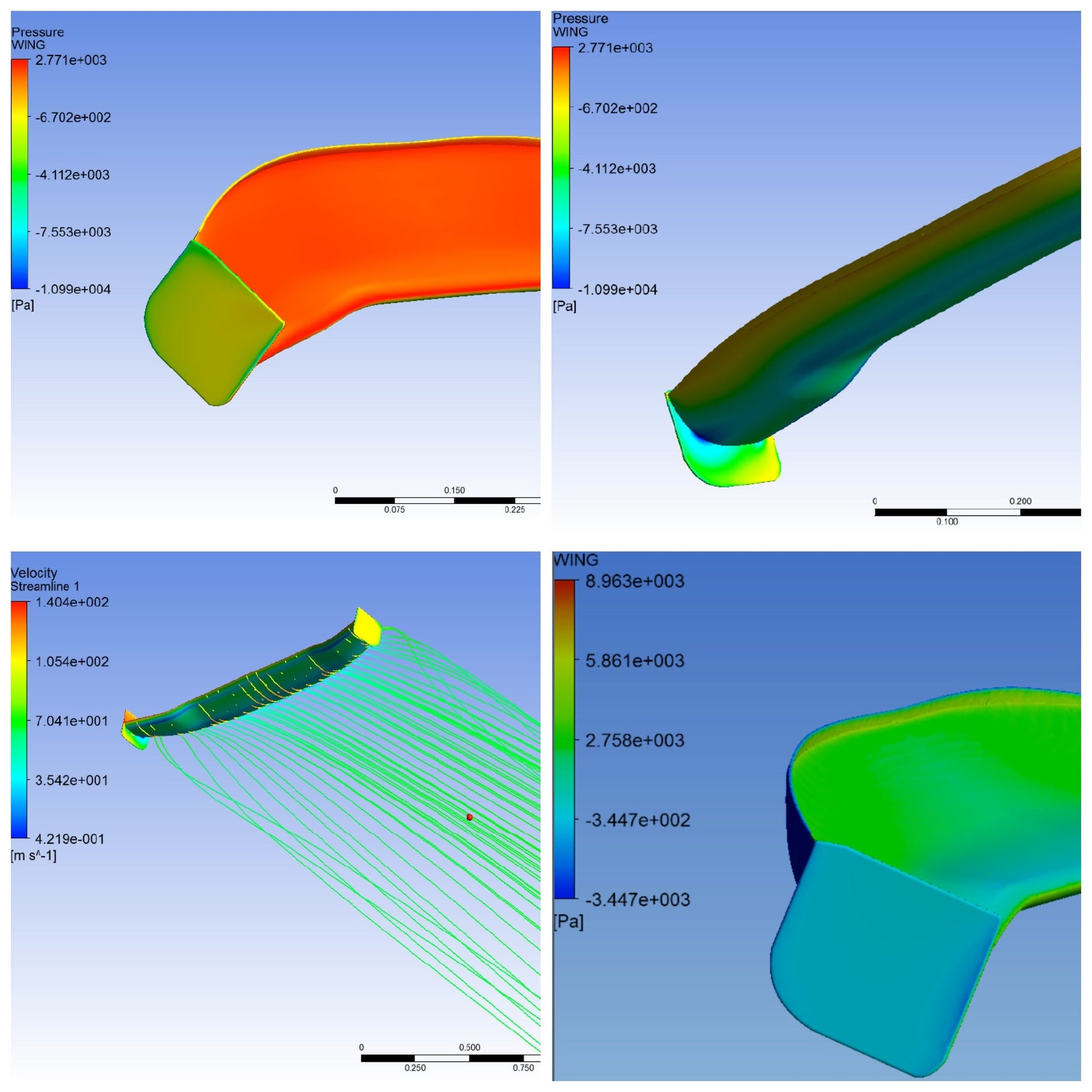

The APR Performance GTC-200 Carbon Fiber Adjustable Wing for the BMW F32 4-Series (2014–2020) provides professional-grade aerodynamic performance for drivers demanding enhanced handling, braking stability, and high-speed balance. Designed through Computational Fluid Dynamics (CFD), this wing achieves superior aerodynamic efficiency—producing significant downforce with minimal drag, perfect for track and street performance.

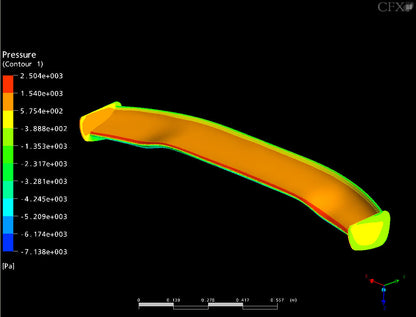

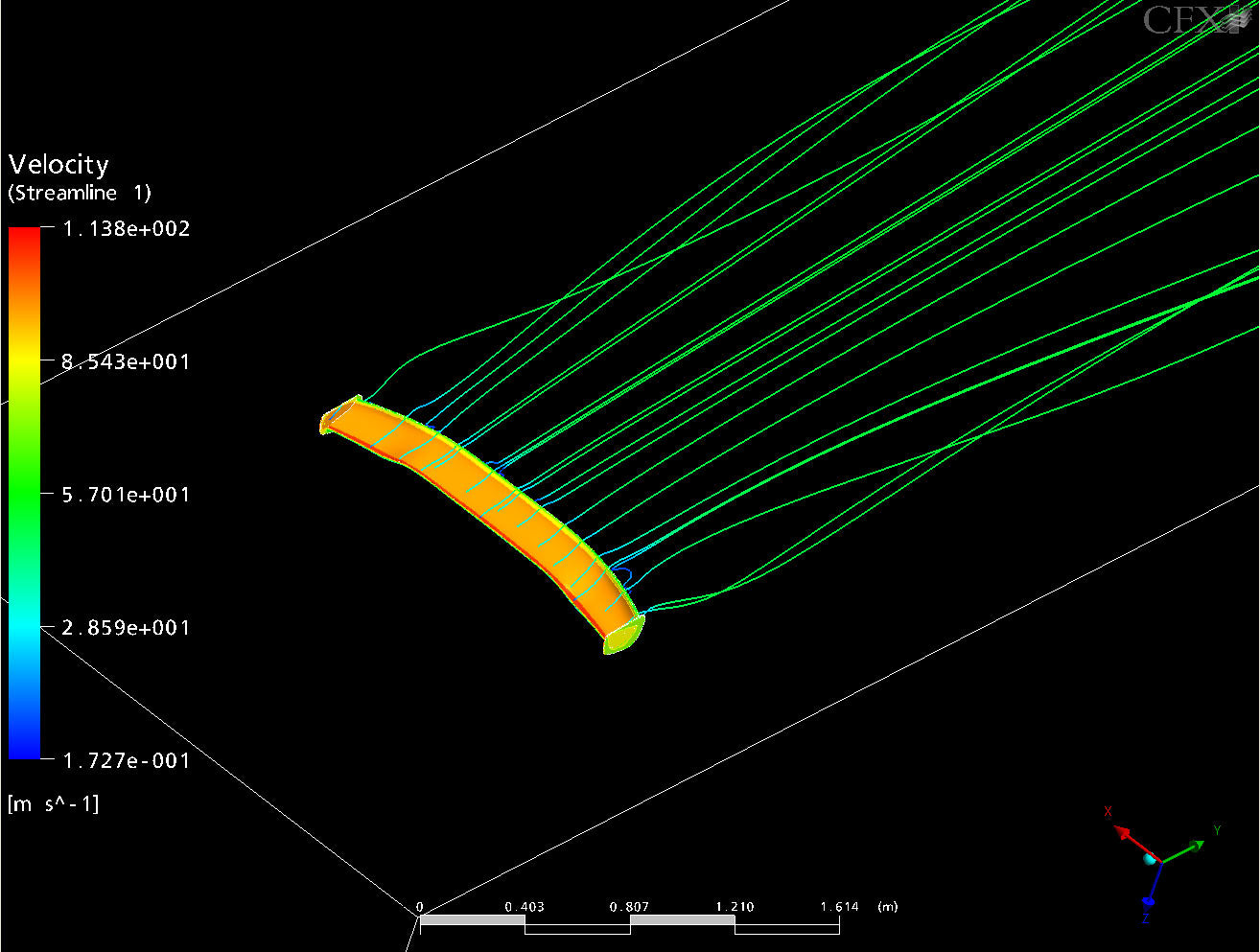

The GTC-200’s cambered airfoil design creates an effective pressure differential between its upper and lower surfaces, maintaining stable airflow attachment even at high speeds. The result is exceptional rear-end stability and reduced aerodynamic drag.

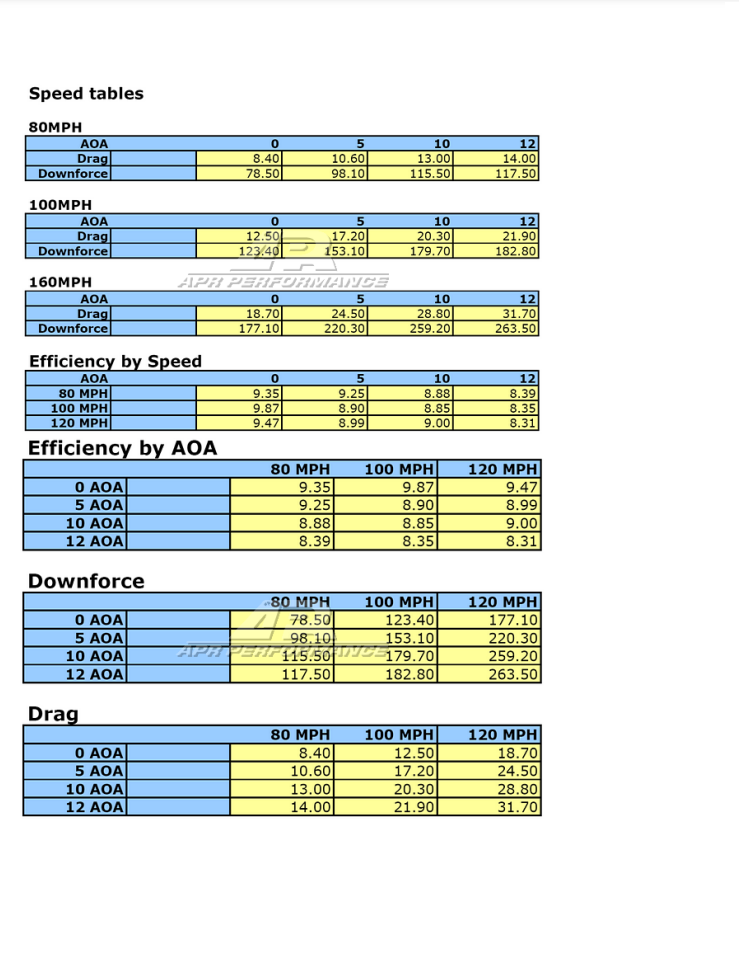

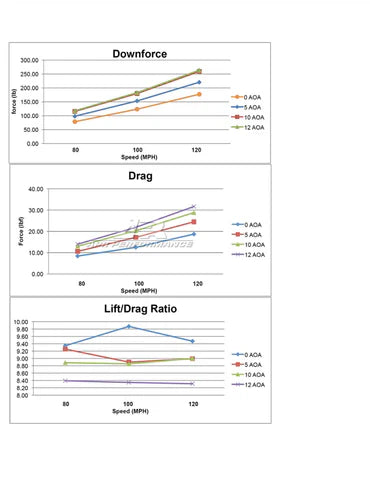

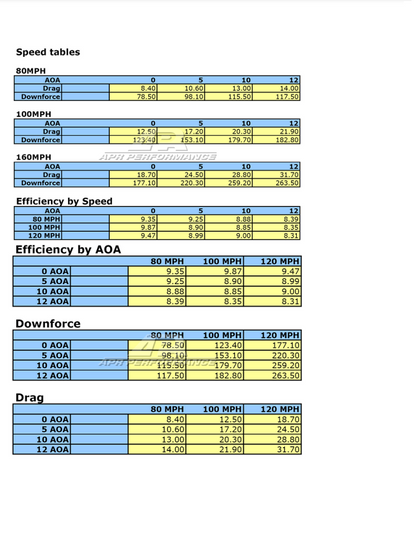

Its adjustable angle of attack (0°–15°) allows fine-tuning for any driving condition—high angles increase downforce for improved cornering, while lower angles reduce drag for greater top speed. The wing’s optimized 11:1 downforce-to-drag ratio ensures maximum stability without compromising straight-line performance.

Constructed using pre-preg autoclave-cured carbon fiber, the GTC-200 provides unmatched rigidity and strength-to-weight efficiency. The carbon fiber’s natural stiffness prevents flexing at speed, while the 6061 billet aluminum risers allow precise adjustment of height and position for perfect aerodynamic setup.

Compact yet powerful, the GTC-200 is a mid-sized wing ideal for performance-focused BMW owners who want measurable aerodynamic improvements without excessive drag.

Specifications:

• Vehicle Fitment: BMW F32 4-Series (2014–2020)
• Span: 60.5" (1520mm)
• Chord Depth: 7.5"–9.5" (190.5–241.3mm)
• Height: Adjustable from 7" (177.8mm) and up
• Angle of Attack: Adjustable 0°–15°
• Downforce-to-Drag Ratio: 11:1
• Material: Pre-preg autoclave-cured carbon fiber
• Risers: 10mm aircraft-grade 6061 billet aluminum
• Mounting Distance: 29.5" (center-to-center)

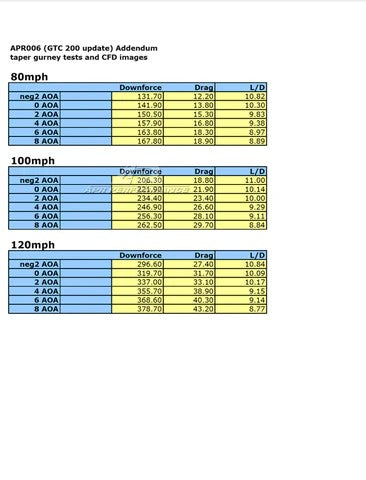

• Optional Gurney Flap: ½” (12.7mm) pre-preg carbon fiber
• Attachment: 3M VHB double-sided tape

Key Features:

• CFD-engineered airfoil for high-efficiency downforce
• Lightweight pre-preg carbon fiber construction
• Adjustable angle of attack (0°–15°) for fine-tuned aerodynamic balance
• Aircraft-grade billet aluminum risers for height and position adjustability
• Mid-sized profile ideal for track or street applications
• Optional carbon fiber Gurney Flap for increased cornering grip

Fitment:

• BMW F32 4-Series (2014–2020)
  Compatible with 420i, 428i, 430i, 435i, 440i, and M Sport models.
