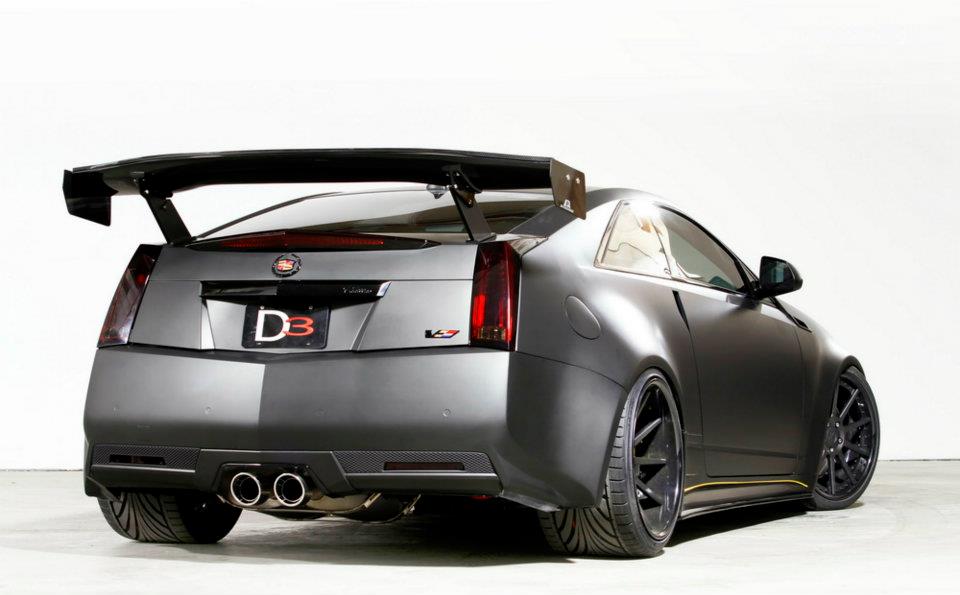

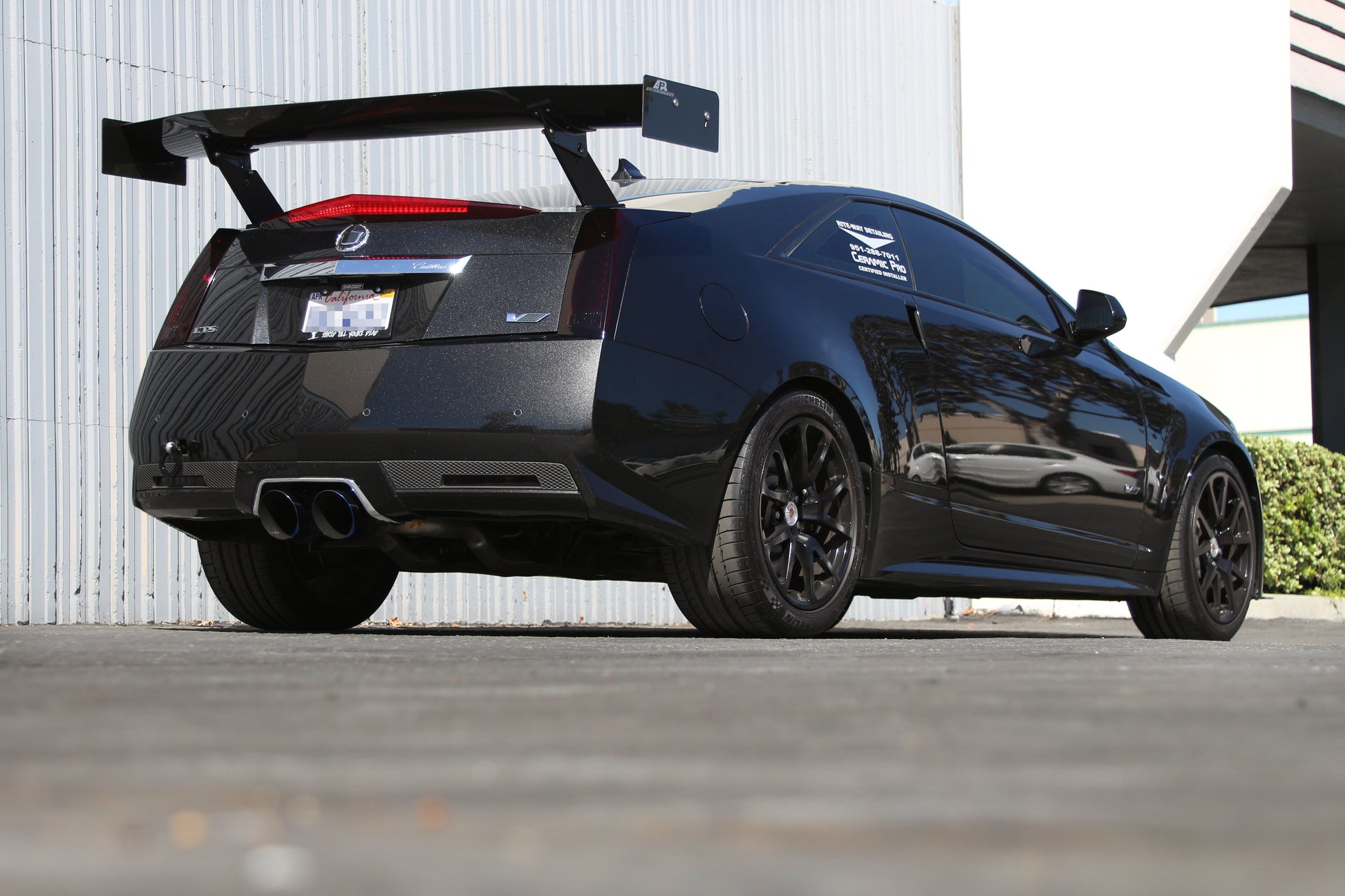

Cadillac CTS-V Coupe GTC-500 Carbon Fiber Adjustable Wing 2011-2015

This item is made to order, normal lead time is 2-3 weeks.

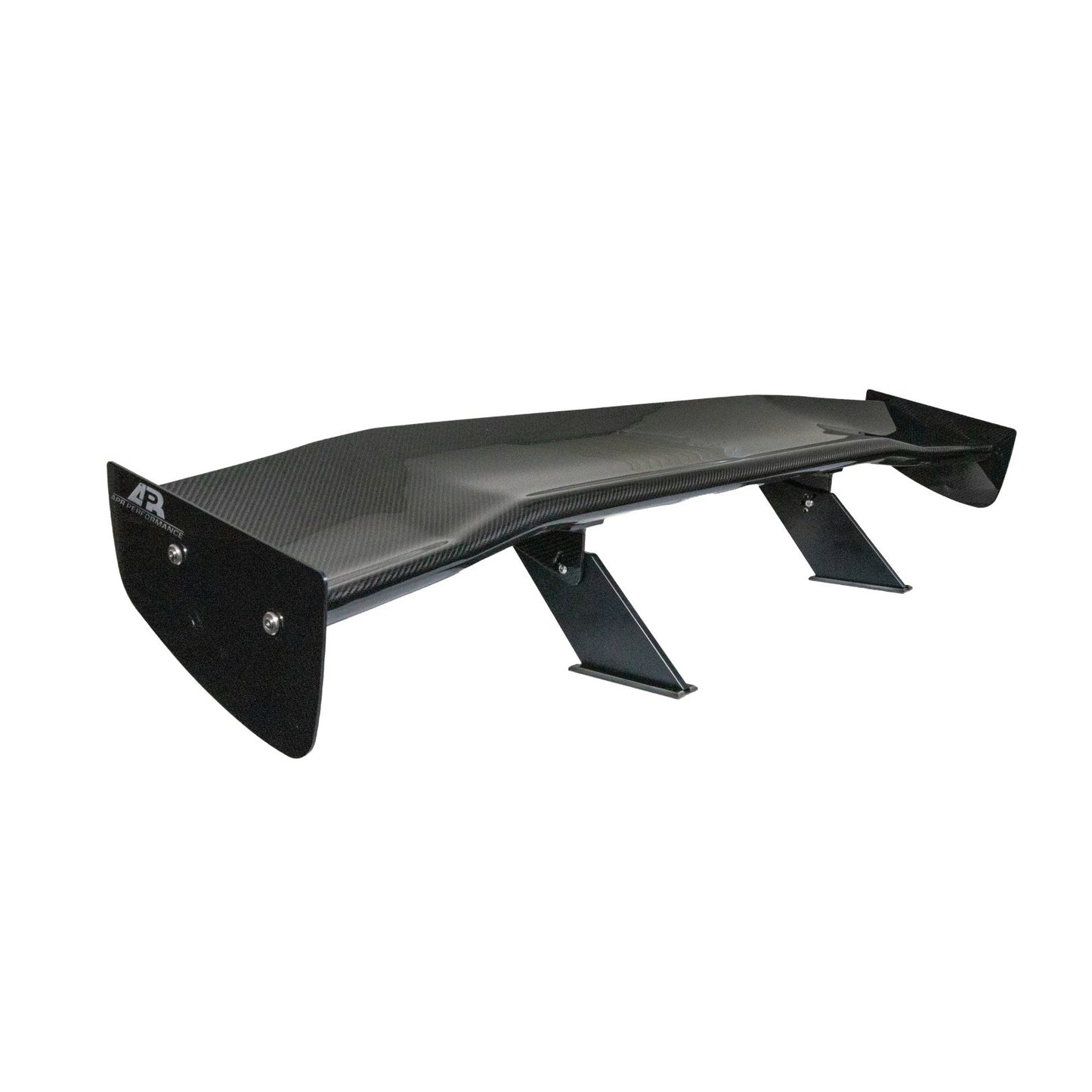

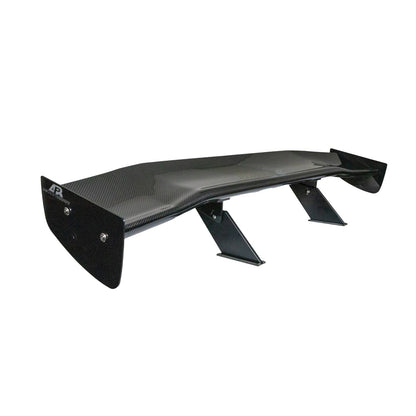

Elevate the performance and aerodynamics of your Cadillac CTS-V Coupe (2011–2015) with the APR Performance GTC-500 Carbon Fiber Adjustable Wing — a motorsport-grade aerodynamic component engineered for superior downforce, cornering stability, and high-speed control. Designed using Computational Fluid Dynamics (CFD), the GTC-500 ensures high aerodynamic efficiency by producing substantial rear downforce while minimizing drag.

The cambered airfoil profile generates a powerful pressure differential between the upper and lower wing surfaces, creating balanced aerodynamic loads that enhance both traction and stability at speed. Constructed from autoclave-cured pre-preg carbon fiber, the GTC-500 offers exceptional rigidity, lightweight performance, and structural consistency even under high aerodynamic stress.

The wing’s adjustable angle of attack (0°–15°) allows for precise aerodynamic tuning to suit your preferred driving style or track configuration — from high-downforce setups for cornering to low-drag profiles for maximum top-end speed. The 6061 billet aluminum risers provide durable, race-grade mounting stability and alignment accuracy.

Purpose-built for track-day enthusiasts, time-attack competitors, and performance-focused street builds, the GTC-500 delivers professional-grade aerodynamic refinement and a commanding motorsport aesthetic.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured carbon fiber ensures maximum strength, low weight, and race-level rigidity.
• CFD-Engineered Airfoil – Provides high aerodynamic efficiency with balanced downforce and minimal drag.
• Adjustable Angle of Attack (0°–15°) – Customizable for track or street performance optimization.

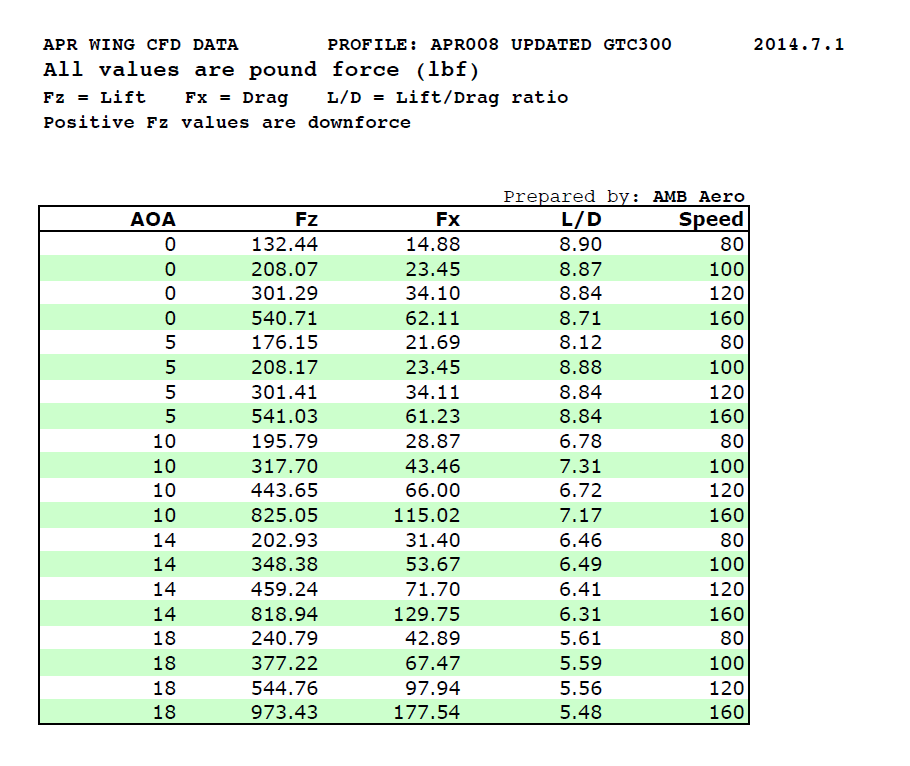

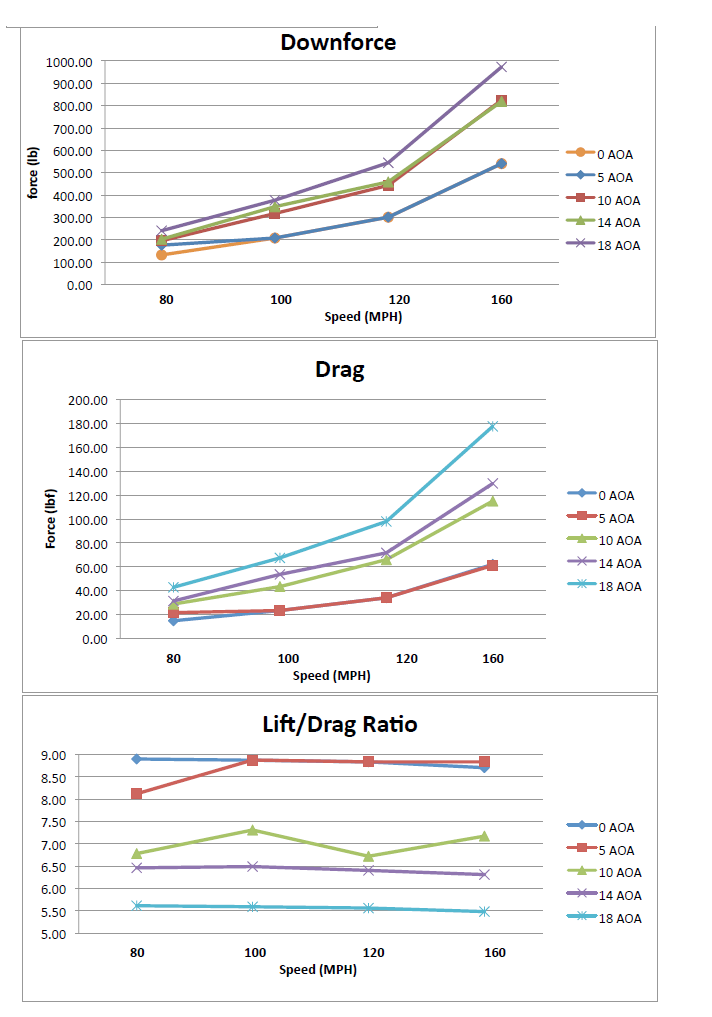

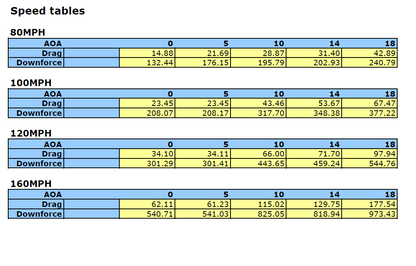

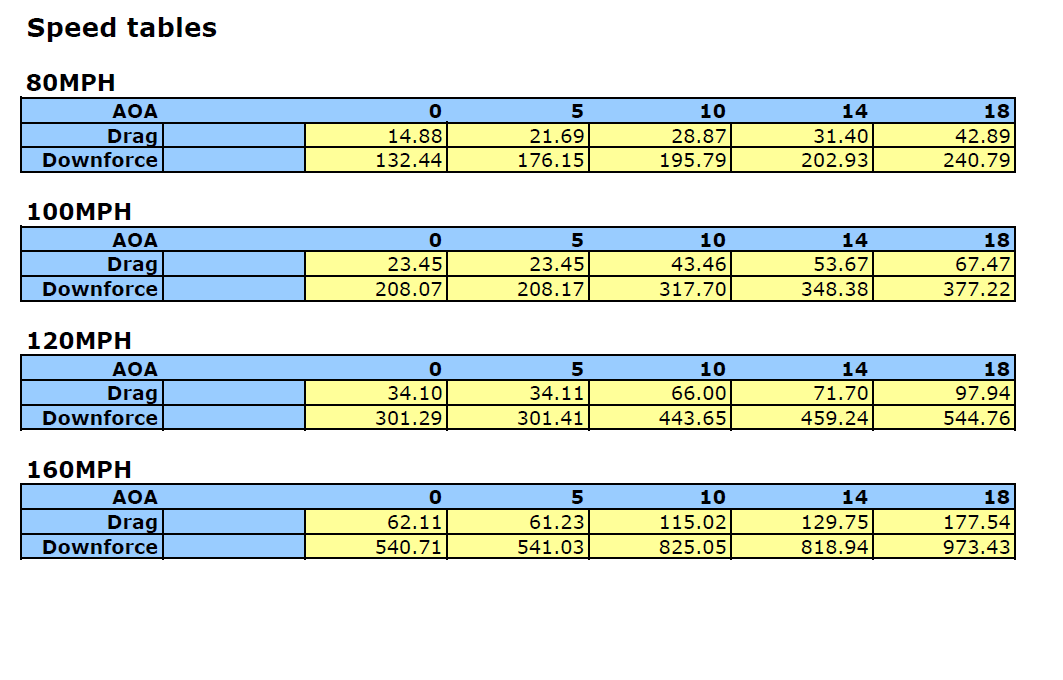

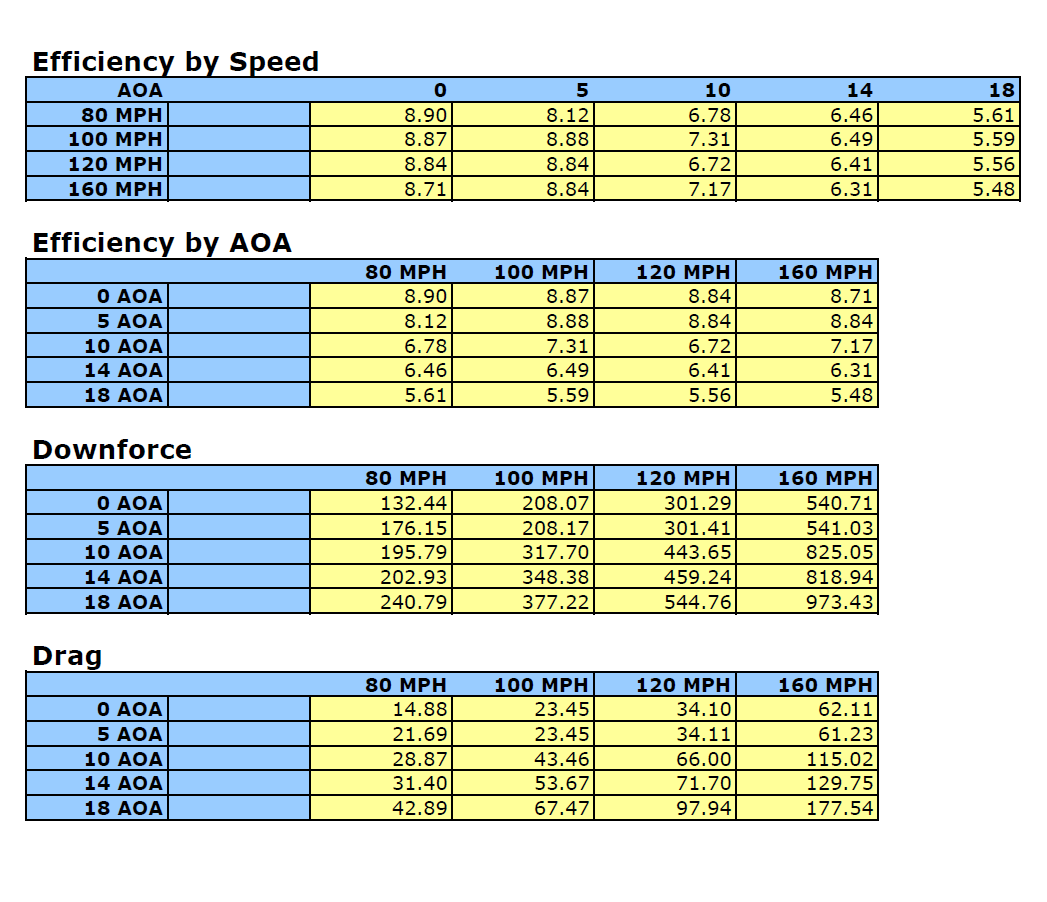

• High Downforce-to-Drag Ratio (8.88 : 1) – Enhances rear-end grip and stability without compromising speed.

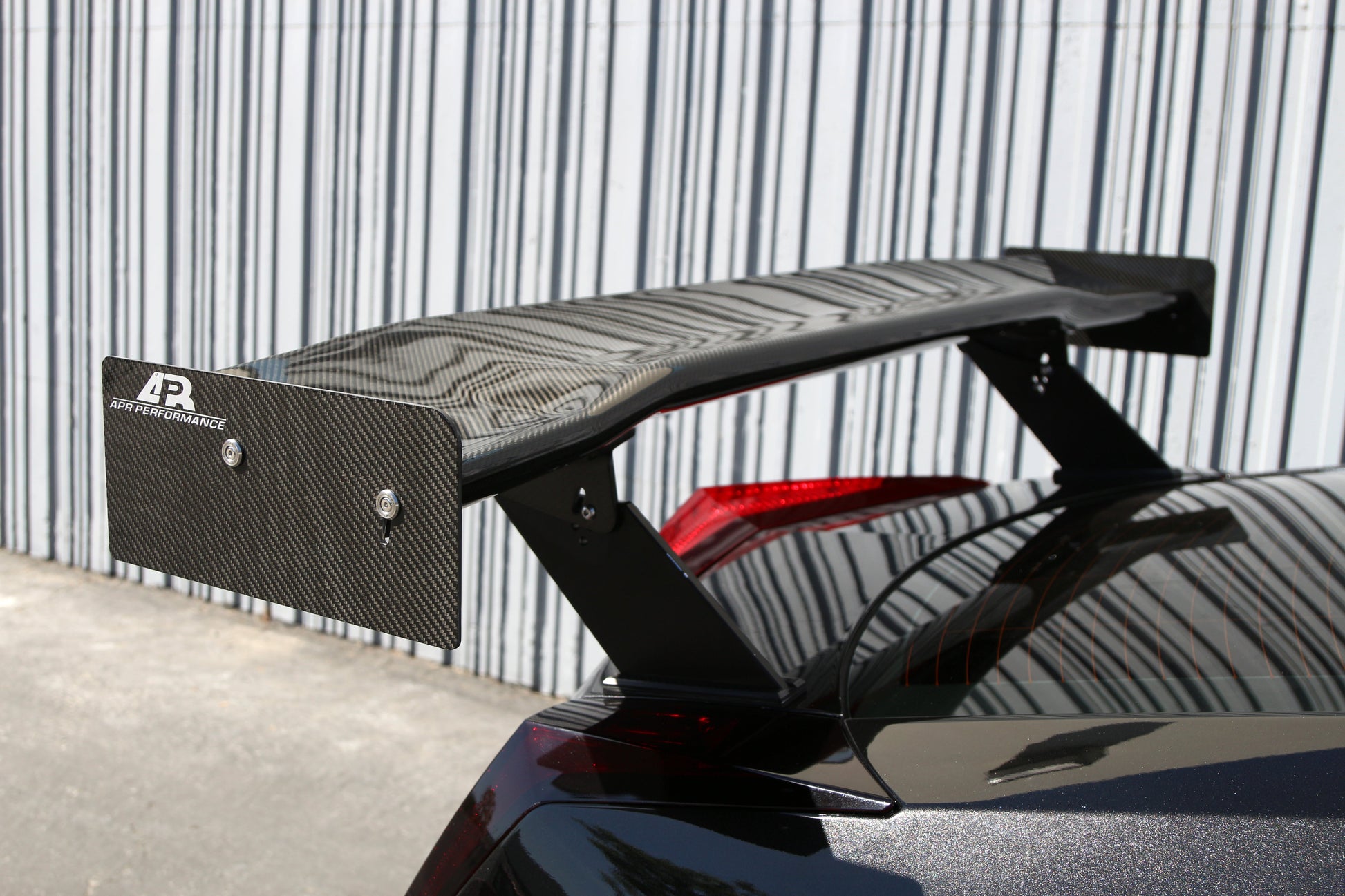

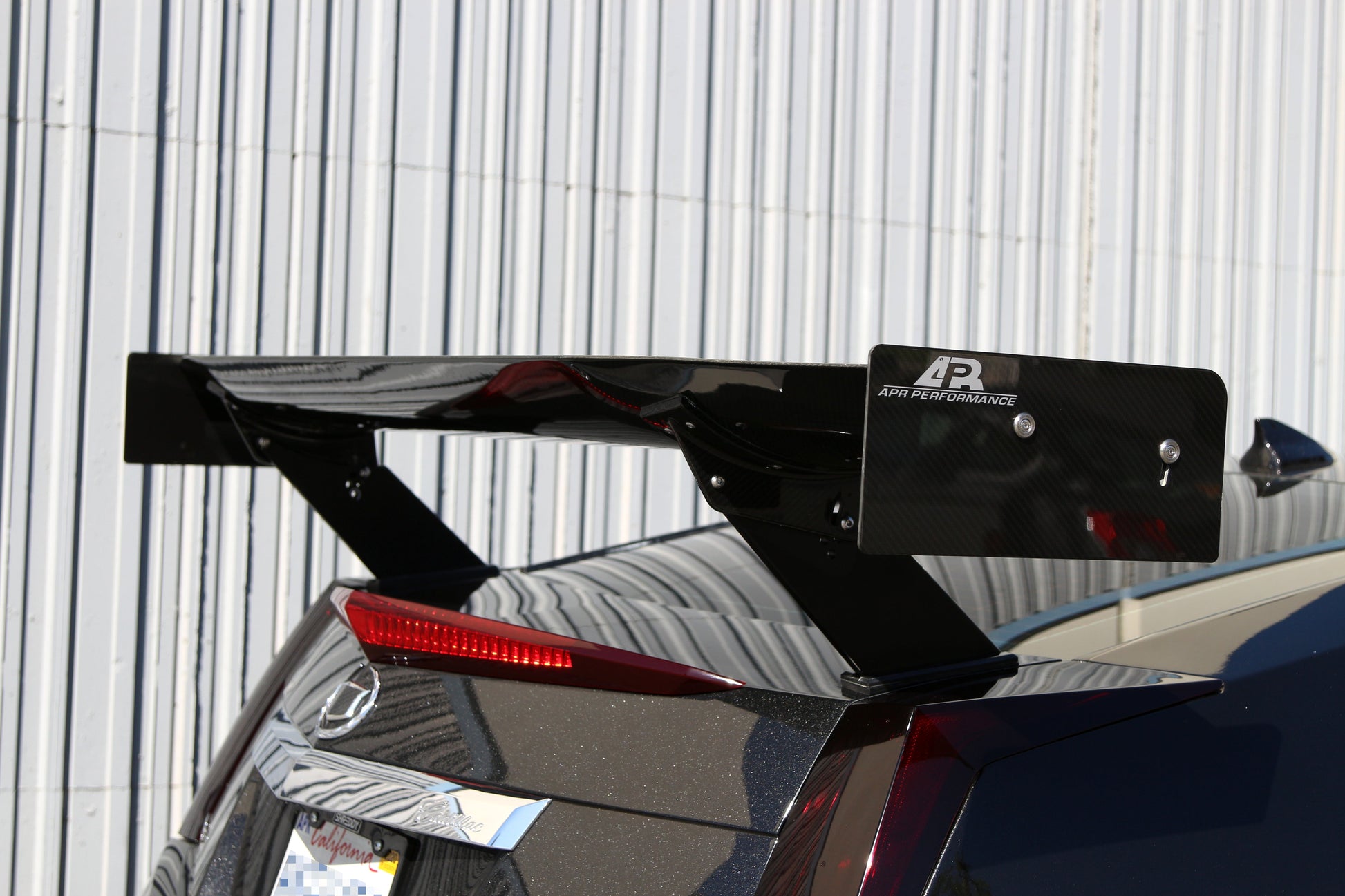

• 6061 Billet Aluminum Risers – Aircraft-grade adjustable mounts provide strength and fine-tuning precision.
• Large-Span Design (71” or 74”) – Ensures consistent aerodynamic balance across the vehicle’s width.
• Optional Carbon Fiber Gurney Flap – Adds additional rear downforce for enhanced grip under cornering.
• UV-Resistant Gloss Finish – Protects carbon fiber weave from discoloration and environmental exposure.

Specifications:
• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2”–12” (259–305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber airfoil with 6061 billet aluminum risers
• Angle Adjustment: 0°–15°
• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon Fiber Gurney Flap (½” height, 3M VHB double-sided tape)
• SCCA Classes Approved: STO, T1

Fitment:
Cadillac CTS-V Coupe — 2011 – 2015
