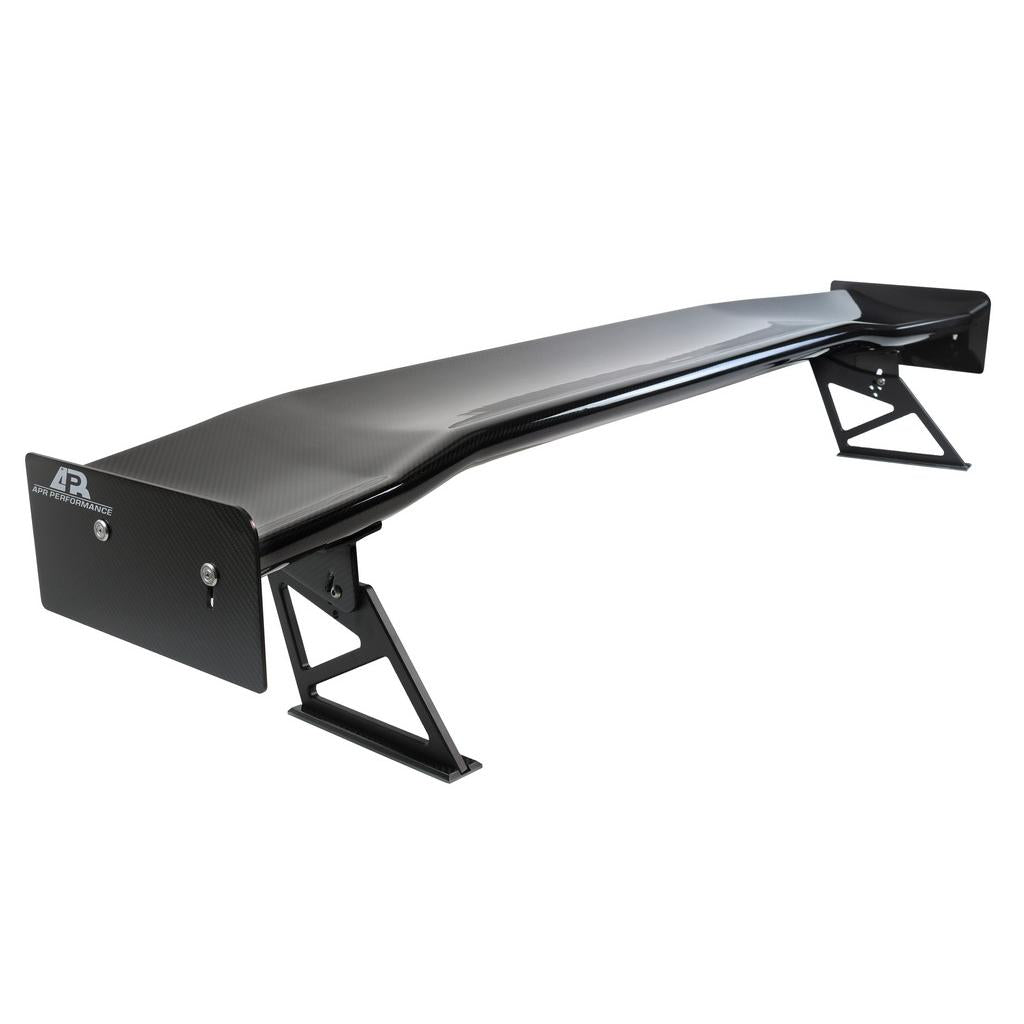

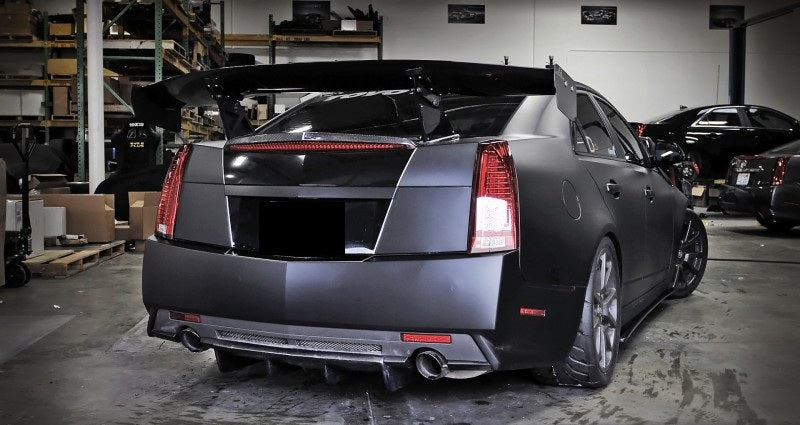

Cadillac CTS-V Sedan GTC-500 Carbon Fiber Adjustable Wing 2008 - 2015

This item is made to order, normal lead time is 1-2 weeks.

Enhance the aerodynamic balance and visual aggression of your Cadillac CTS-V Sedan (2008–2015) with the APR Performance GTC-500 Carbon Fiber Adjustable Wing — a race-proven aerodynamic upgrade engineered for serious performance. Developed using Computational Fluid Dynamics (CFD), the GTC-500 delivers optimized rear downforce and improved high-speed stability while maintaining minimal drag for peak efficiency.

The CFD-optimized airfoil profile creates an effective pressure differential across the wing’s surfaces, producing stable, high-efficiency downforce. Constructed from autoclave-cured pre-preg carbon fiber, the GTC-500 offers exceptional stiffness, minimal flex under load, and lightweight strength for consistent aerodynamic performance.

An adjustable angle of attack (0°–15°) allows precision aerodynamic tuning — from high-downforce track configurations to lower drag setups for top-speed applications. The 6061 billet aluminum risers provide a rigid, race-grade mounting solution, offering superior strength and alignment accuracy.

Designed for motorsport, time-attack, or high-performance street builds, the GTC-500 gives your CTS-V a dramatic yet functional aerodynamic edge, ensuring maximum grip, traction, and stability at speed.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for superior rigidity, lightweight performance, and structural integrity.
• CFD-Optimized Airfoil Design – Engineered for high-efficiency downforce with minimal aerodynamic drag.
• Adjustable Angle of Attack (0°–15°) – Fine-tune aerodynamic balance for track or street driving.

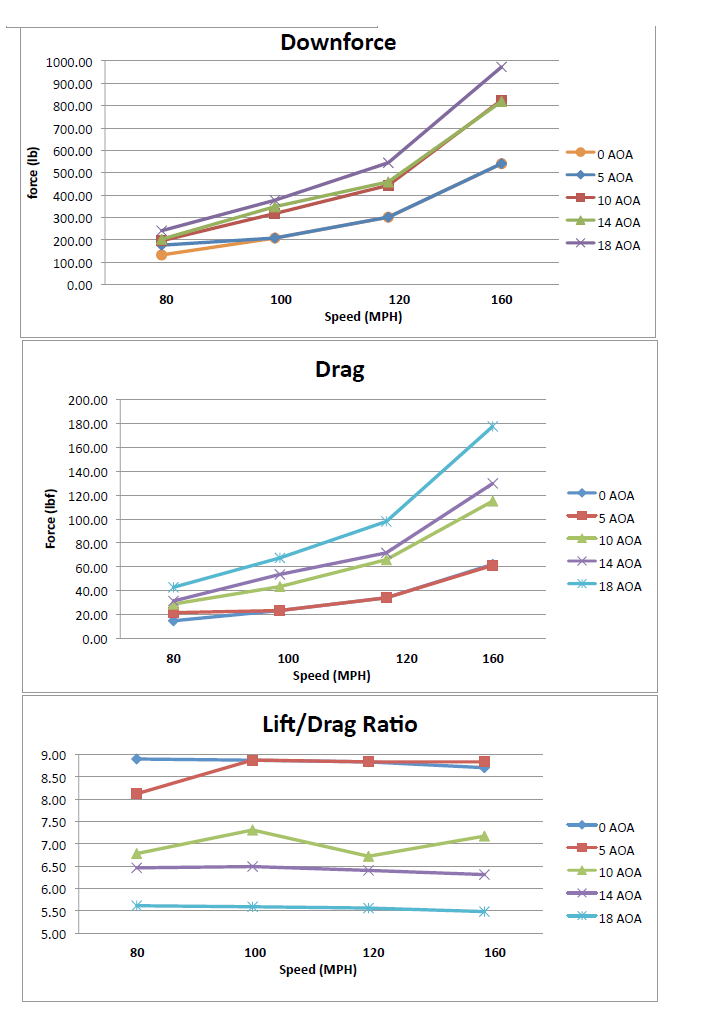

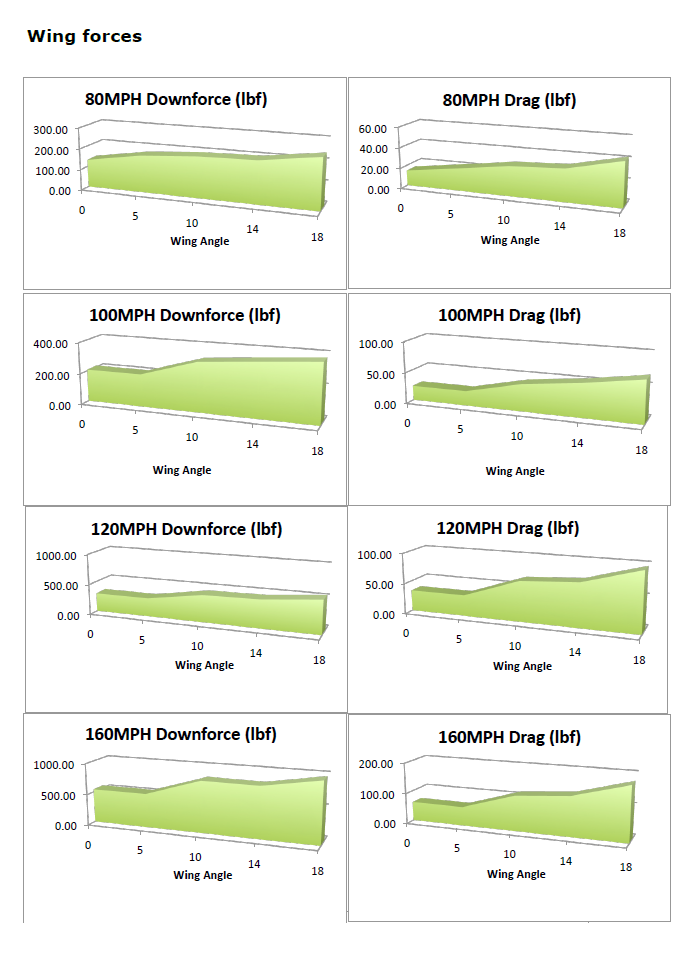

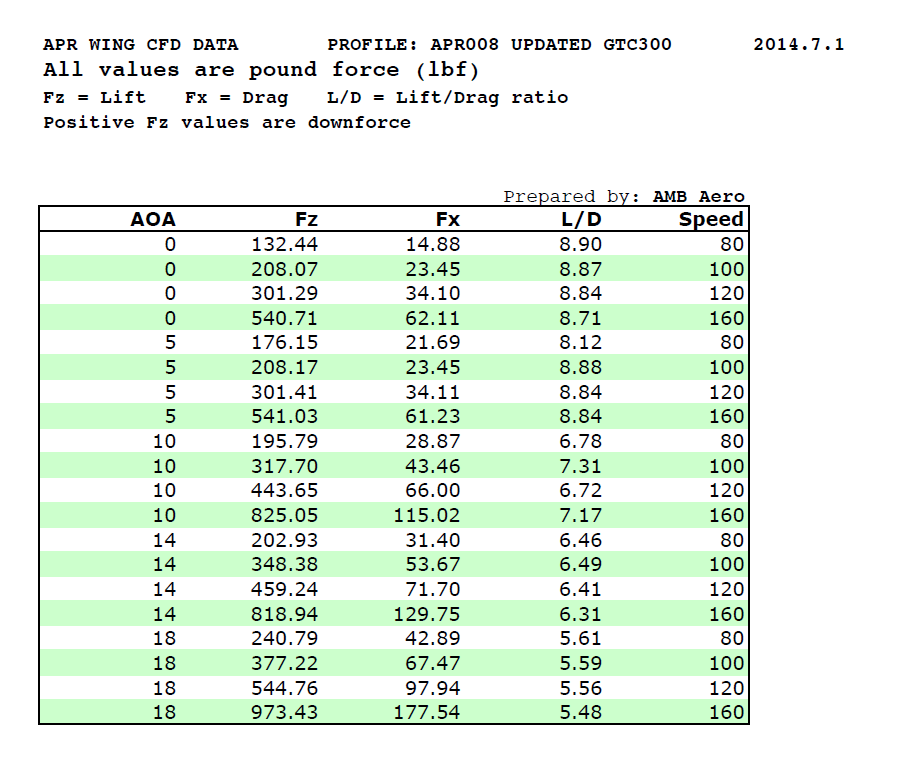

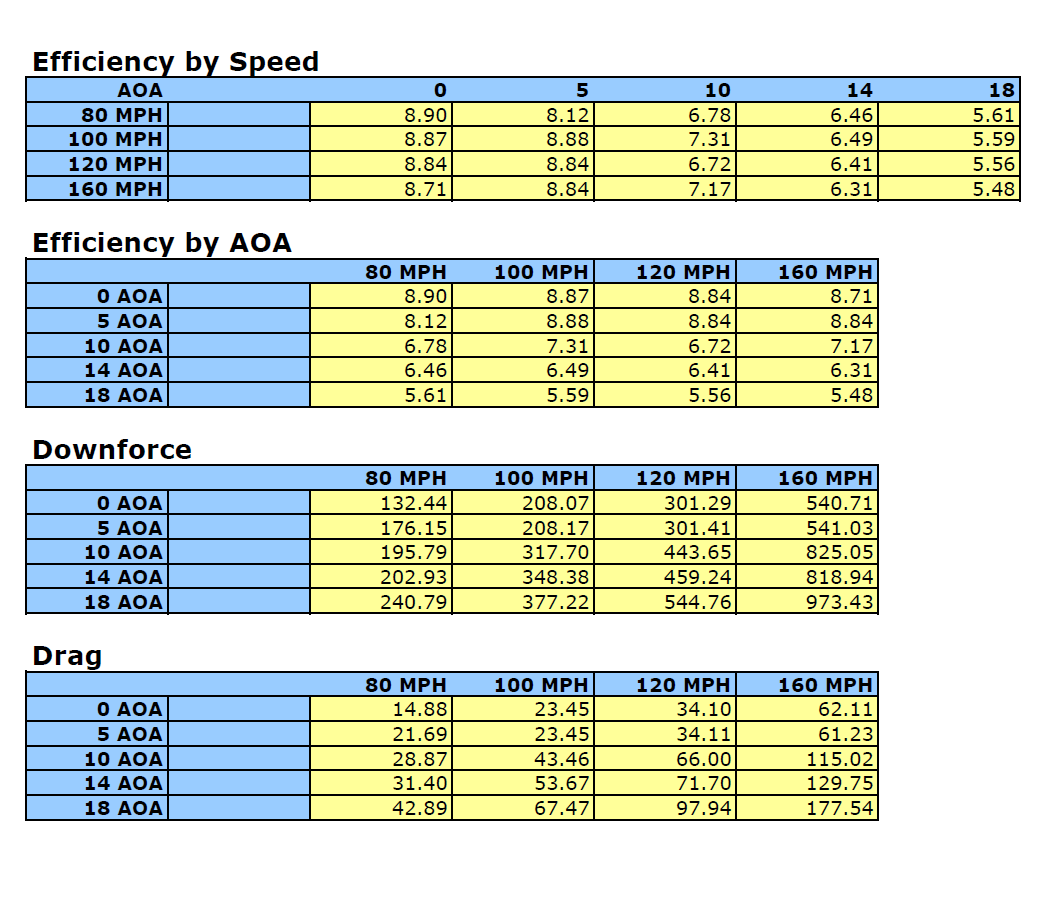

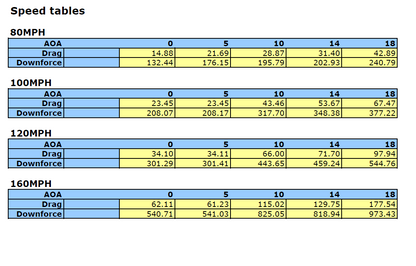

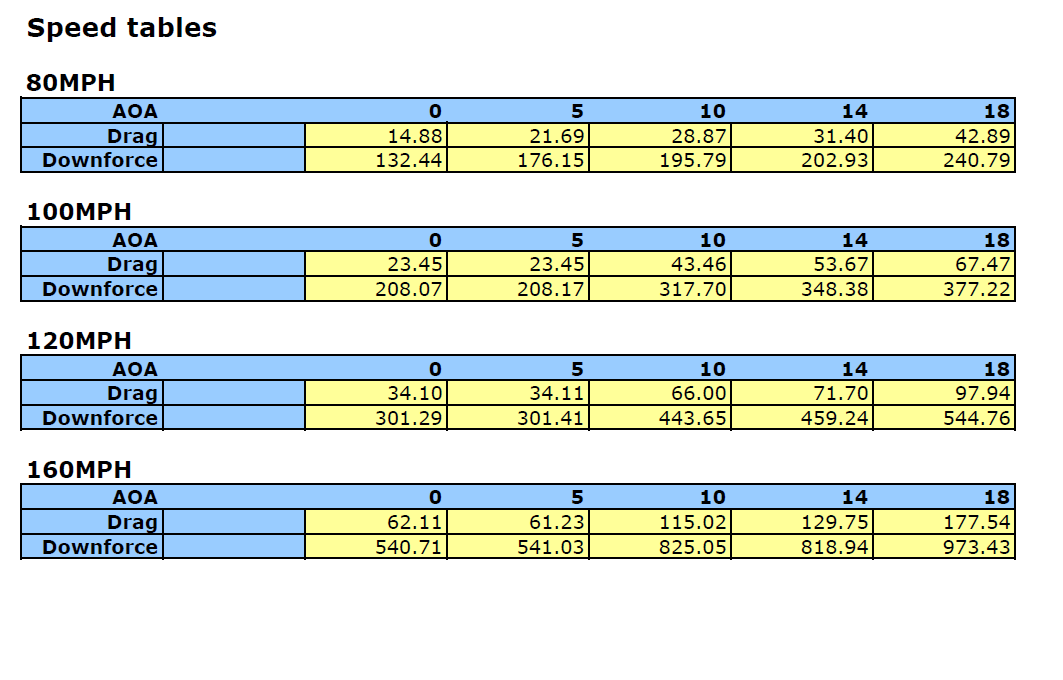

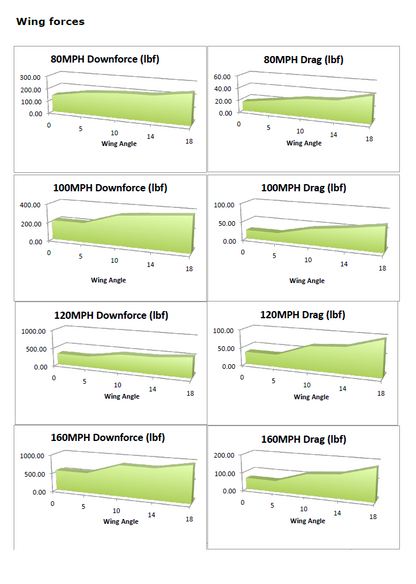

• High Downforce-to-Drag Ratio (8.88 : 1) – Delivers consistent rear-end traction and cornering stability.
• 6061 Billet Aluminum Risers – Aircraft-grade 10mm adjustable mounts provide precision and durability.
• Large-Span Design (71” or 74”) – Ideal for wide-body and full-size sedan applications requiring increased stability.
• Optional Carbon Fiber Gurney Flap – Enhances aerodynamic performance by increasing downforce and reducing separation.
• UV-Resistant Gloss Finish – Protects the carbon fiber surface and maintains a premium aesthetic.

Specifications:
• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2”–12” (259–305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber airfoil with 6061 billet aluminum risers
• Angle Adjustment: 0°–15°
• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon Fiber Gurney Flap (½” height, 3M VHB mounting)
• SCCA Classes Approved: STO, T1

Fitment:

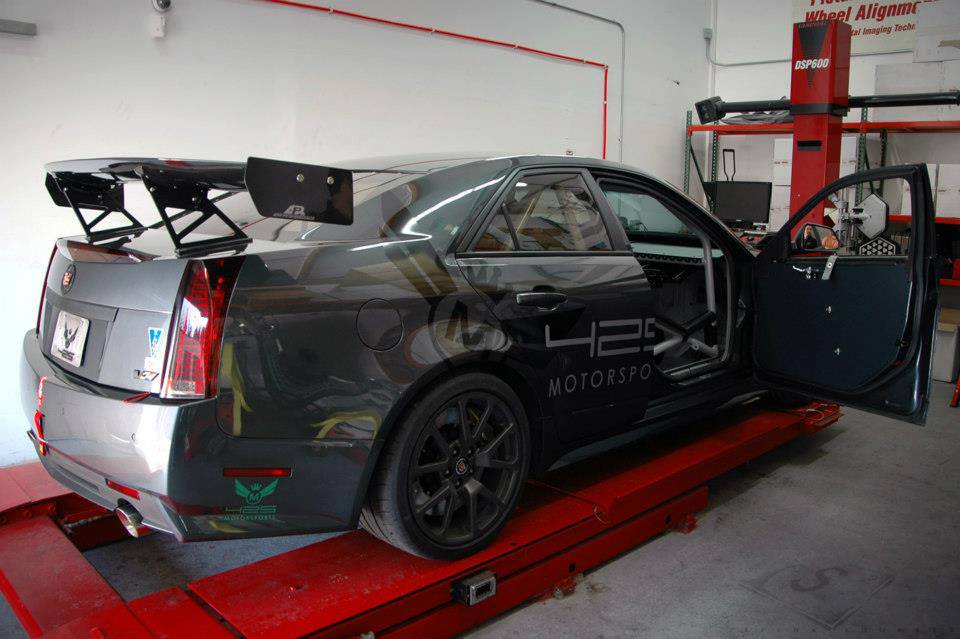

Cadillac CTS-V Sedan — 2008 – 2015
