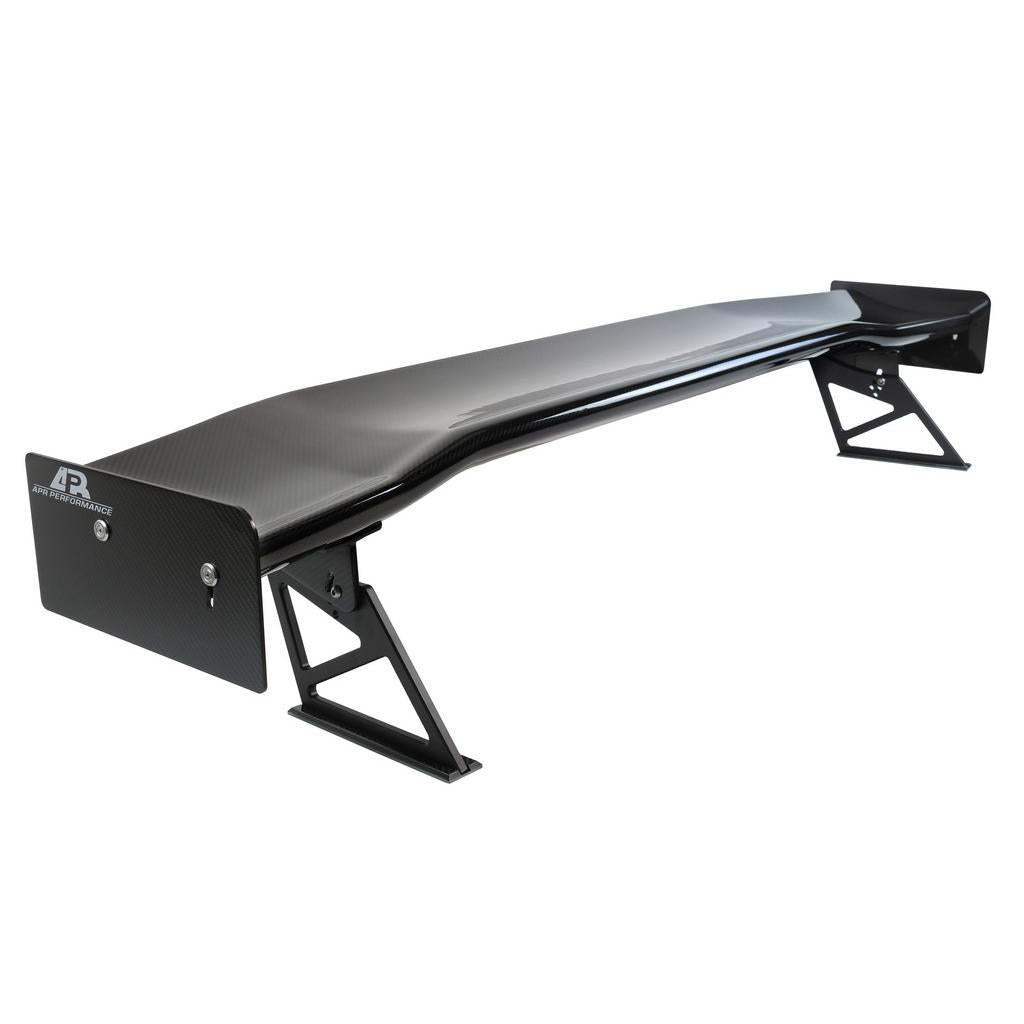

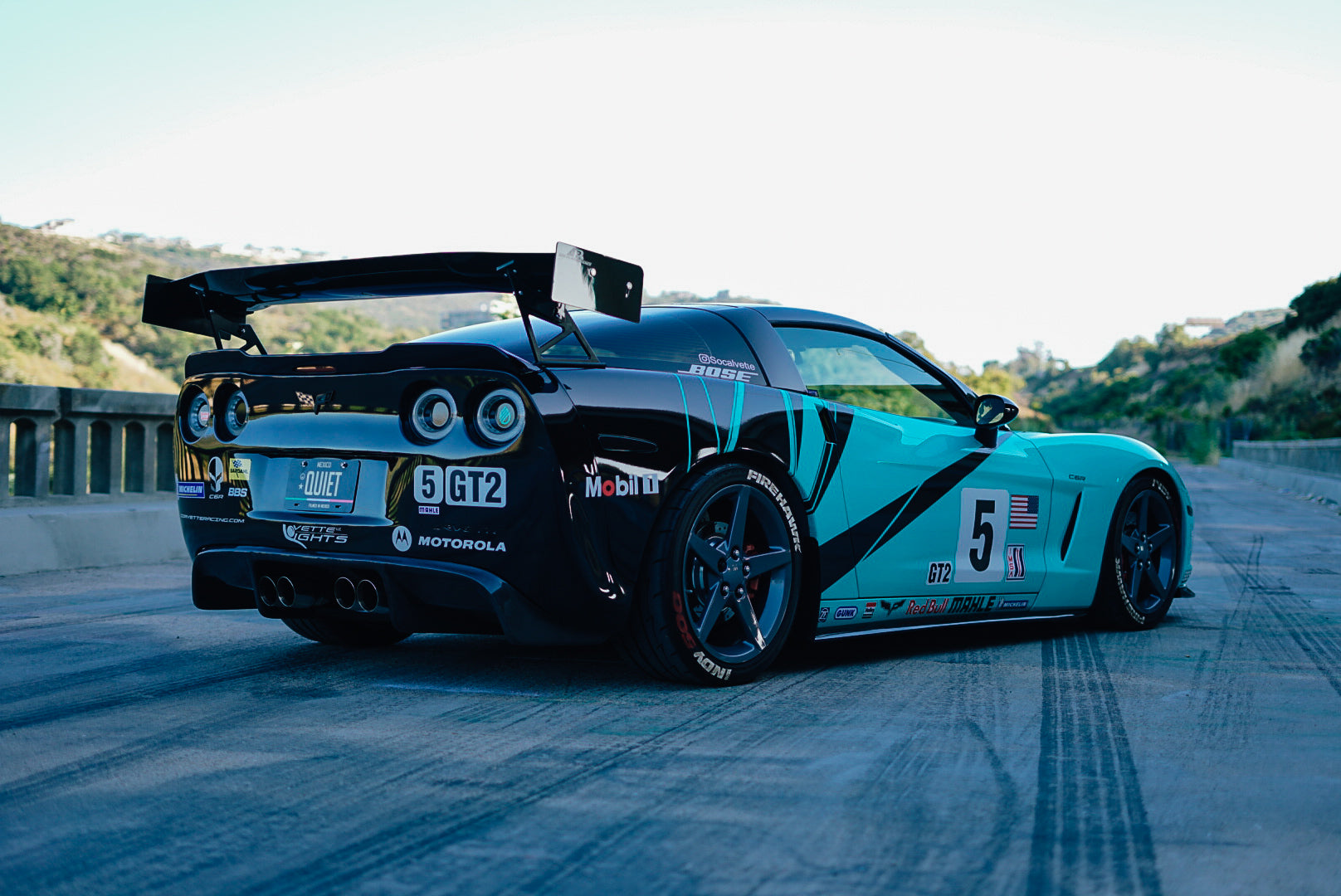

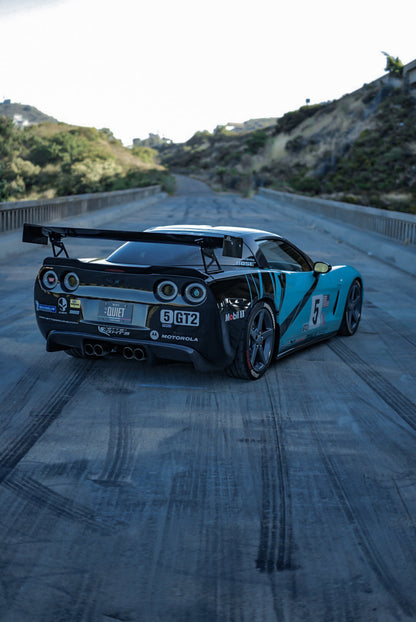

Chevrolet Corvette C6 / C6 Z06 GTC-500 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 1-2 weeks.

Enhance the aerodynamic efficiency and track presence of your Chevrolet Corvette C6 and C6 Z06 with the APR Performance GTC-500 Carbon Fiber Adjustable Wing — a precision-engineered aerodynamic system designed for race-proven balance, grip, and stability. Built from autoclave-cured pre-preg carbon fiber, the GTC-500 delivers exceptional rigidity, low weight, and consistent aerodynamic performance at high speed.

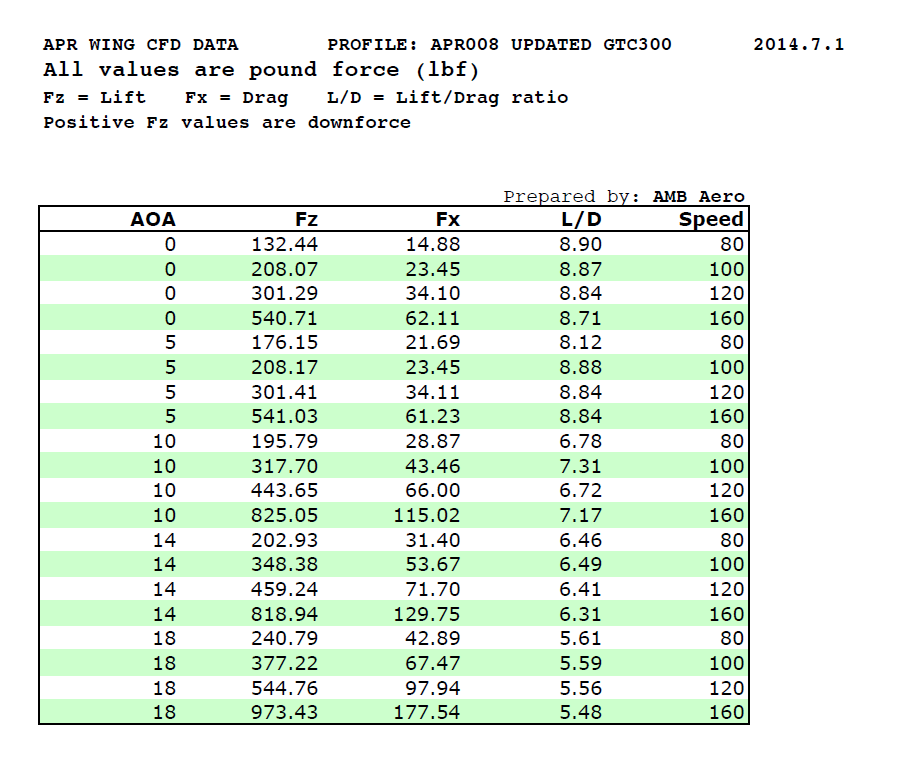

Developed through Computational Fluid Dynamics (CFD), the GTC-500’s airfoil profile generates strong downforce with minimal drag, optimizing high-speed cornering, braking stability, and straight-line control. The cambered airfoil shape maximizes airflow attachment and reduces turbulence, ensuring aerodynamic efficiency across all conditions.

With an adjustable angle of attack (0°–15°), the wing allows fine-tuning for different track layouts or performance goals — from aggressive downforce setups to reduced-drag configurations for top-speed applications. The 6061 billet aluminum pedestals ensure precise alignment, high rigidity, and adjustable mounting for aerodynamic control.

Perfect for track, time-attack, and high-performance street builds, the GTC-500 delivers a functional motorsport upgrade for your Corvette’s aerodynamics and visual dominance.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for superior strength, stiffness, and lightweight performance.
• CFD-Optimized Airfoil Design – Generates maximum downforce with minimal drag for enhanced stability.
• Adjustable Angle of Attack (0°–15°) – Fine-tune aerodynamic balance to track or street conditions.

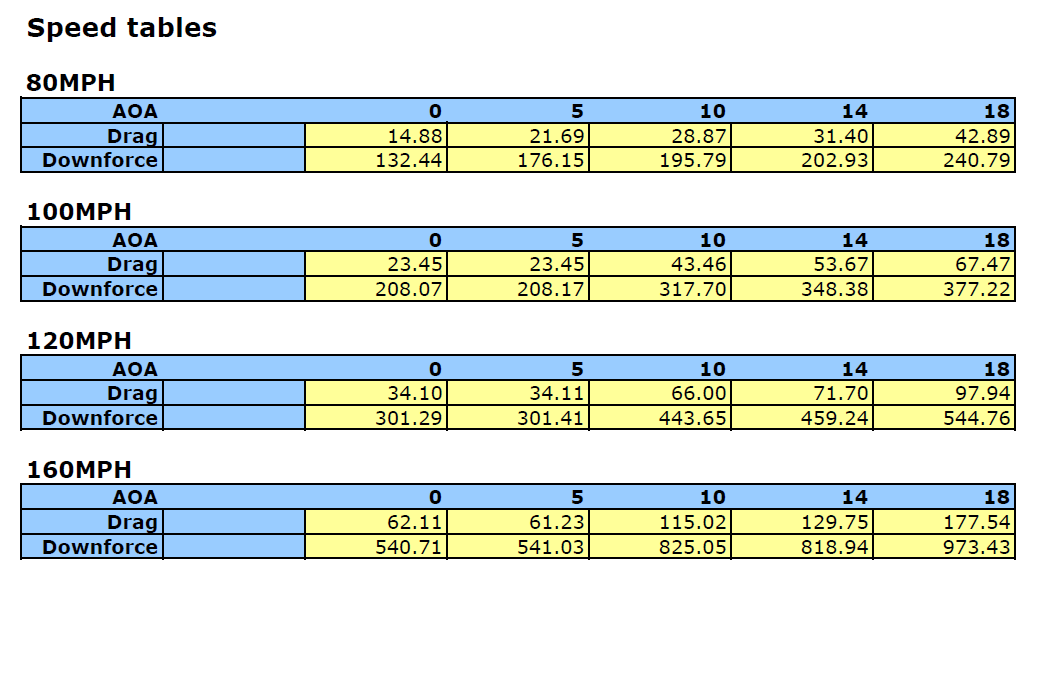

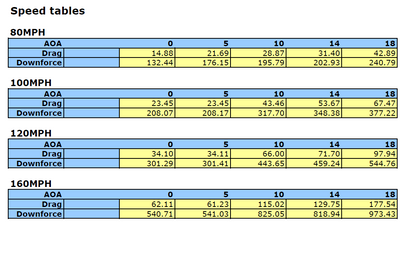

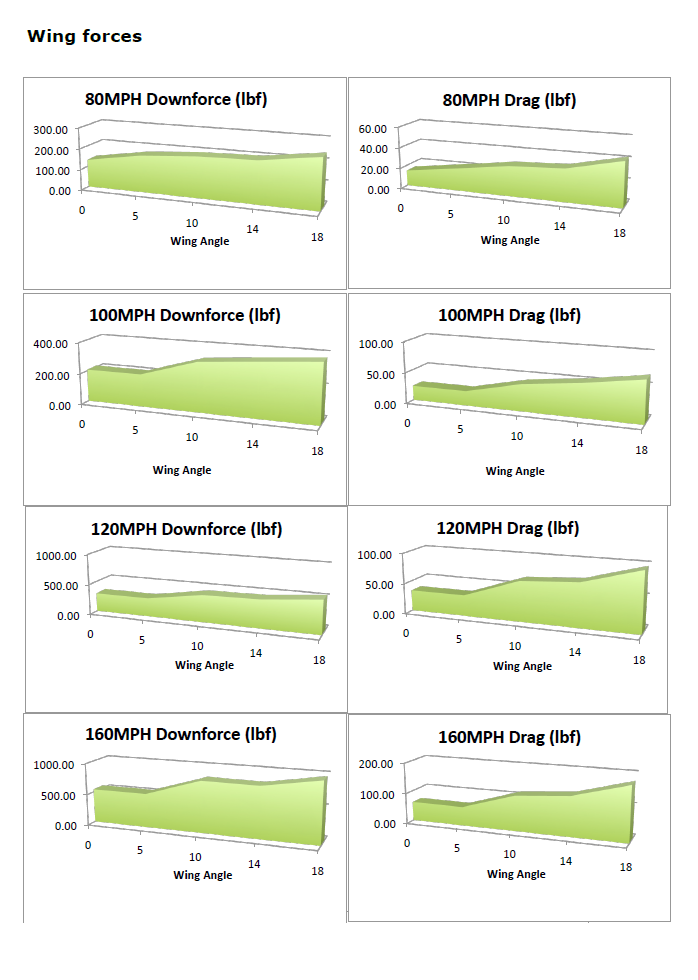

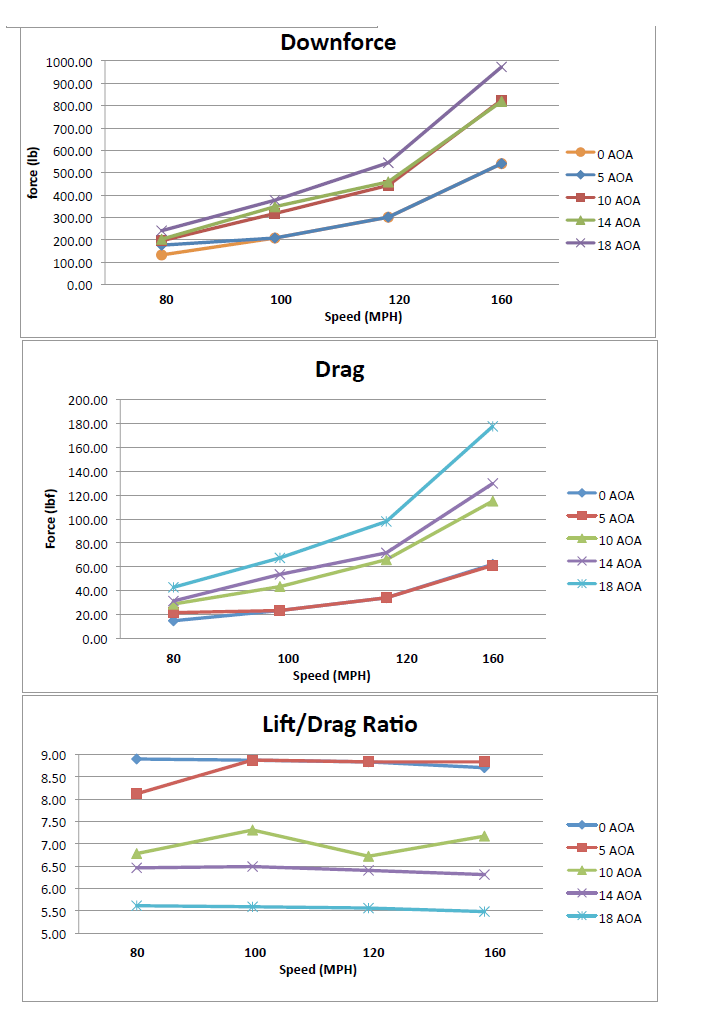

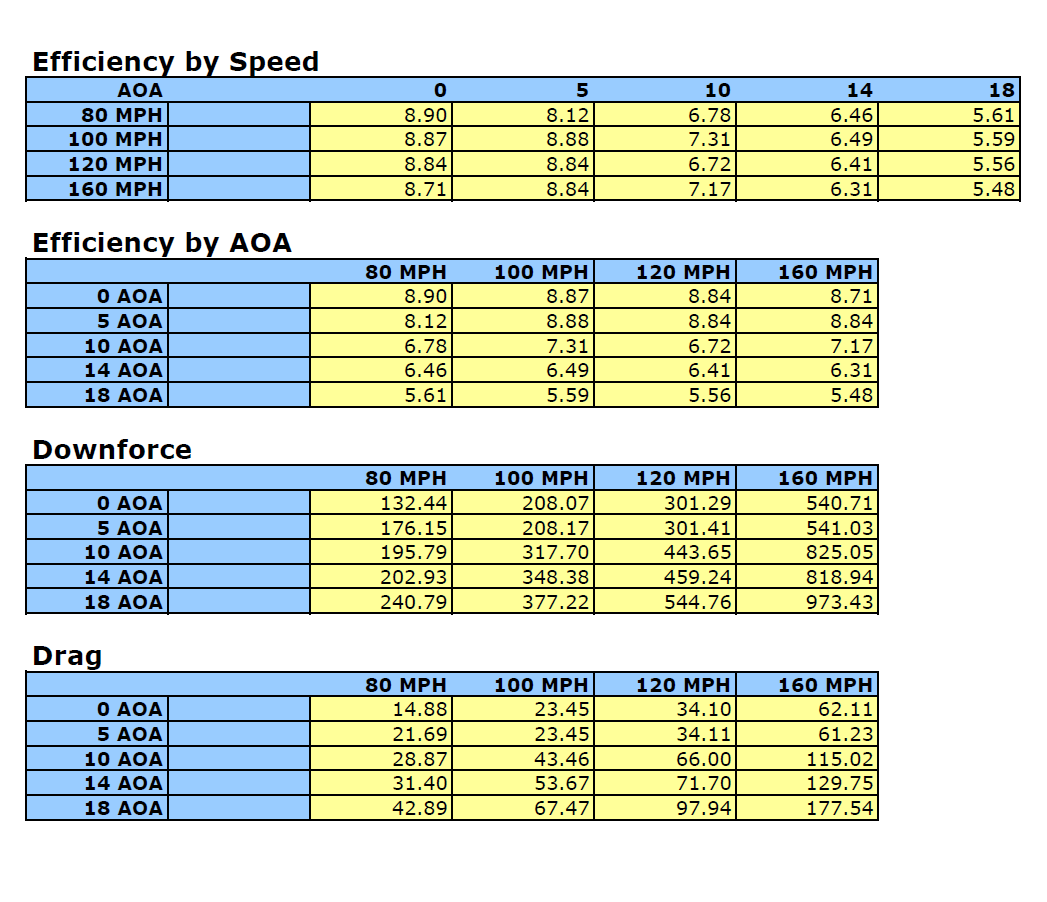

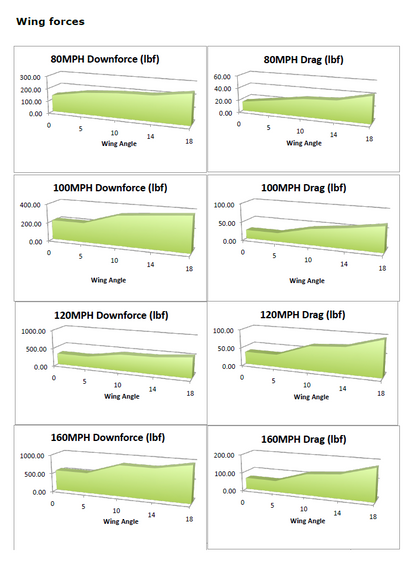

• High Downforce-to-Drag Ratio (8.88 : 1) – Maintains rear-end grip and cornering precision at speed.
• 6061 Billet Aluminum Risers – Aircraft-grade 10 mm adjustable mounts for strength and durability.
• 71” or 74” Wing Span – Engineered for full-size sports car platforms like the Corvette C6.
• Optional Carbon Fiber Gurney Flap – Improves downforce and reduces flow separation at high speed.
• UV-Resistant Gloss Finish – Protects the carbon fiber surface and maintains a premium aesthetic.

Specifications:
• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2” – 12” (259 – 305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber airfoil with 6061 billet aluminum pedestals
• Angle Adjustment: 0° – 15°
• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon Fiber Gurney Flap (½” height, 3M VHB tape mounting)
• SCCA Classes Approved: STO, T1, GT2/ST, GT1

Fitment:
Chevrolet Corvette C6 / C6 Z06 — 2005 – 2013
