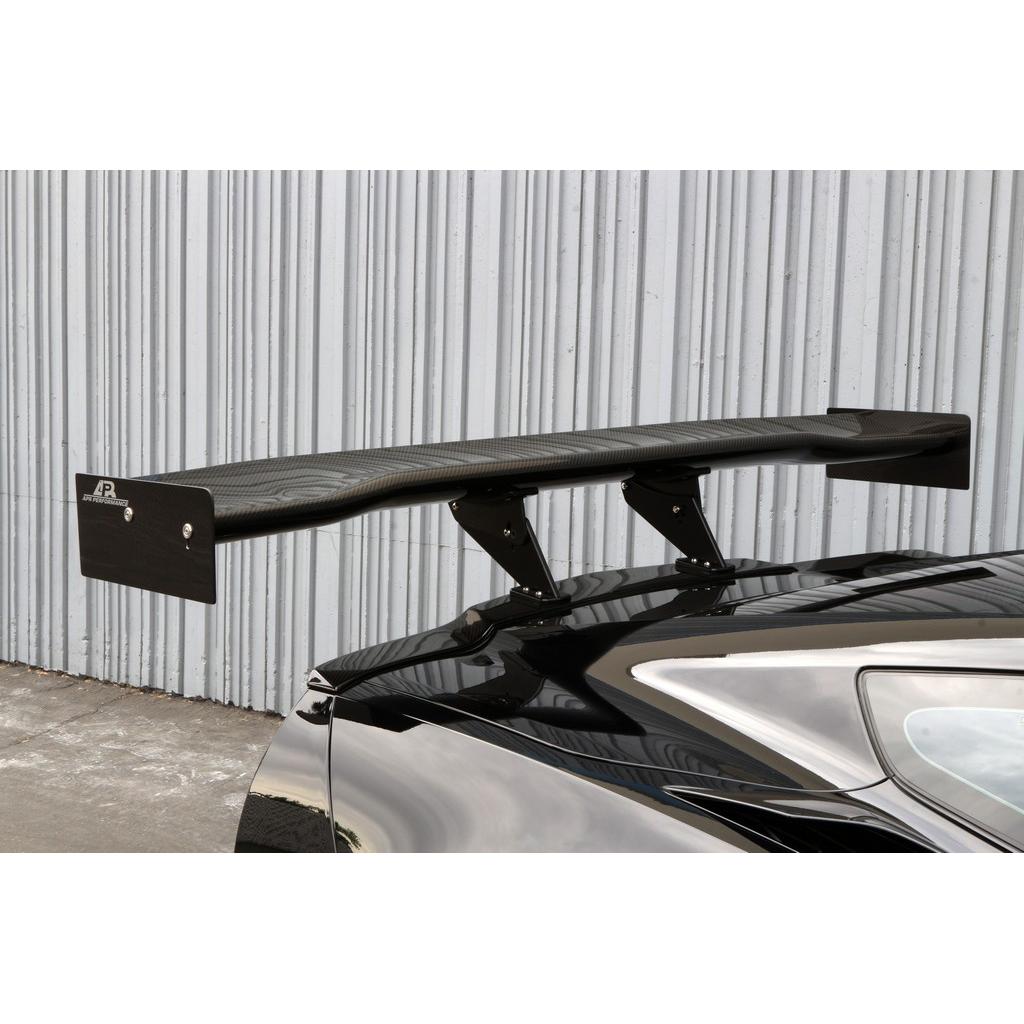

Chevrolet Corvette C7 Z06 / Grand Sport GTC-500 Chassis Mount Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 2-3 weeks.

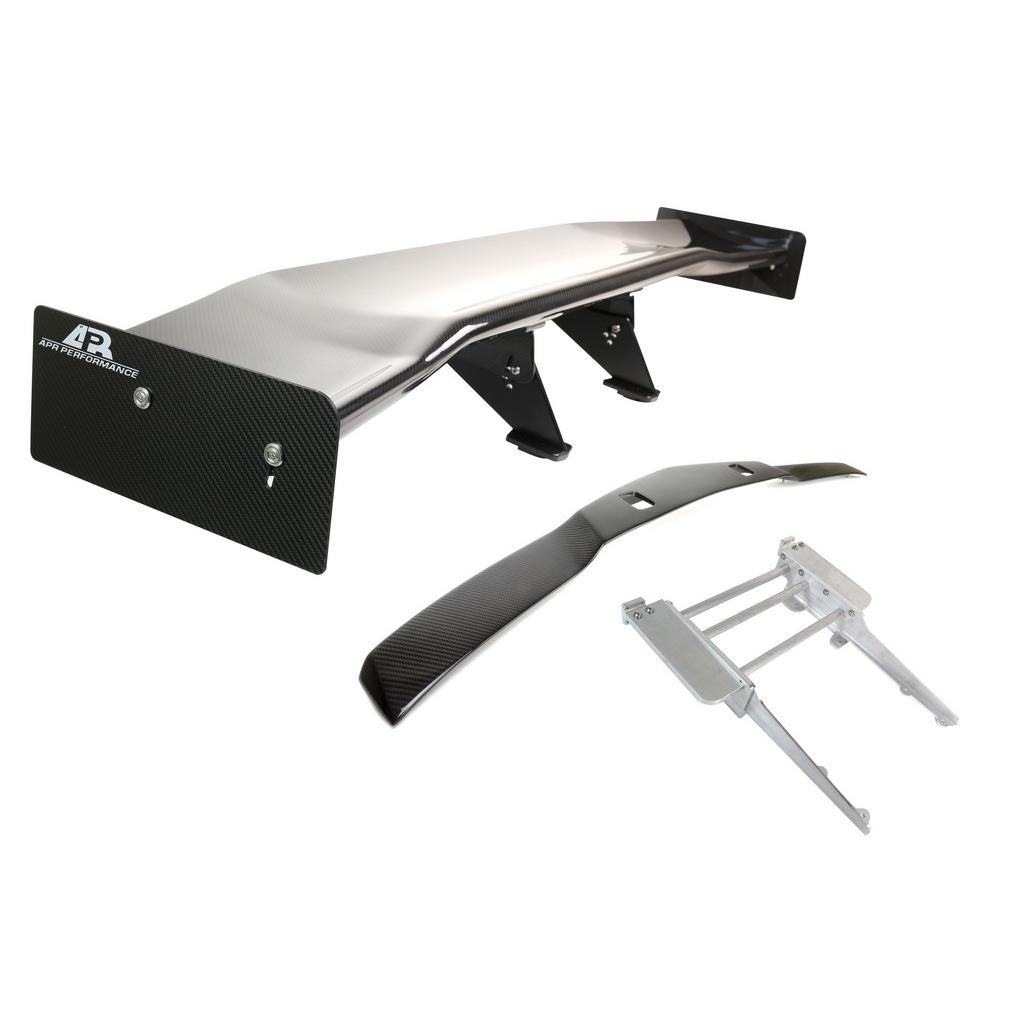

Includes:

• Chassis Mount Reinforcement Brackets
• Carbon Fiber Rear Spoiler Delete

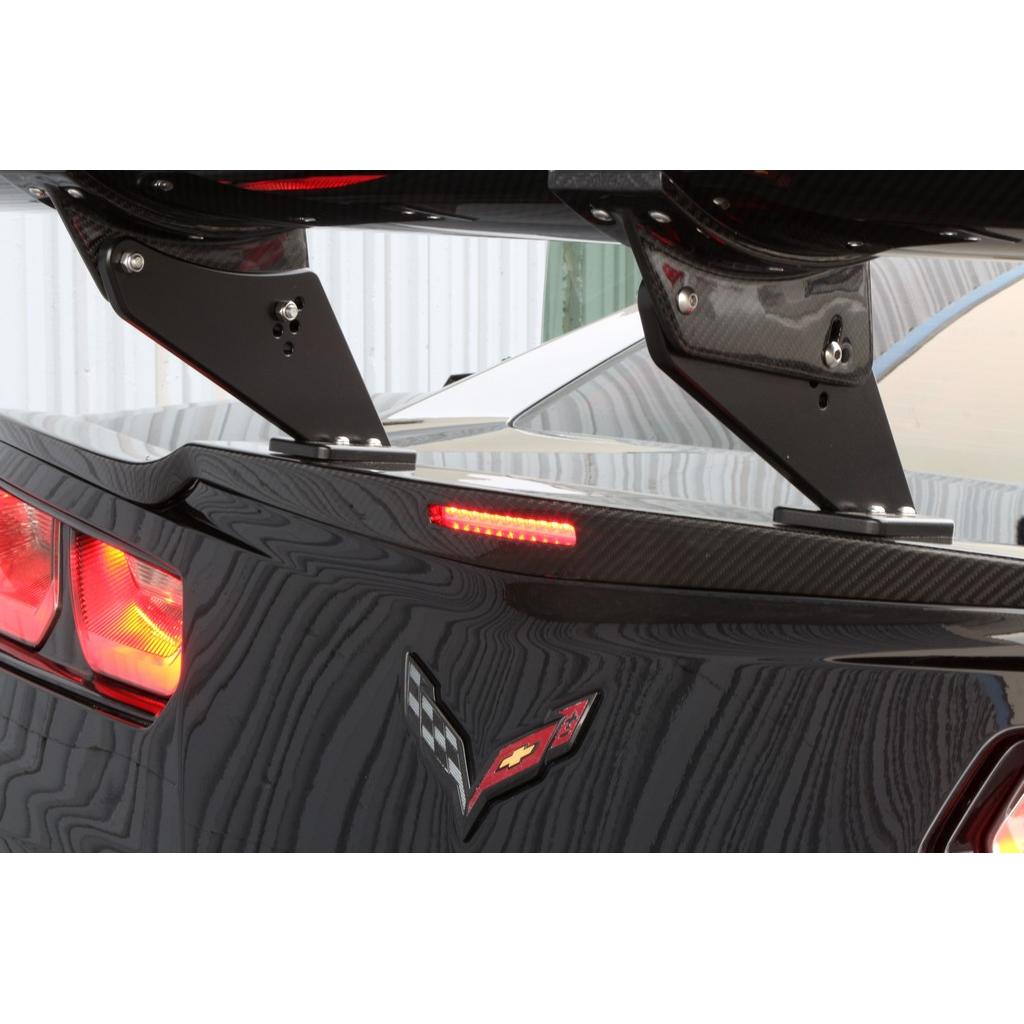

• LED Third Break Light

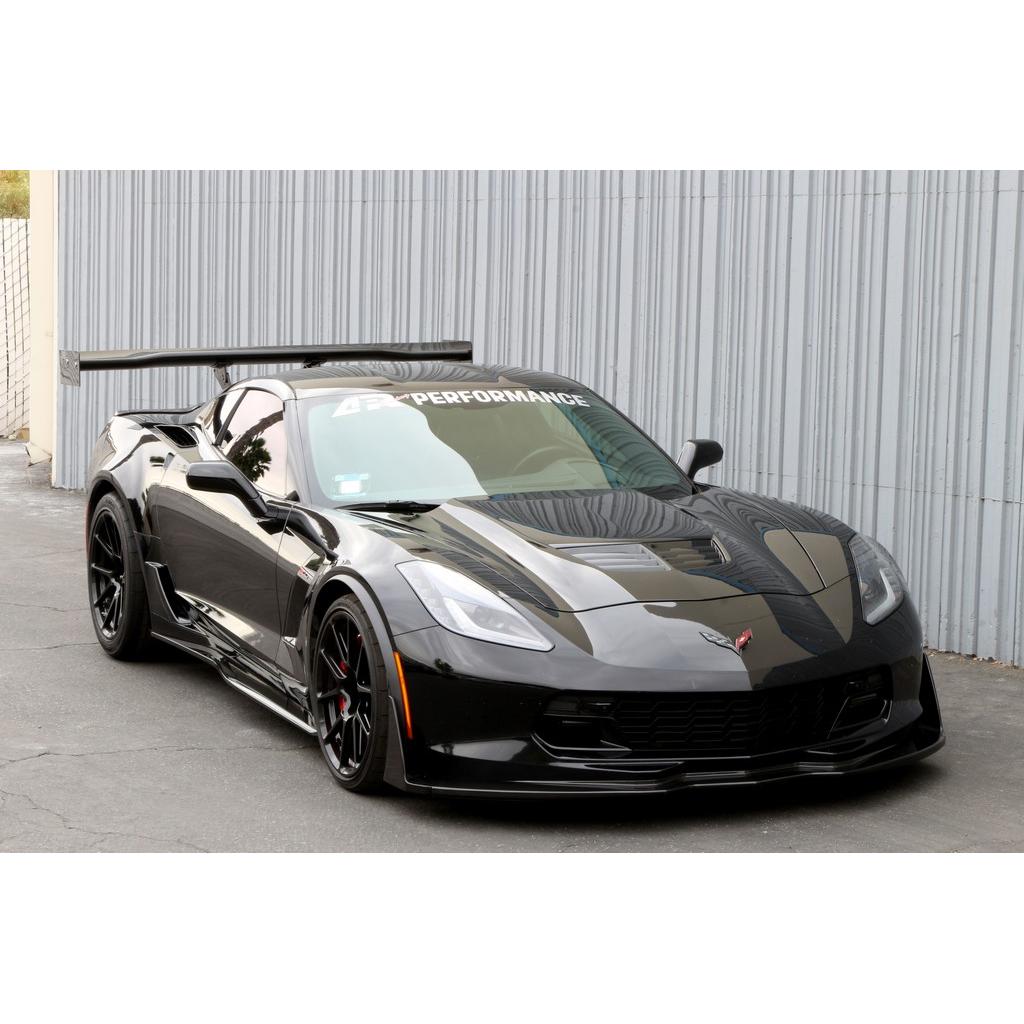

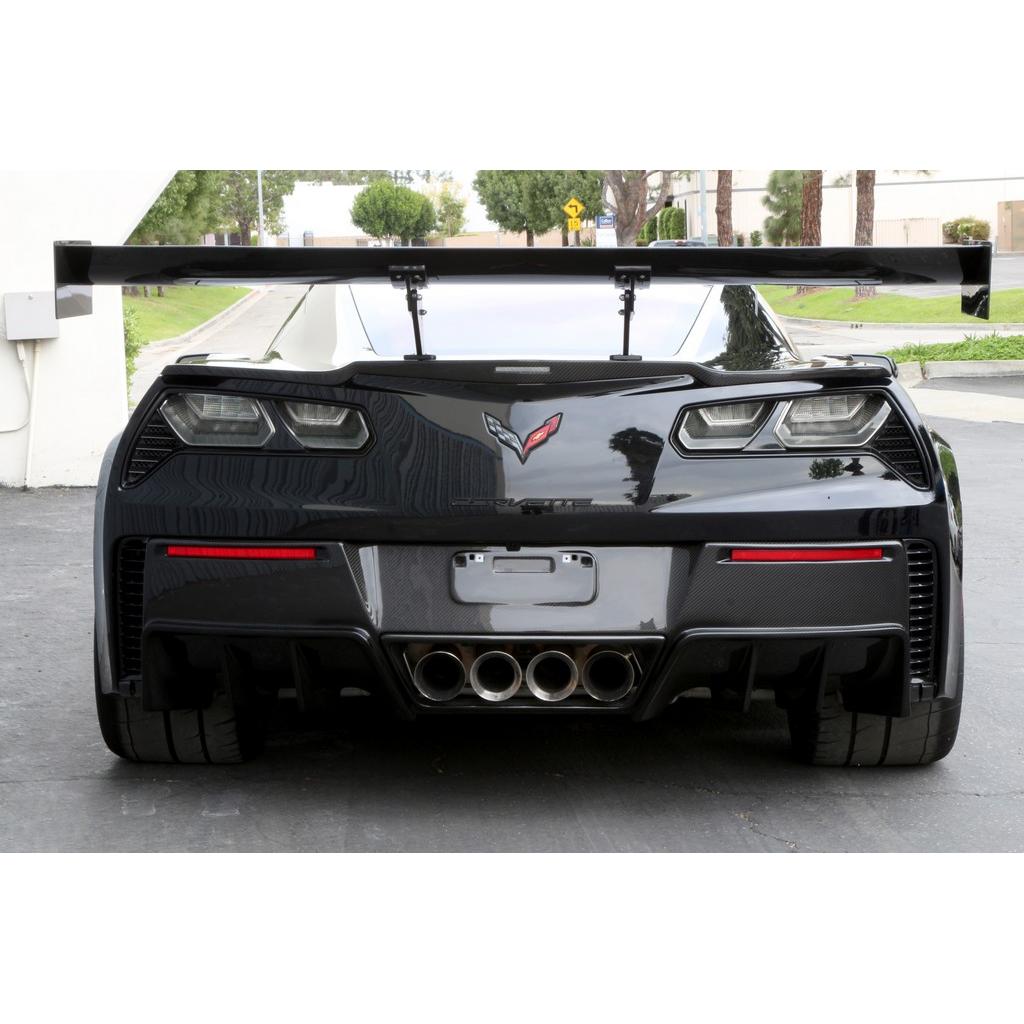

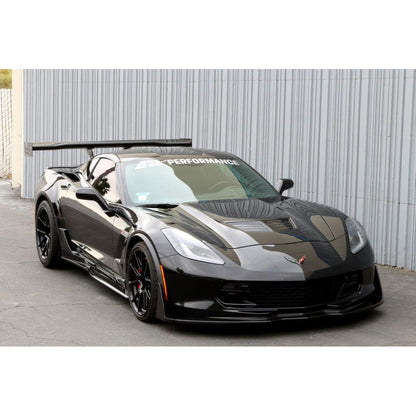

Unleash the true aerodynamic potential of your Chevrolet Corvette C7 Z06 or Grand Sport with the APR Performance GTC-500 Chassis Mount Carbon Fiber Adjustable Wing — a race-engineered aerodynamic solution developed for track precision and high-speed stability.
(Note: This item does not fit Stingray models.)

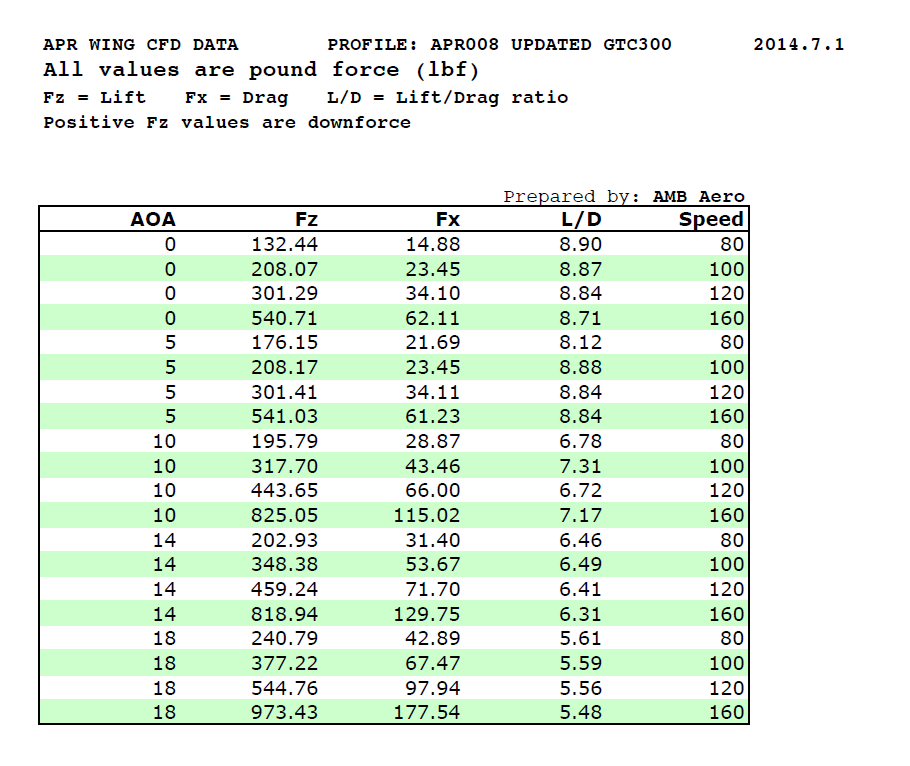

The GTC-500 is a motorsport-grade wing system that balances extreme downforce with minimal drag through a Computational Fluid Dynamics (CFD) optimized airfoil design. The cambered carbon fiber profile creates maximum rear-end stability and improved traction under cornering and braking while maintaining excellent straight-line performance.

Constructed from autoclave-cured pre-preg carbon fiber, the wing delivers a superior strength-to-weight ratio and a rigid aerodynamic surface that resists deflection under load. Its chassis mount system anchors directly to the vehicle’s frame structure for maximum stability and load distribution — ideal for track cars producing high aero forces.

With an adjustable angle of attack (0°–15°), drivers can fine-tune the GTC-500’s performance for specific track conditions — increase downforce for tight technical circuits or reduce drag for top-speed sections.

The combination of CFD engineering, pre-preg carbon fiber construction, and aircraft-grade 6061 billet aluminum risers results in a wing system that delivers unmatched performance and durability on and off the track.

Key Features:
• Chassis Mount System – Anchors to the frame for maximum rigidity and aero load support.
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for lightweight strength and high-temperature resistance.
• CFD-Optimized Airfoil – Generates efficient downforce with minimal drag.
• Adjustable Angle of Attack (0°–15°) – Allows precision tuning for cornering grip or top-speed performance.

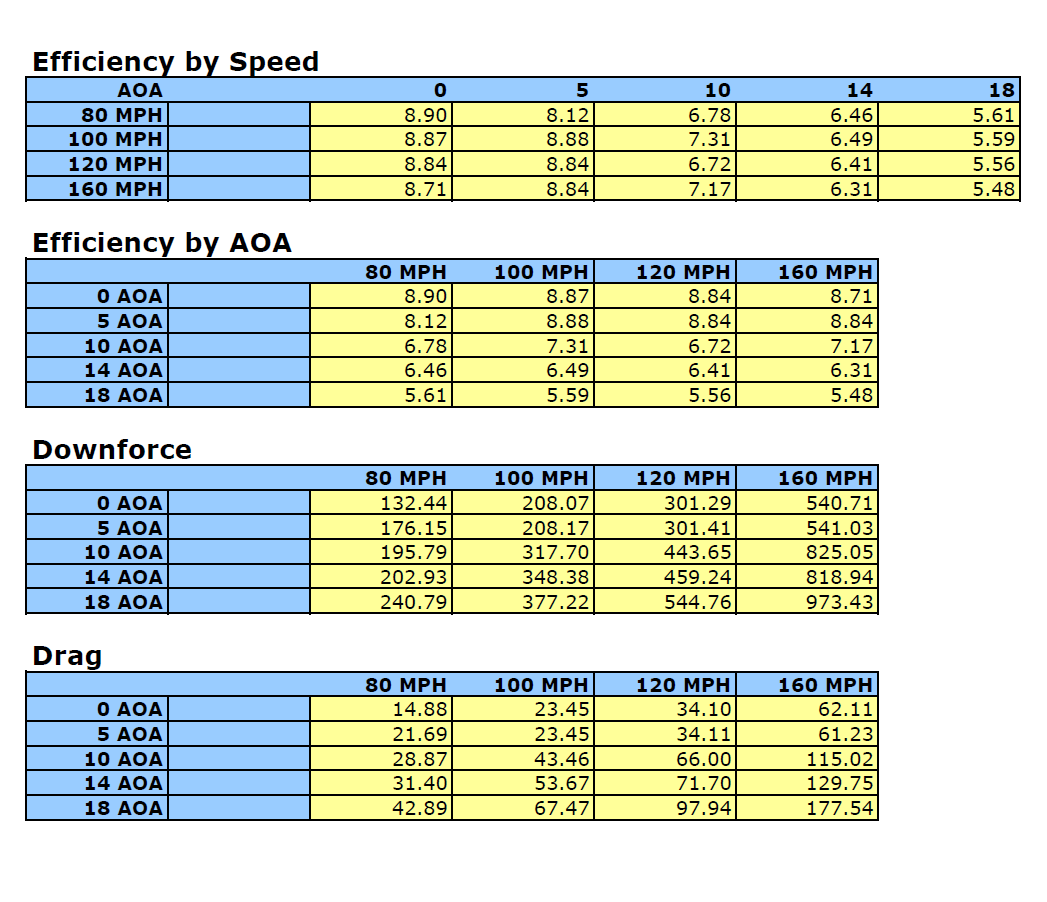

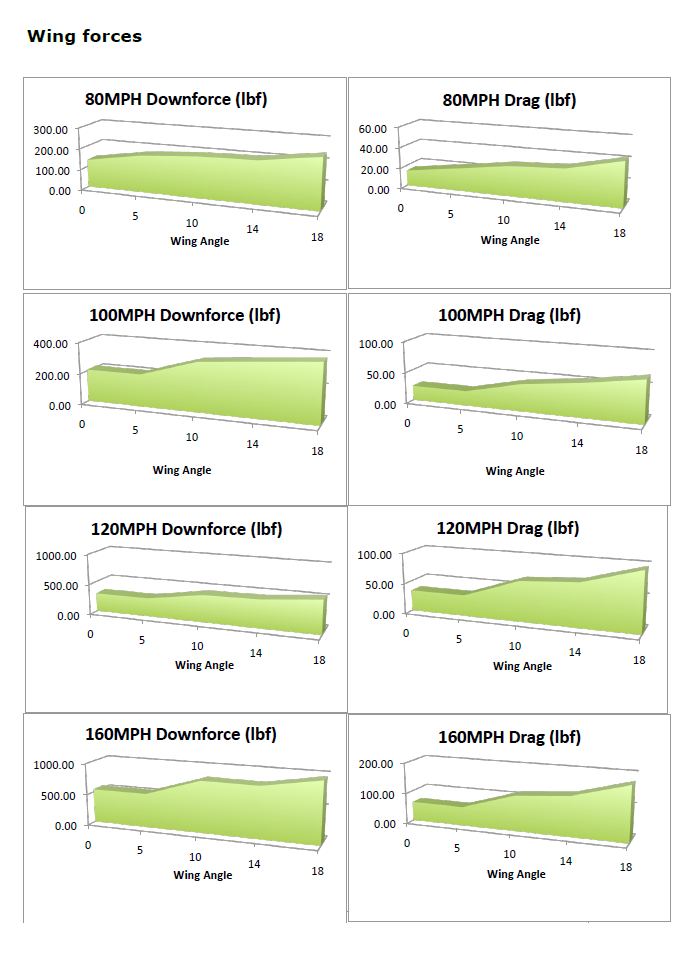

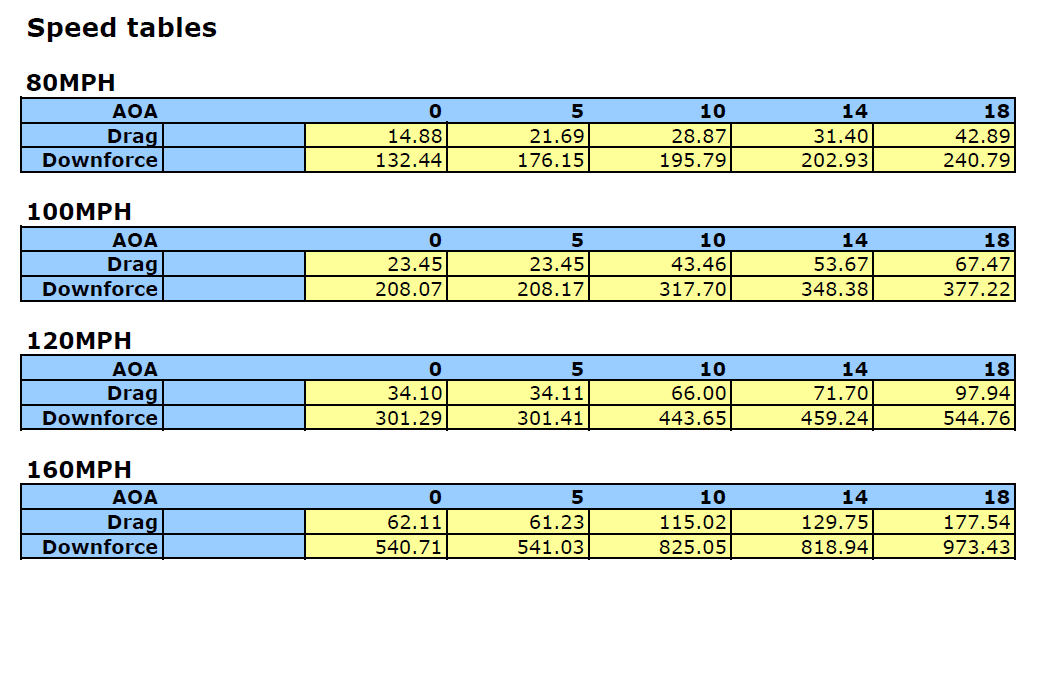

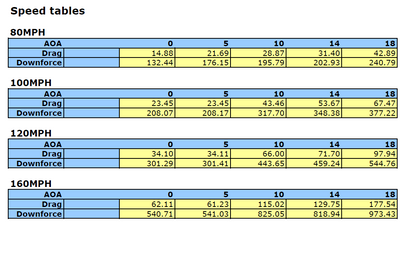

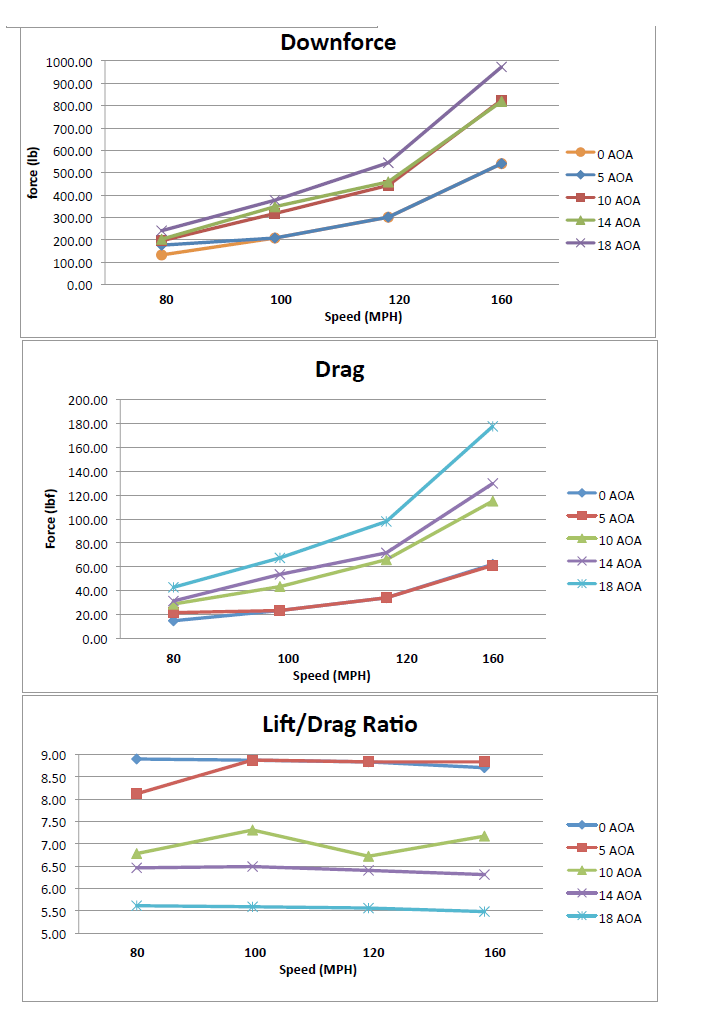

• High Downforce-to-Drag Ratio (8.88 : 1) – Ensures stability without sacrificing speed.
• 6061 Billet Aluminum Risers – 10 mm aircraft-grade construction for durability and accuracy.
• 71" or 74" Wing Span – Designed for the wide-body C7 Z06 and Grand Sport platforms.
• Optional Carbon Fiber Gurney Flap – Increases rear downforce and reduces airflow separation.
• UV-Resistant Gloss Finish – Protects carbon fiber against fading and oxidation.

Specifications:
• Span: 71" or 74" (1803 / 1880 mm)
• Chord Depth: 10.2" – 12" (259 – 305 mm)
• Height: Up to 13" (330 mm)
• Material: Pre-preg carbon fiber airfoil with 6061 billet aluminum chassis mount risers
• Angle Adjustment: 0° – 15°
• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon Fiber Gurney Flap (½" height, 3M VHB mounting)

Fitment:

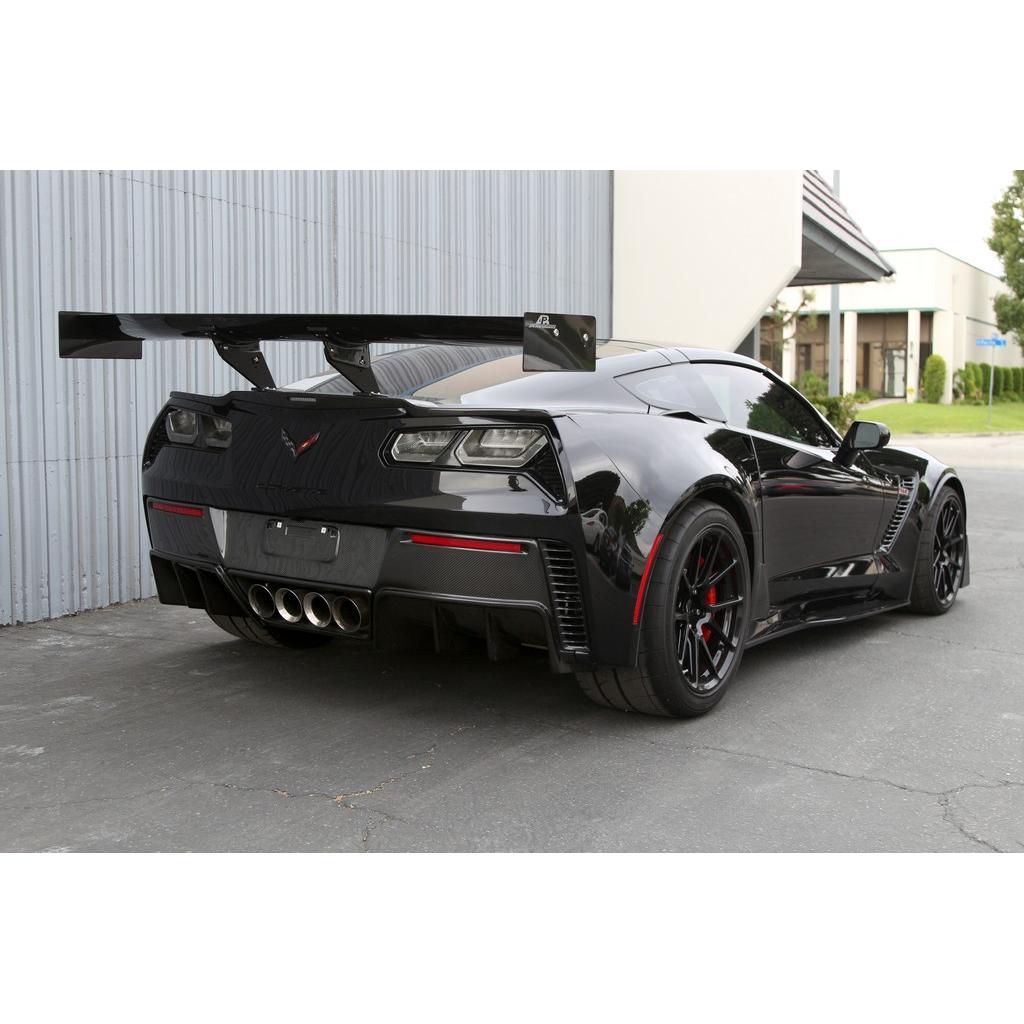

Chevrolet Corvette C7 Z06 / Grand Sport — 2015 – 2019
Does NOT fit Stingray models.
