Chevrolet Corvette C8/ C8 Z06 Convertible GTC-500 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 2-3 weeks.

Take the aerodynamics of your Chevrolet Corvette C8 / C8 Z06 Convertible (2020-Present) to new heights with the APR Performance GTC-500 71" Carbon Fiber Adjustable Wing — a race-engineered component designed to maximize rear-end stability and cornering grip without sacrificing straight-line speed.

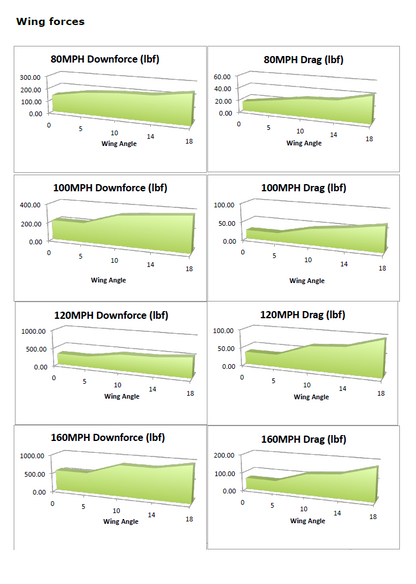

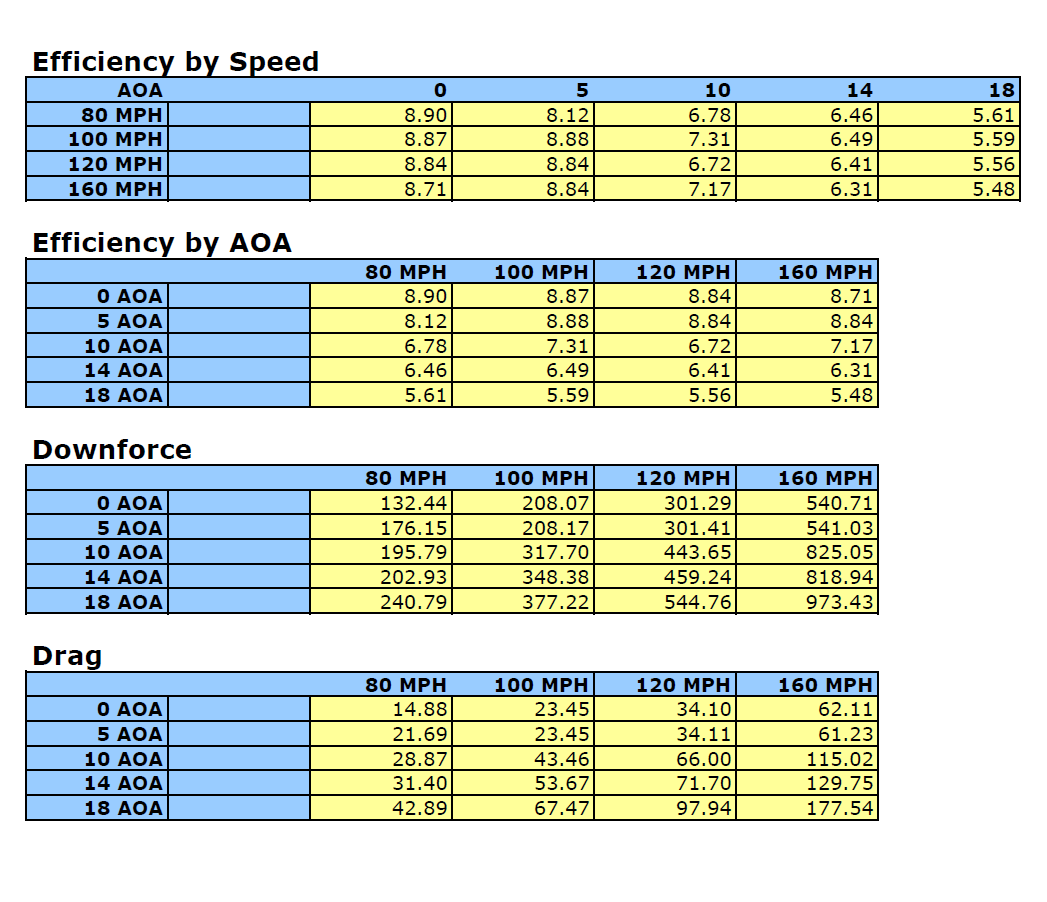

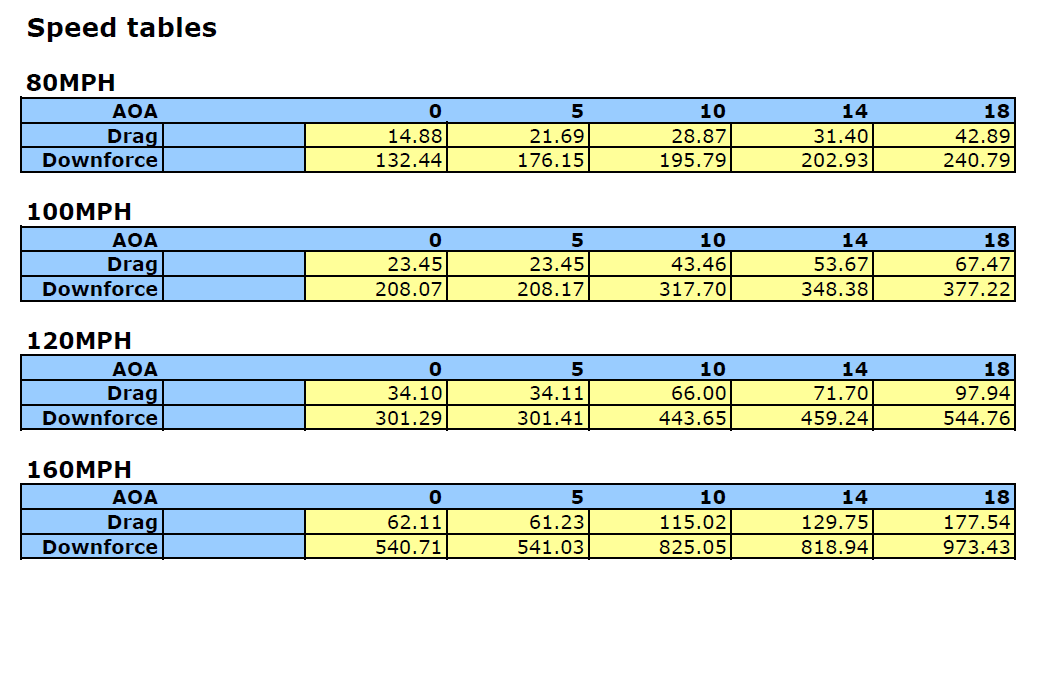

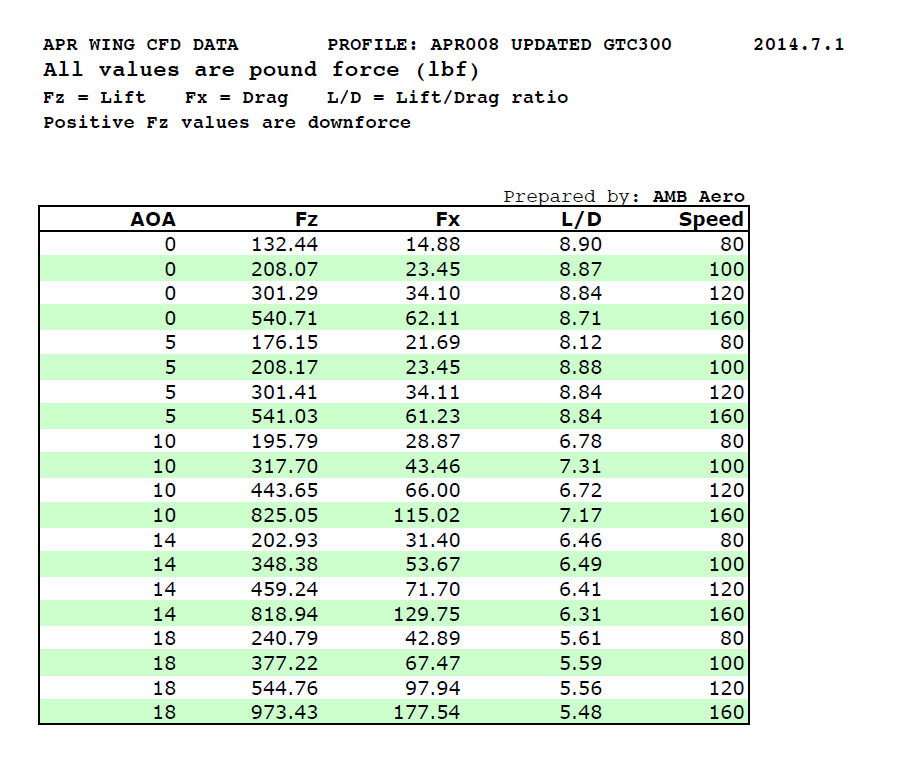

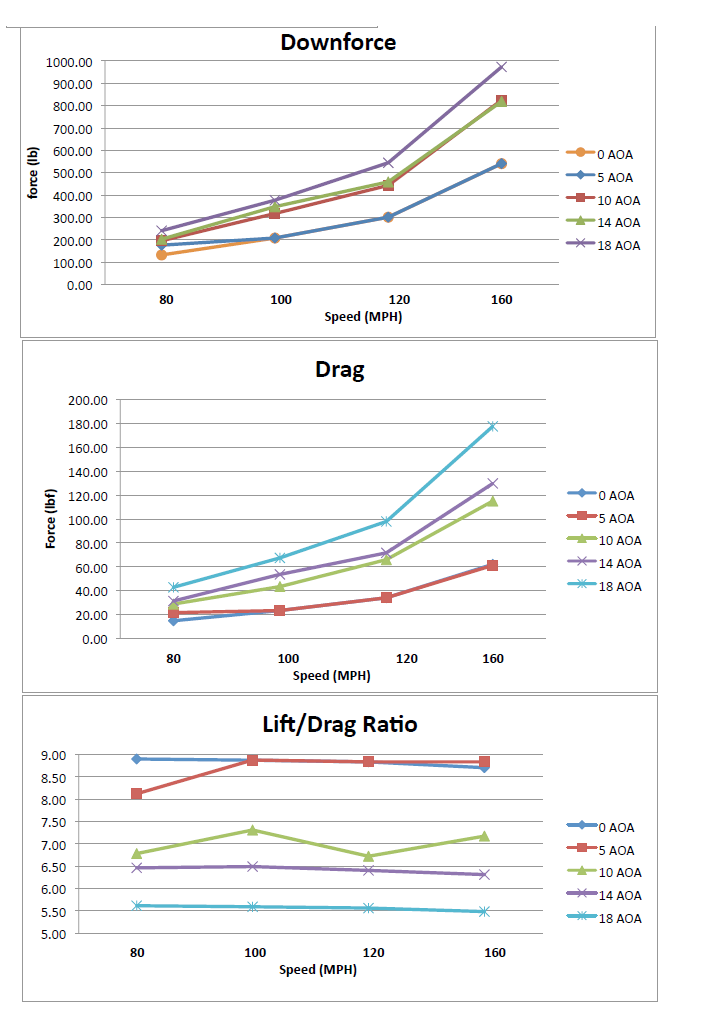

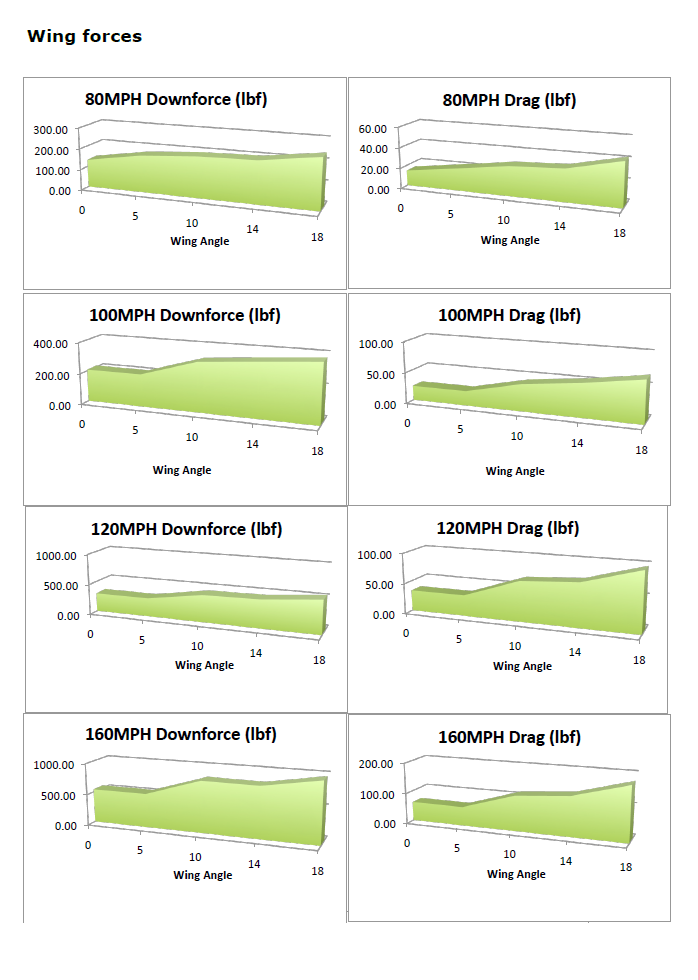

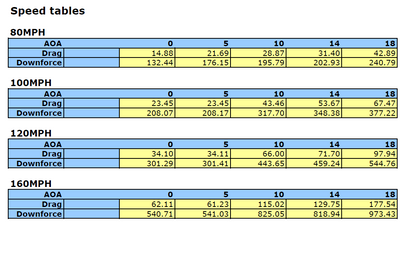

Developed using Computational Fluid Dynamics (CFD), the GTC-500’s airfoil profile achieves exceptional efficiency with an 8.88 to 1 downforce-to-drag ratio. This optimized shape creates a balanced pressure differential for superior traction, braking stability and predictable high-speed handling.

Constructed from autoclave-cured pre-preg carbon fiber, the GTC-500 combines ultra-light weight with race-grade rigidity for consistent performance under load. Its 6061 billet aluminum pedestals and 0°–15° angle-of-attack adjustability let you fine-tune aerodynamic balance for street or track setups.

This wing is the perfect blend of form and function for C8 owners demanding motorsport-proven aero efficiency and APR’s signature carbon craftsmanship.

Key Features

• CFD-Engineered Airfoil – Maximized downforce with minimal drag.
• Pre-Preg Carbon Fiber Construction – Lightweight and autoclave-cured for superior strength.
• Adjustable Angle of Attack (0°–15°) – Tunable aerodynamics for track or street driving.
• 8.88:1 Downforce-to-Drag Ratio – Race-level aerodynamic efficiency.
• 6061 Billet Aluminum Pedestals – Aircraft-grade mounts for precise height and stability.
• UV-Resistant Gloss Finish – Long-lasting protection from fading and weather.
• Optional Carbon Fiber Gurney Flap – Boosts downforce and cornering grip.

Specifications

• Span: 71" or 74" (1803 mm / 1880 mm)
• Chord Depth: 10.2" – 12" (259 – 305 mm)
• Height: Up to 13" (330 mm)
• Material: Pre-preg carbon fiber composite
• Mounts: 6061 billet aluminum adjustable risers
• Angle Adjustment: 0° – 15°
• Downforce Ratio: 8.88 : 1
• Finish: UV-resistant gloss clear coat
• Optional: ½" Carbon Fiber Gurney Flap (3M VHB mounting)

Fitment

Chevrolet Corvette C8 Convertible (2020 – Present)
Chevrolet Corvette C8 Z06 Convertible (2023 – Present)
