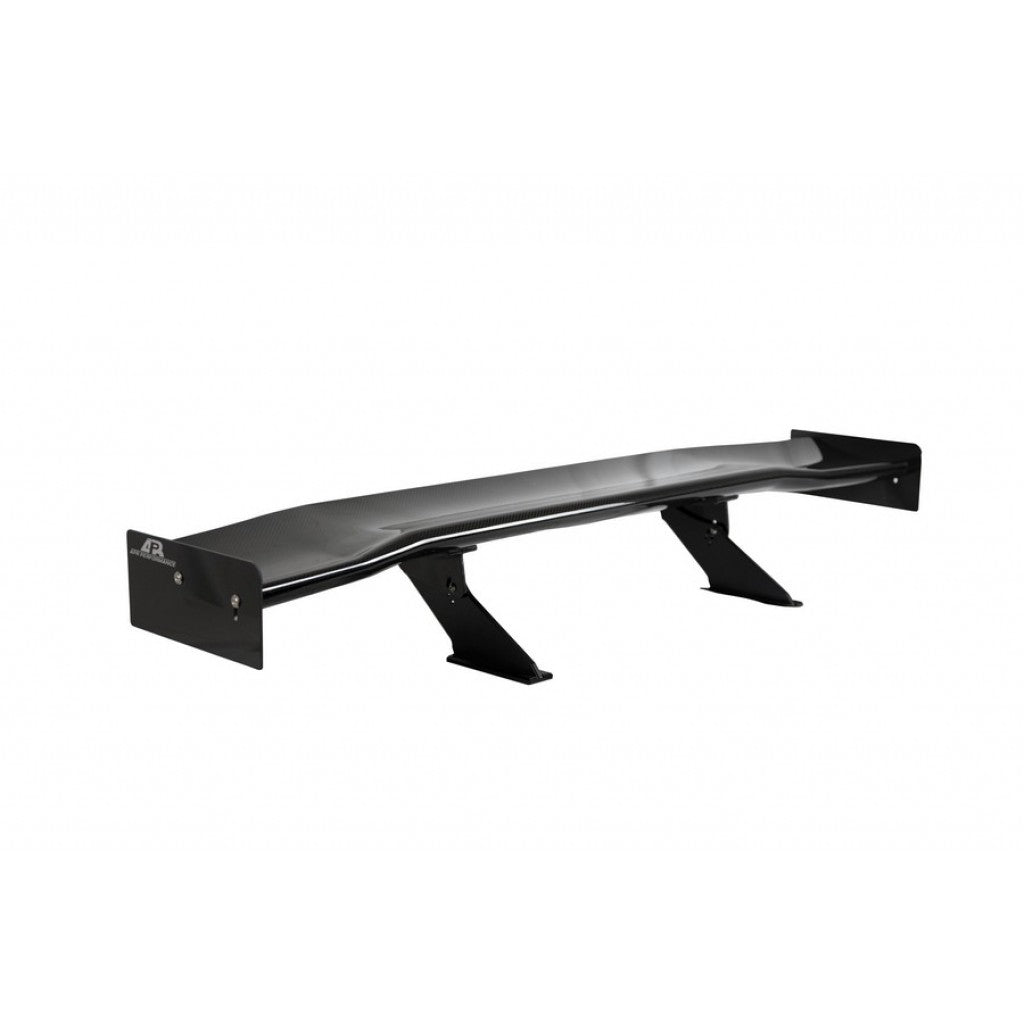

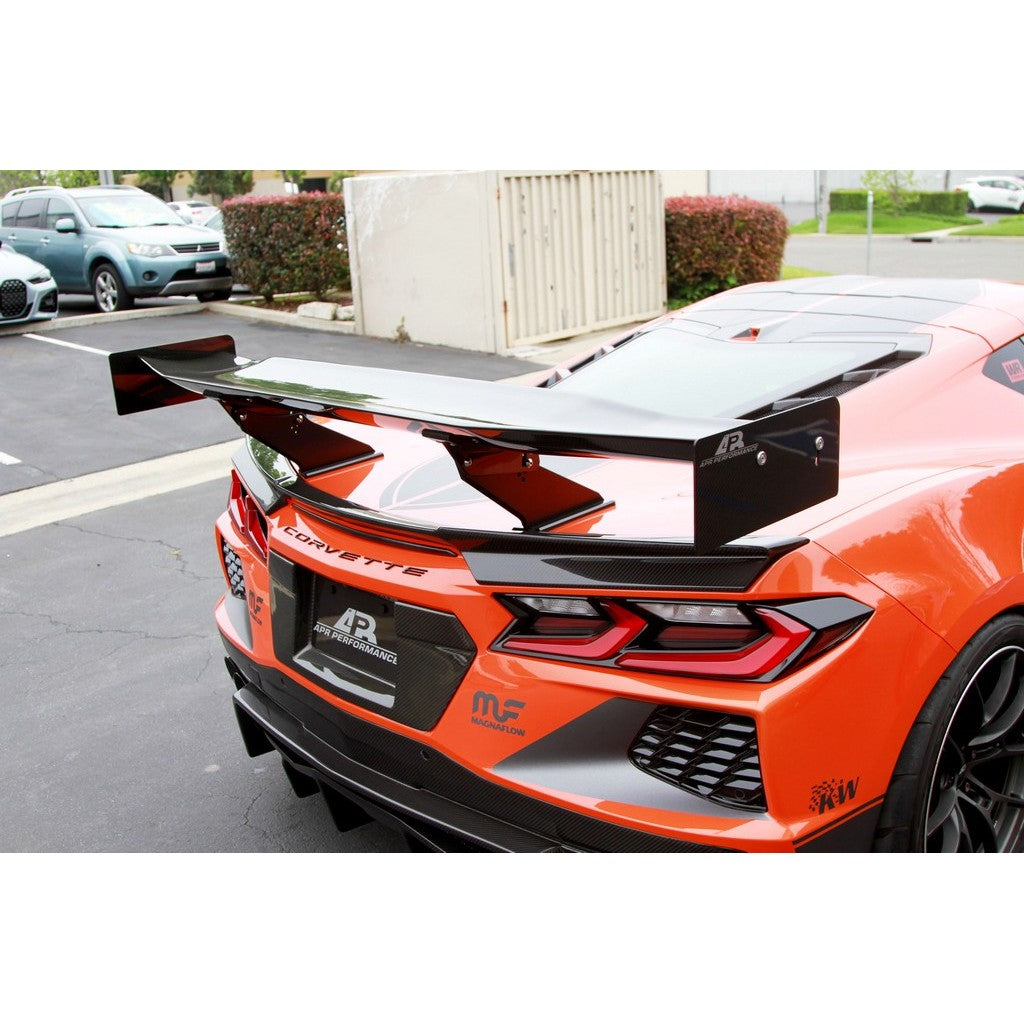

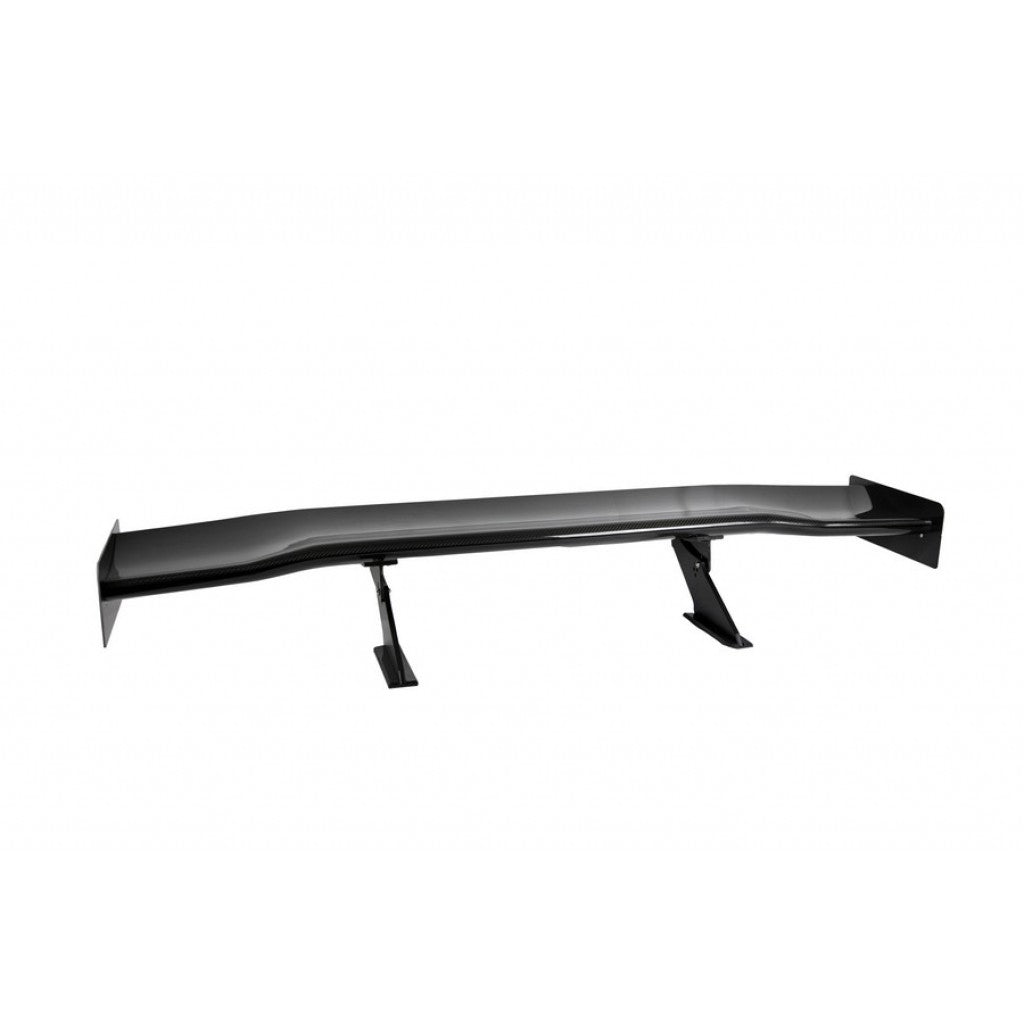

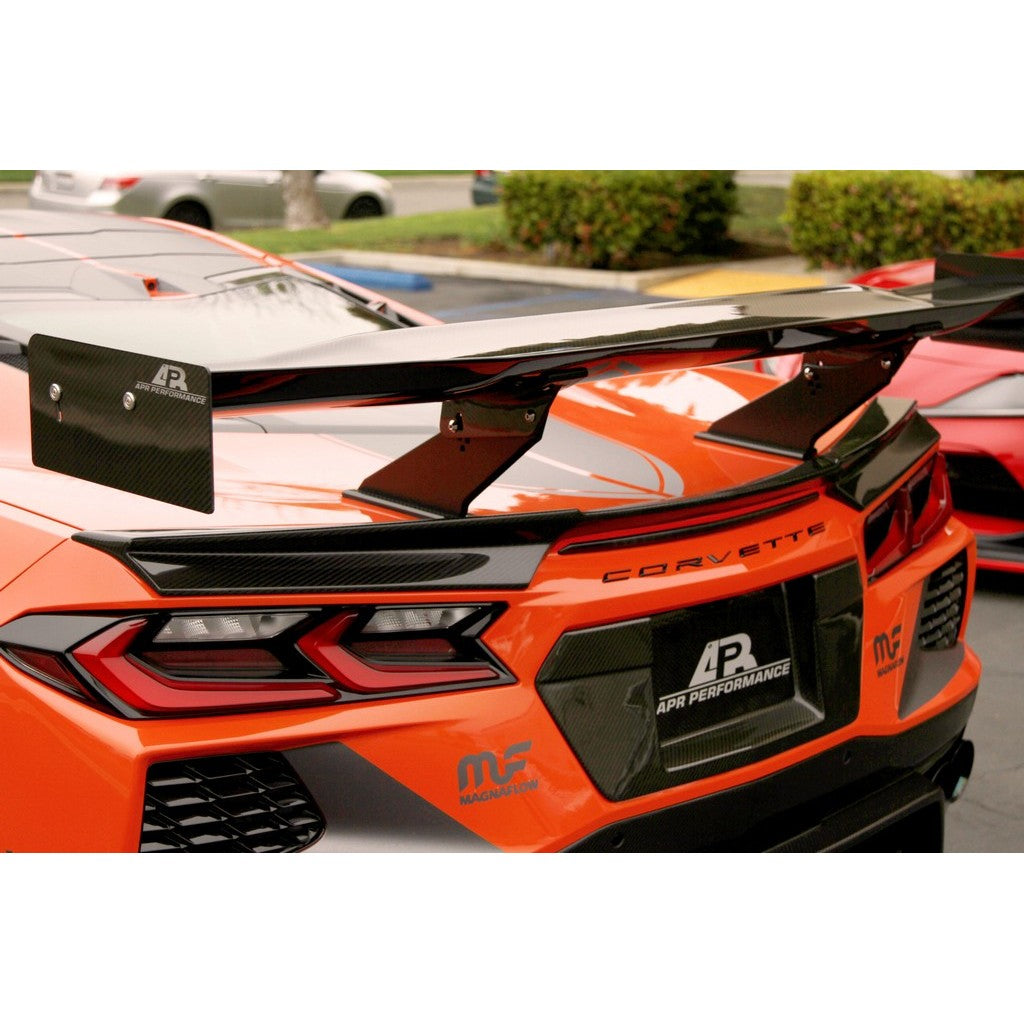

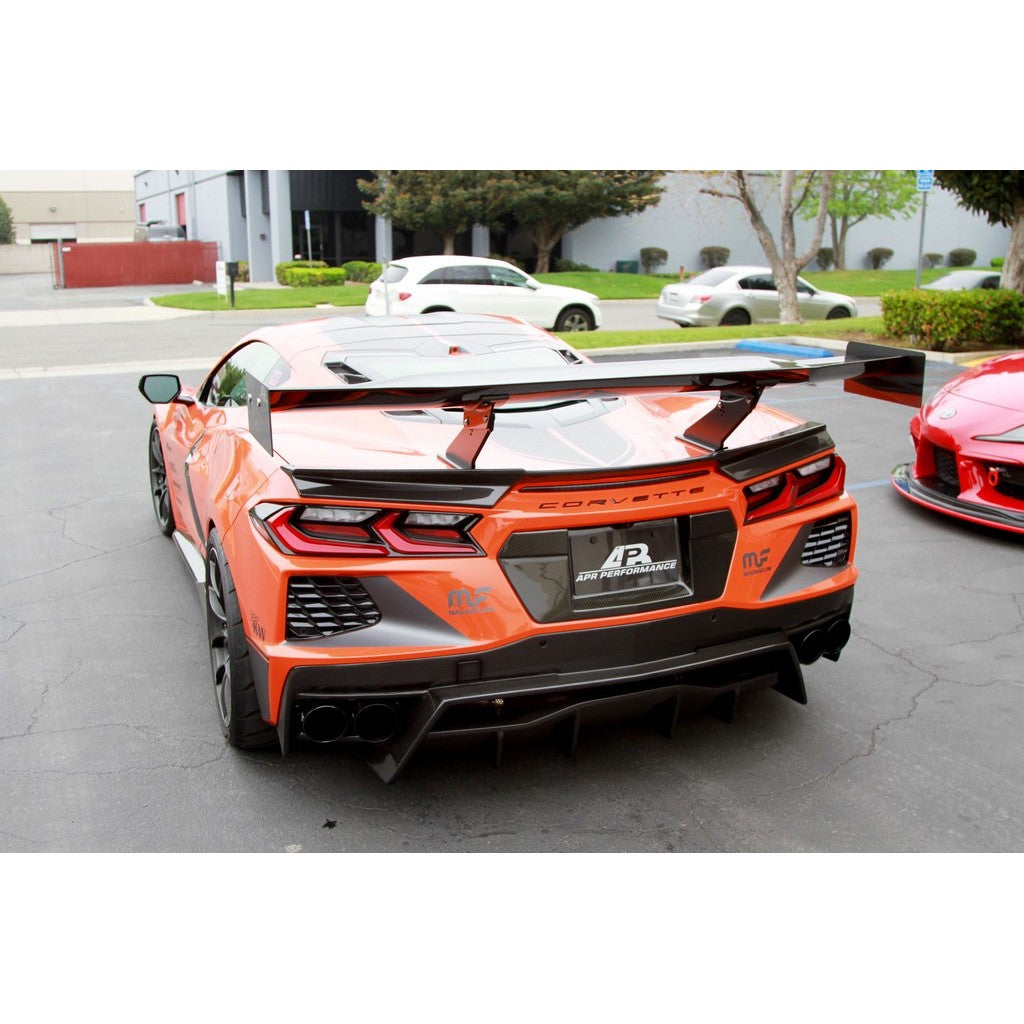

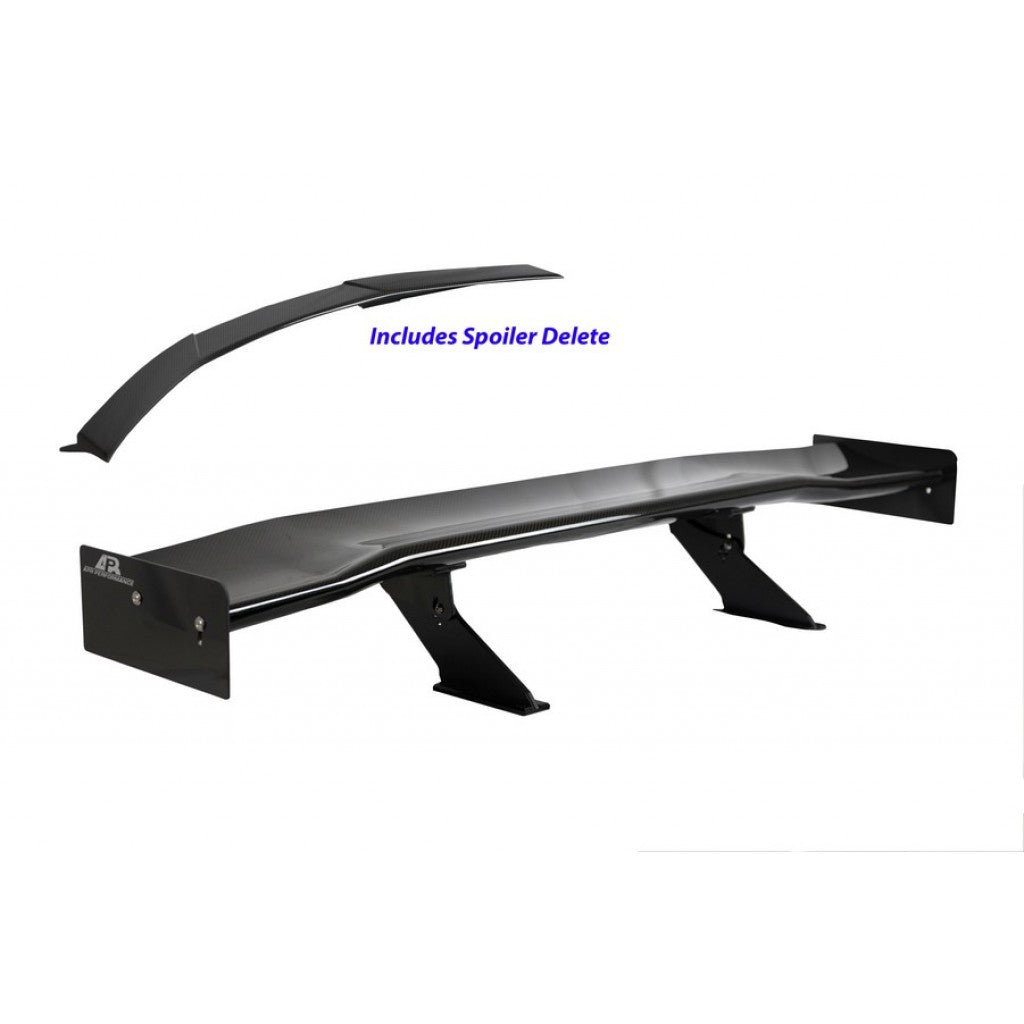

Chevrolet Corvette C8/ C8 Z06 GTC-500 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 2-3 weeks.

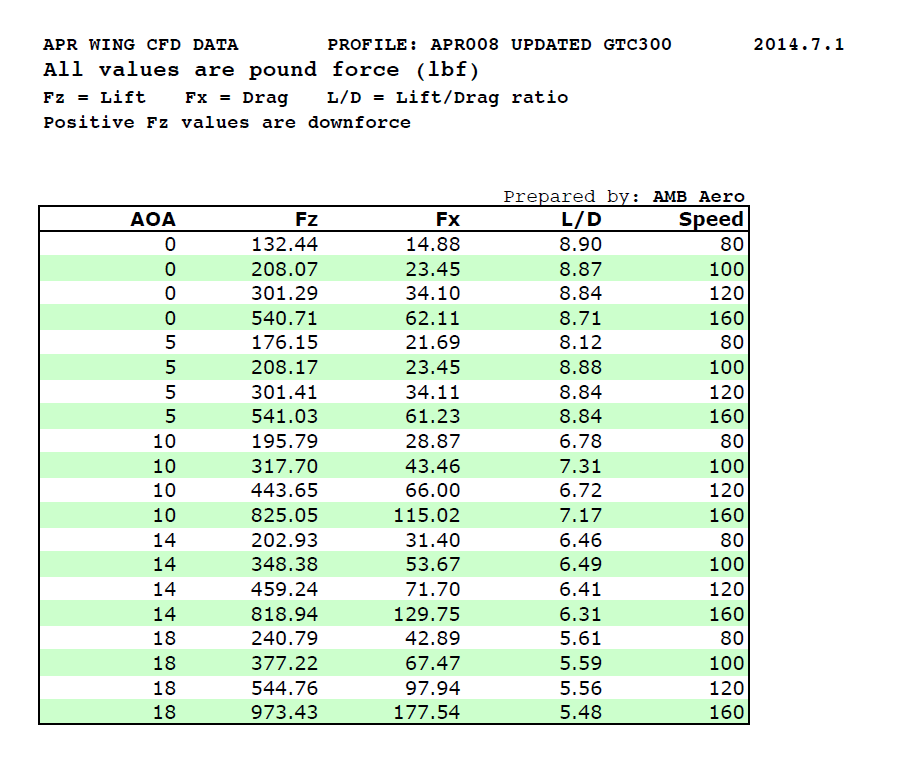

Transform the aerodynamic performance of your Chevrolet Corvette C8 or C8 Z06 with the APR Performance GTC-500 Carbon Fiber Adjustable Wing, engineered for extreme track precision and high-speed control. Developed through Computational Fluid Dynamics (CFD), this wing optimizes downforce and drag balance for uncompromising cornering grip, braking stability, and aerodynamic efficiency.

The CFD-designed cambered airfoil generates substantial rear-end stability by channeling airflow for maximum downforce while minimizing resistance. Whether carving through tight technical corners or maximizing speed on straights, the GTC-500 enhances your Corvette’s balance, control, and response.

Constructed from autoclave-cured pre-preg carbon fiber, the GTC-500 offers a high strength-to-weight ratio, ensuring stiffness and consistency under high aerodynamic loads. Its 6061 billet aluminum pedestal system allows for fine-tuned installation and stability while maintaining a lightweight setup ideal for both track and high-performance street builds.

With an adjustable angle of attack (0°–15°), you can fine-tune the aerodynamic load to meet specific driving demands — from increased downforce for competitive racing to reduced drag for top-speed runs.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for superior stiffness, strength, and lightweight performance.
• CFD-Optimized Airfoil Design – Provides maximum aerodynamic efficiency and downforce stability.
• Adjustable Angle of Attack (0°–15°) – Fine-tune aerodynamic load for track or street use.

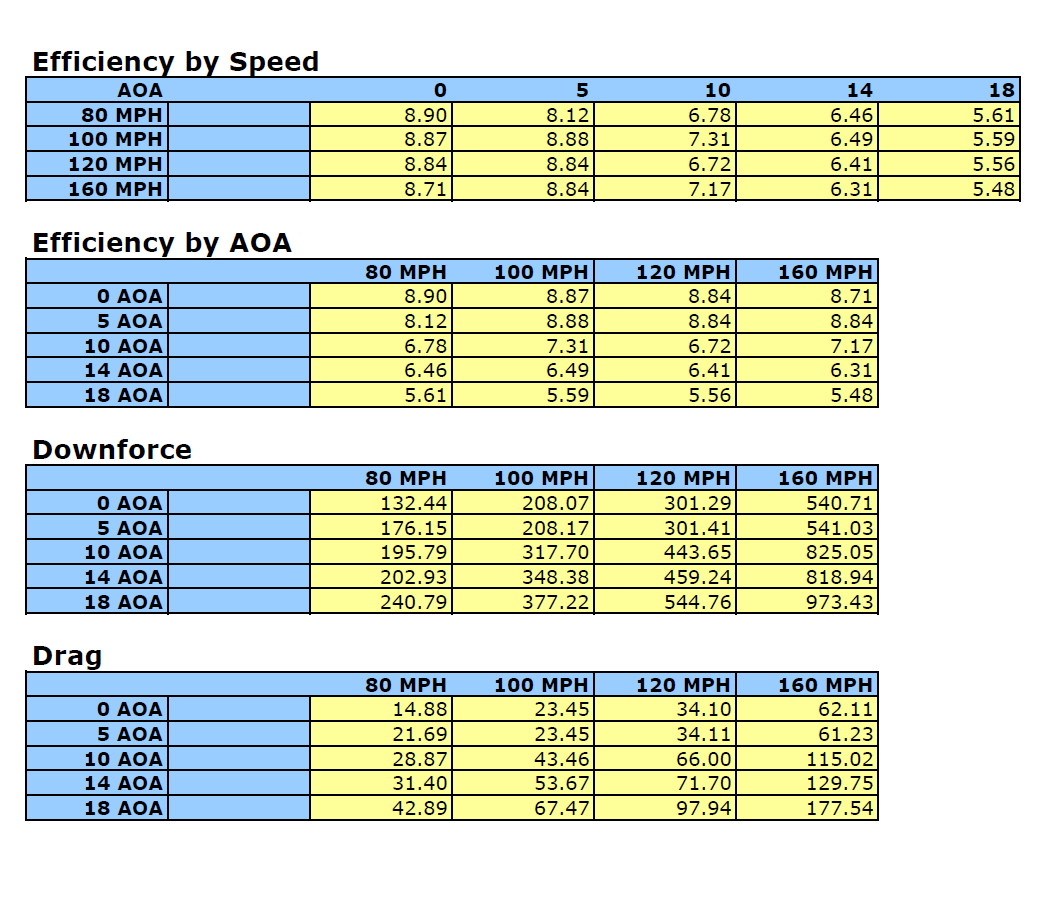

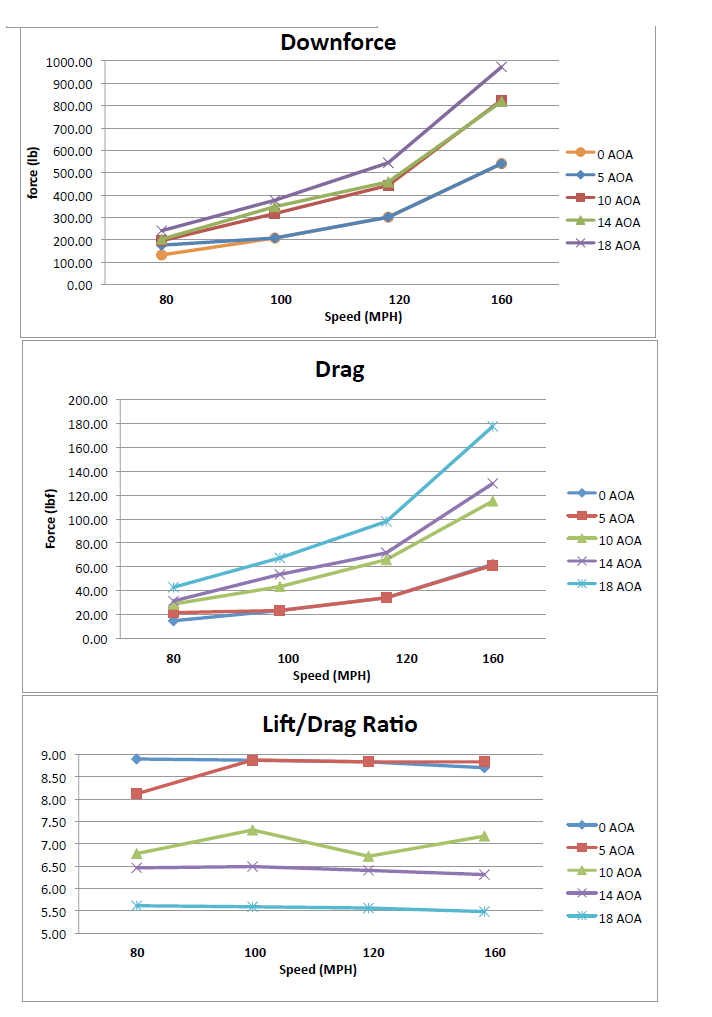

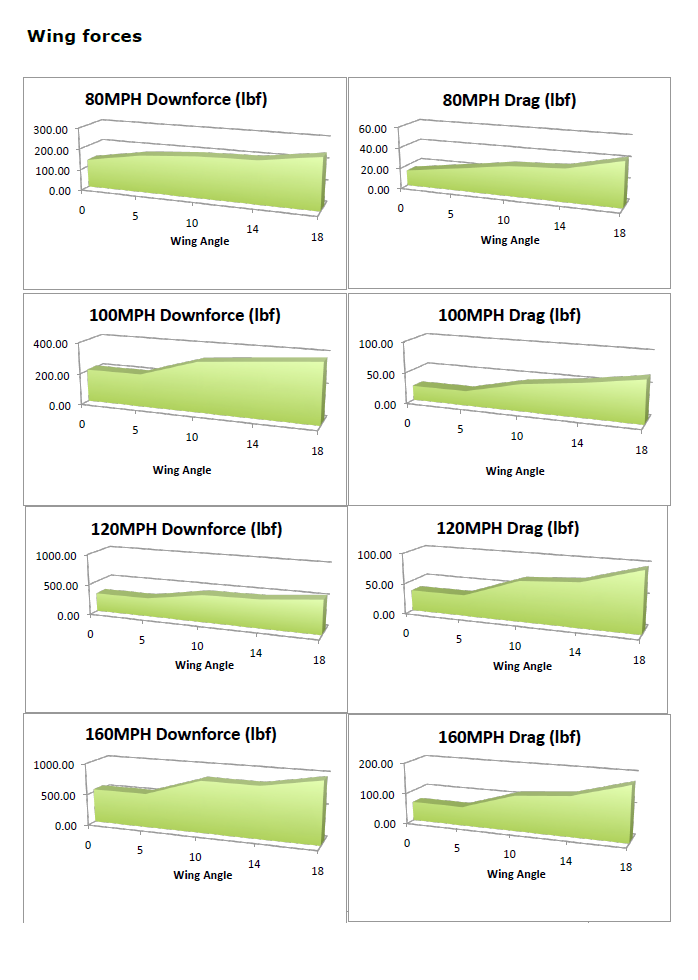

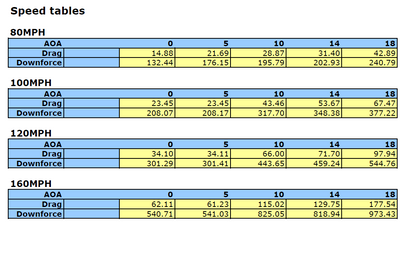

• High Downforce-to-Drag Ratio (8.88 : 1) – Achieves cornering grip with minimal drag.

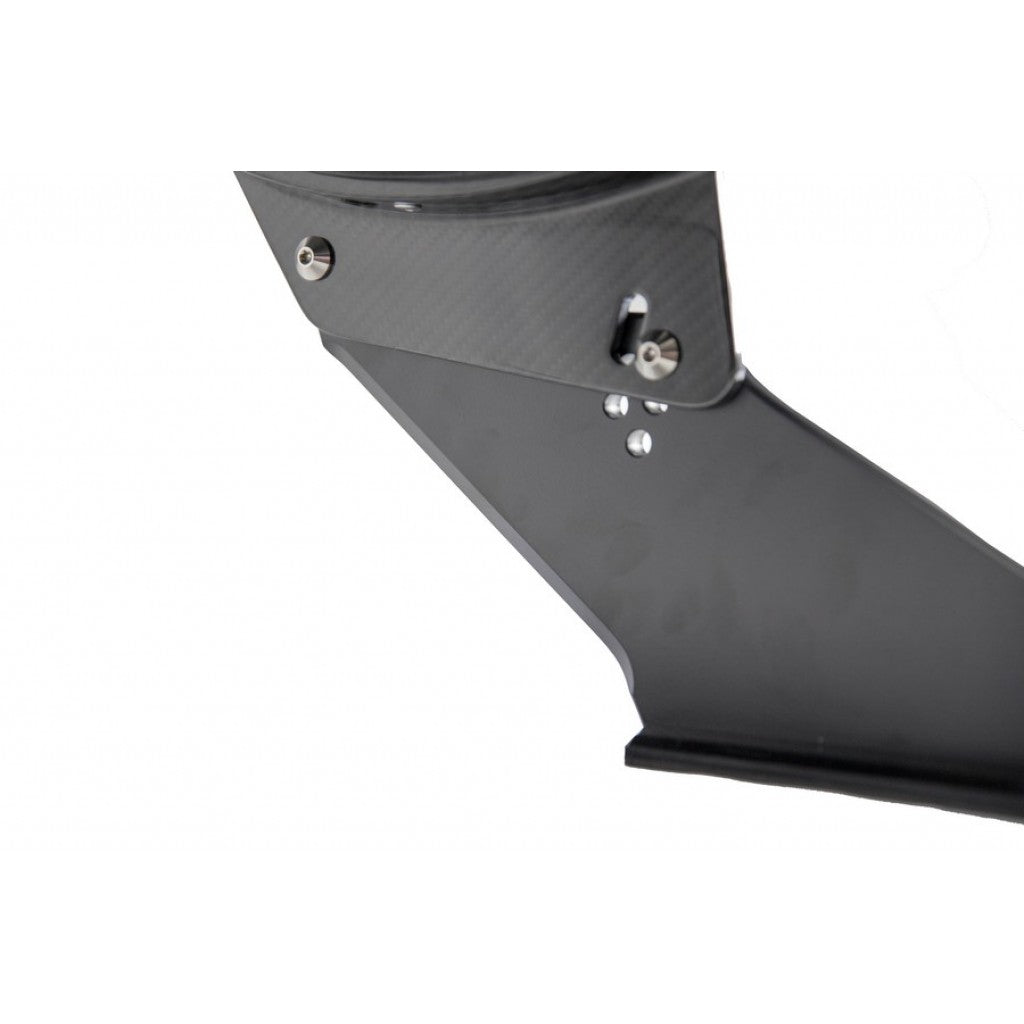

• 6061 Billet Aluminum Pedestals – 10 mm aircraft-grade supports for precise alignment and reliability.
• 71" or 74" Wing Span – Designed for wide-stance stability on C8 platforms.
• Optional Carbon Fiber Gurney Flap – Further enhances aerodynamic grip and reduces turbulence.
• UV-Resistant Gloss Finish – Maintains deep carbon fiber luster and resists fading over time.

Specifications:
• Span: 71” or 74” (1803 / 1880 mm)
• Chord Depth: 10.2” – 12” (259 – 305 mm)
• Height: Up to 13” (330 mm)
• Material: Pre-preg carbon fiber with 6061 billet aluminum risers
• Angle Adjustment: 0° – 15°
• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon Fiber Gurney Flap (½” height, 3M VHB mounting)

Fitment:

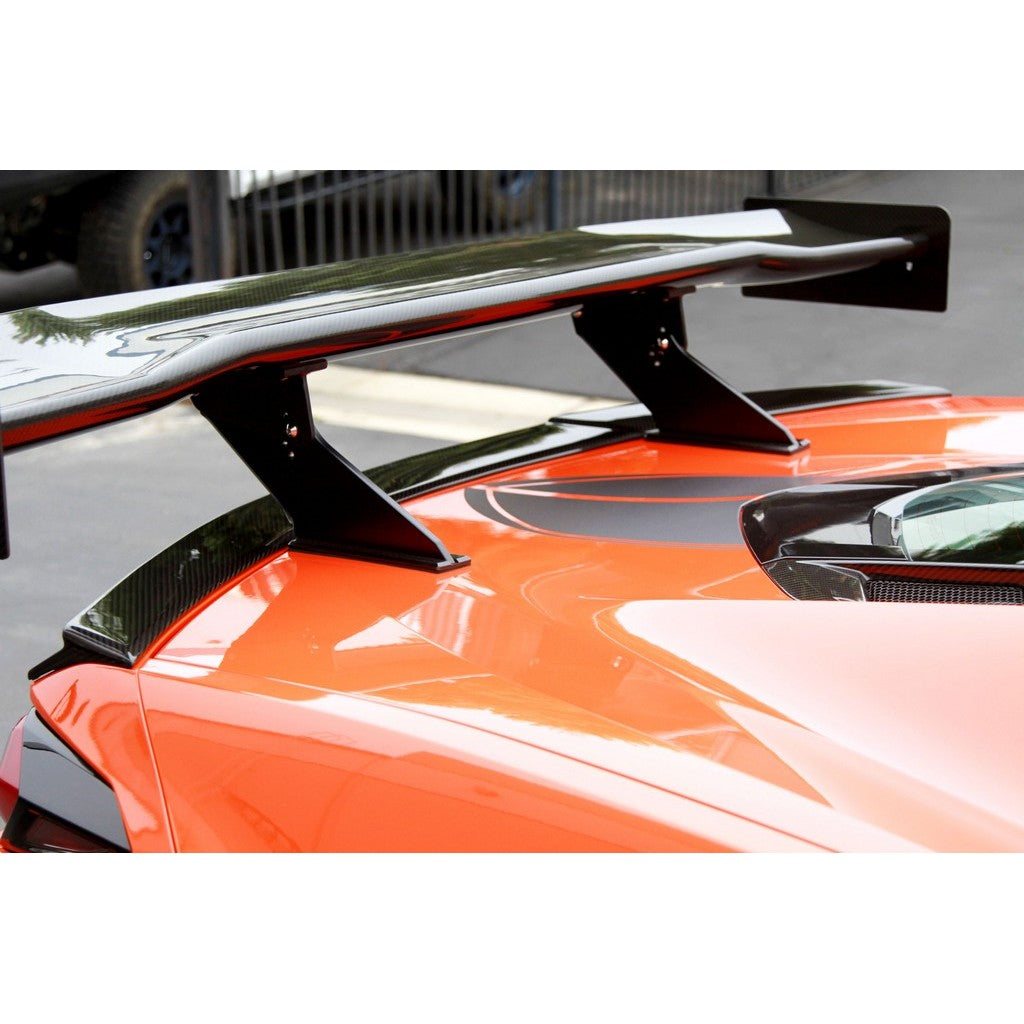

Chevrolet Corvette C8 / C8 Z06 — 2020 – Present
