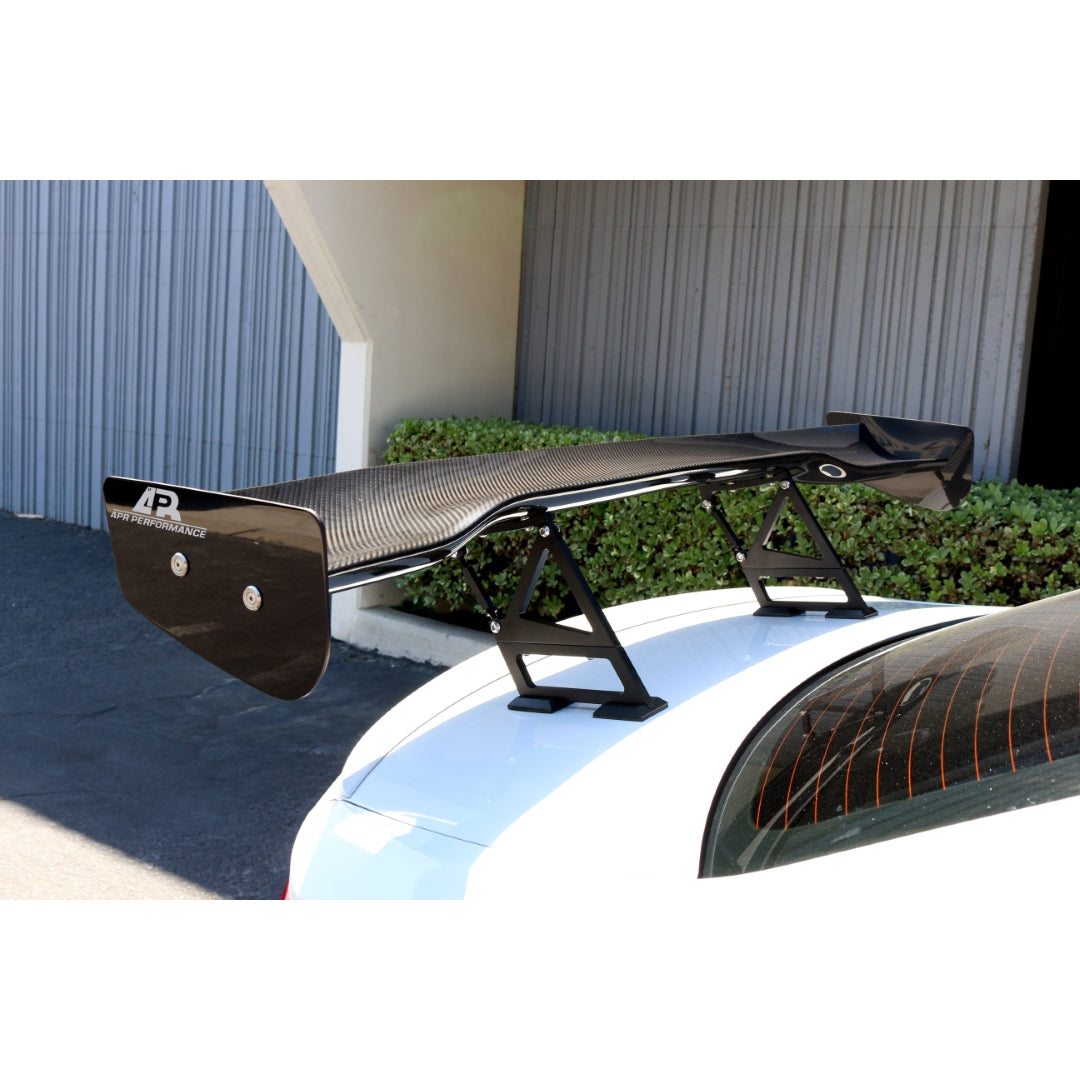

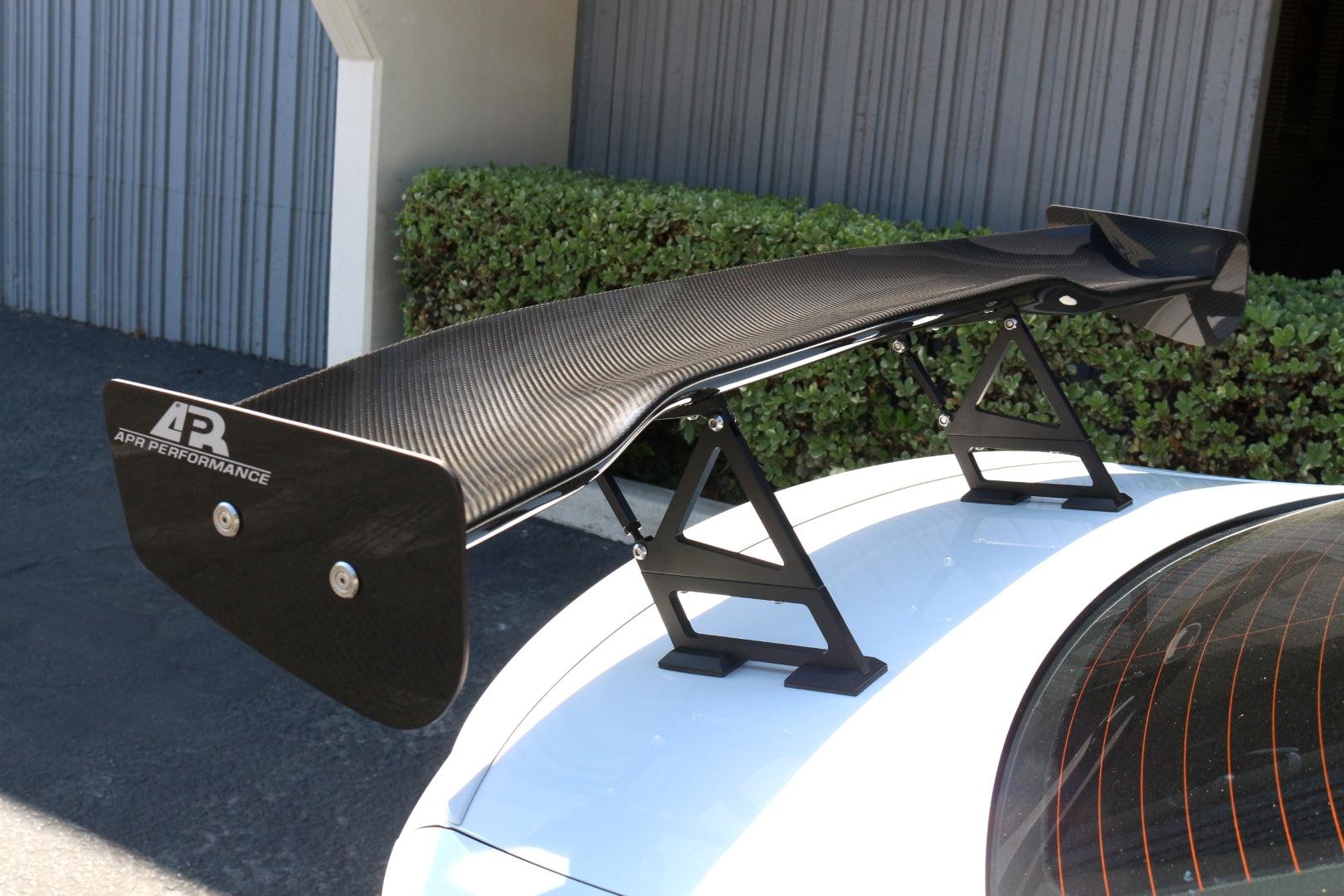

BMW F22 2-Series GTC-200 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 2 weeks.

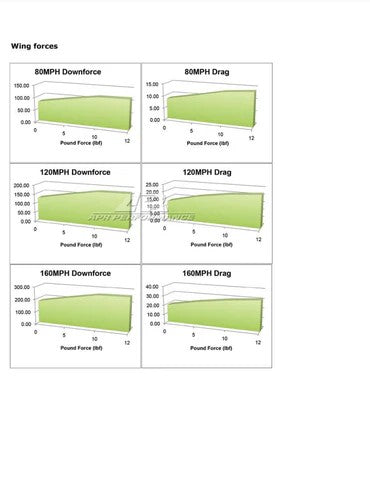

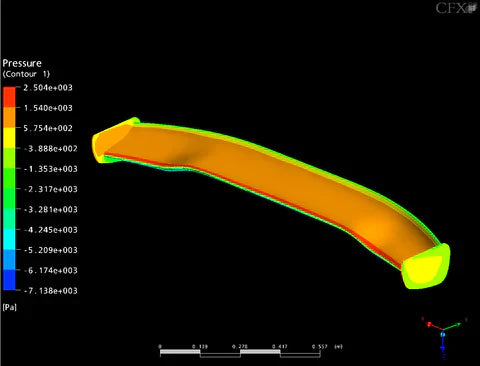

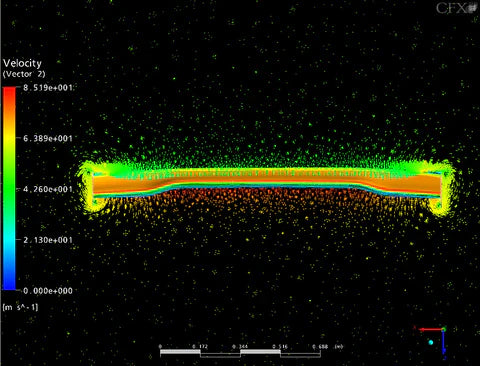

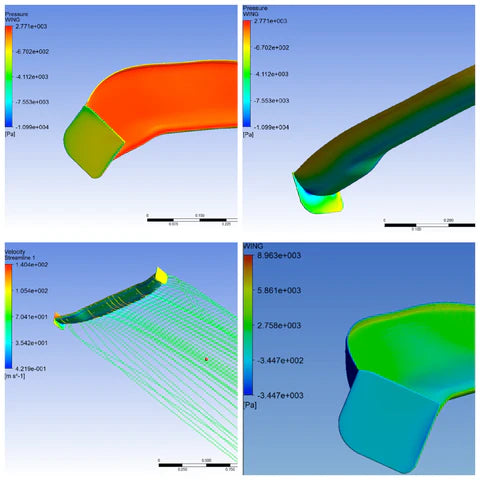

The APR Performance GTC-200 Carbon Fiber Adjustable Wing for the BMW F22 2-Series (2014-2021) delivers professional-grade aerodynamics and superior stability for both street and track applications. Developed using Computational Fluid Dynamics (CFD), the GTC-200 optimizes airflow to produce exceptional rear downforce while maintaining low drag—improving cornering grip, braking confidence, and high-speed balance.

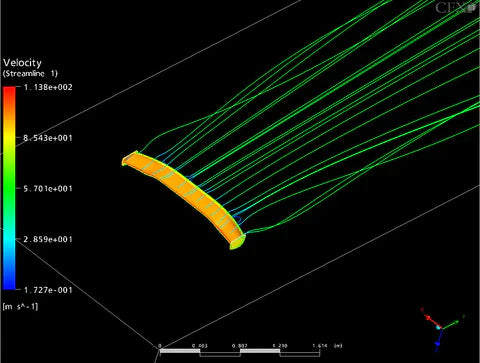

Its cambered airfoil profile is designed to maintain airflow attachment at high speeds, reducing turbulence and ensuring consistent aerodynamic performance. The result is increased rear-end stability without excessive drag penalties, ideal for drivers seeking balanced performance during spirited driving or circuit events.

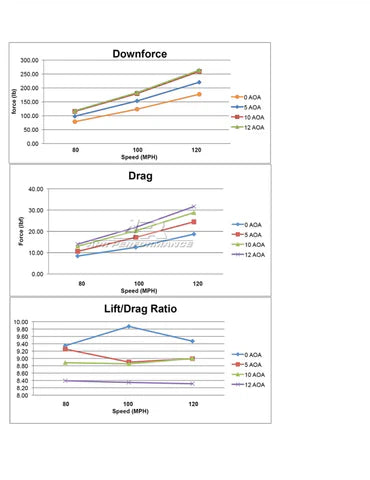

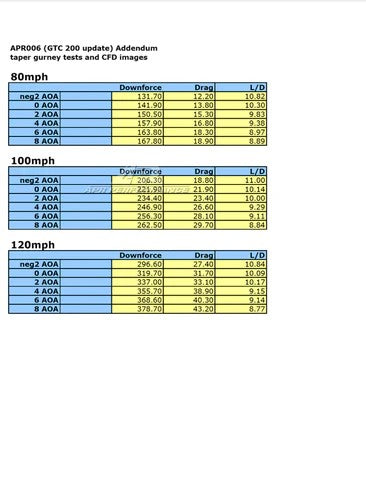

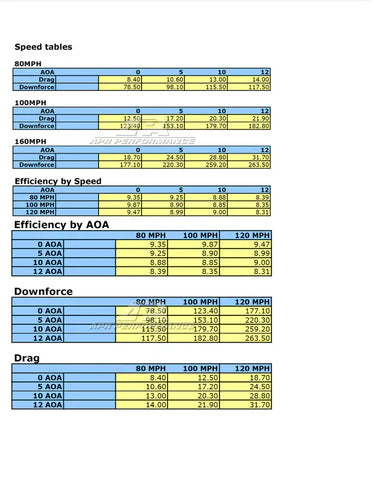

The adjustable angle of attack (0°–15°) provides tuning flexibility to suit different track layouts and vehicle setups—high angles for tight corners and greater downforce, or low angles for top-speed efficiency. With an 11:1 downforce-to-drag ratio, the GTC-200 achieves a rare combination of control and speed.

Built from autoclave-cured, pre-impregnated carbon fiber, this wing delivers an outstanding strength-to-weight ratio. Its rigid construction ensures stability under heavy aerodynamic loads while keeping weight to a minimum. The 10mm aircraft-grade 6061 billet aluminum risers allow for adjustable mounting height and position, providing precise control of airflow and pressure distribution.

Perfectly sized as a mid-range aerodynamic upgrade, the GTC-200 enhances track performance without the drag of larger competition wings. Whether installed on a tuned street F22 or a dedicated time-attack setup, it provides real aerodynamic advantage and a striking carbon-fiber aesthetic.

Specifications:

• Vehicle Fitment: BMW F22 2-Series (2014–2021)
• Span: 60.5" (1520mm)
• Chord Depth: 7.5"–9.5" (190.5–241.3mm)
• Height: Adjustable from 7" (177.8mm) and up
• Angle of Attack: Adjustable 0°–15°
• Downforce-to-Drag Ratio: 11:1
• Material: Pre-preg autoclave-cured carbon fiber
• Risers: 10mm aircraft-grade 6061 billet aluminum
• Mounting Distance: 29.5" (center-to-center)

Key Features:

• CFD-tested airfoil design for superior aerodynamic efficiency
• Lightweight, rigid carbon fiber construction
• Adjustable angle of attack for tailored downforce and drag control
• Durable billet aluminum risers for precise mounting
• Mid-sized design ideal for track or street performance
• Optional carbon fiber Gurney Flap for additional downforce

Fitment:

• BMW F22 2-Series (2014–2021)
  Compatible with M235i, M240i, and other 2-Series variants.
