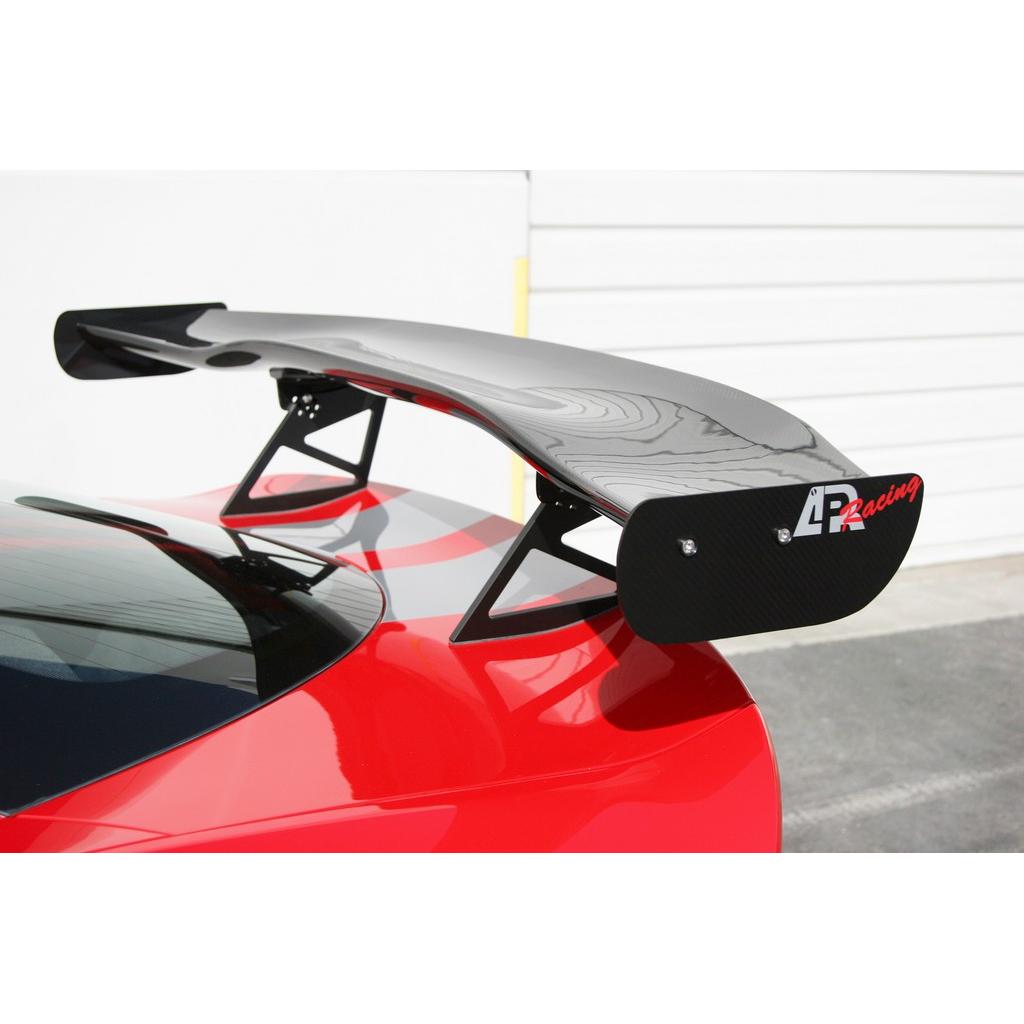

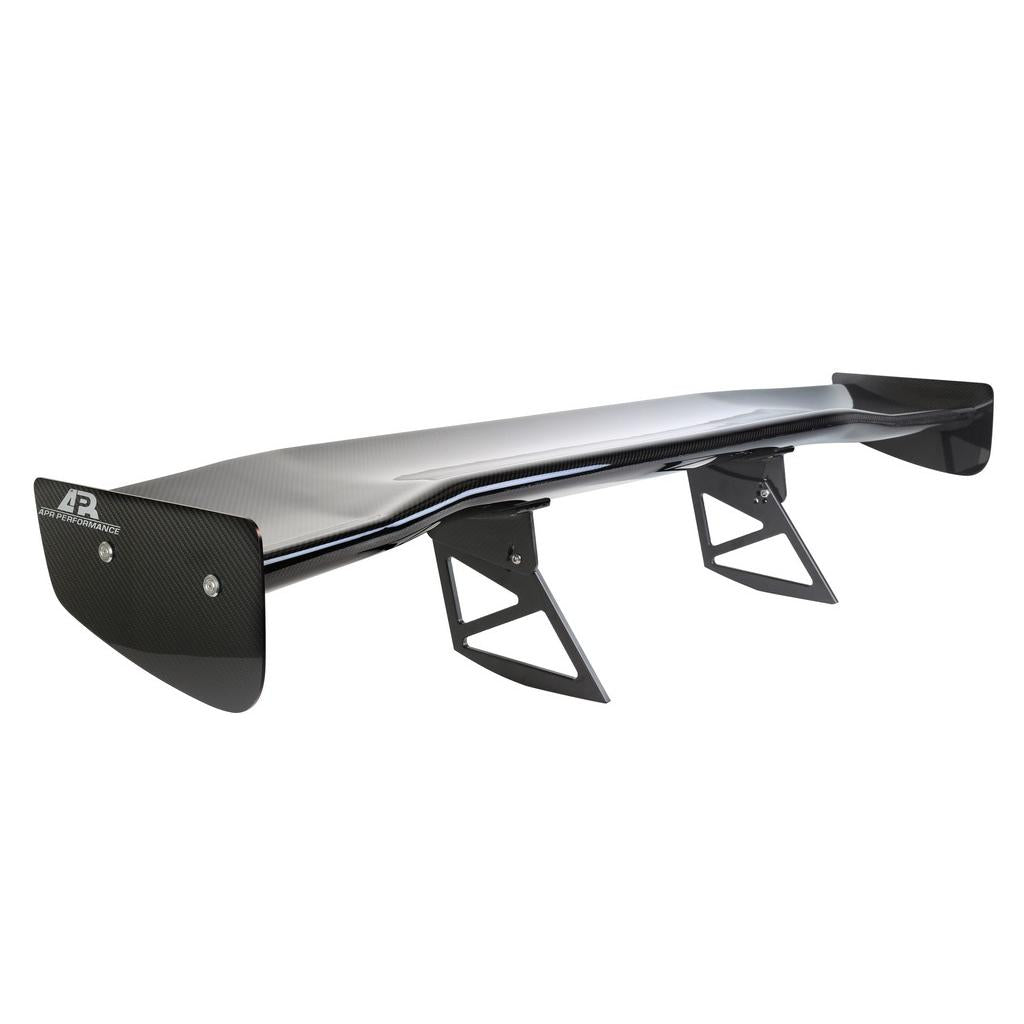

Dodge Viper Coupe GTC-500 Carbon Fiber Adjustable Wing 2006-2010

This item is made to order, normal lead time is 2-3 weeks.

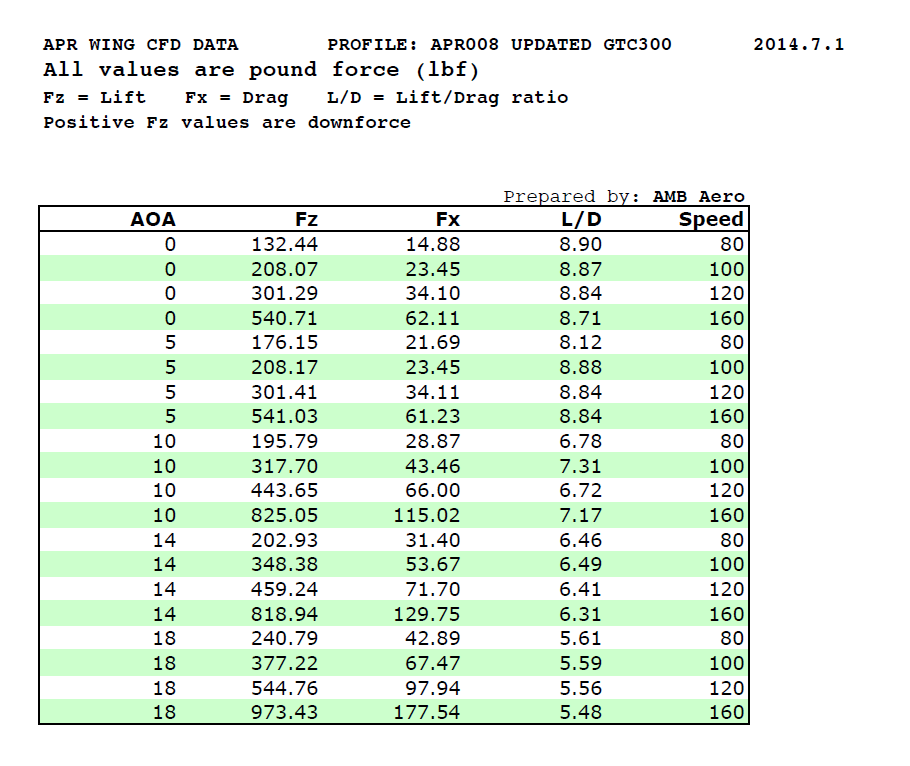

Experience true race-inspired aerodynamics with the APR Performance GTC-500 71" Carbon Fiber Adjustable Wing for the Dodge Viper Coupe (2006–2010). Designed through Computational Fluid Dynamics (CFD) analysis, this wing delivers superior downforce and balance without unnecessary drag, enhancing stability at high speed and during cornering.

Constructed from autoclave-cured pre-preg carbon fiber, the GTC-500 achieves exceptional rigidity and lightness, ensuring a consistent aerodynamic profile even under heavy loads. The 6061 billet aluminum risers allow for full angle-of-attack adjustment (0°–15°), enabling precise fine-tuning for track or street use.

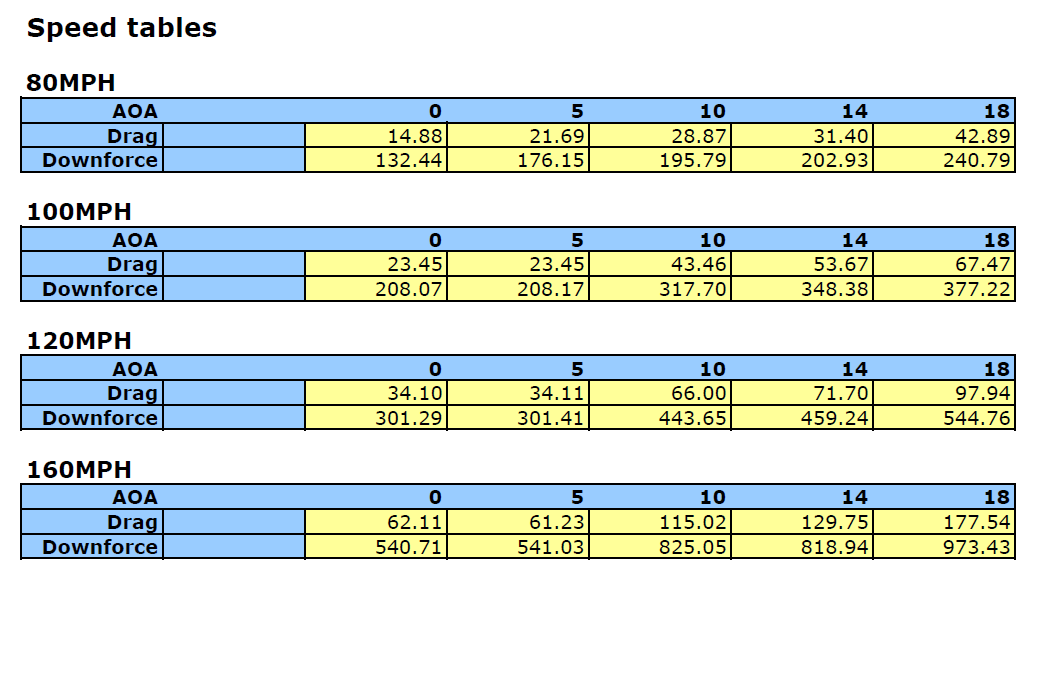

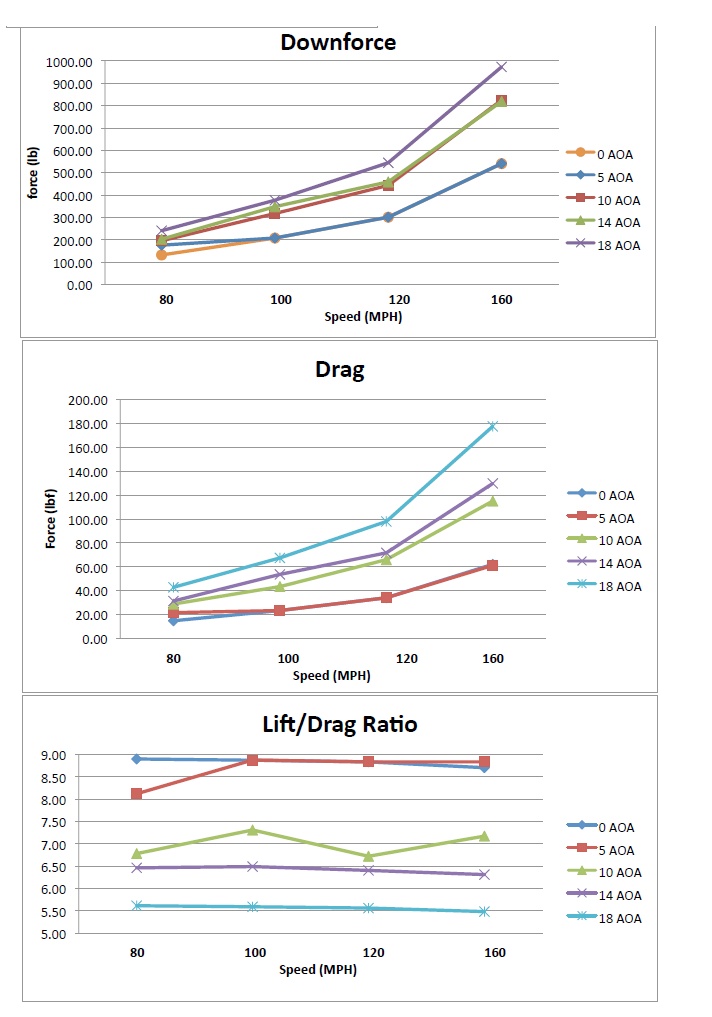

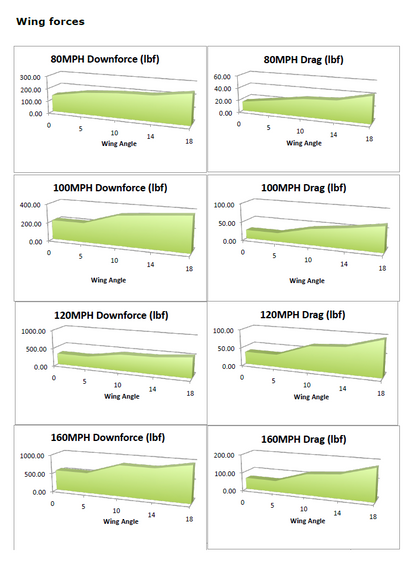

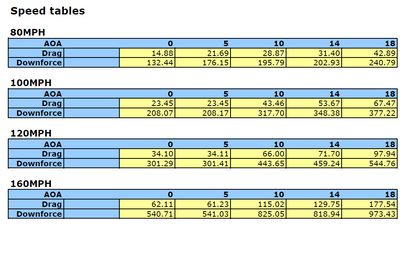

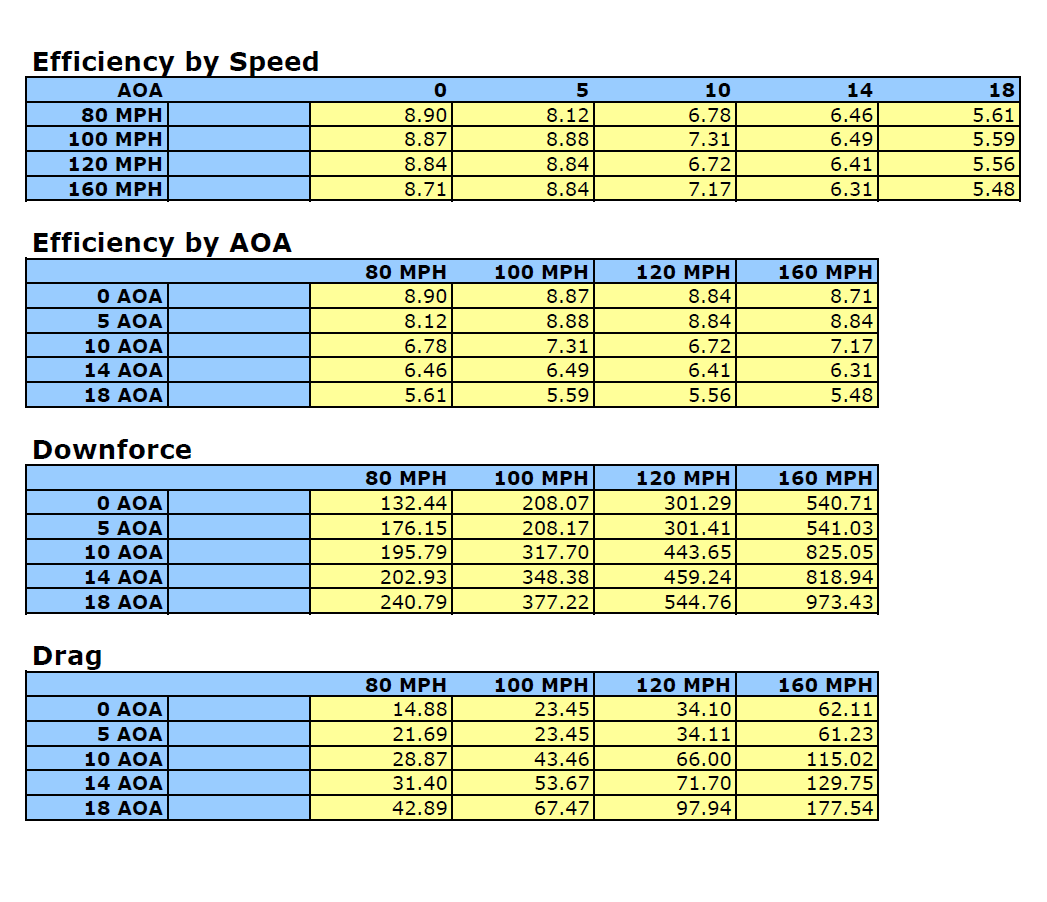

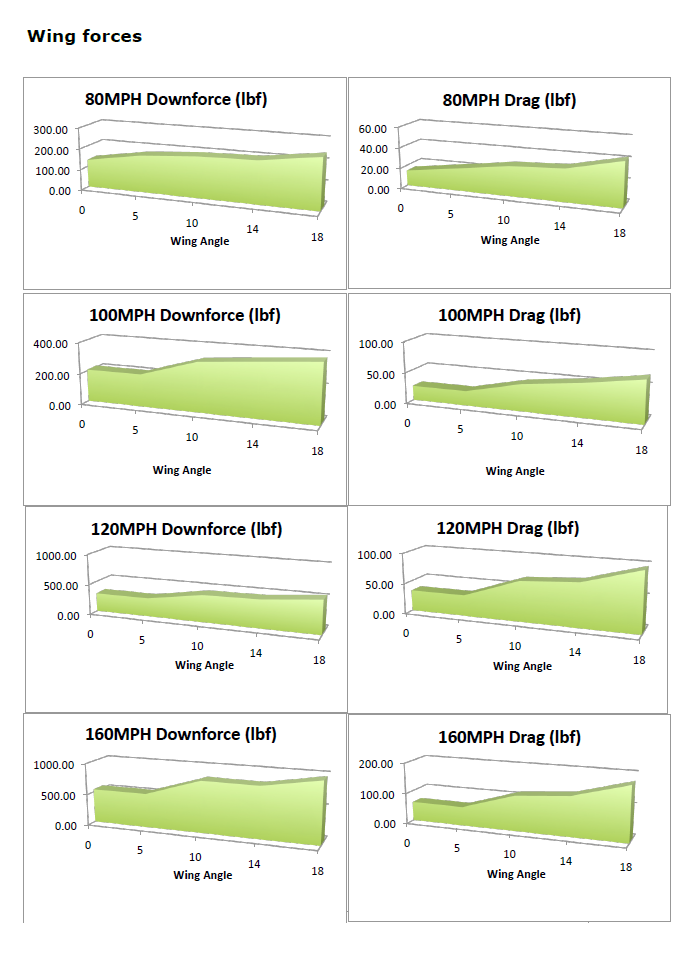

With an 8.88 : 1 downforce-to-drag ratio, this wing is optimized for track-focused drivers seeking unmatched aerodynamic control and efficiency.

Key Features

• CFD-Engineered Airfoil Design – Produces maximum downforce with minimum drag for enhanced stability.
• Pre-Preg Carbon Fiber Construction – Lightweight and autoclave-cured for high strength and durability.
• Adjustable Angle of Attack (0°–15°) – Tune aerodynamic balance for track or street conditions.
• High Downforce-to-Drag Efficiency (8.88:1) – Maintains cornering grip and top-speed performance.
• 6061 Billet Aluminum Mounts – Aircraft-grade risers for adjustable height and rigid support.
• UV-Resistant Gloss Finish – Protects the carbon fiber surface from fading and discoloration.
• Optional Carbon Fiber Gurney Flap – Adds extra downforce and reduces flow separation.

Specifications

• Span: 71" or 74" (1803 mm / 1880 mm)
• Chord Depth: 10.2"–12" (259 – 305 mm)
• Height: Up to 13" (330 mm)
• Material: Pre-preg carbon fiber composite
• Mounting Centers: 30.5" apart (center-to-center)
• Mounts: 6061 billet aluminum pedestals
• Angle Adjustment: 0°–15°
• Downforce Ratio: 8.88:1
• Finish: UV-resistant gloss clear coat
• Optional Accessory: ½" Carbon Fiber Gurney Flap (3M VHB mount)

Fitment

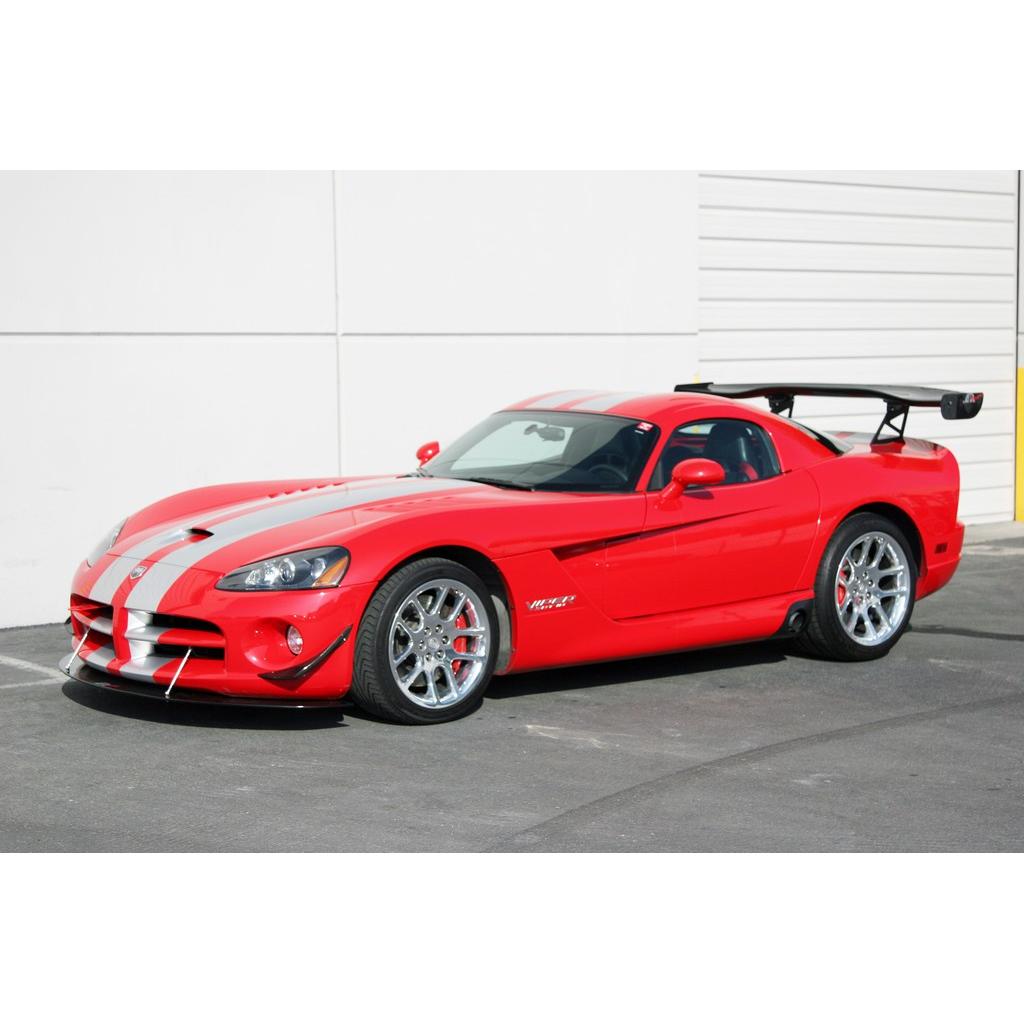

Dodge Viper Coupe 2006 – 2010
