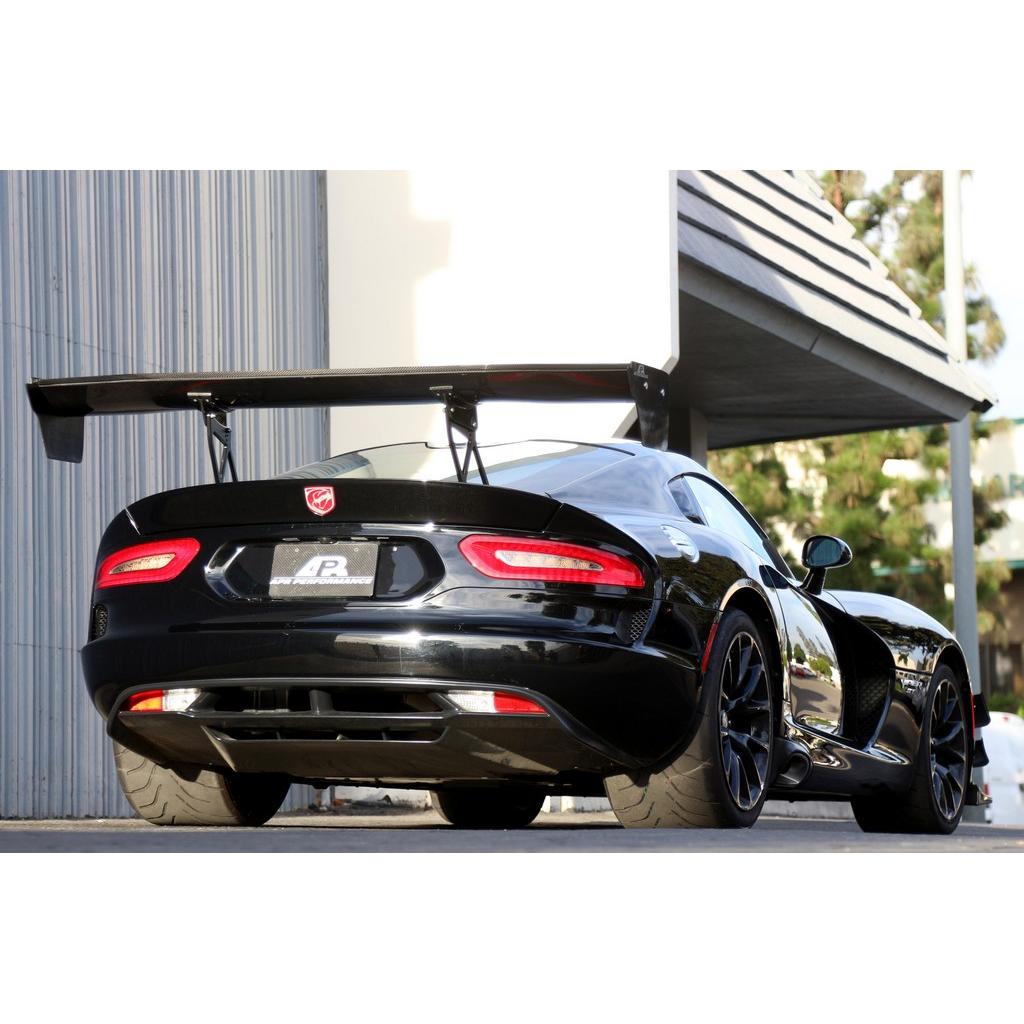

Dodge Viper Gen 5 GTC-500 Carbon Fiber Adjustable Wing 2013-2017

This item is made to order, normal lead time is 2-3 weeks.

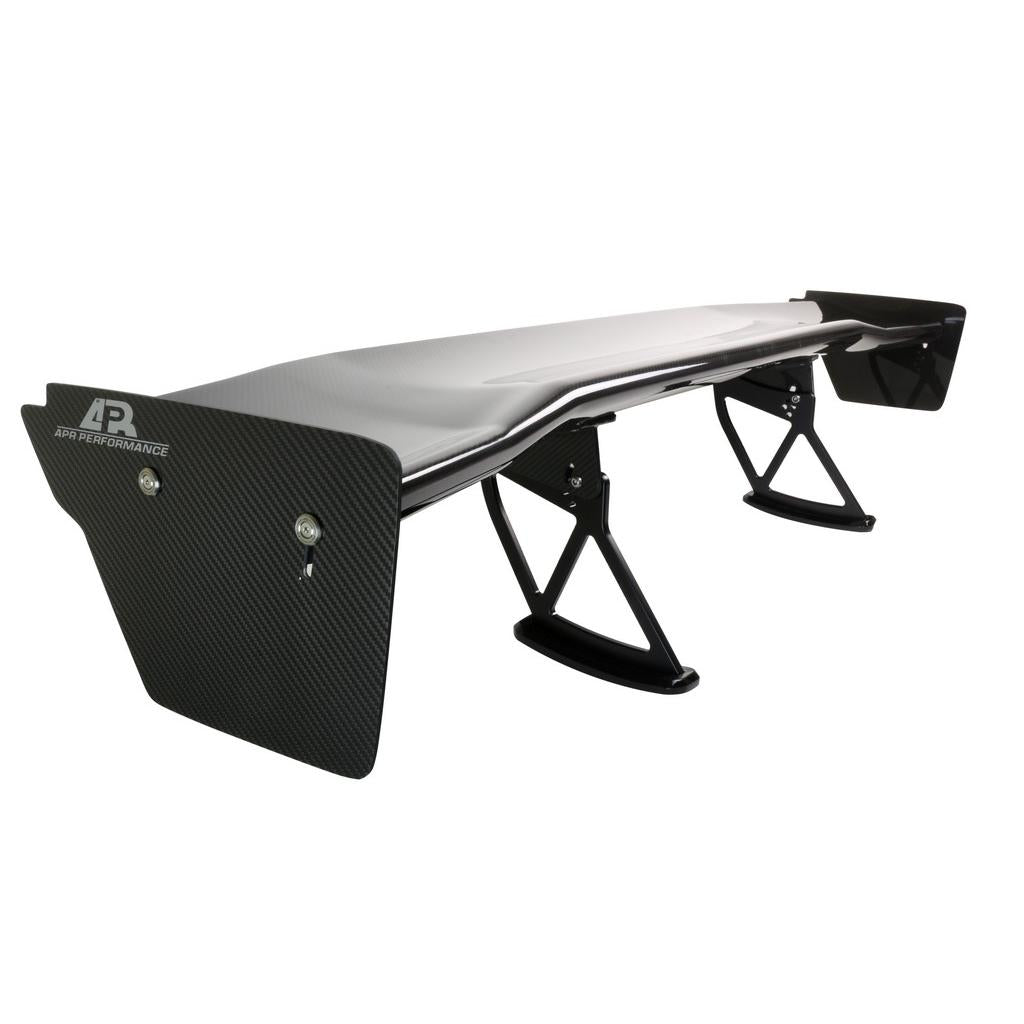

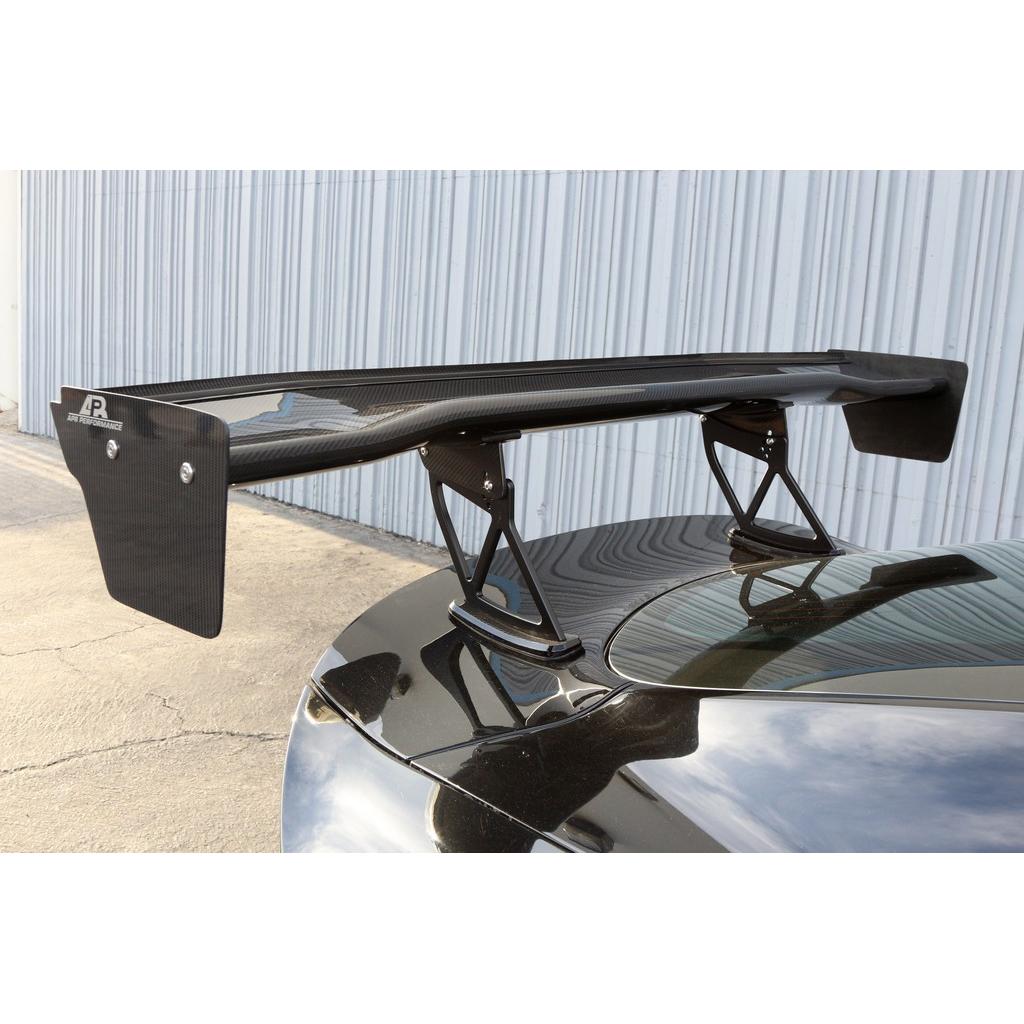

The APR Performance GTC-500 71" Carbon Fiber Adjustable Wing brings professional motorsport aerodynamics to the Dodge Viper Gen 5, engineered for serious performance on both street and track.

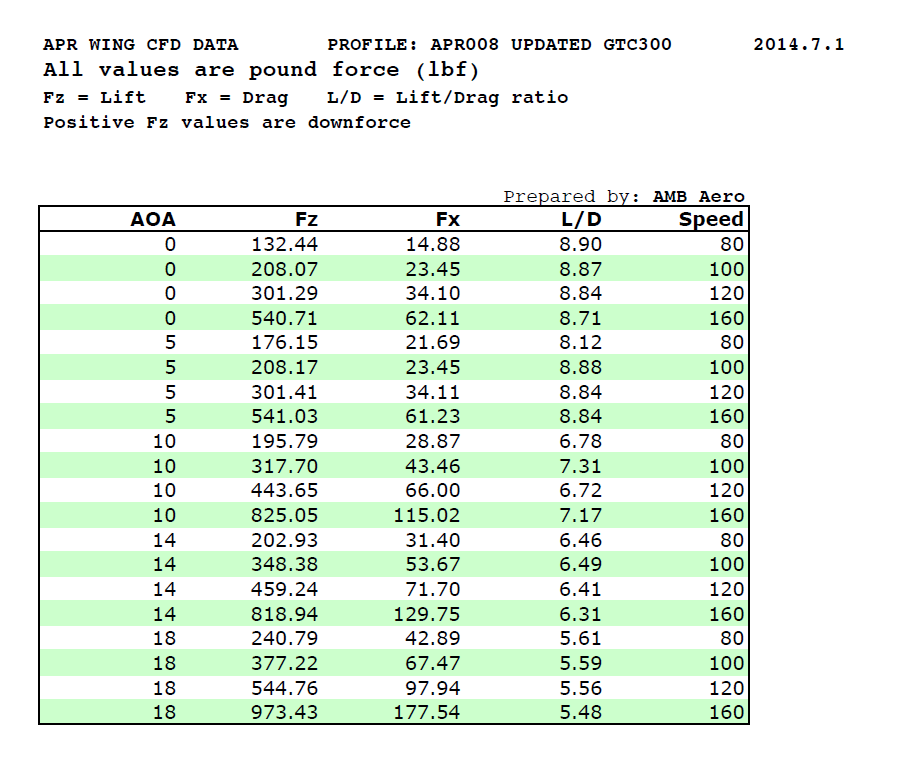

Using Computational Fluid Dynamics (CFD), APR designed the GTC-500 to produce maximum rear downforce with minimal drag. The airfoil’s advanced cambered design optimizes airflow, increasing high-speed stability and improving cornering, braking, and traction performance.

Constructed from autoclave-cured pre-preg carbon fiber, this wing offers exceptional strength-to-weight ratio and durability under extreme aerodynamic loads. Its 6061 billet aluminum risers provide multiple angle-of-attack adjustments (0°–15°), allowing precise control of aerodynamic balance based on driving style or circuit type.

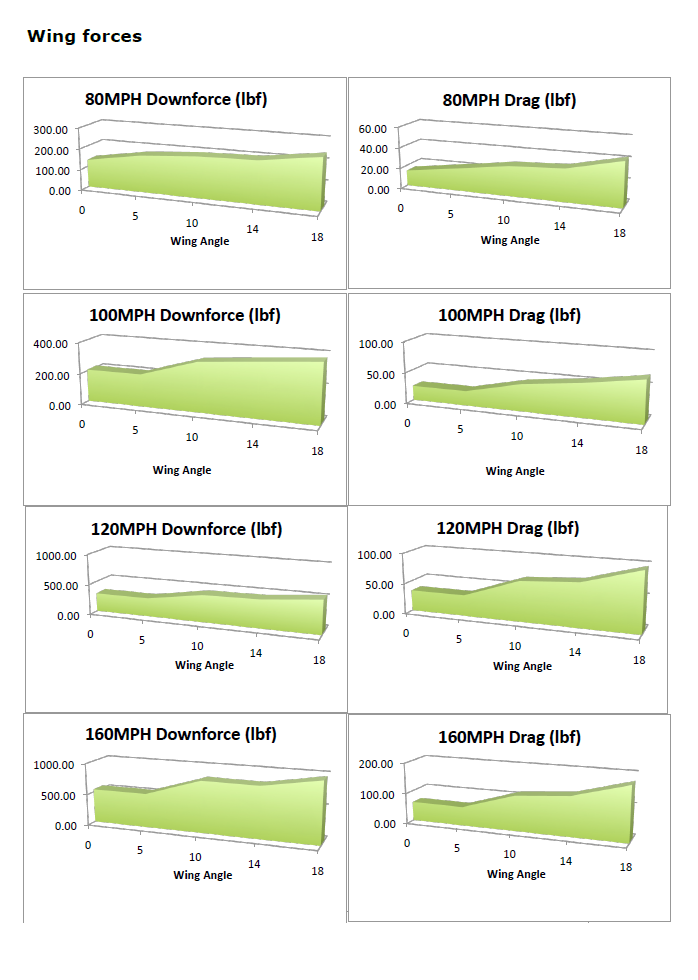

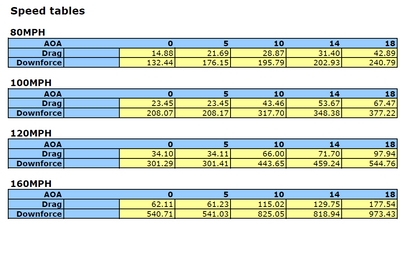

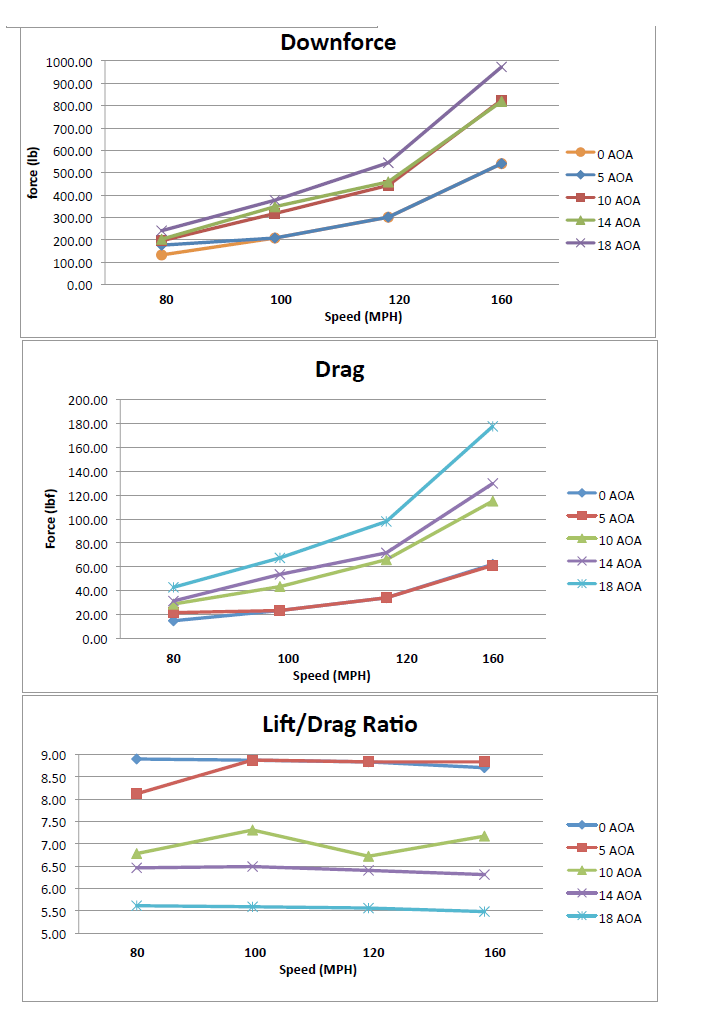

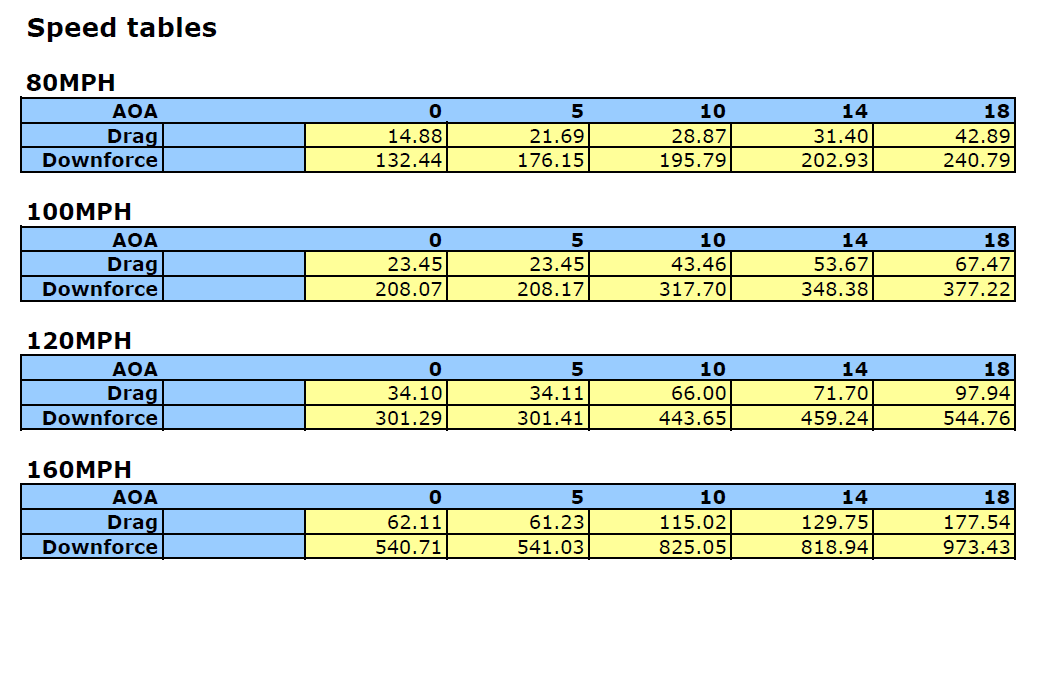

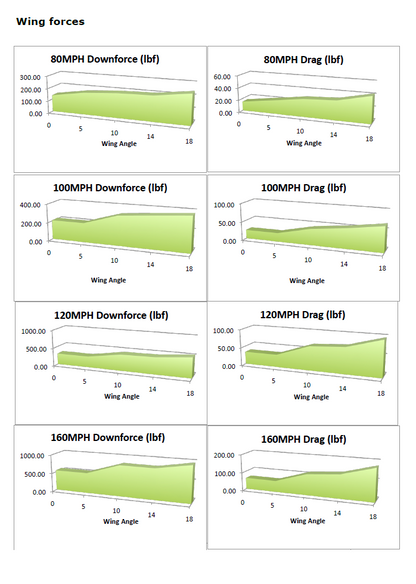

Delivering an 8.88:1 downforce-to-drag ratio, the GTC-500 ensures the perfect combination of efficiency and performance, making it the ideal upgrade for high-speed track cars and aggressively tuned street builds.

Key Features

• CFD-Developed Airfoil Profile – Provides optimal downforce with minimal drag for improved rear stability.
• Pre-Preg Carbon Fiber Construction – Lightweight, strong, and autoclave-cured for maximum rigidity.
• Adjustable Angle of Attack (0°–15°) – Tailor aerodynamic load for circuit, time attack, or street setups.
• High Downforce-to-Drag Efficiency (8.88:1) – Balances traction and speed perfectly.

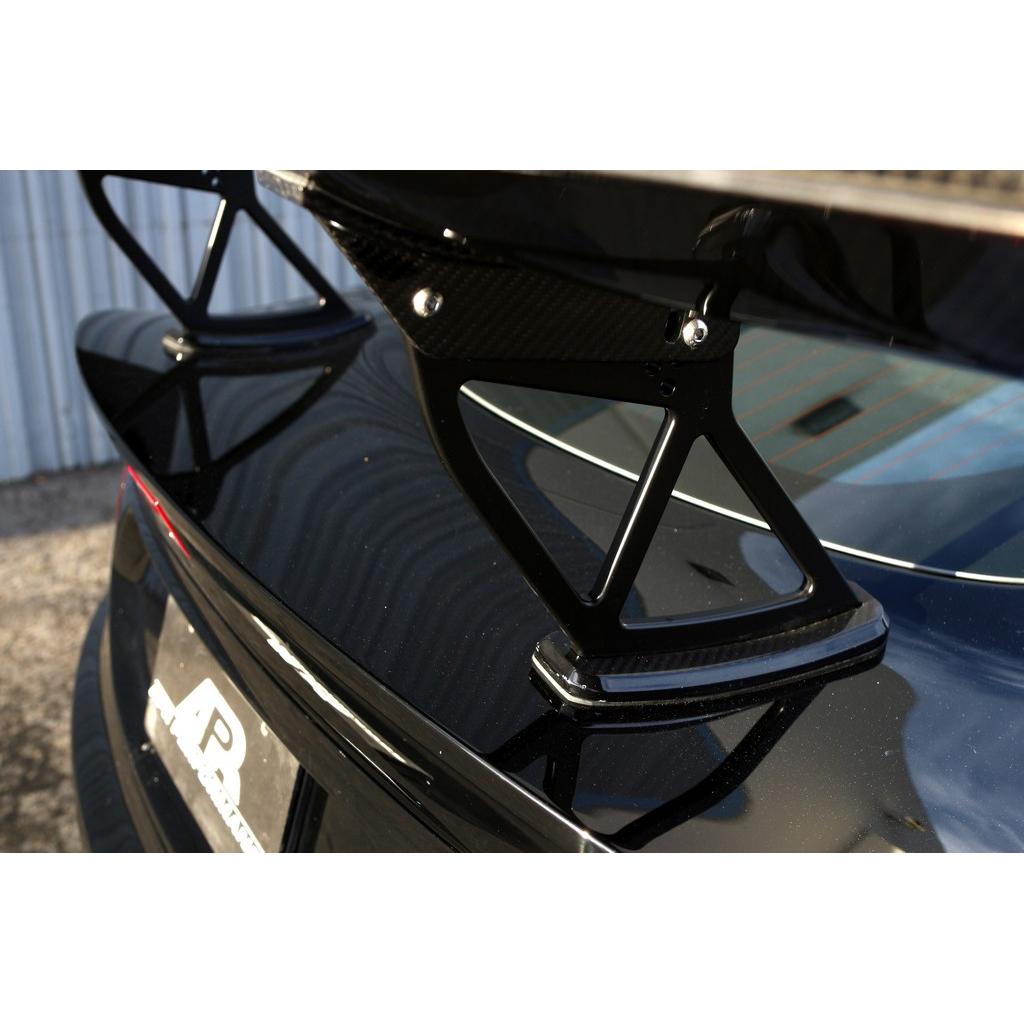

• 6061 Billet Aluminum Pedestals – High-strength aircraft-grade mounting system with height adjustability.
• UV-Resistant Clear Gloss Finish – Protects against discoloration and weathering.
• Optional Carbon Fiber Gurney Flap – Adds further downforce and aerodynamic control.

Specifications

• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2”–12” (259 mm – 305 mm)
• Height: Up to 13” (330 mm)
• Material: Pre-preg carbon fiber composite
• Mounts: 6061 billet aluminum adjustable risers
• Angle Adjustment Range: 0°–15°
• Downforce-to-Drag Ratio: 8.88:1
• Finish: UV-resistant gloss clear coat
• Optional: ½" Carbon Fiber Gurney Flap (3M VHB mount)

Fitment

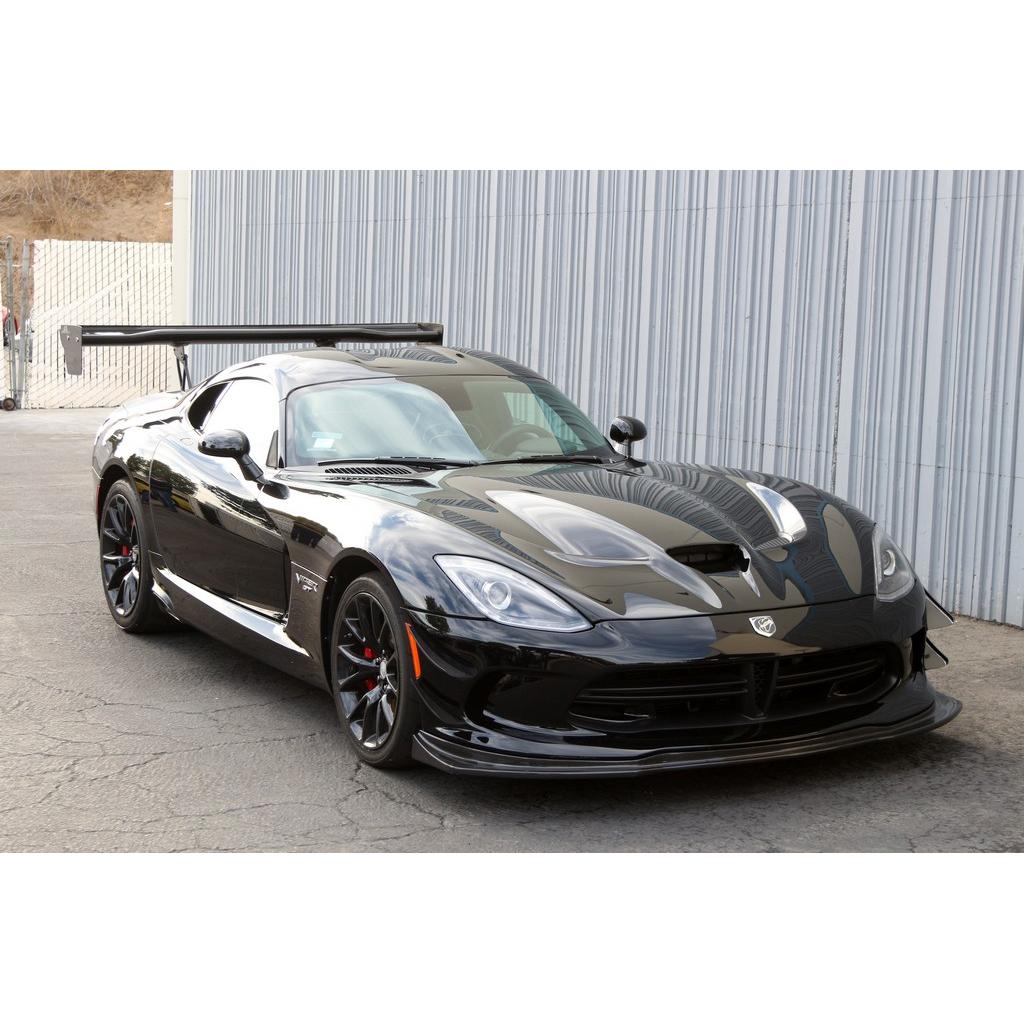

Dodge Viper Gen 5 (2013 – 2017)
