Ford Mustang S197 2005-2009 GTC-200 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 2 weeks.

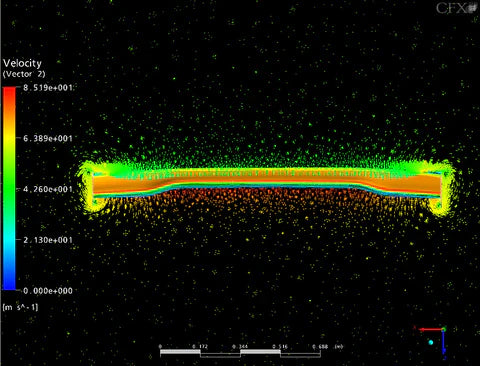

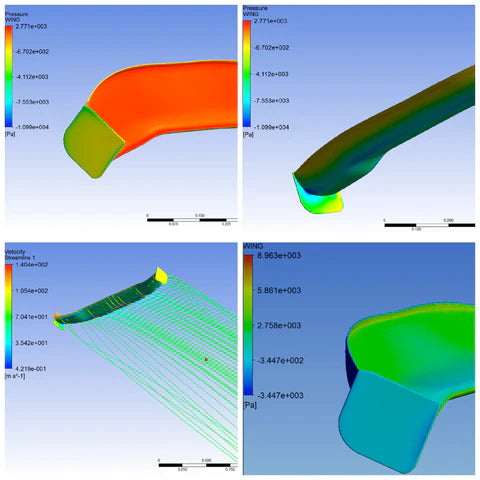

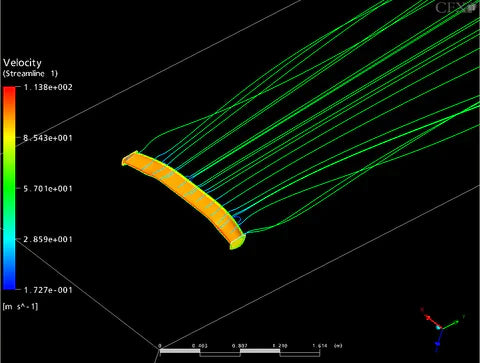

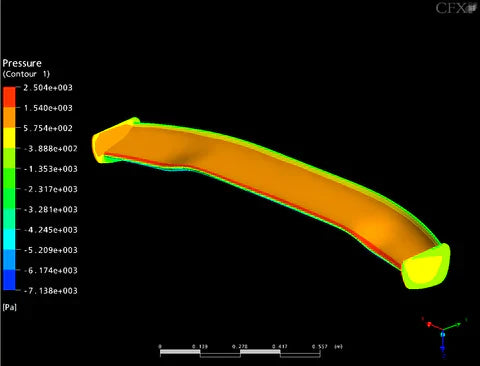

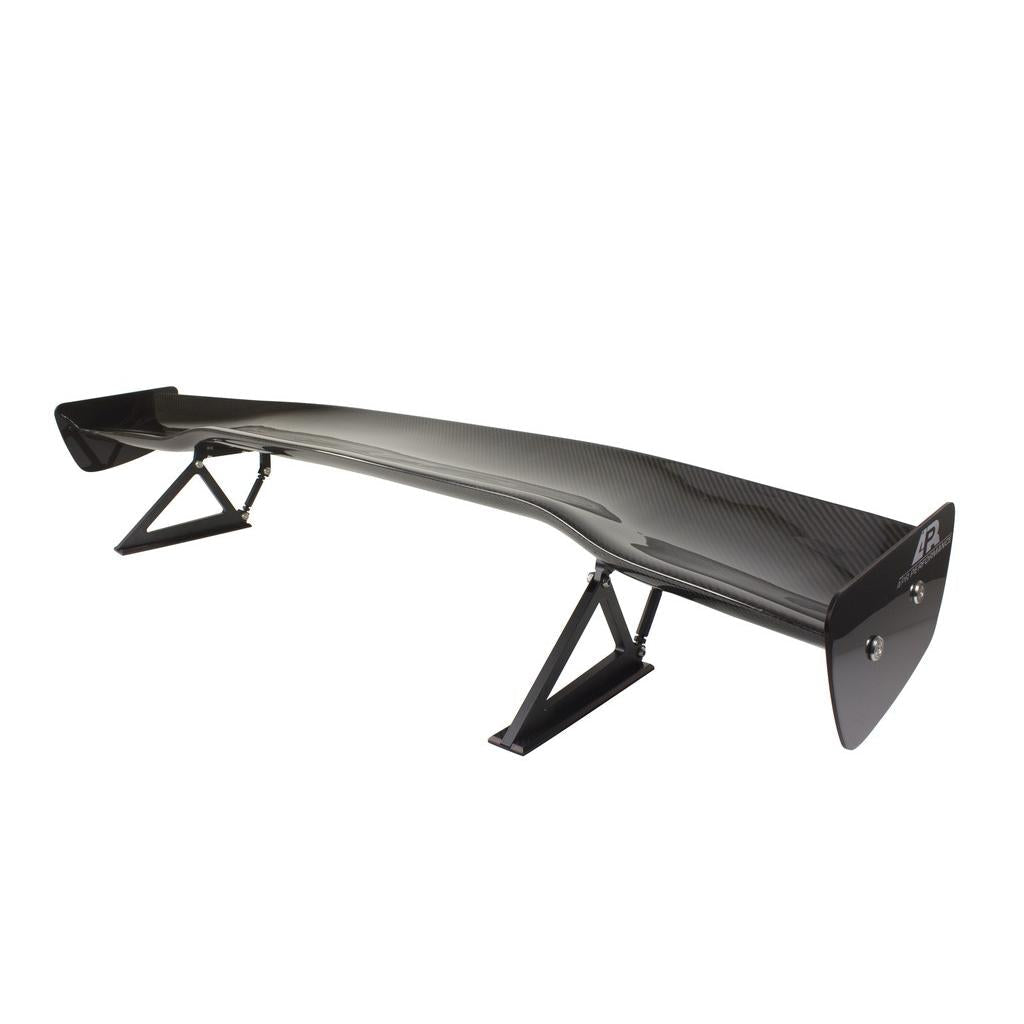

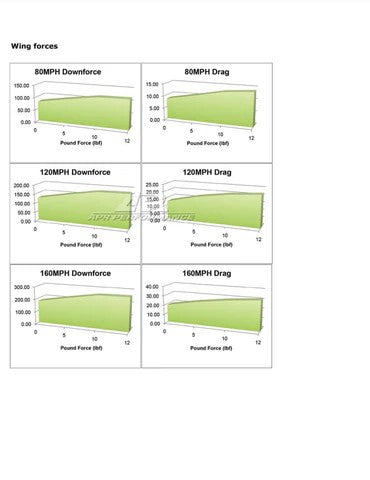

The APR Performance GTC-200 Carbon Fiber Adjustable Wing for the Ford Mustang S197 (2005–2009) is a premium aerodynamic upgrade engineered to deliver maximum rear stability, downforce, and performance precision. Developed through Computational Fluid Dynamics (CFD), the GTC-200 provides a high-efficiency aerodynamic profile that generates significant downforce while minimizing drag, ensuring improved cornering grip, braking performance, and straight-line control.

Constructed from pre-preg woven carbon fiber and autoclave-cured for superior strength and ultra-lightweight performance, this wing maintains aerodynamic rigidity even under extreme load. Its adjustable angle of attack (0°–15°) enables precise tuning for any driving scenario—higher angles for tighter, grip-intensive tracks and lower angles for maximum top-end speed.

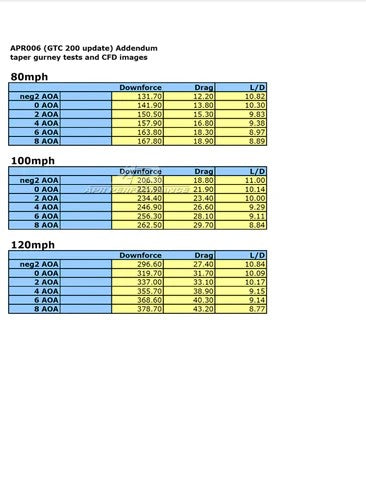

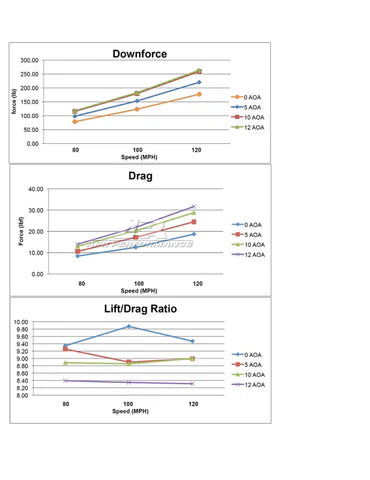

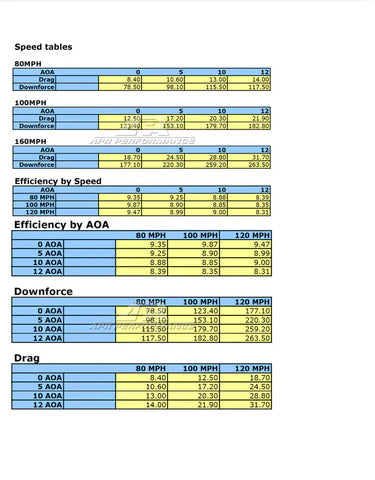

With a refined 11:1 downforce-to-drag ratio, the GTC-200 perfectly balances aerodynamic stability with efficiency. Mounted using 10mm aircraft-grade 6061 billet aluminum risers, it allows exact height and position adjustments to optimize rear airflow and traction. Designed to integrate cleanly with the S197 Mustang’s muscular design, the GTC-200 enhances both performance and aesthetics for street and competition use.

An optional carbon fiber Gurney Flap can be added to further increase downforce and reduce flow separation for enhanced cornering stability. Each kit includes all required mounting hardware, base plates to cover factory spoiler holes, and vehicle-specific supports for secure installation.

Specifications:

• Span: 60.5" (1520mm)
• Chord Depth: 7.5"–9.5" (190.5–241.3mm)
• Height: 7” (177.8mm) and adjustable
• Adjustability: 0°–15° angle of attack
• Material: Pre-preg carbon fiber, autoclave-cured
• Risers: 6061 billet aluminum
• Optional Gurney Flap: Carbon fiber, 1/2” height

Fitment:
Ford Mustang S197 (GT, V6, and Shelby GT), 2005–2009
