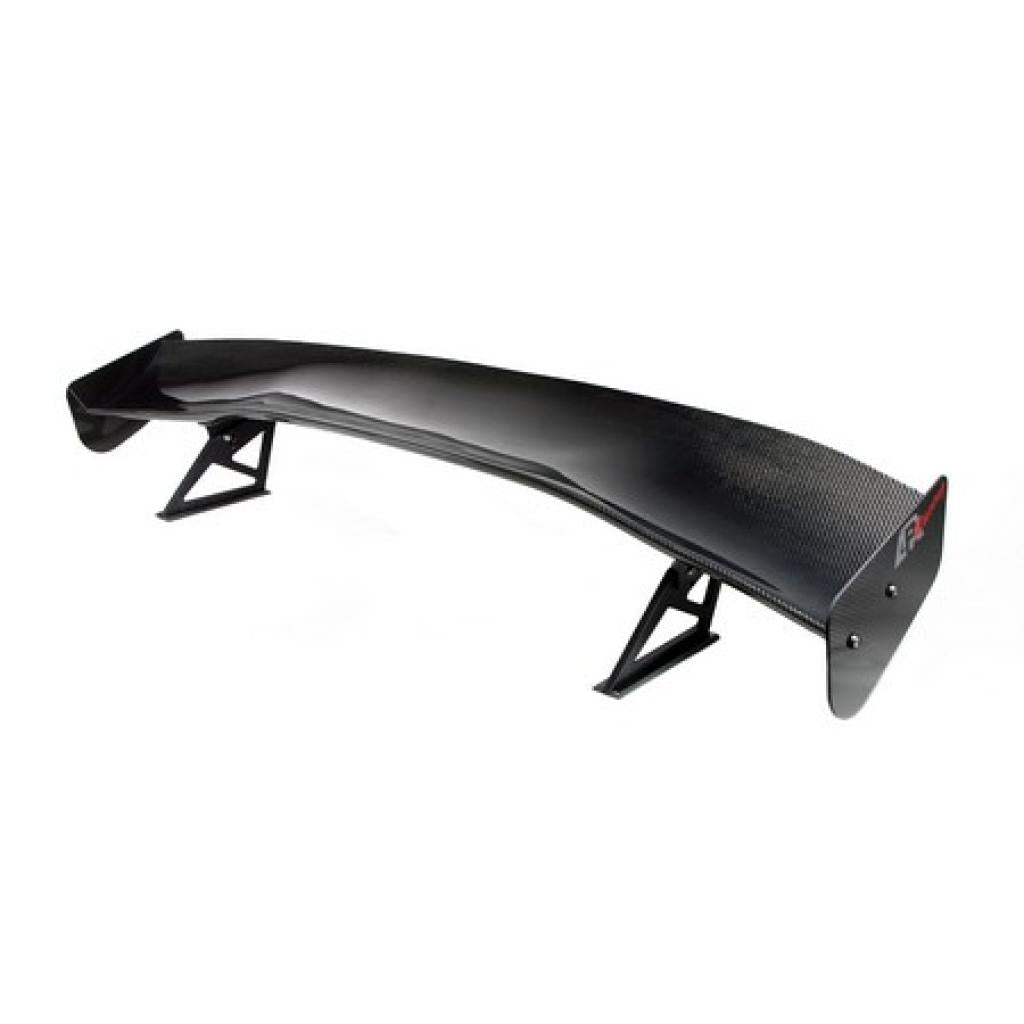

Ford Mustang S197 2005-2009 GTC-300 Carbon fiber Adjustable Wing

This item is made to order, normal lead time is 1-2 weeks.

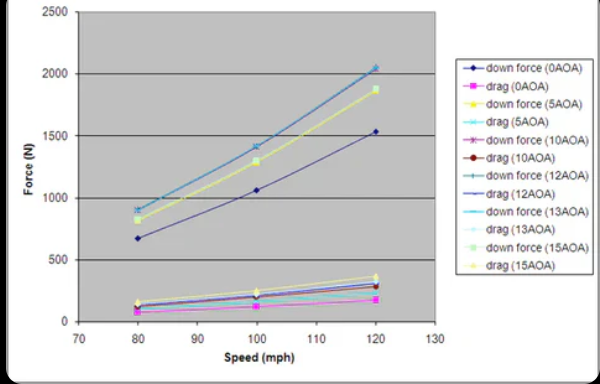

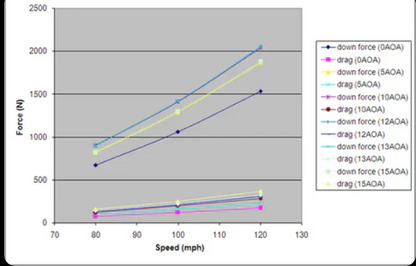

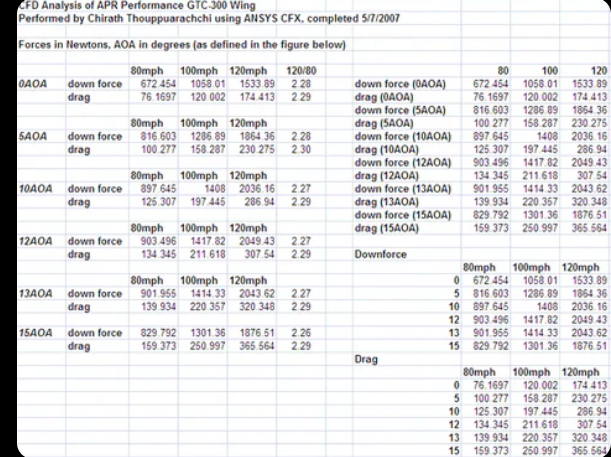

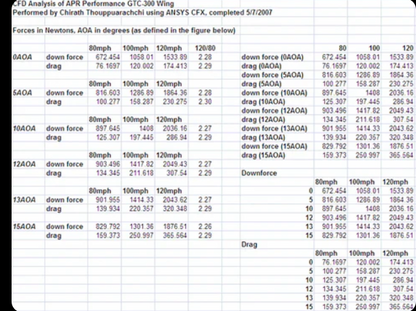

Maximize aerodynamic performance and rear-end stability on your Ford Mustang S197 (2005–2009) with the APR Performance GTC-300 Carbon Fiber Adjustable Wing. Designed through advanced Computational Fluid Dynamics (CFD) modeling, this high-efficiency airfoil delivers optimal downforce with minimal drag, improving traction, braking stability, and cornering balance — essential for both track and high-performance street use.

Constructed from autoclave-cured pre-preg carbon fiber, the GTC-300 offers exceptional rigidity and low weight. The airfoil’s cambered design creates an efficient pressure differential between the upper and lower surfaces, maintaining consistent aerodynamic load at high speeds without flex or deformation.

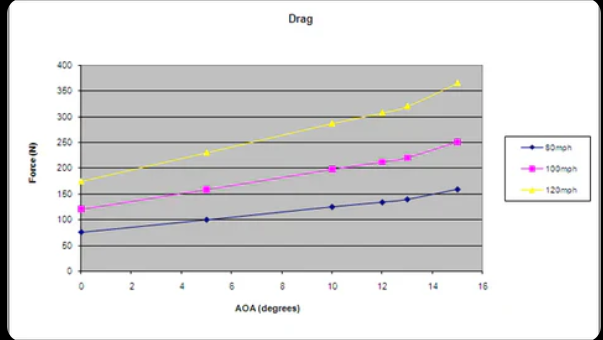

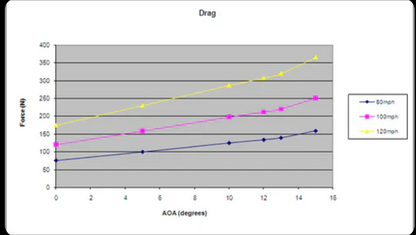

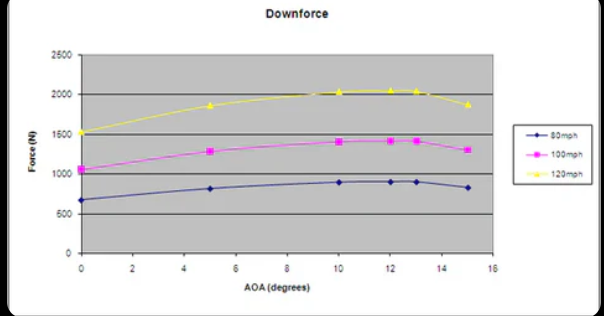

The adjustable angle of attack (0°–15°) enables drivers to fine-tune downforce and drag based on circuit layout or driving conditions — increasing rear grip for tight corners or reducing drag for long straights. Mounted on precision-machined 6061 billet aluminum risers, the system provides exact height and pitch adjustments, allowing for precise aerodynamic setup.

Ideal for time-attack builds, road-course Mustangs, and high-speed track cars, the GTC-300 strikes the perfect balance between compact size and serious aerodynamic efficiency.

Key Features:
• Pre-Preg Carbon Fiber Airfoil – Autoclave-cured for high strength, stiffness, and low weight.
• CFD-Engineered Design – Optimized shape delivers high downforce with reduced drag.
• Adjustable Angle of Attack (0°–15°) – Fine-tune aerodynamic balance for specific track conditions.
• Lightweight Billet Aluminum Mounts – 10 mm 6061 aircraft-grade construction for precision and strength.
• High Downforce Efficiency (8.8 : 1 Ratio) – Generates maximum rear grip without excessive drag.
• Customizable Fitment – Designed for vehicle-specific mounting on the Ford Mustang S197 chassis.
• Optional Carbon Fiber Gurney Flap – Adds extra downforce and stability at high-speed cornering.
• UV-Resistant Gloss Finish – Protects against fading while showcasing the carbon weave.

Specifications:
• Span: 61” or 67” (1549 mm / 1702 mm)
• Chord Depth: 10”–12” (254–305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber airfoil, 6061 billet aluminum mounts
• Angle of Attack Adjustment: 0°–15°
• Downforce-to-Drag Ratio: 8.8 : 1

Fitment:
Ford Mustang S197 — 2005 – 2009
