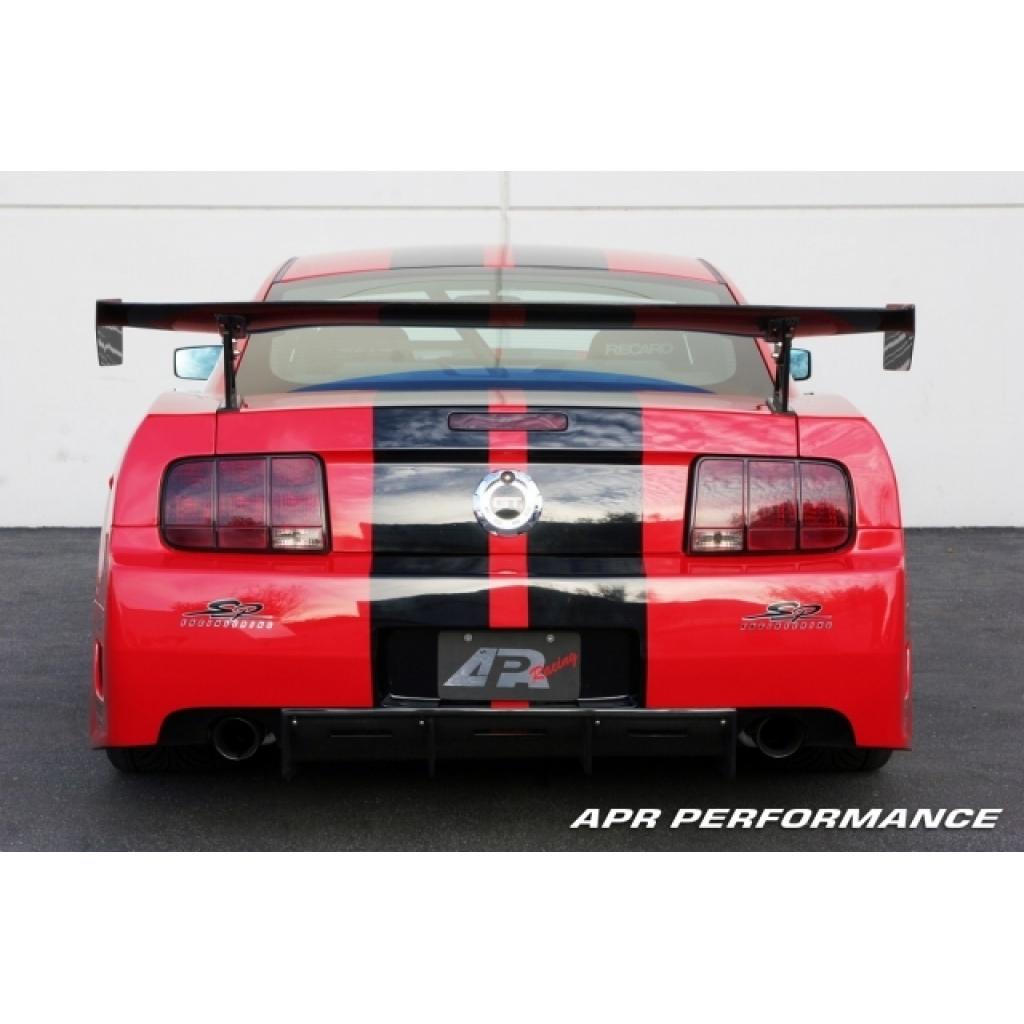

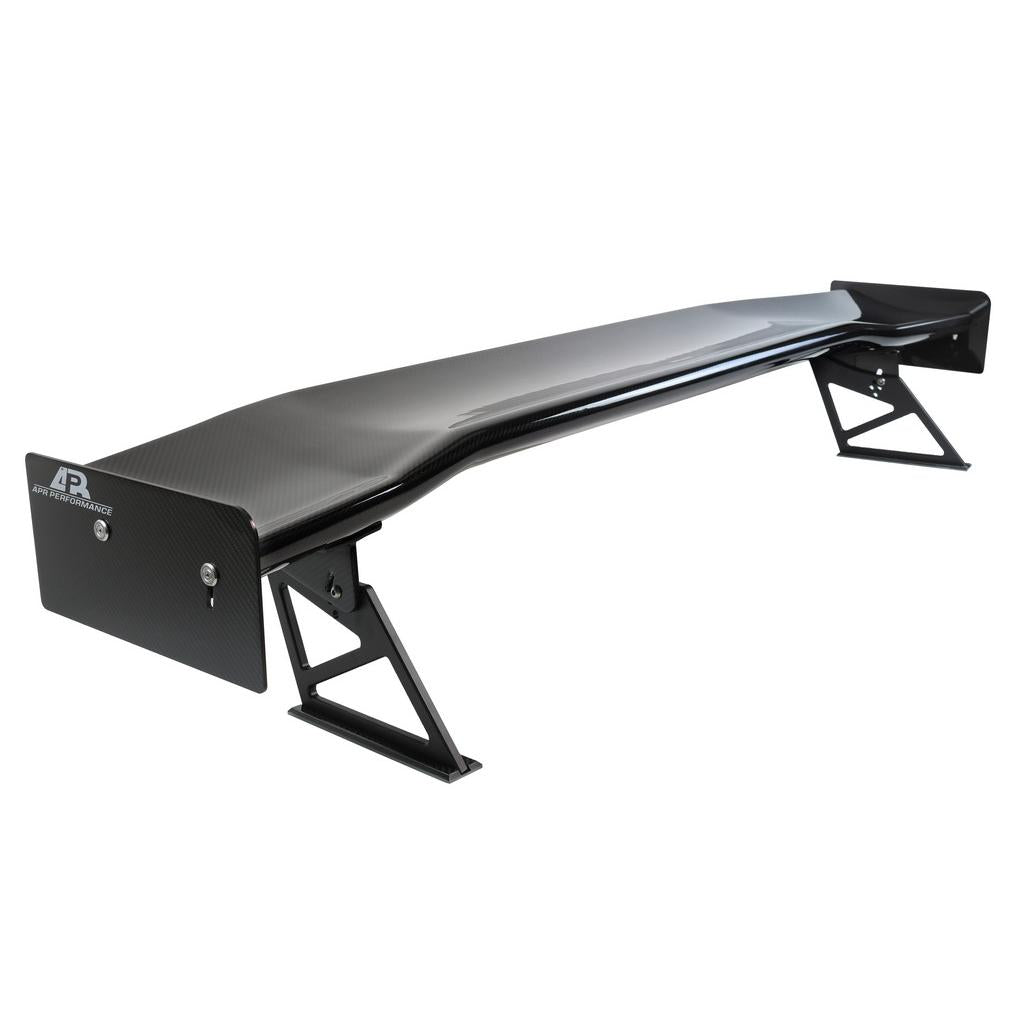

Ford Mustang S197 2005-2009 GTC-500 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 2-3 weeks.

Increase aerodynamic performance and high-speed stability on your Ford Mustang S197 (2005–2009) with the APR Performance GTC-500 Carbon Fiber Adjustable Wing — a professional-grade aerodynamic component developed for racing and high-performance street applications.

Engineered through Computational Fluid Dynamics (CFD) analysis, the GTC-500 is designed to generate exceptional rear downforce while minimizing drag. The cambered carbon fiber airfoil creates an efficient pressure differential across the wing surfaces, improving rear-end grip, braking stability, and cornering performance at high speed.

Constructed from pre-preg autoclave-cured carbon fiber, the GTC-500 delivers extreme strength with minimal weight, maintaining consistent aerodynamic performance under heavy load without flexing or distortion. The adjustable angle of attack (0°–15°) allows precise tuning for various circuit conditions — from maximum downforce on tight technical tracks to low drag for high-speed straights.

Mounted via precision-machined 6061 billet aluminum risers, the system provides height and position adjustments for exact aerodynamic control. The optional Gurney Flap offers further fine-tuning, increasing downforce and improving airflow attachment at the wing’s trailing edge.

Ideal for track-prepped Mustangs, time attack builds, and performance-oriented street cars, the GTC-500 represents the perfect balance of aerodynamic power, adjustability, and aesthetic refinement.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for maximum strength-to-weight ratio and durability.
• CFD-Engineered Airfoil Design – Optimized profile delivers superior downforce with reduced drag.
• Adjustable Angle of Attack (0°–15°) – Allows fine-tuning of aerodynamic balance for track or street.
• Lightweight Billet Aluminum Mounts – 10mm 6061 aircraft-grade pedestals ensure secure, adjustable mounting.
• High Downforce Efficiency (8.88 : 1 Ratio) – Exceptional aerodynamic performance with low drag penalties.
• Large-Span Design (71” or 74”) – Ideal for high-speed stability and enhanced rear traction.
• Optional Carbon Fiber Gurney Flap – Increases downforce and improves airflow attachment.
• UV-Resistant Gloss Finish – Protects carbon fiber weave from fading and discoloration.

Specifications:
• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2”–12” (259–305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber, 6061 billet aluminum risers
• Angle Adjustment: 0°–15° range
• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon fiber Gurney Flap (½" height, 3M VHB mounting)

Fitment:
Ford Mustang S197 — 2005 – 2009
