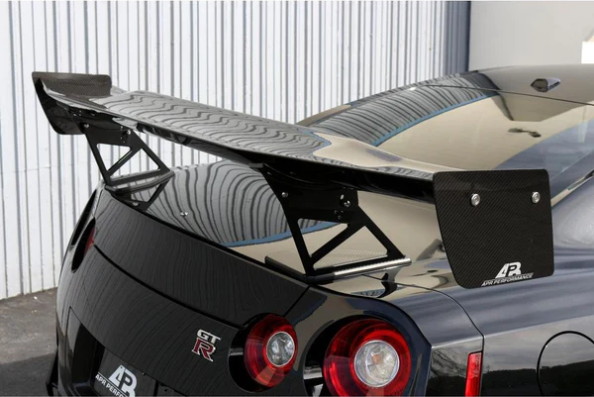

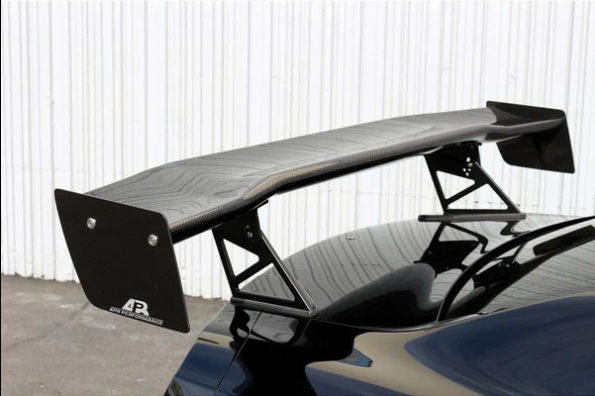

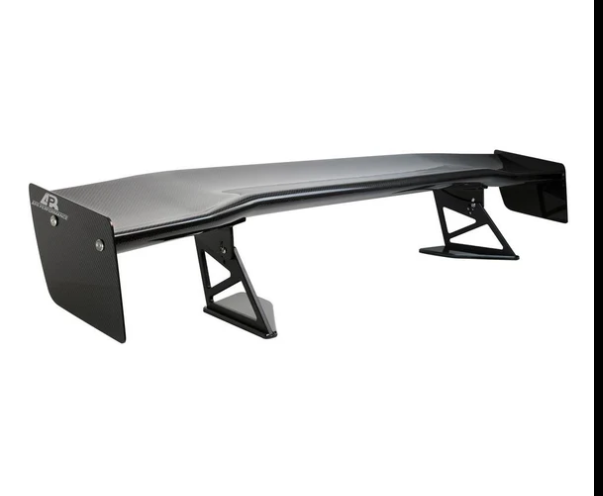

Nissan GTR R35 2008-2023 GTC-500 Carbon Fiber Adjustable Wing

This item is made to order — normal lead time is 1–2 weeks.

The APR Performance GTC-500 Adjustable Wing is a high-performance aerodynamic component designed to optimize the aerodynamic balance of performance vehicles, primarily in motorsport and track applications. Engineered for high-efficiency downforce generation with minimal drag, the GTC-500 is tailored for cars seeking improved cornering, braking stability, and high-speed balance.

Specifications

• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: Variable, 10.2" – 12" (259 – 305 mm)
• Height: Variable, up to 13" (330 mm)

Key Features

Airfoil Design

• CFD-engineered profile for high downforce with minimal drag.
• Cambered design maximizes airflow attachment and stability at speed.

Adjustable Angle of Attack

• Range of 0° to 15° for custom aerodynamic balance.
• Higher angles increase cornering downforce; lower angles reduce drag for top-speed performance.

Carbon Fiber Construction

• Pre-preg woven carbon fiber, autoclave-cured for strength, stiffness, and low weight.
• Maintains rigidity and aerodynamic consistency at extreme speeds.

6061 Billet Aluminum Mounting System

• 10 mm aircraft-grade risers allow precise height and position adjustment.
• Mounting bases sit cleanly at the edges of the trunk lid.

Aerodynamic Efficiency

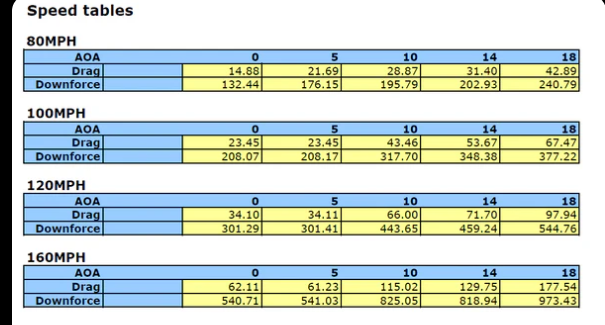

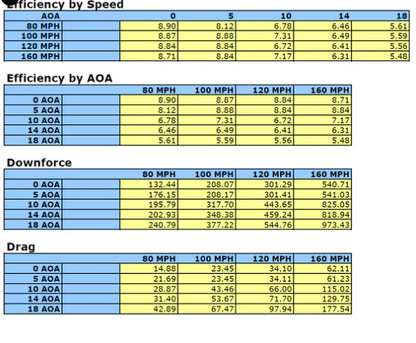

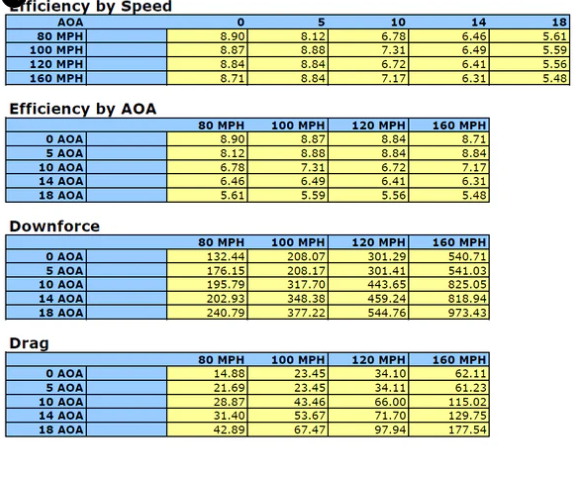

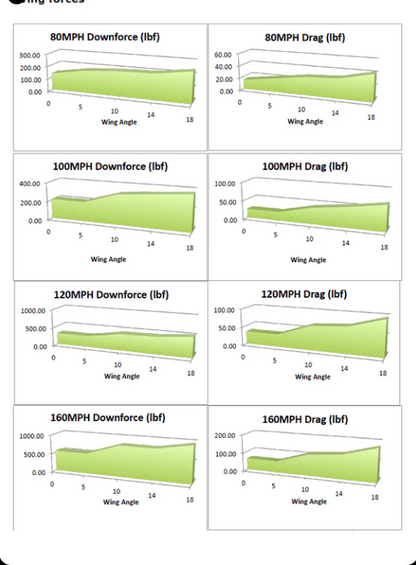

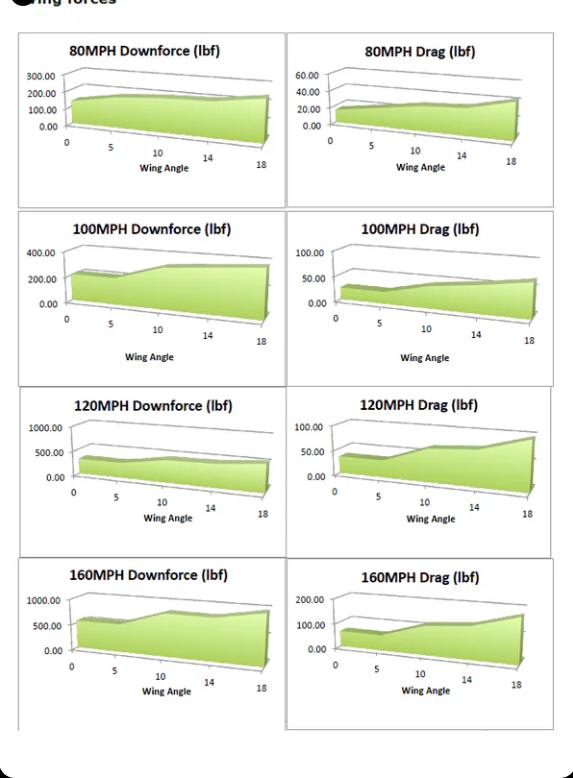

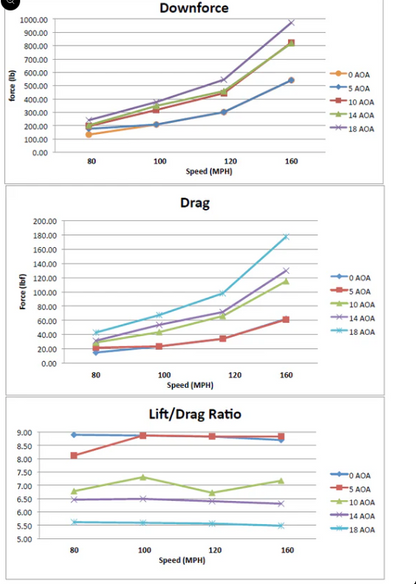

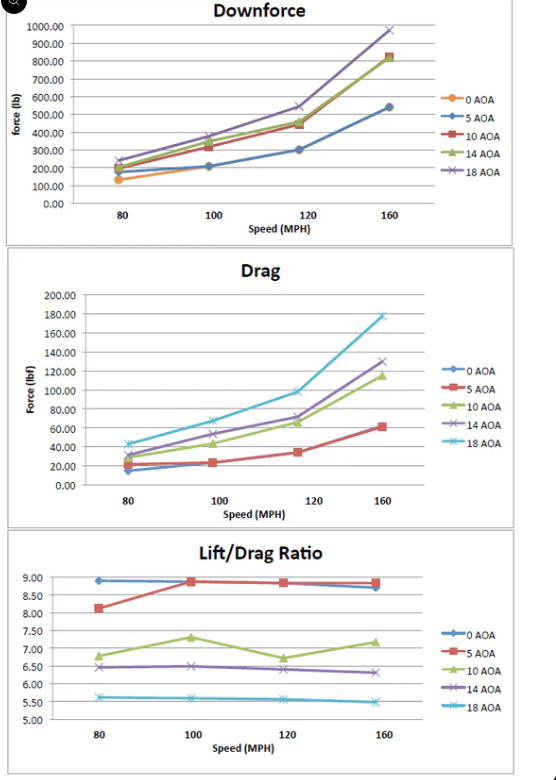

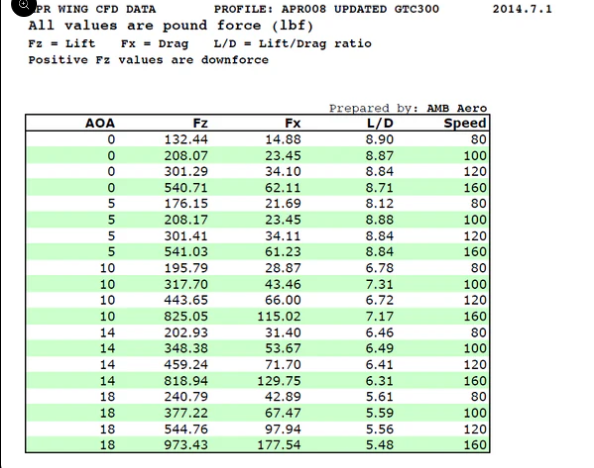

• Achieves 8.88 : 1 downforce-to-drag ratio for track-ready balance.
• Ideal for street or circuit use where stability and grip are essential.

Optional Gurney Flap

• Height: ½ in (12.7 mm)
• Material: Pre-preg carbon fiber
• Attachment: 3M VHB double-sided tape
• Enhances rear grip and reduces flow separation.

FITMENT GUIDE

Make Chassis Model Years Engine
Nissan R35 GTR 2008–2023 VR38DETT 3.8L Twin-Turbo V6
