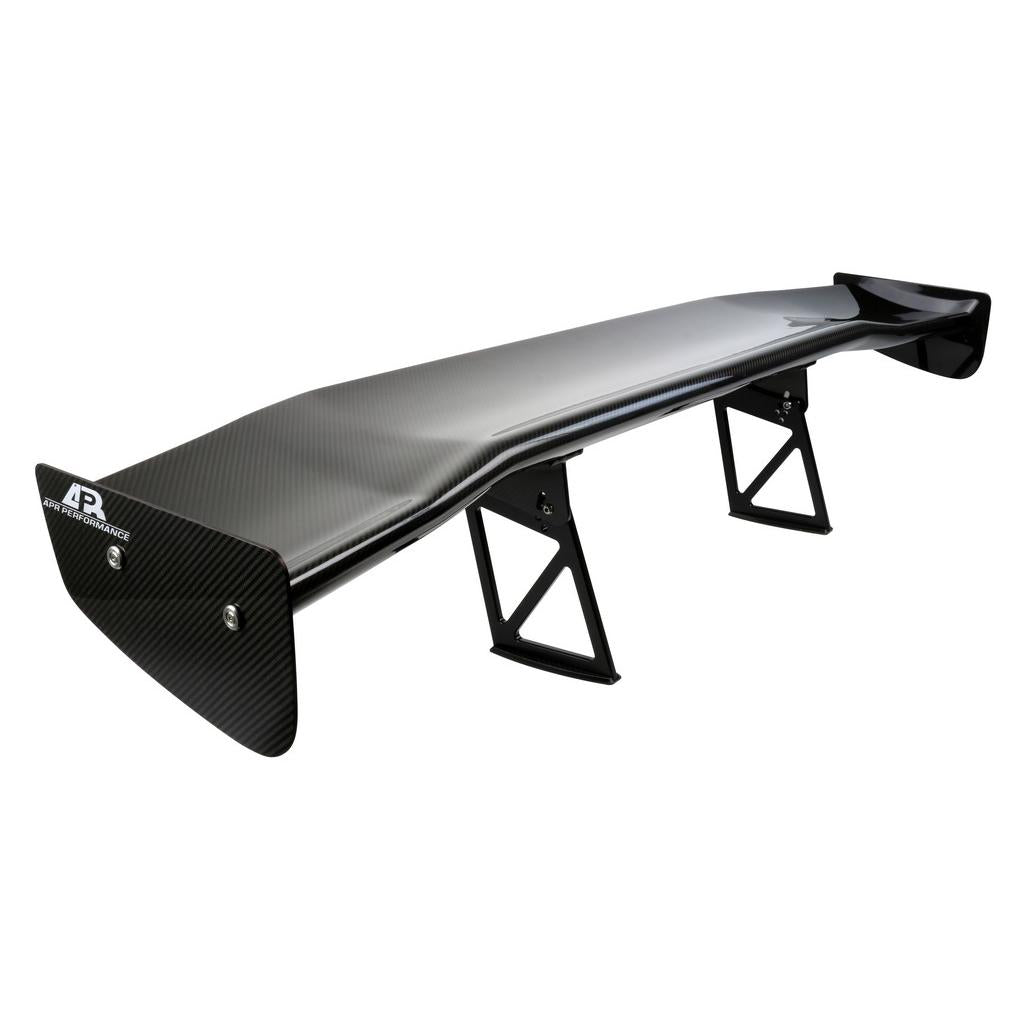

GTM GTC-500 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 2-3 weeks.

The APR Performance GTC-500 Carbon Fiber Adjustable Wing for GTM applications is a high-performance aerodynamic component engineered for maximum rear-end stability, cornering precision, and top-speed balance. Designed using Computational Fluid Dynamics (CFD), this wing delivers race-proven aerodynamic efficiency by generating high downforce with minimal drag.

The GTC-500 airfoil utilizes a carefully contoured cambered profile to maintain stable airflow and downforce, even under high-speed conditions. Its design produces a strong pressure differential between the upper and lower surfaces, improving vehicle stability during braking, acceleration, and cornering.

Constructed from autoclave-cured pre-preg carbon fiber, the GTC-500 offers exceptional rigidity, ultra-low weight, and resistance to aerodynamic stress and heat. Its fully adjustable angle of attack (0°–15°) enables precise tuning for diverse track layouts — from high-downforce setups for tight circuits to reduced drag configurations for high-speed straightaways.

The 6061 billet aluminum pedestals provide superior mounting strength and accuracy, ensuring consistent aerodynamic performance. Engineered for serious track enthusiasts, the GTC-500 offers the perfect balance between functional design, motorsport-grade performance, and aesthetic excellence.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for lightweight strength, stiffness, and superior durability.
• CFD-Optimized Airfoil Design – Generates high downforce with reduced drag for aerodynamic efficiency.
• Adjustable Angle of Attack (0°–15°) – Enables customizable aerodynamic tuning for different track setups.
• High Downforce-to-Drag Ratio (8.88 : 1) – Improves traction, cornering balance, and braking performance.
• 6061 Billet Aluminum Risers – Aircraft-grade precision mounts for strength and adjustability.
• 71" or 74" Wing Span Options – Designed for balanced aerodynamic distribution across wide chassis platforms.
• Optional Carbon Fiber Gurney Flap – Increases rear-end downforce and stability at high speeds.
• UV-Resistant Gloss Finish – Protects the carbon fiber weave and enhances visual appeal.

Specifications:
• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2”–12” (259–305 mm)
• Height: up to 13” (330 mm)
• Material: Pre-preg carbon fiber airfoil with 6061 billet aluminum risers
• Angle Adjustment: 0°–15°
• Downforce-to-Drag Ratio: 8.88 : 1
• Mounting Distance: 27.5” (center-to-center)
• Optional Accessory: Carbon Fiber Gurney Flap (½” height, 3M VHB double-sided tape)

Fitment:
Universal fitment for GTM and custom applications requiring a 27.5" mounting span.
