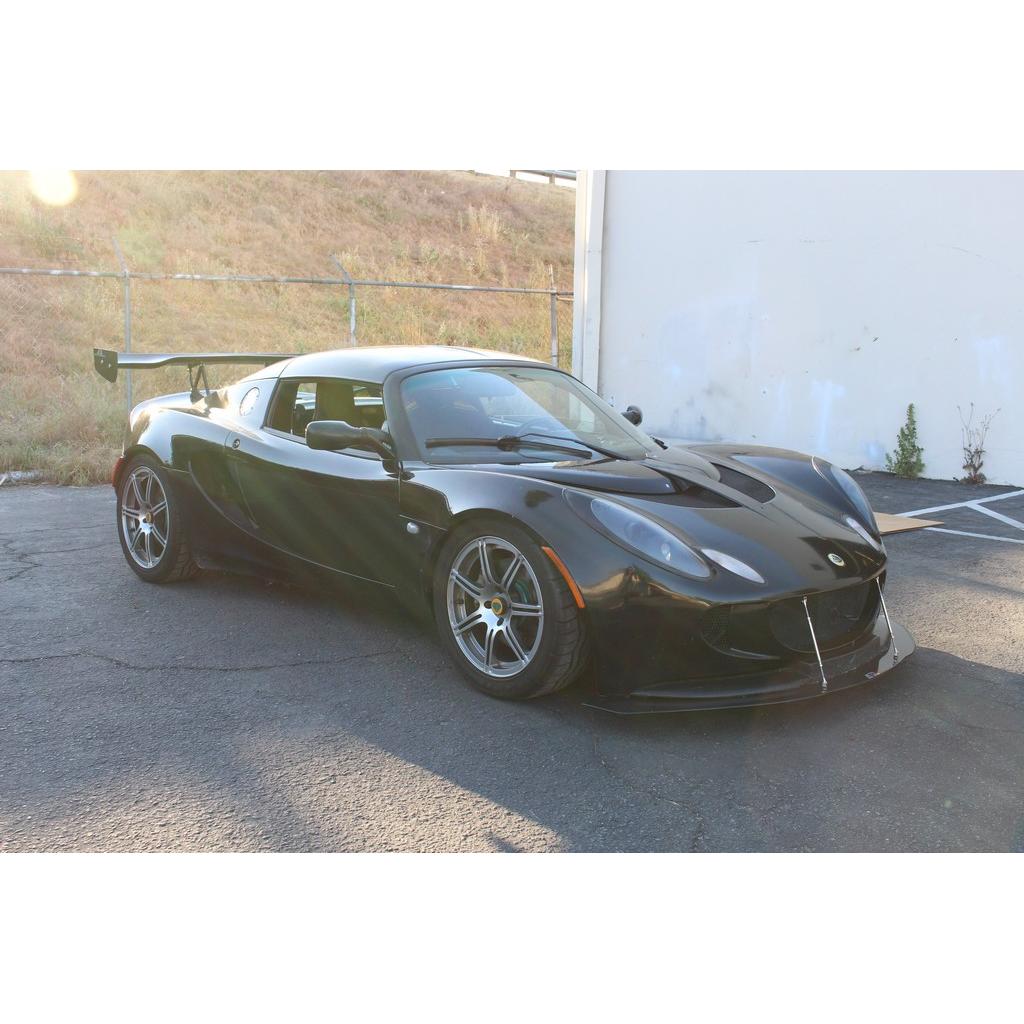

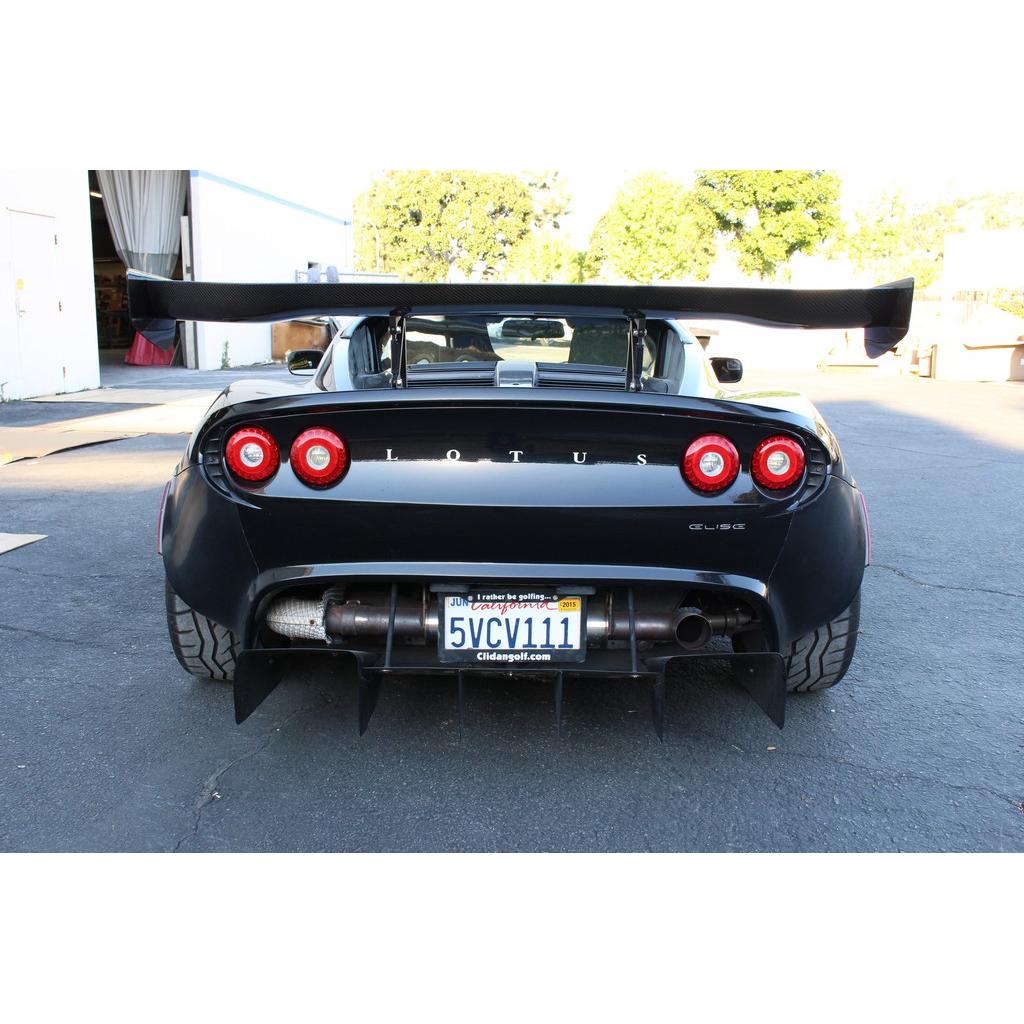

Lotus Elise 2002-2011 GTC-200 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 2 weeks.

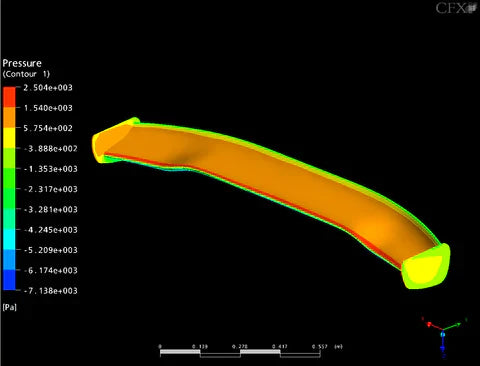

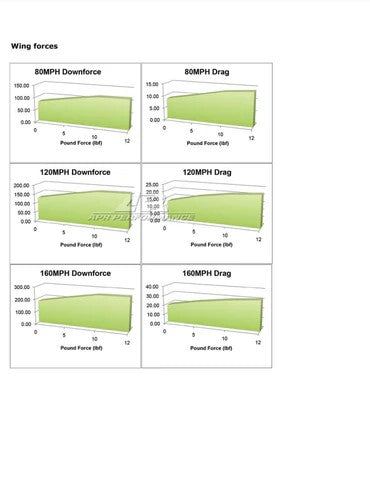

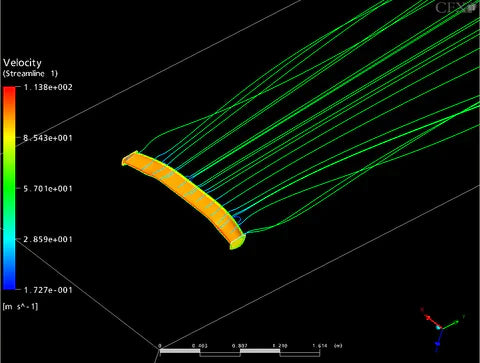

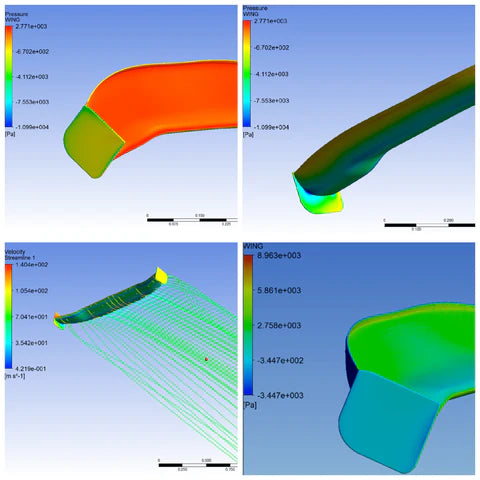

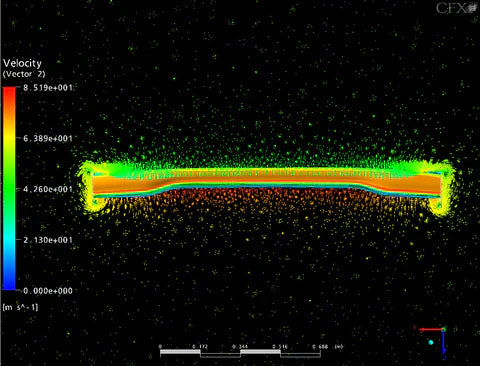

The APR Performance GTC-200 Carbon Fiber Adjustable Wing for the Lotus Elise (2002–2011) is engineered to deliver uncompromised aerodynamic performance with precision adjustability. Designed through Computational Fluid Dynamics (CFD) analysis, this mid-size rear wing produces exceptional downforce while maintaining low drag — improving cornering grip, braking stability, and overall balance for track and high-performance street applications.

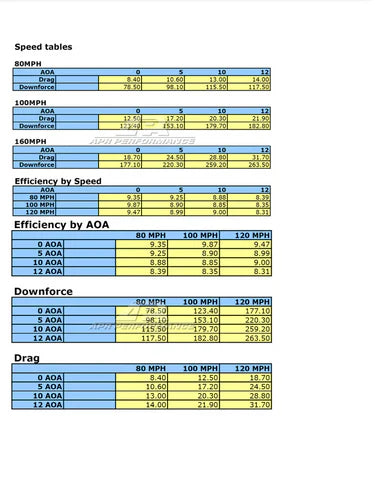

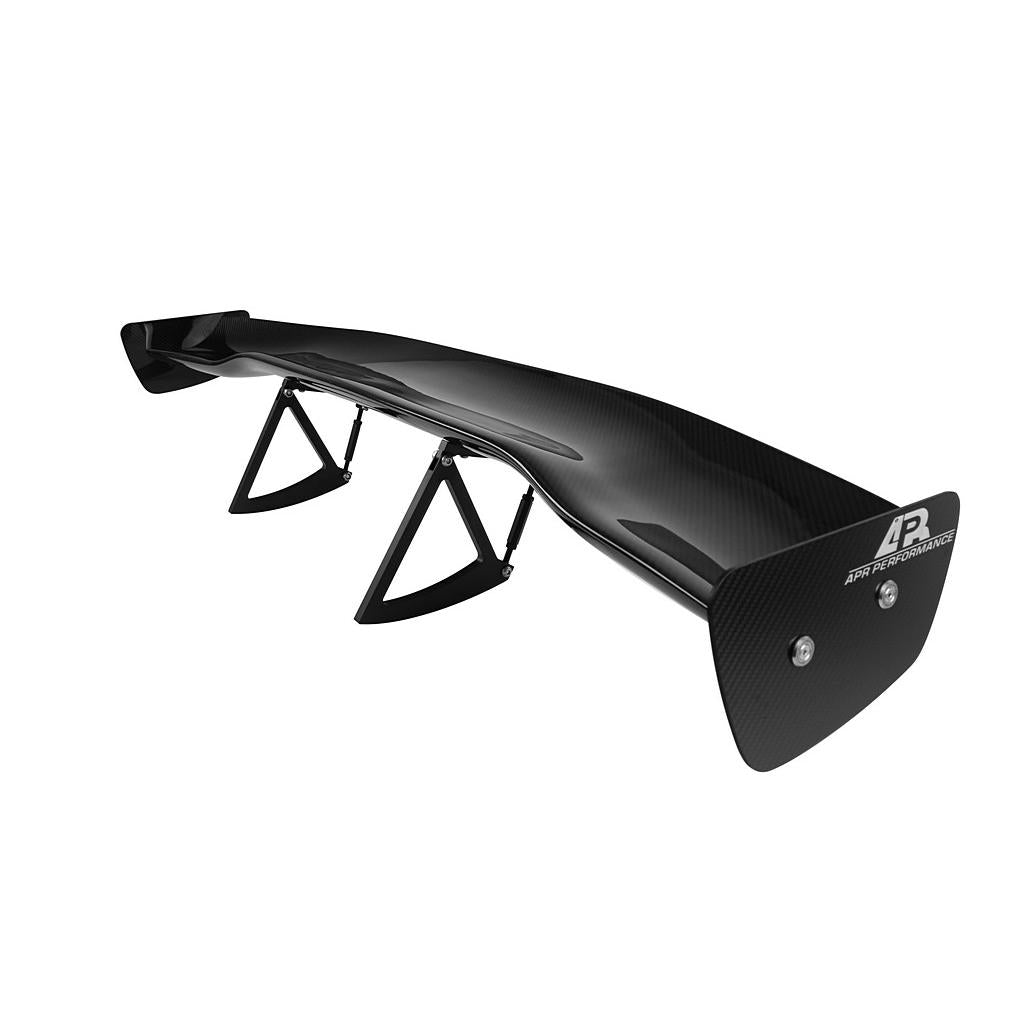

Constructed from pre-preg woven carbon fiber and autoclave-cured for superior strength and ultra-lightweight performance, the GTC-200 ensures consistent aerodynamic efficiency under high-speed loads. Its adjustable angle of attack (0°–15°) allows drivers to fine-tune downforce and drag characteristics for specific driving environments — high angles for tight, technical circuits and lower angles for top-speed straight-line performance.

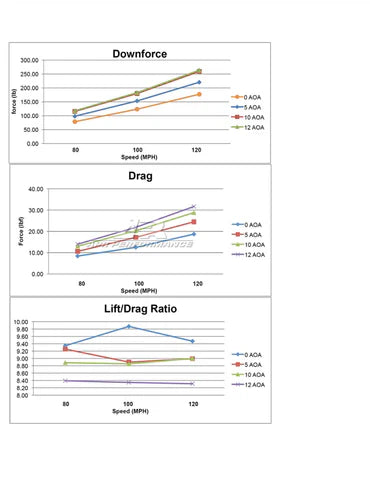

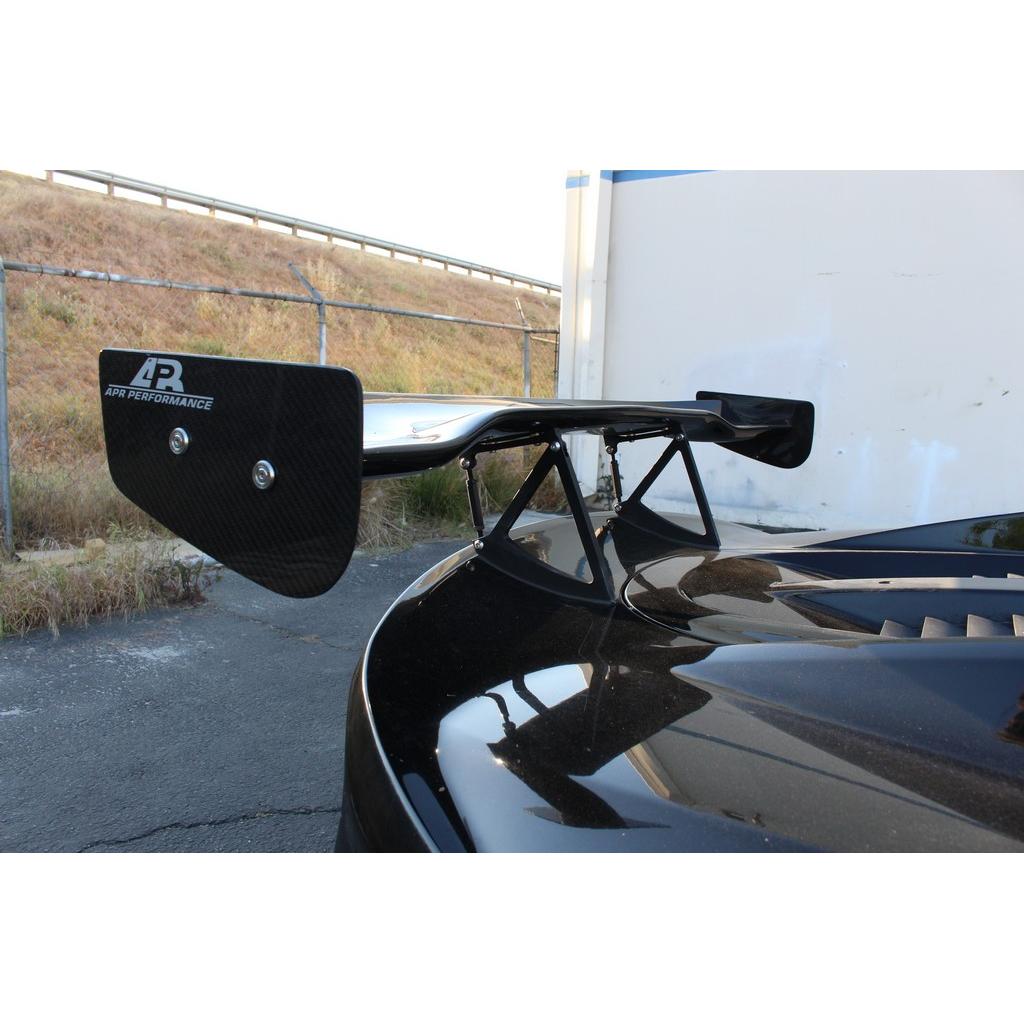

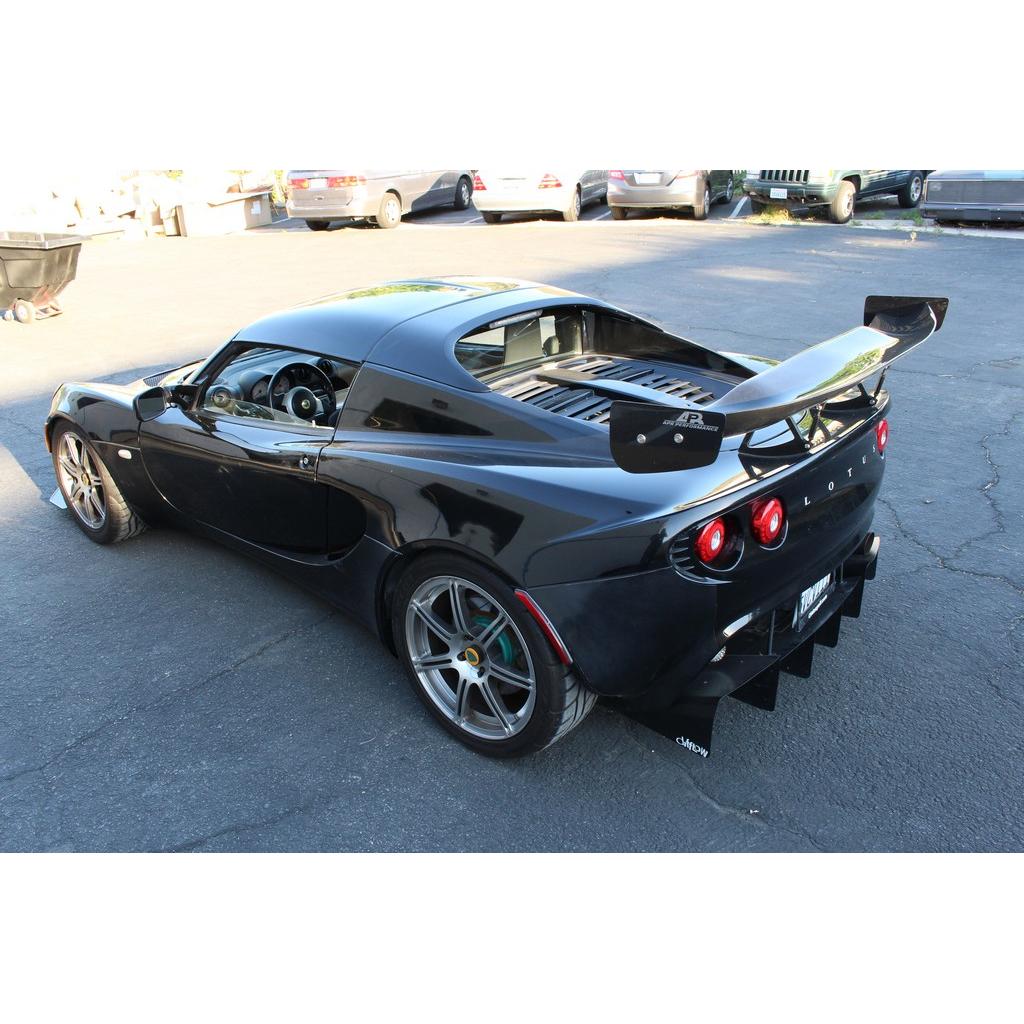

With an optimized 11:1 downforce-to-drag ratio, this wing enhances rear traction without compromising speed. Mounted on 10mm aircraft-grade 6061 billet aluminum risers, the system allows precise adjustment of height and placement for optimal airflow control. The GTC-200’s compact 60.5-inch span offers the perfect balance of aggressive aerodynamics and versatility, making it an ideal fit for the lightweight Lotus Elise chassis.

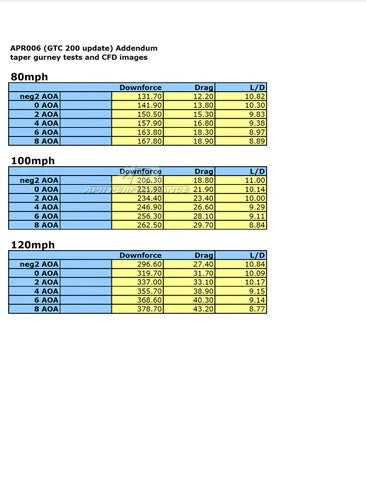

An optional carbon fiber Gurney Flap can be installed to further increase downforce and reduce flow separation during high-speed cornering. Each wing kit includes mounting bases spaced 19 inches apart (center-to-center) and inner support brackets for secure, vehicle-specific installation that covers factory spoiler holes.

Specifications:

• Span: 60.5" (1520mm)
• Chord Depth: 7.5"–9.5" (190.5–241.3mm)
• Height: 7” (177.8mm) and adjustable
• Adjustability: 0°–15° angle of attack
• Material: Pre-preg carbon fiber, autoclave-cured
• Risers: 6061 billet aluminum (10mm)
• Mounting Base Spacing: 19” center-to-center
• Optional Gurney Flap: Carbon fiber, 1/2” height

Fitment:
Lotus Elise, 2002–2011 (All Trims)
