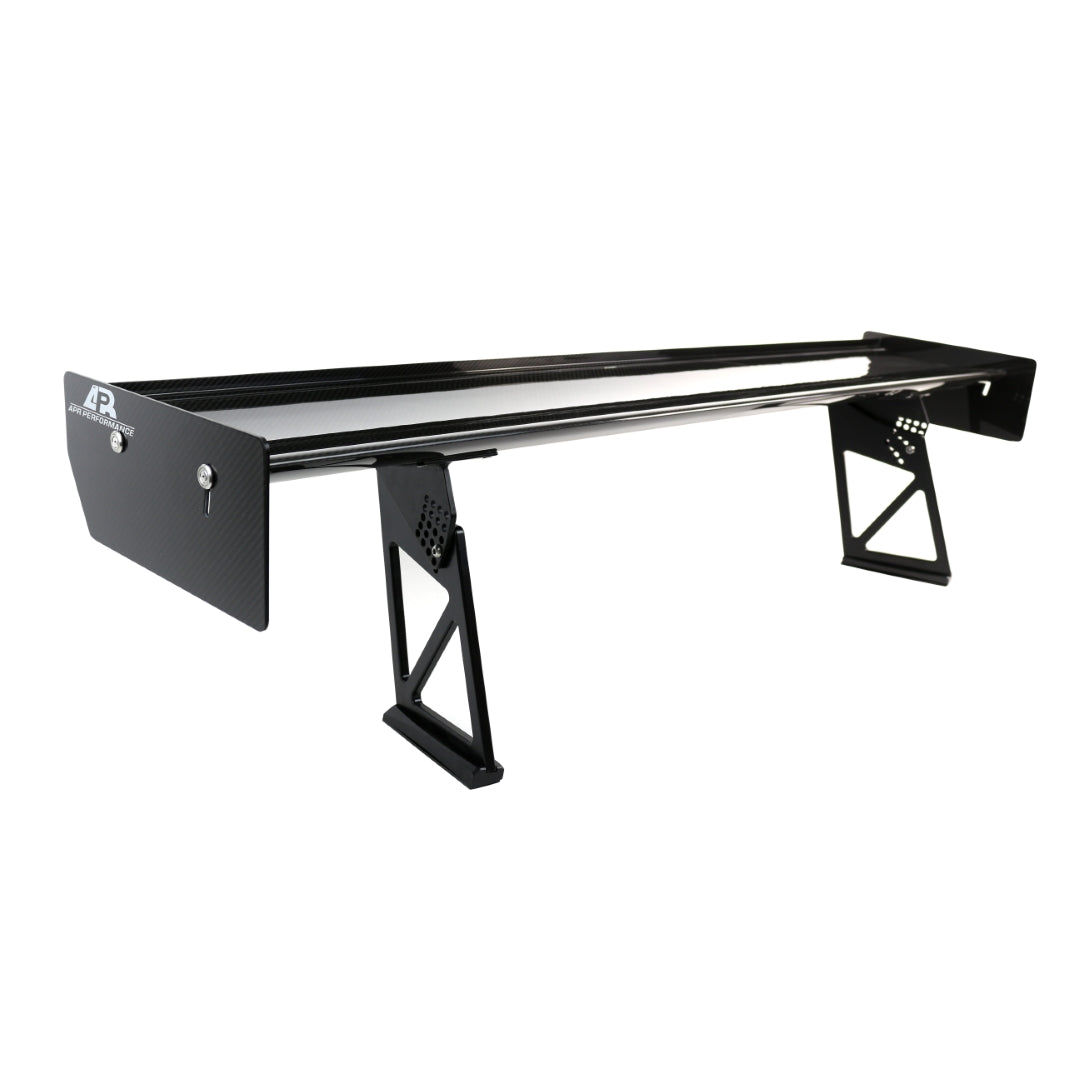

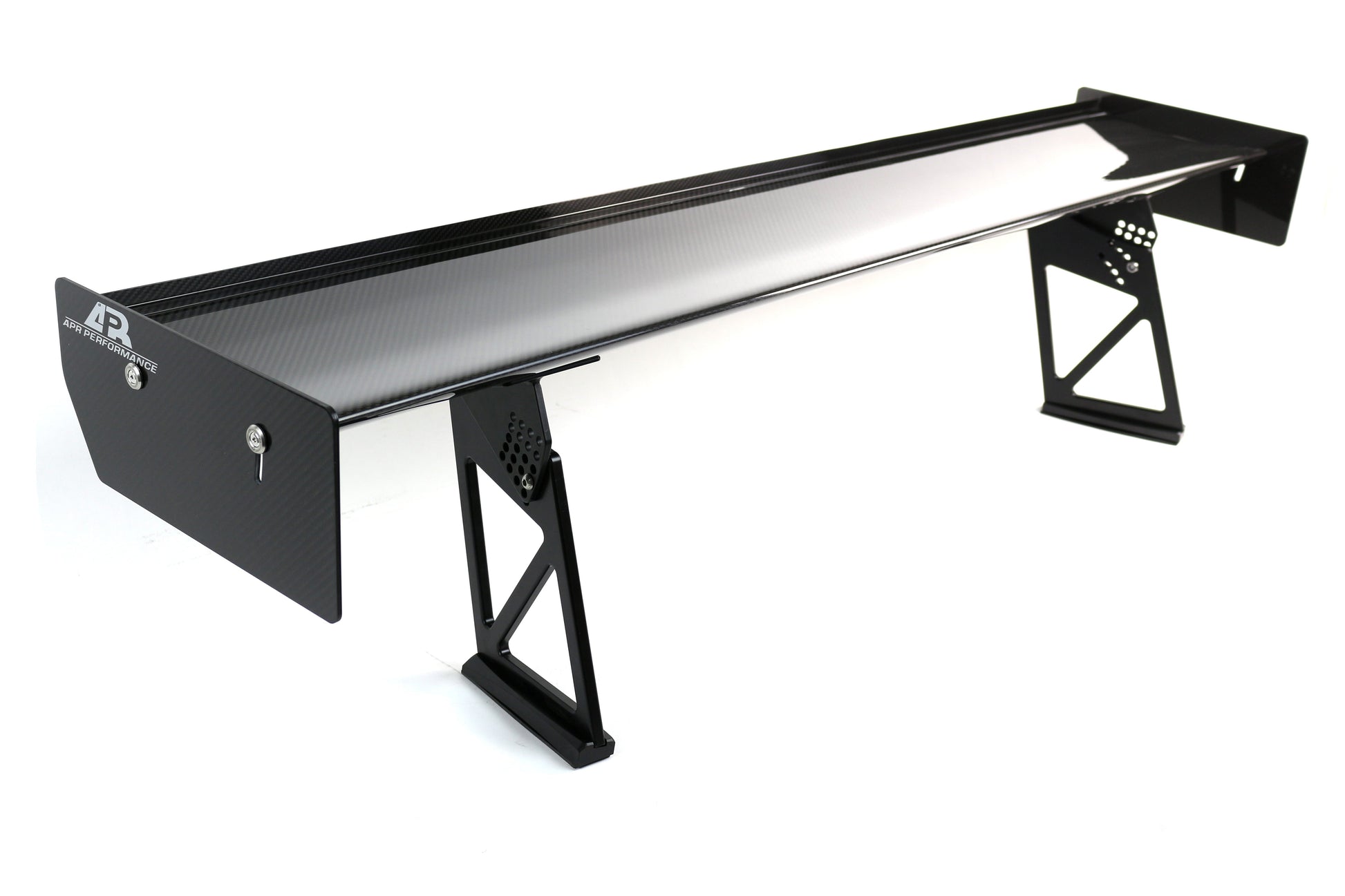

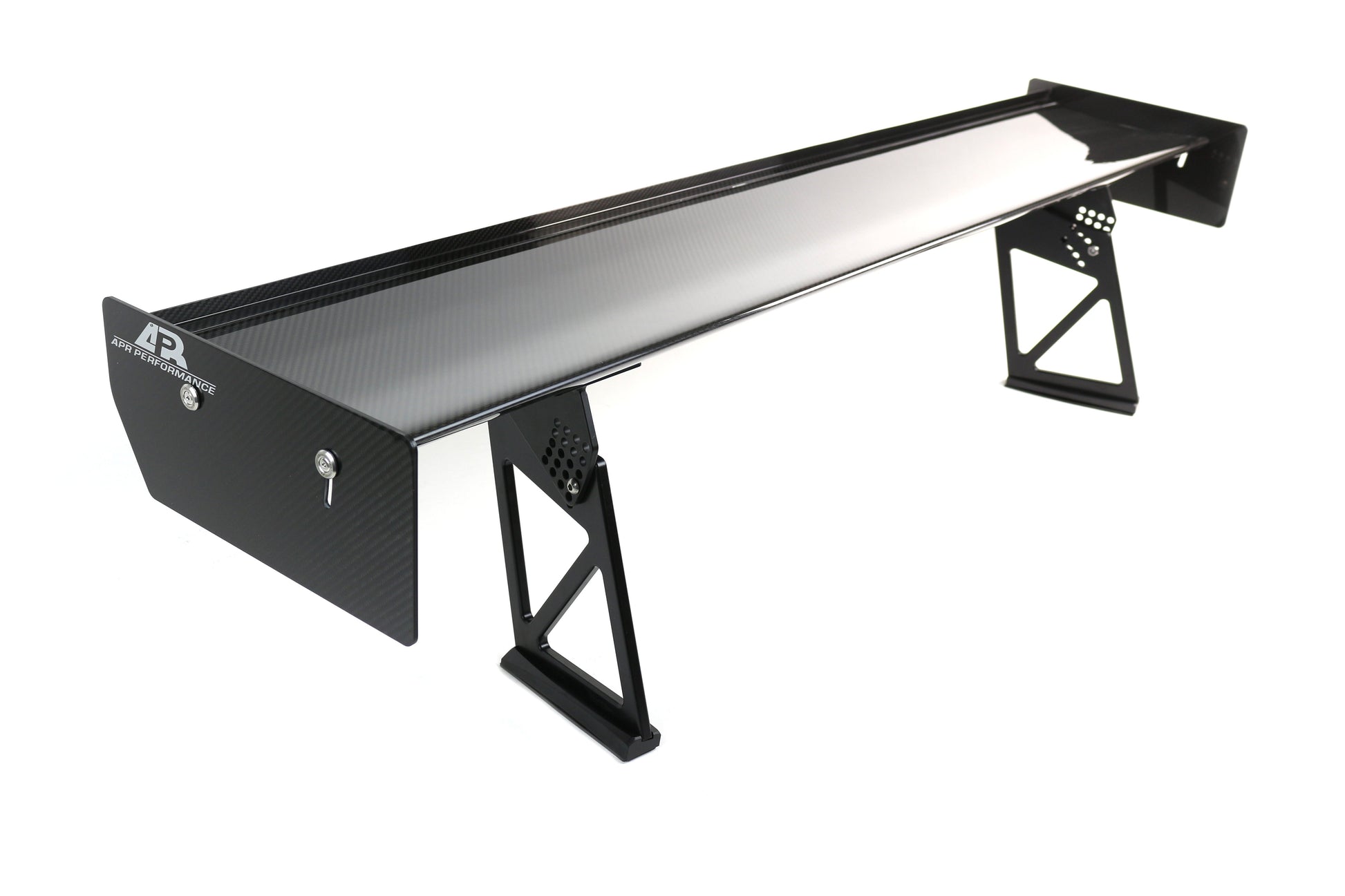

Mazda Miata NC GT-250 61" Carbon Fiber Adjustable Wing

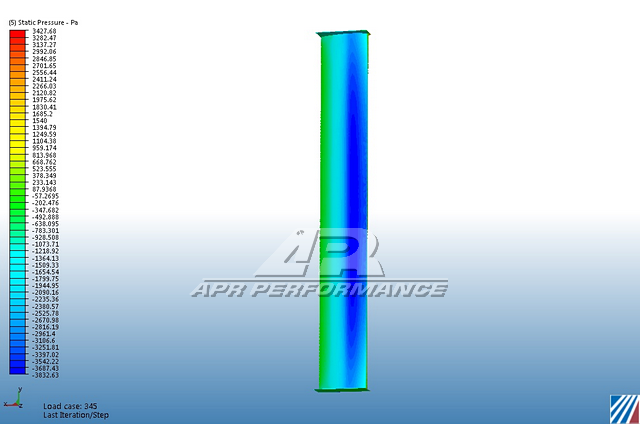

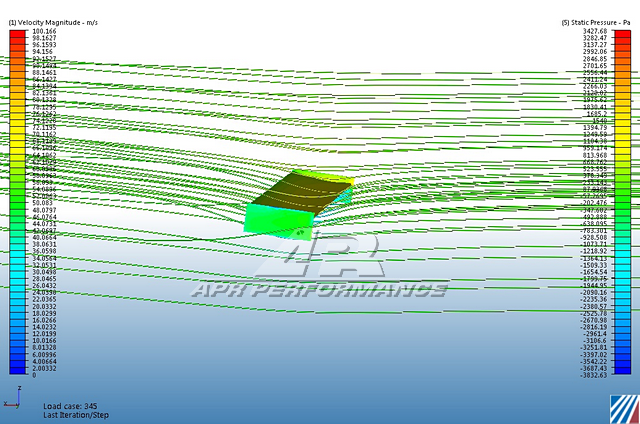

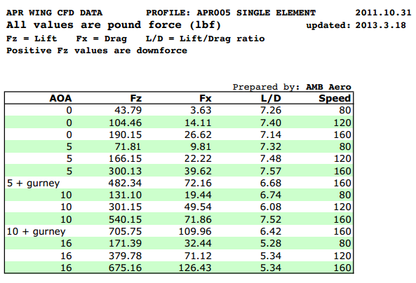

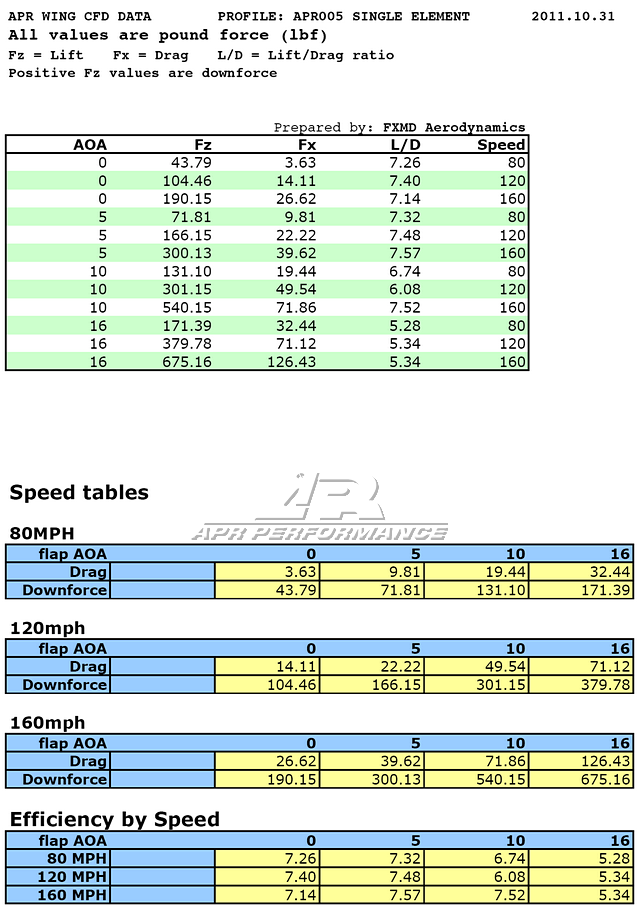

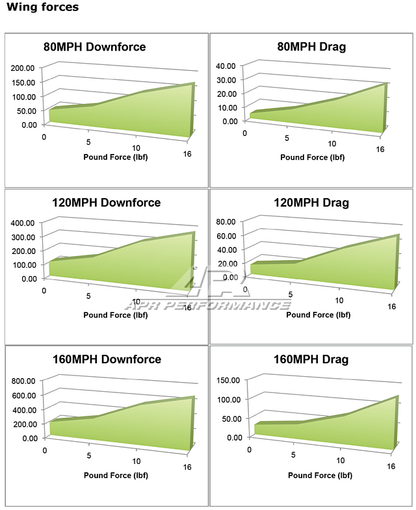

The APR Performance GT-250 61" Carbon Fiber Adjustable Wing for the Mazda Miata NC (2006–2015) is engineered to deliver professional-grade aerodynamic performance for track, time attack, autocross, and high-performance street applications. Developed using Computational Fluid Dynamics (CFD), the GT-250 airfoil is optimized to produce significant downforce while minimizing drag. This results in improved rear-end stability, enhanced cornering grip, and increased high-speed confidence on both road courses and competition circuits.

Constructed from autoclave-cured pre-preg carbon fiber, the GT-250 wing offers exceptional strength, rigidity, and durability without unnecessary weight. This ensures consistent aerodynamic performance at high speeds with no flexing or deformation. The adjustable angle of attack (0°–15°) allows drivers to fine-tune handling characteristics—selecting higher angles for additional downforce or lower angles for improved straight-line speed.

The wing mounts securely using 10 mm thick aircraft-grade 6061 billet aluminum pedestals, available in multiple height configurations to accommodate optimal airflow over the Miata NC’s compact chassis. Featuring an impressive 7.6:1 downforce-to-drag ratio, the GT-250 is ideal for competitive racing setups while remaining suitable for aggressive street builds. Every unit includes a pre-installed 1/2-inch carbon fiber Gurney Flap to further improve traction and reduce airflow separation.

Specifications:

• Wing Span: 61 in
• Chord Depth: 10 in (254 mm)
• Pedestal Heights: 8 in, 11 in, 14 in
• Adjustable Angle of Attack: 0°–15°
• Airfoil Material: Pre-preg, autoclave-cured carbon fiber
• Pedestal Material: 10 mm 6061 billet aluminum

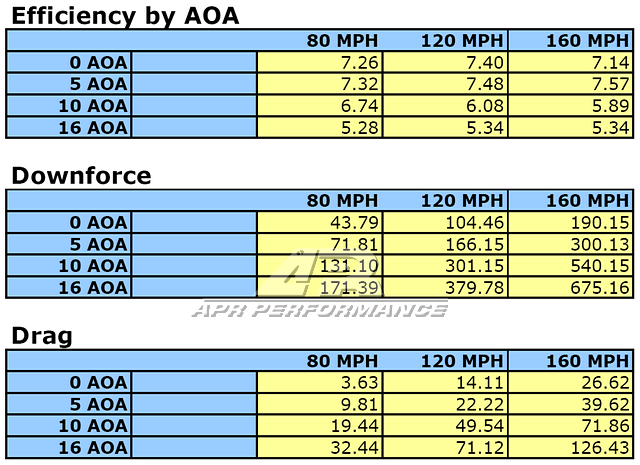

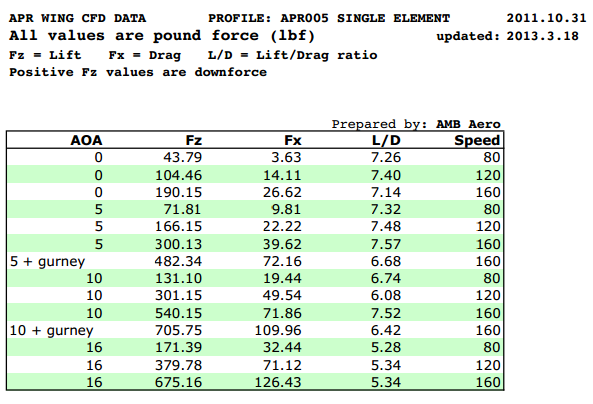

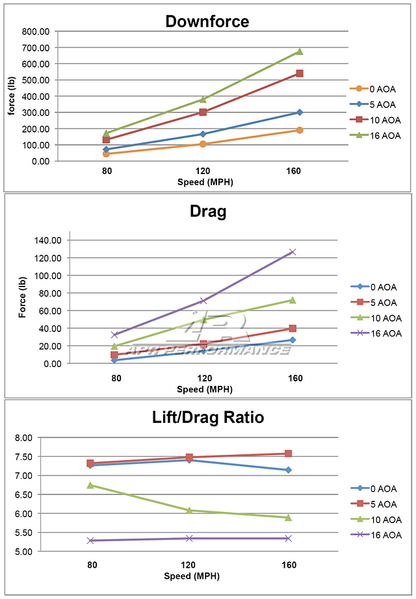

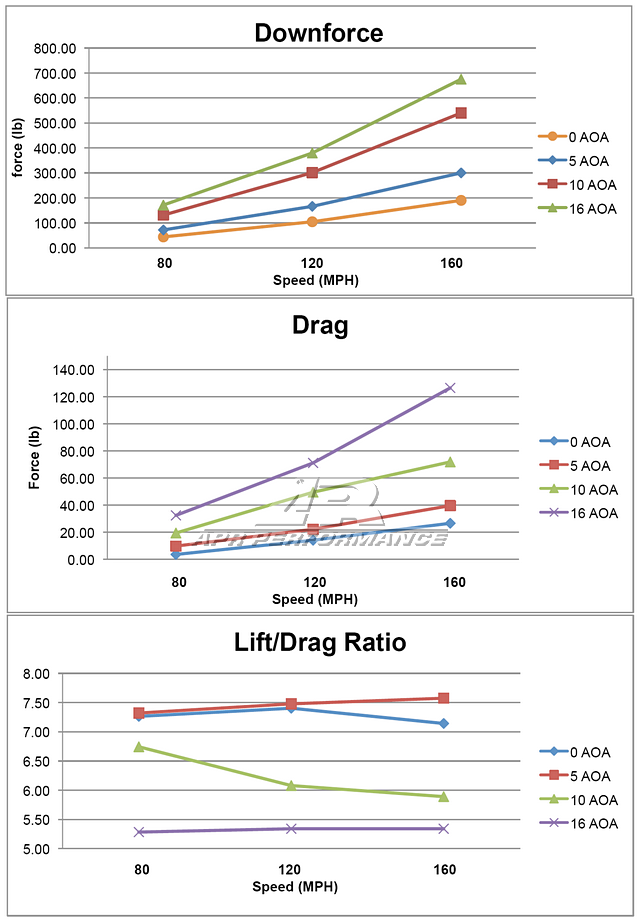

• Downforce-to-Drag Ratio: 7.6:1
• Gurney Flap: Carbon fiber, 1/2 in height (pre-installed)

Fitment:

Mazda Miata NC (2006–2015)
