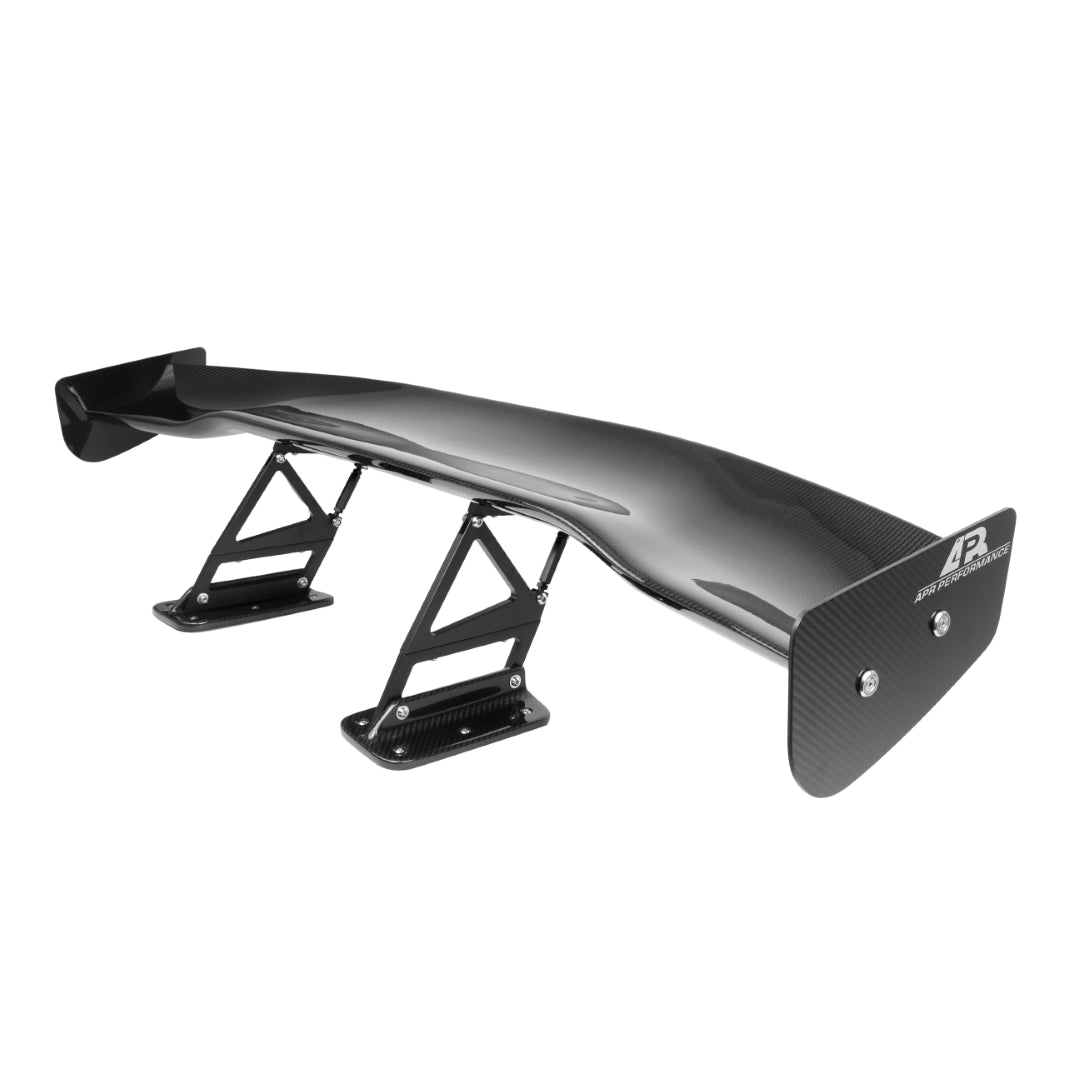

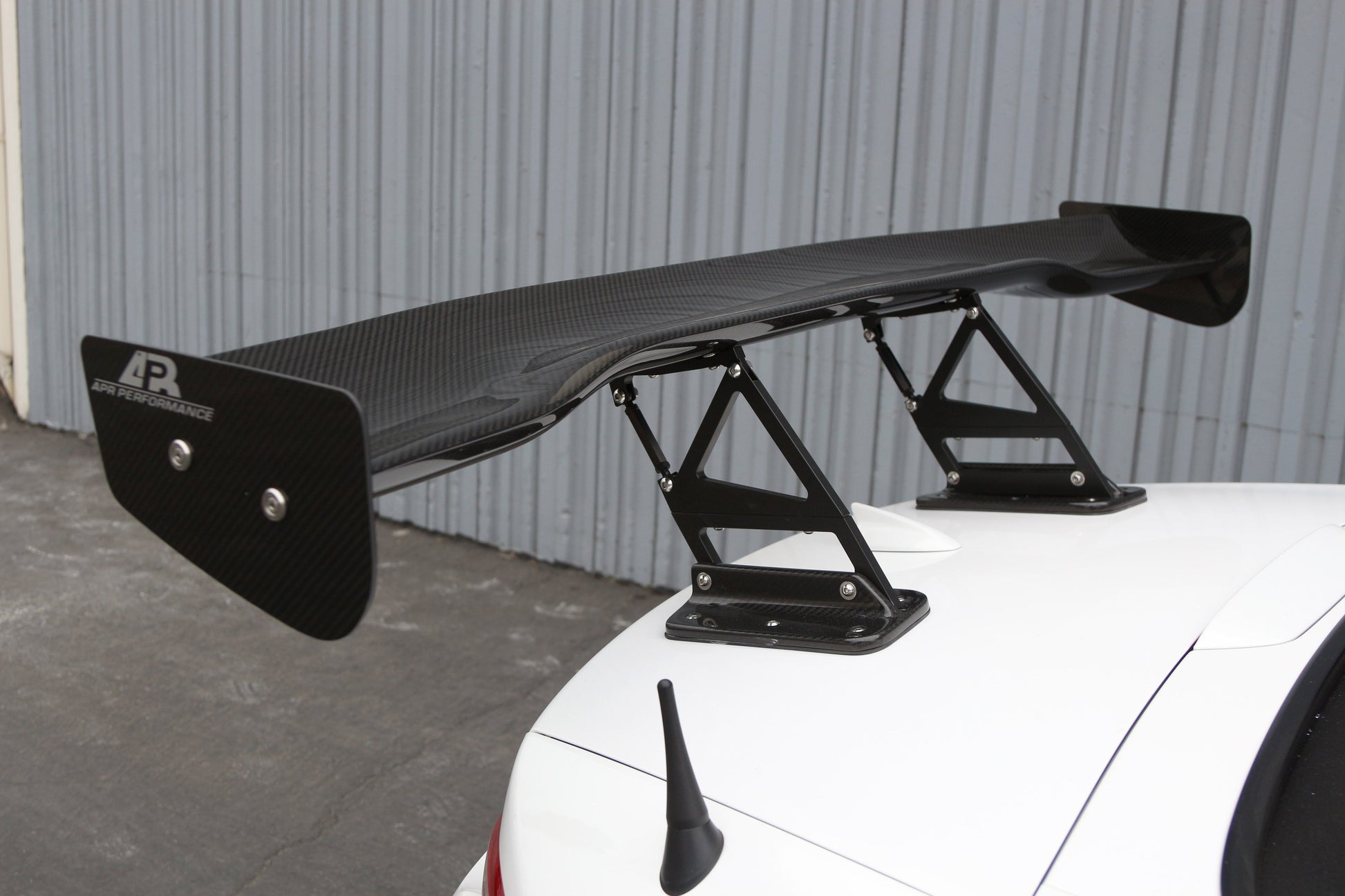

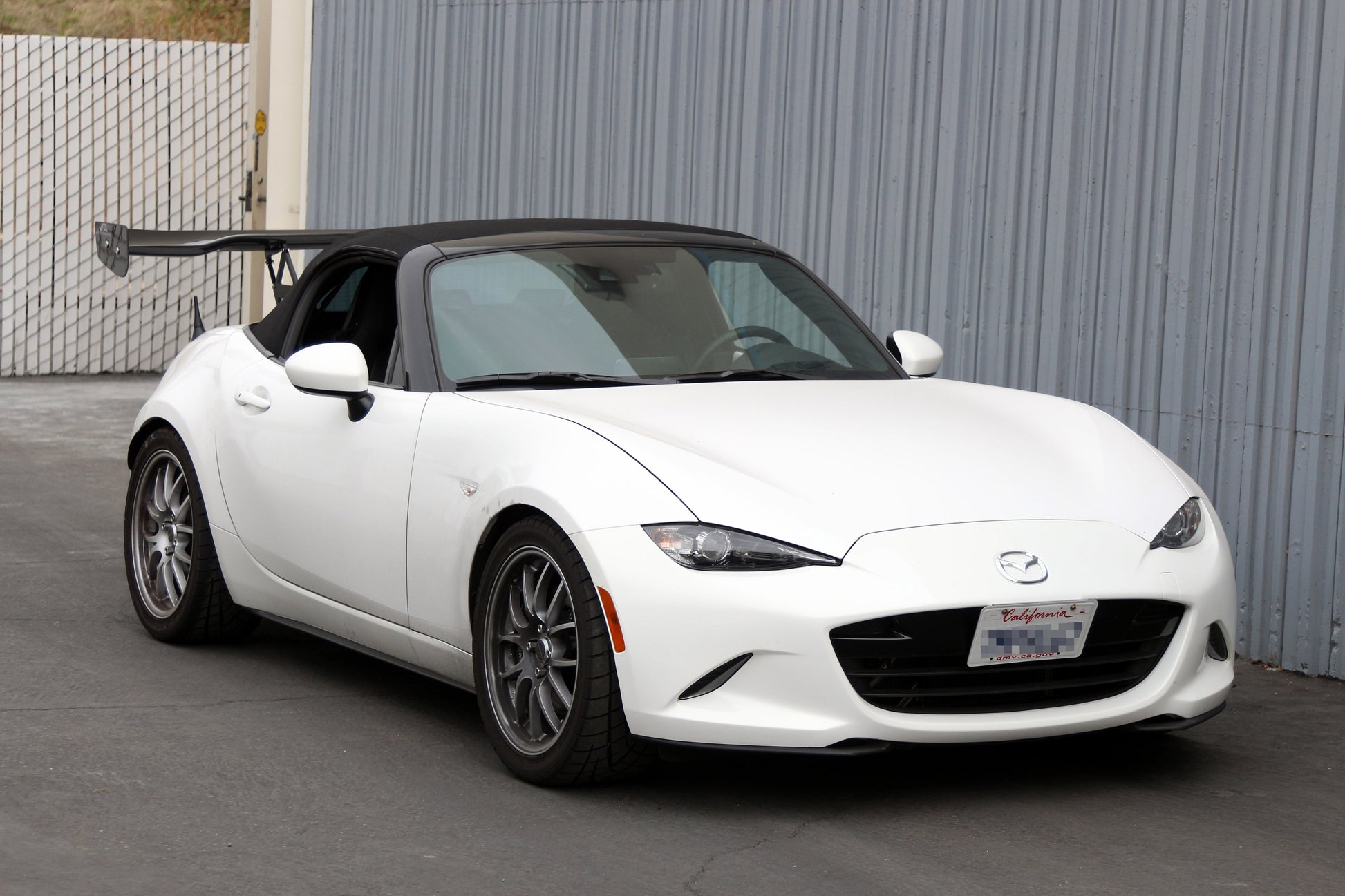

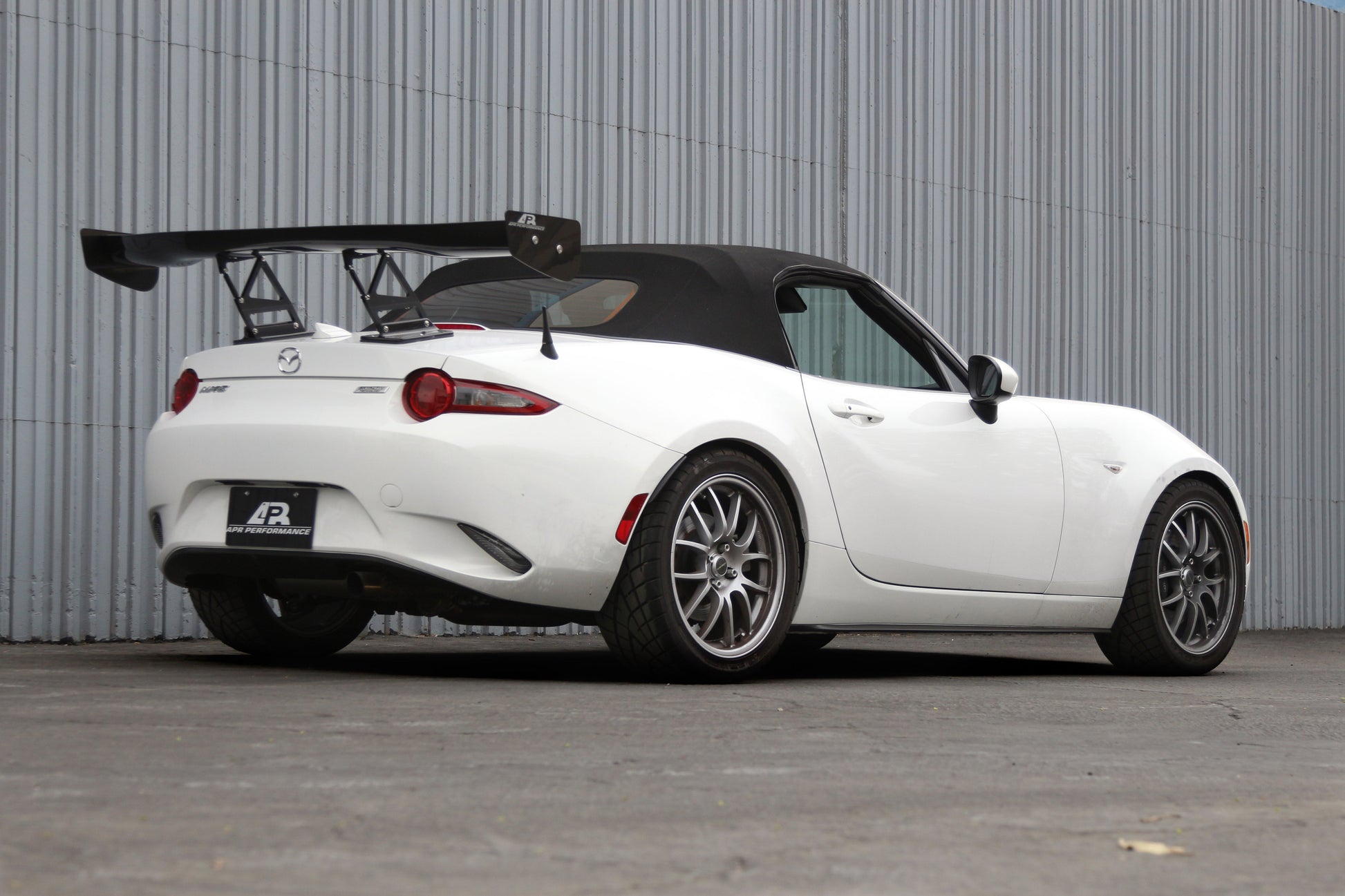

Mazda Miata ND GTC-200 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 2 weeks.

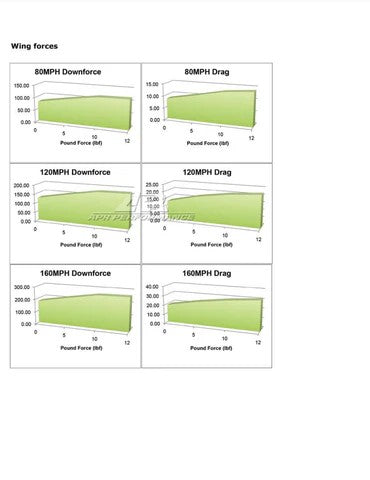

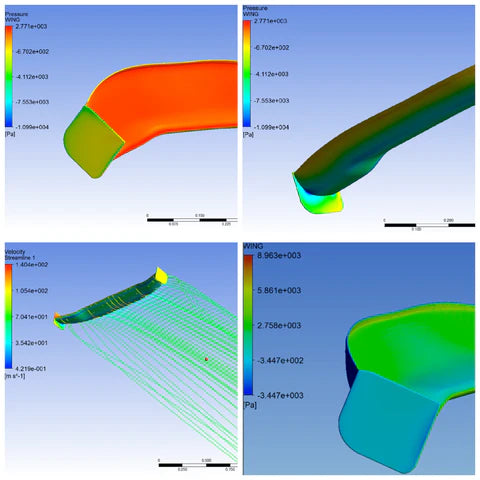

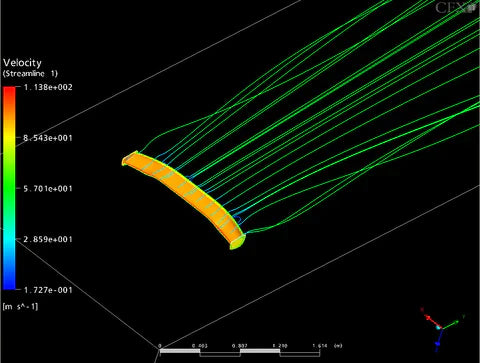

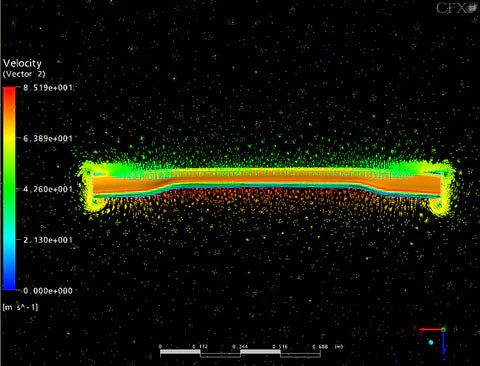

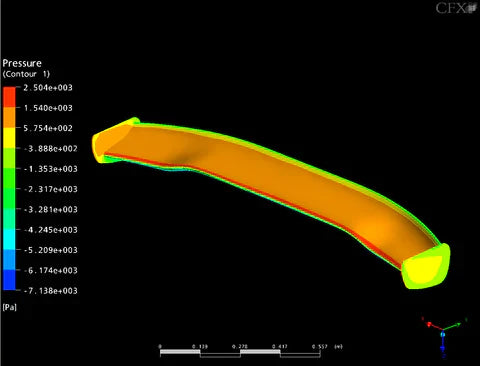

The APR Performance GTC-200 Carbon Fiber Adjustable Wing for the Mazda Miata ND (2016–2024) delivers high-performance aerodynamic efficiency designed for optimal balance, grip, and stability on both road and track. Developed through Computational Fluid Dynamics (CFD), this wing is engineered to generate maximum downforce with minimal drag—improving cornering performance, braking stability, and straight-line control.

The cambered airfoil profile of the GTC-200 ensures smooth airflow across the wing surfaces, enhancing rear-end traction and reducing lift. Designed for precise aerodynamic tuning, it features a fully adjustable angle of attack (0°–15°) that allows drivers to modify downforce and drag based on specific driving conditions. Whether it’s a tight circuit or a high-speed straight, the GTC-200 adapts perfectly to your setup.

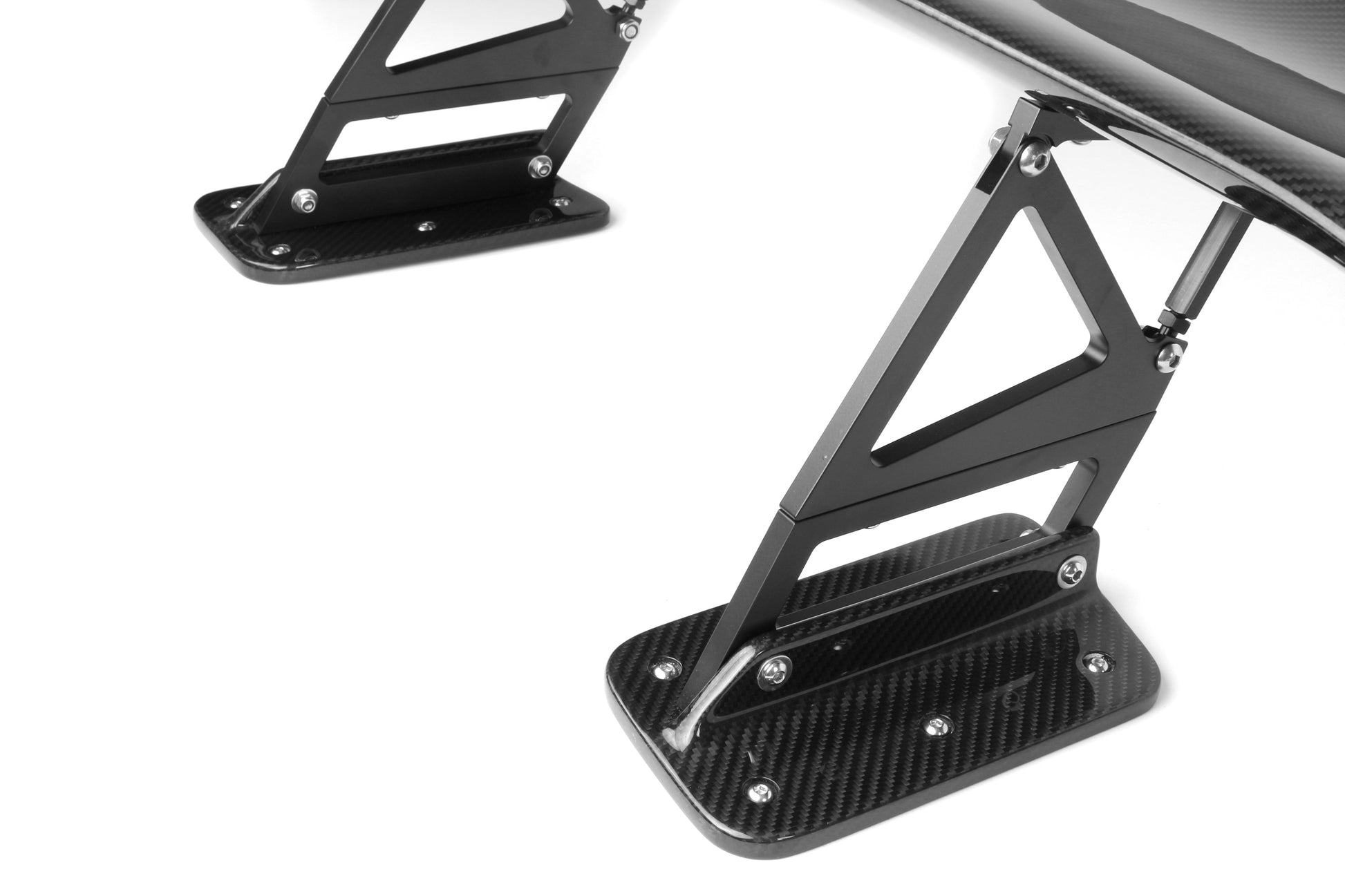

Constructed from pre-preg autoclave-cured carbon fiber, the GTC-200 provides outstanding rigidity and strength without unnecessary weight. This lightweight construction ensures consistent aerodynamic performance even at high speeds or under intense cornering loads. The 6061 billet aluminum 10mm risers offer strong, adjustable mounting, giving users complete control over height and positioning for optimal airflow.

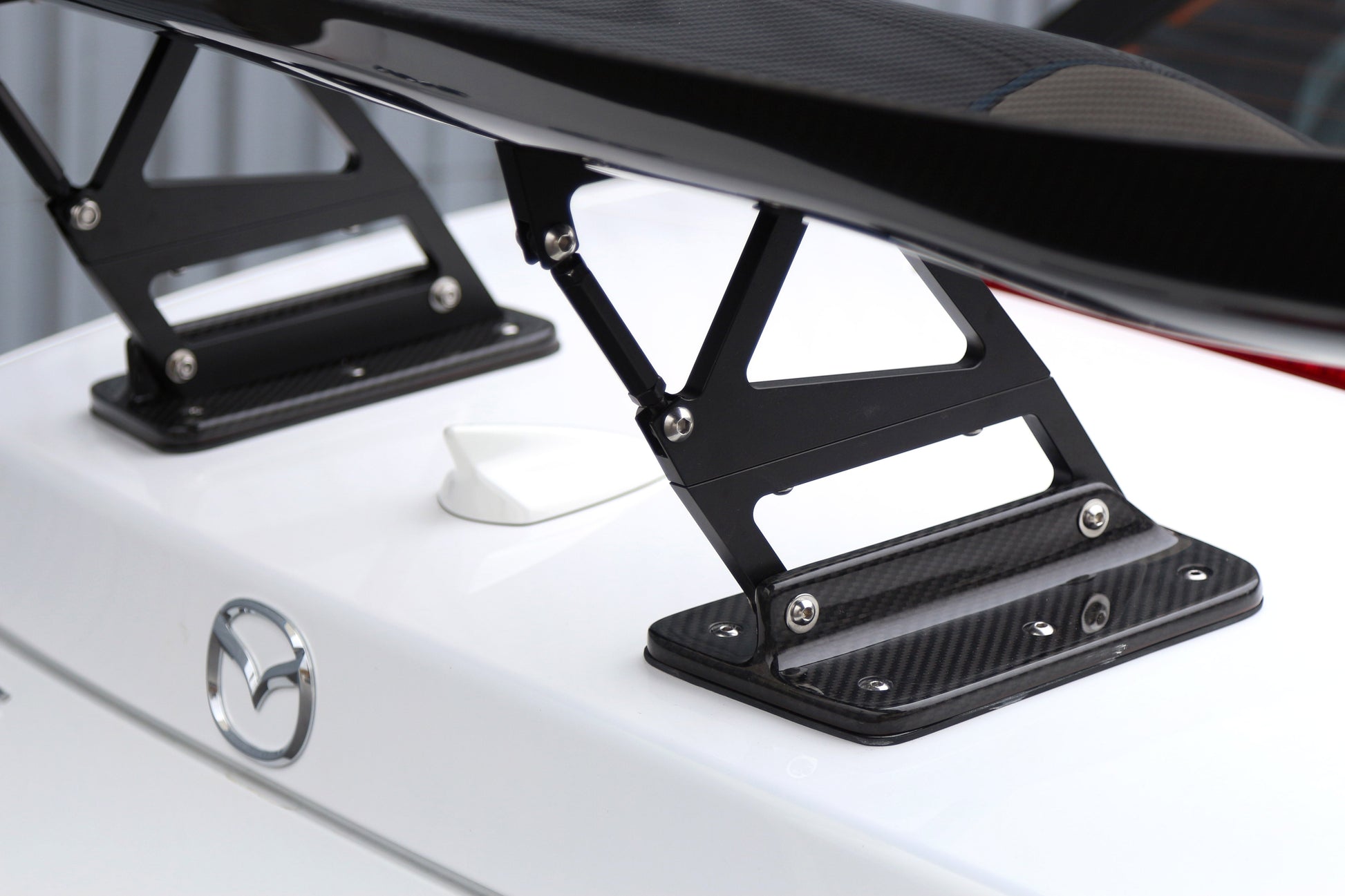

Ideal for both street and competition Miatas, this mid-sized wing delivers a perfect balance between track-ready downforce and street drivability. The included carbon fiber bottom plates ensure precise fitment and durable mounting for the ND chassis.

Specifications:

• Vehicle Fitment: Mazda Miata ND (2016–2024)
• Span: 60.5" (1520mm)
• Chord Depth: 7.5"–9.5" (190.5–241.3mm)
• Height: Adjustable from 7" (177.8mm) and up

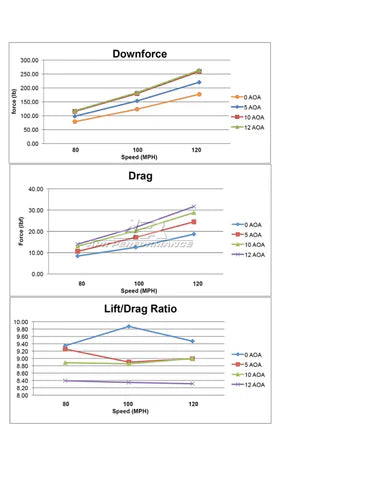

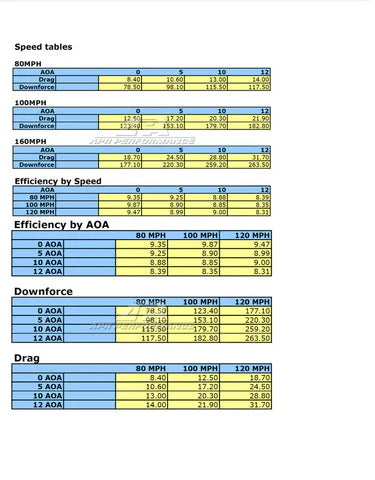

• Angle of Attack: Adjustable 0°–15°
• Downforce-to-Drag Ratio: 11:1
• Material: Pre-preg autoclave-cured carbon fiber
• Risers: 10mm aircraft-grade 6061 billet aluminum
• Mounting Distance: 29.5" (center-to-center)

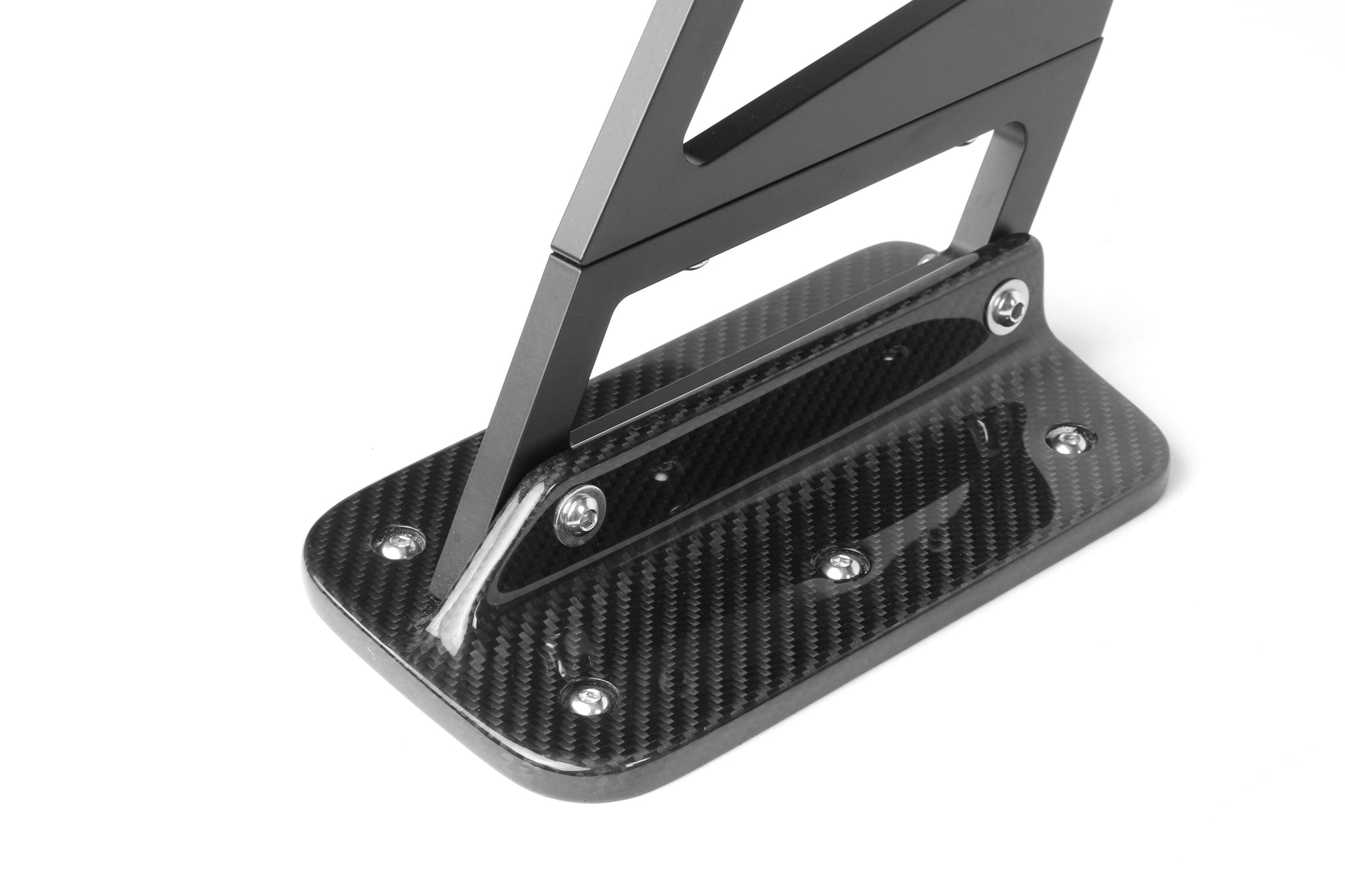

• Includes: Carbon fiber bottom plates for vehicle-specific fitment

Key Features:

• CFD-optimized design for superior aerodynamic balance
• Lightweight, high-strength pre-preg carbon fiber construction
• Adjustable angle of attack for precise downforce tuning
• Billet aluminum risers for strong, adjustable mounting
• Includes carbon fiber bottom plates for ND Miata chassis

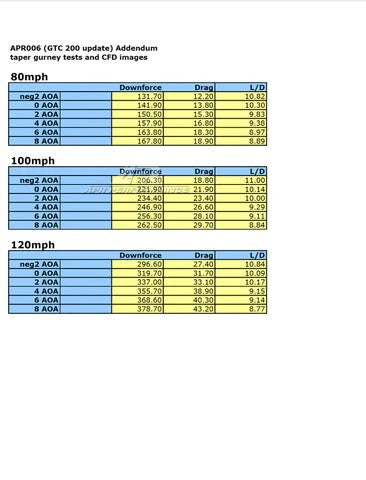

• Optional Gurney Flap for additional downforce capability

Fitment:

• Mazda Miata ND (2016–2024)
  Fits all trims including Sport, Club, Grand Touring, and RF.
