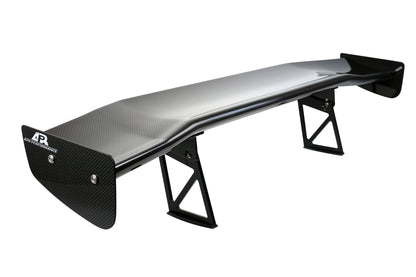

Mazda RX-7 GTC-500 Carbon Fiber Adjustable Wing 1993 - 2002

This item is made to order, normal lead time is 2-3 weeks.

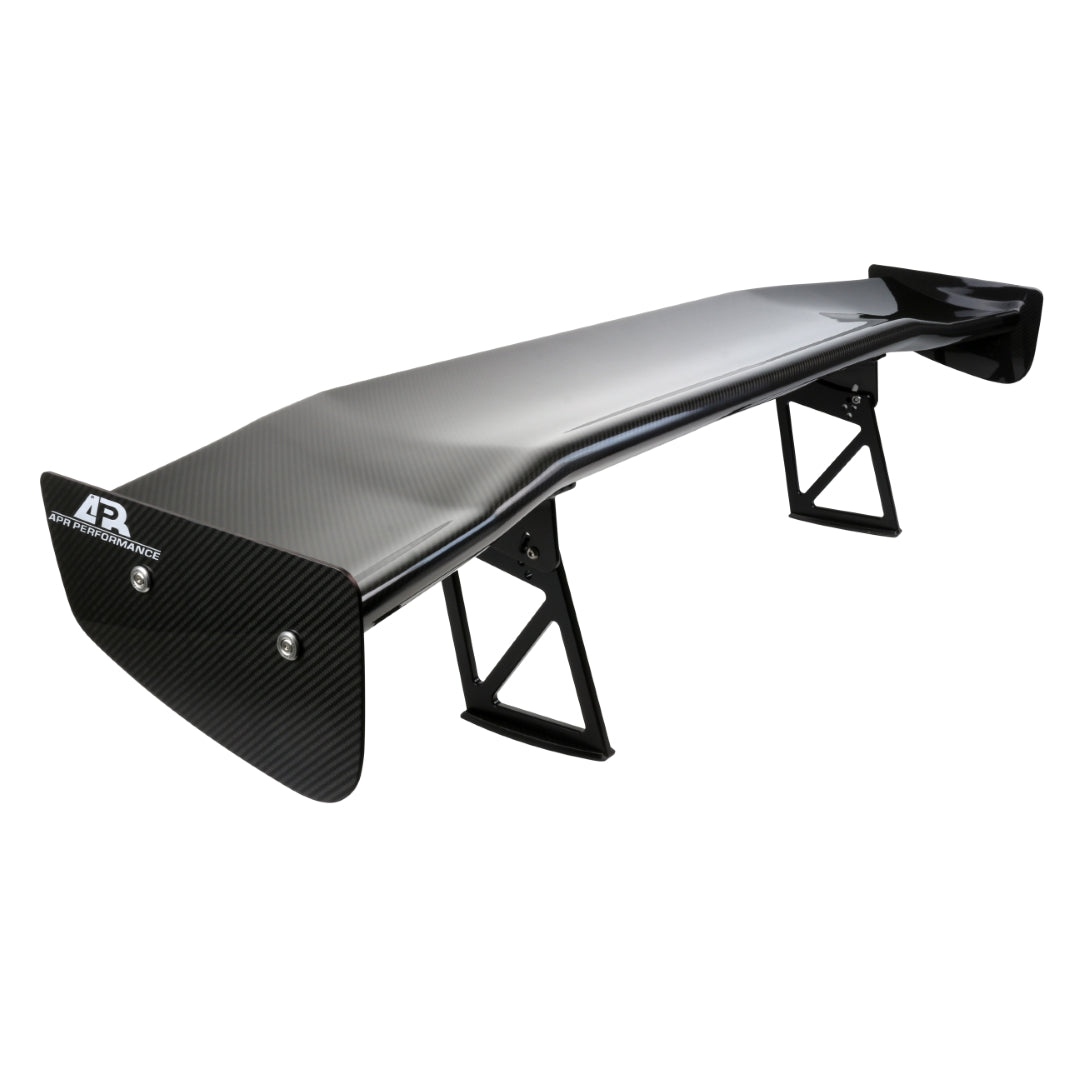

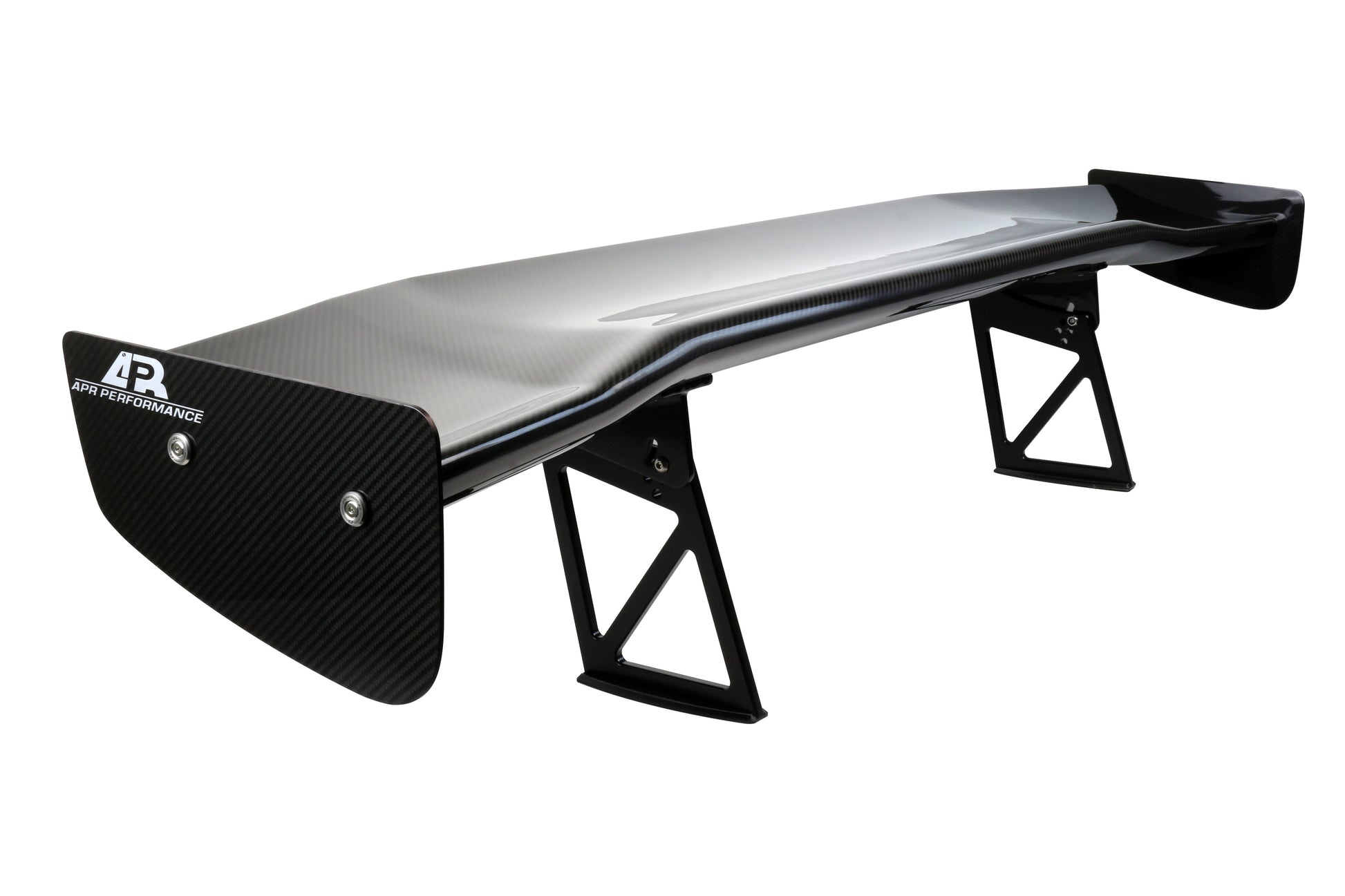

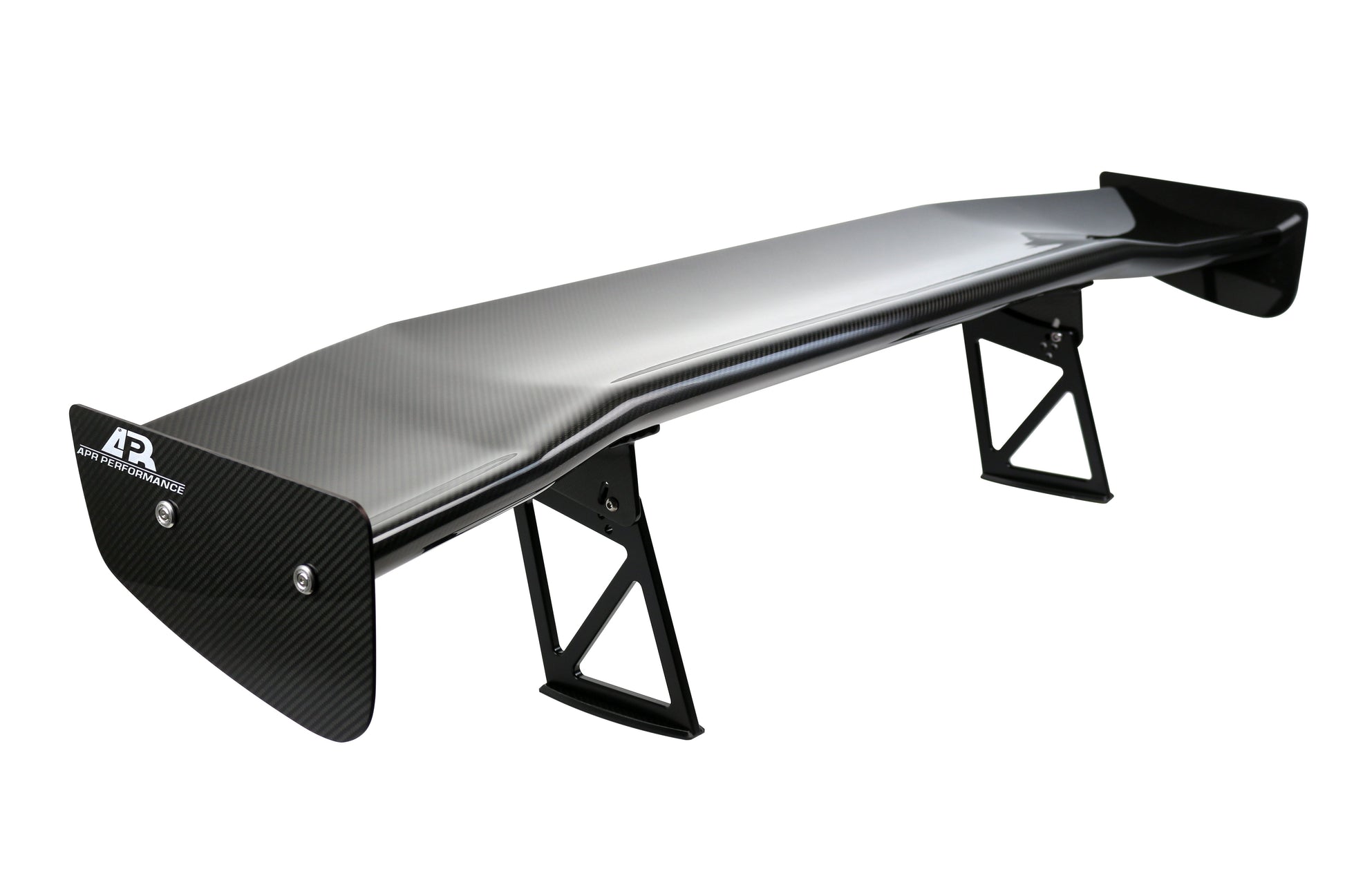

The APR Performance GTC-500 71" Carbon Fiber Adjustable Wing brings race-proven aerodynamics to the legendary Mazda RX-7 (FD3S, 1993–2002). Engineered for maximum downforce and minimal drag, this wing provides the ideal aerodynamic balance for high-speed stability, improved traction, and cornering control.

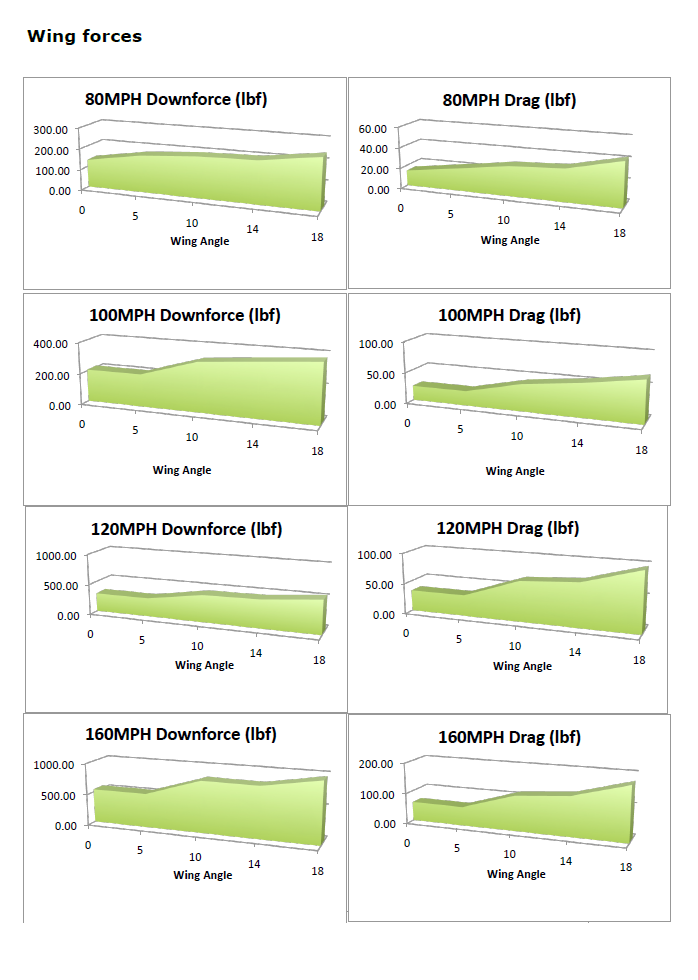

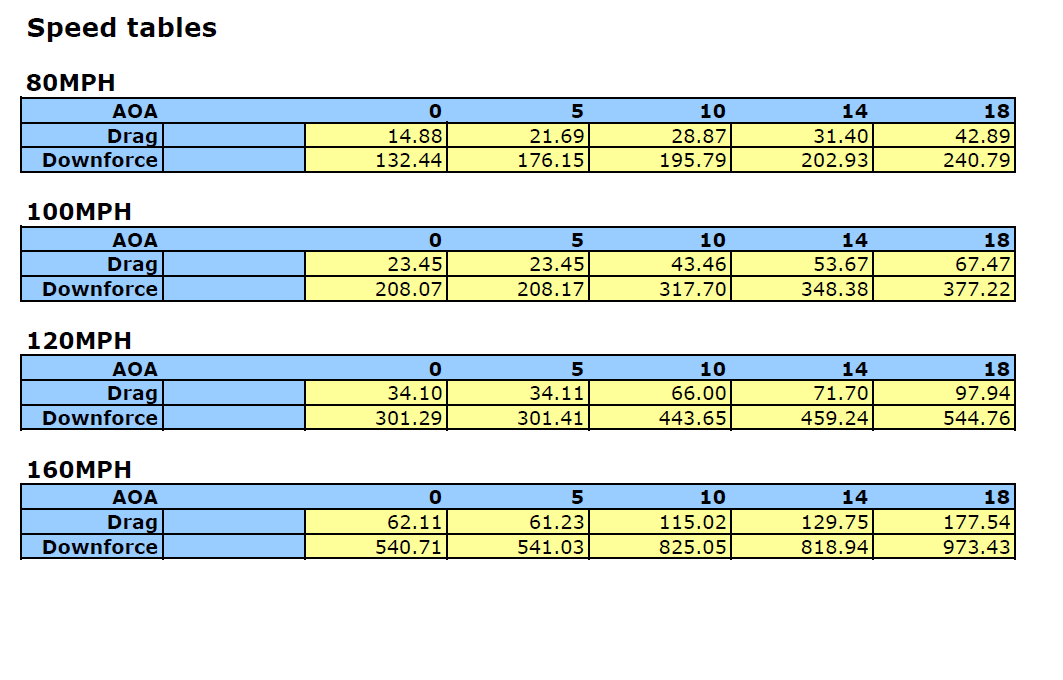

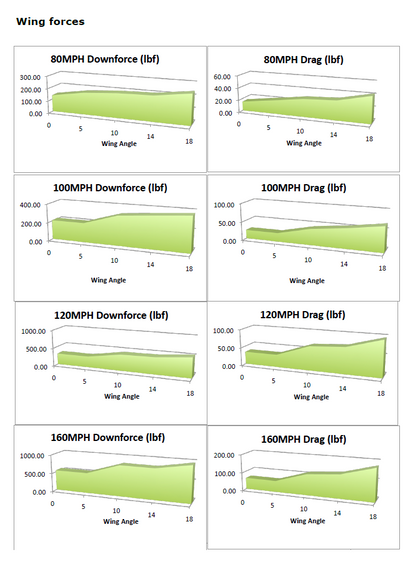

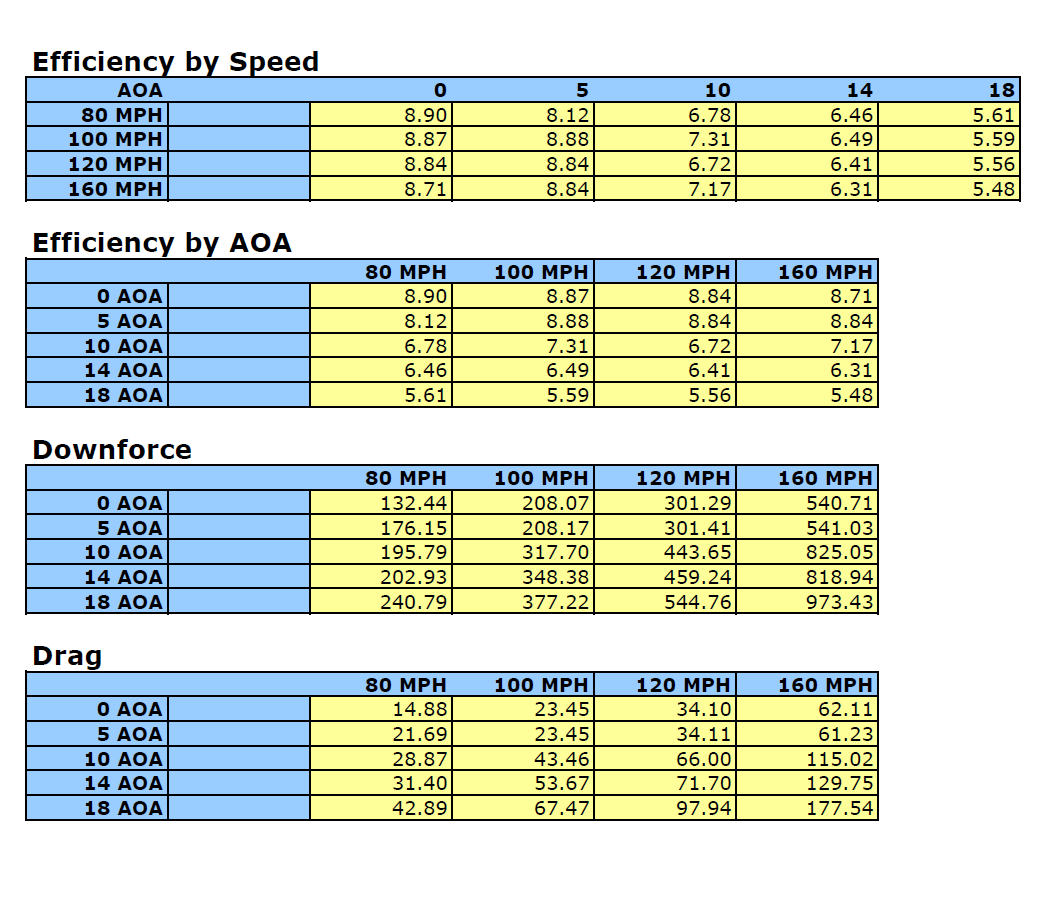

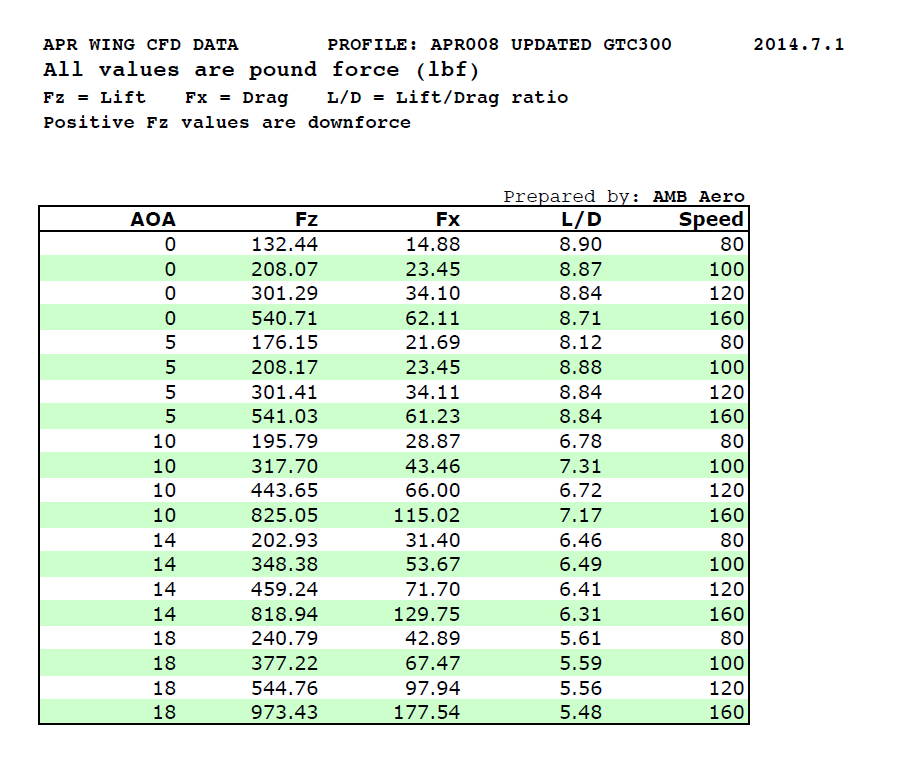

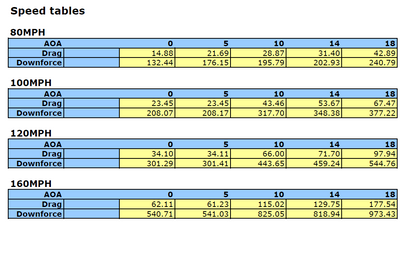

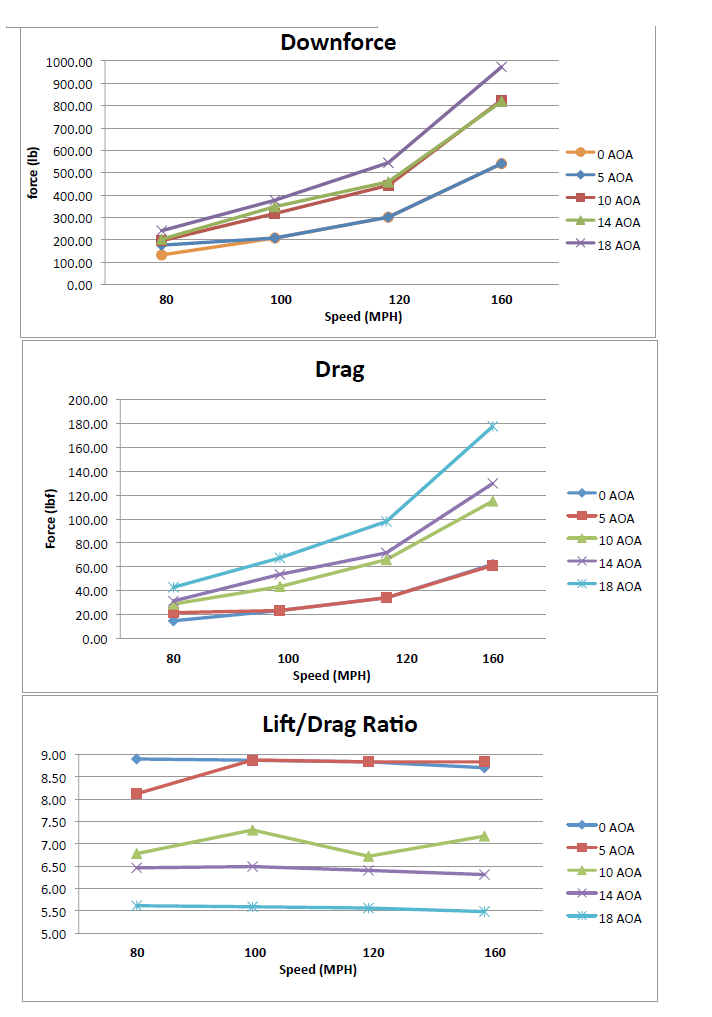

Developed using Computational Fluid Dynamics (CFD), the GTC-500’s airfoil profile delivers high aerodynamic efficiency, generating an exceptional 8.88:1 downforce-to-drag ratio. The cambered design maintains strong airflow attachment at high speeds, ensuring consistent stability during aggressive cornering and braking.

Constructed from autoclave-cured pre-preg carbon fiber, the GTC-500 combines strength and lightness while maintaining structural rigidity under aerodynamic loads. The 6061 billet aluminum risers allow for full 0°–15° angle-of-attack adjustment, letting drivers fine-tune aerodynamic performance to match any circuit or driving style.

Key Features

• CFD-Developed Airfoil Design – Maximizes downforce and minimizes drag for improved stability.
• Pre-Preg Carbon Fiber Construction – Lightweight, rigid, and autoclave-cured for durability.
• Adjustable Angle of Attack (0°–15°) – Precisely tune downforce and drag balance.
• High Downforce-to-Drag Efficiency (8.88:1) – Designed for professional motorsport performance.
• 6061 Billet Aluminum Pedestals – Aircraft-grade strength and adjustable mounting height.
• UV-Resistant Gloss Finish – Protects the carbon fiber surface from fading or yellowing.
• Optional Carbon Fiber Gurney Flap – Increases rear grip and aerodynamic control.

Specifications

• Span: 71” or 74” (1803 mm / 1880 mm)
• Chord Depth: 10.2”–12” (259 mm – 305 mm)
• Height: Up to 13” (330 mm)
• Material: Pre-preg carbon fiber composite
• Mounts: 6061 billet aluminum adjustable pedestals
• Angle Adjustment: 0°–15°
• Downforce-to-Drag Ratio: 8.88:1
• Finish: UV-resistant gloss clear coat
• Optional: ½" Carbon Fiber Gurney Flap (3M VHB mounting)

Fitment

Mazda RX-7 (FD3S) 1993 – 2002
