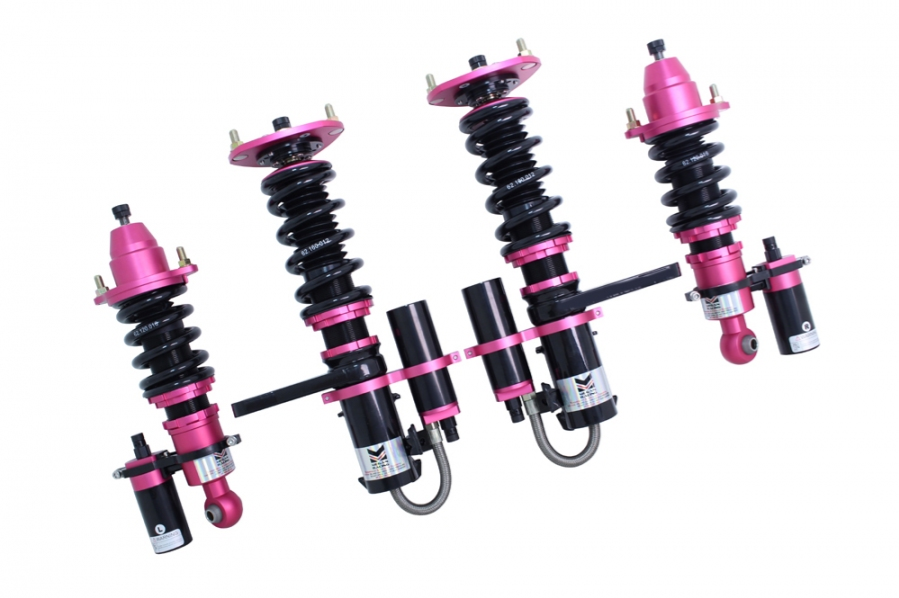

Megan Racing - Acura RSX Base/Type S 02-06 – Spec-RS Series Coilovers – MR-CDK-AR02-RS

Transform the handling capabilities of your Acura RSX with the Megan Racing Spec-RS Series Coilover Suspension System, engineered for drivers who demand maximum control, adjustability, and durability on both the street and track. Designed specifically for 2002–2006 Acura RSX Base and Type-S models, this system delivers race-inspired suspension tuning while maintaining reliability for aggressive daily use.

The Spec-RS coilovers feature 32 levels of independently adjustable compression and rebound damping, allowing precise suspension tuning for a wide range of driving conditions. Compression damping is controlled via external reservoirs, increasing oil capacity and preventing damping fade during extended hard driving. Rebound adjustment is accessed from the top of the damper, making fine-tuning quick and simple.

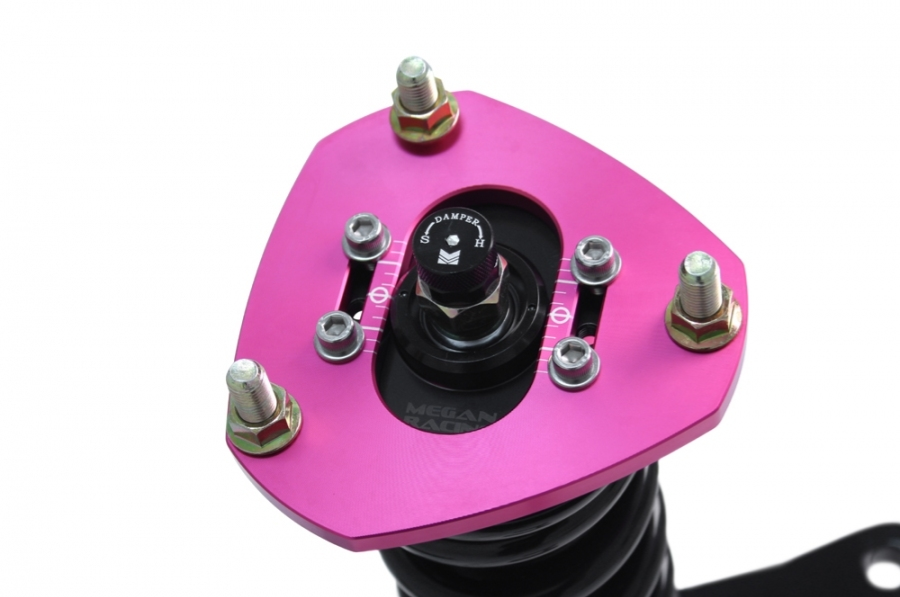

Ride height is fully adjustable through independent shock body length adjustment and CNC-machined locking spring perches, allowing aggressive lowering while preserving full suspension travel. Pillow-ball upper mounts and integrated camber plates reduce suspension deflection, sharpen steering response, and allow precise alignment tuning for improved grip, predictability, and tire wear.

Built using high-strength steel dampers, aluminum components, and SAE-9254 cold-wound springs, the Megan Racing Spec-RS system is engineered to withstand extreme driving conditions while delivering consistent performance lap after lap.

Key Features:

• 32-Way Independent Damping Adjustment: Separate compression and rebound control
• External Reservoirs: Increased oil capacity with independent compression adjustment
• Top-Mounted Rebound Adjusters: Easy access for fast tuning
• Independent Ride Height Adjustment: Shock length adjusts separately from spring preload
• Pillow-Ball Upper Mounts with Camber Plates: Improved steering response and alignment control
• Dual-Cylinder Damper Design: Stable and consistent damping performance
• High-Strength Construction: Steel dampers with performance-grade hardware
• Complete Hardware Included: Direct bolt-on installation

Spring Rates:

• Front: 12 kg/mm
• Rear: 16 kg/mm

Damper Adjustment Guide:

• 1–8: Track use
• 9–16: Mountain / aggressive driving
• 17–32: Street driving

Fitment:

• Acura RSX Base (2002–2006)
• Acura RSX Type-S (2002–2006)

Important Notes:

• Designed for aggressive performance driving and track-focused setups
• Not intended to retain factory ride height
• Professional alignment recommended after installation

Part Number:

• MR-CDK-AR02-RS
