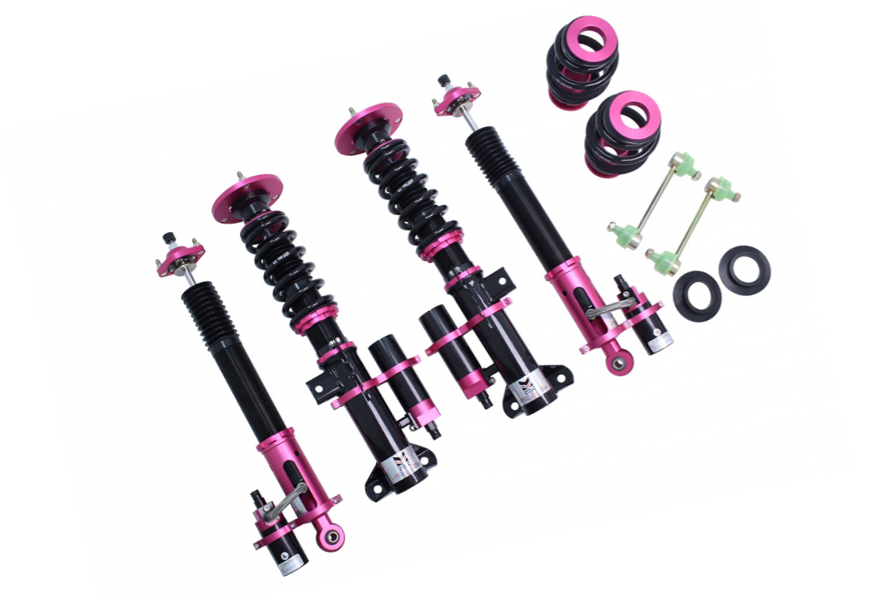

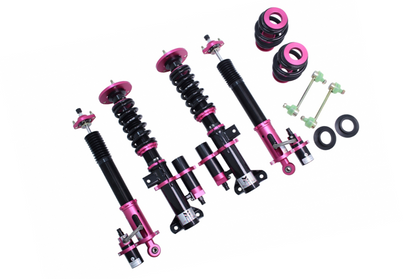

Megan Racing - BMW E36/M3/3-Series 92-98 – Spec-RS Series Coilovers – MR-CDK-E36-RS

Transform the handling and suspension performance of your BMW E36 with the Megan Racing Spec-RS Series Coilover Suspension System, engineered for drivers who demand maximum control, adjustability, and durability. Designed for both E36 3-Series and E36 M3 chassis, this advanced coilover system delivers race-inspired performance while remaining suitable for aggressive street driving.

The Spec-RS system features 32 levels of independent compression and rebound adjustment, allowing precise tuning for track use, spirited mountain driving, or daily street performance. Compression damping is adjusted through external reservoirs, increasing oil capacity and maintaining damping consistency under high-temperature and high-load conditions. Rebound adjustment is conveniently located at the top of each damper for quick, accurate tuning.

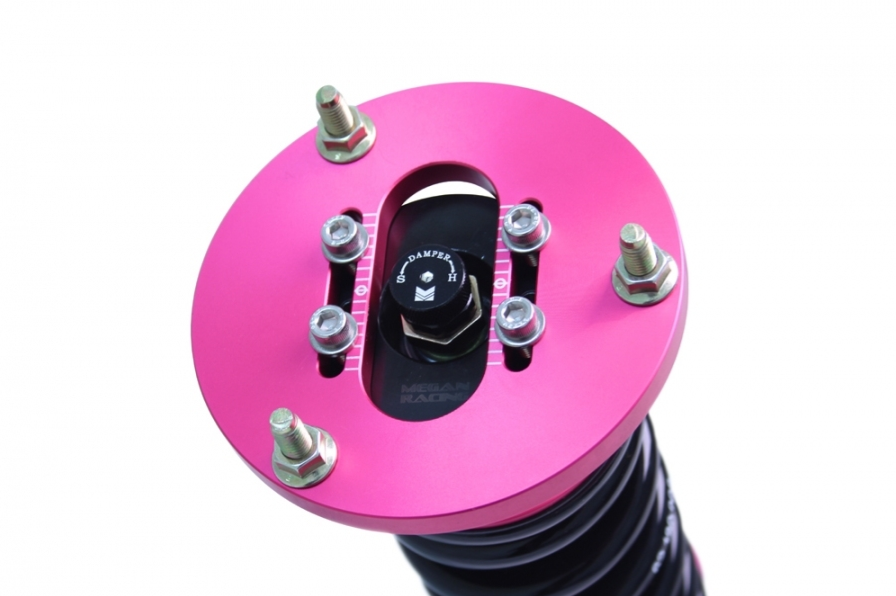

Ride height is adjusted independently from spring preload using CNC-machined locking spring perches and adjustable shock body length. This design preserves full suspension travel while allowing aggressive lowering and precise corner balancing. Pillow-ball upper mounts with integrated front camber plates provide improved steering response, reduced suspension deflection, and precise alignment tuning for optimal tire contact.

Built with high-strength steel dampers, aluminum rear brackets, and SAE-9254 cold-wound springs tested beyond 500,000 compression cycles, the Megan Racing Spec-RS system is engineered for reliability, consistency, and long-term performance under demanding driving conditions.

Key Features:

• Independent Compression & Rebound Adjustment: 32-step damper control
• External Reservoirs: Increased oil capacity with separate compression adjustment
• Top-Mounted Rebound Adjustment: Easy access for precise tuning
• Independent Ride Height Adjustment: Shock length adjusts separately from spring preload
• Pillow-Ball Upper Mounts: Improved steering response and reduced deflection
• Front Camber Plates: Enables aggressive alignment and track tuning
• Dual-Cylinder Damper Design: Maintains damping stability under load
• High-Strength Construction: Steel front brackets with aluminum rear brackets
• Complete Hardware Included: Direct bolt-on installation

Spring Rates:

• Front: 8 kg/mm
• Rear: 10 kg/mm

Damper Adjustment Guide:

• 1–8: Track use
• 9–16: Mountain / aggressive driving
• 17–32: Street driving

Fitment:

• BMW 3-Series E36 (1992–1998, excluding AWD models)
• BMW M3 E36 (1995–1998)

Important Notes:

• This coilover system cannot be adjusted to stock ride height
• Designed for aggressive lowering and performance-oriented suspension setups

Part Number:

• MR-CDK-E36-RS
