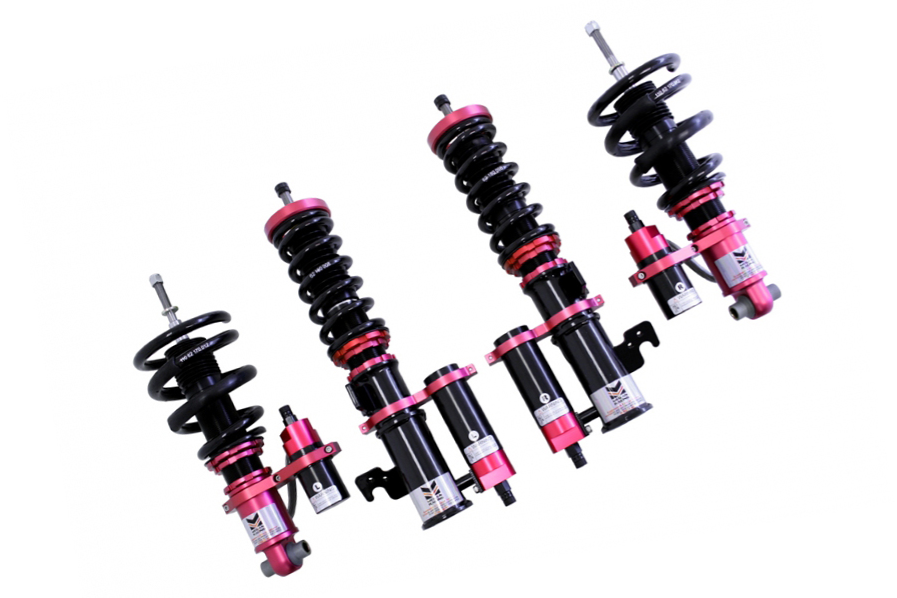

Megan Racing - Chevrolet Camaro 10-13 – Spec-RS Series Coilovers – MR-CDK-CCA10-RS

Unleash the full handling potential of your fifth-generation Camaro with the Megan Racing Spec-RS Series Coilover Suspension System, engineered for aggressive street driving and track-focused performance. Designed specifically for 2010–2013 Chevrolet Camaro models (excluding Magnetic Ride Control), this advanced suspension system delivers precision control, adjustability, and durability in one complete package.

The Spec-RS system features 32 levels of independently adjustable compression and rebound damping, allowing drivers to fine-tune suspension response for track sessions, canyon driving, or daily street use. Compression damping is controlled via external reservoirs, increasing oil capacity and maintaining consistent damping under extreme heat and sustained driving conditions. Rebound adjustment is conveniently accessed at the top of each damper for quick and accurate tuning.

Ride height is adjusted independently from spring preload through CNC-machined locking spring perches and adjustable shock body length. This design preserves full suspension travel while allowing aggressive lowering and precise corner balancing. Pillow-ball upper mounts reduce suspension deflection, sharpen steering response, and provide improved feedback at the limit.

Constructed from high-strength steel dampers, aluminum rear brackets, and SAE-9254 cold-wound springs tested beyond 500,000 compression cycles, the Megan Racing Spec-RS coilovers are built to withstand demanding performance use while maintaining long-term reliability.

Key Features:

• 32-Way Independent Damping Adjustment: Separate compression and rebound control
• External Reservoirs: Increased oil capacity with independent compression adjustment
• Top-Mounted Rebound Adjusters: Easy access for quick tuning
• Independent Ride Height Adjustment: Shock length adjusts separately from spring preload
• Pillow-Ball Upper Mounts: Improved steering response and reduced deflection
• Dual-Cylinder Damper Design: Stable damping under aggressive driving
• High-Strength Construction: Steel front brackets with aluminum rear brackets
• Complete Hardware Included: Direct bolt-on installation

Spring Rates:

• Front: 8 kg/mm
• Rear: 12 kg/mm

Damper Adjustment Guide:

• 1–8: Track use
• 9–16: Mountain / aggressive driving
• 17–32: Street driving

Fitment:

• Chevrolet Camaro (2010–2013)
  Not compatible with Camaro models equipped with Magnetic Ride Control

Important Notes:

• Ride height adjustment requires loosening the remote reservoir bracket bolts
• Designed for performance-oriented setups and aggressive lowering
• Not intended to retain factory ride height

Part Number:

• MR-CDK-CCA10-RS
