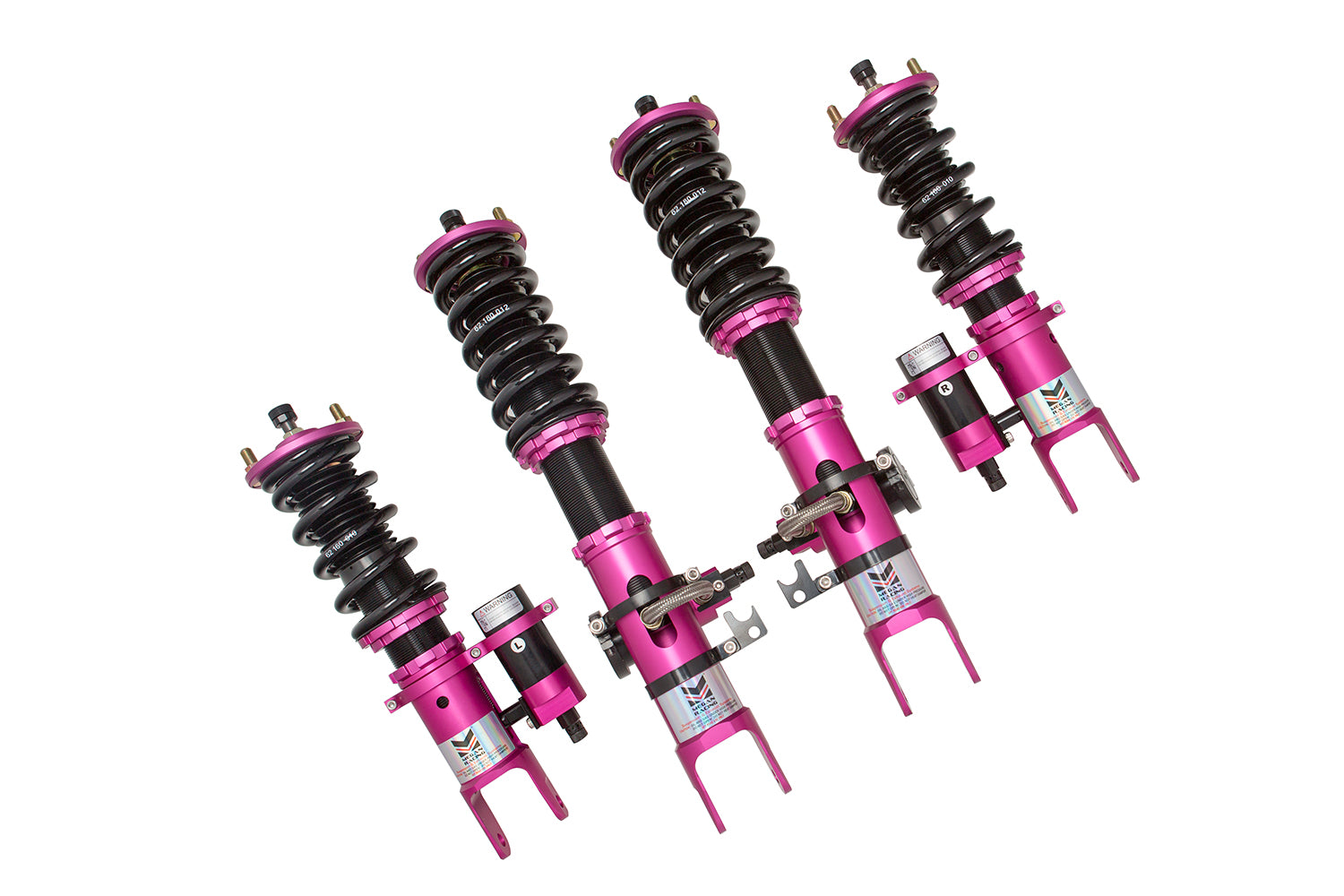

Maximize handling precision, suspension control, and track performance in your Honda S2000 with the Megan Racing Spec-RS Series Coilover Suspension System. Engineered for aggressive street driving, time attack, and motorsports use, the Spec-RS system delivers exceptional adjustability and consistent damping performance tailored to the S2000 chassis.

The Spec-RS coilovers feature 32 levels of independent compression and rebound adjustment, allowing drivers to fine-tune suspension response with high precision. Compression damping is adjusted via external reservoirs to increase oil capacity and thermal stability, while rebound adjustment is conveniently accessed at the top of each damper. This dual-adjustment configuration provides far greater tuning flexibility than conventional single-adjustment systems.

Ride height is adjusted independently of spring preload using CNC-machined locking spring perches and adjustable shock body length. This design preserves full suspension stroke at all ride heights and enables accurate corner balancing and aggressive alignment setups without compromising damper travel.

For strut-type suspension applications, the Spec-RS system includes pillow-ball upper mounts with integrated camber plates, allowing precise camber adjustment to improve steering response, predictability, and tire wear. Constructed from high-strength steel with aluminum brackets and paired with SAE-9254 cold-wound springs tested beyond 500,000 compression cycles, this system is built for durability, consistency, and high-load performance environments.

Key Features:

• Independent Compression & Rebound Adjustment: 32-step damping control with separate tuning for maximum precision.
• External Reservoirs: Increased oil capacity with independent compression adjustment.
• Top-Mounted Rebound Adjustment: Quick and accessible suspension tuning.
• Independent Ride Height Adjustment: Shock length adjusts separately from spring preload to retain full stroke.

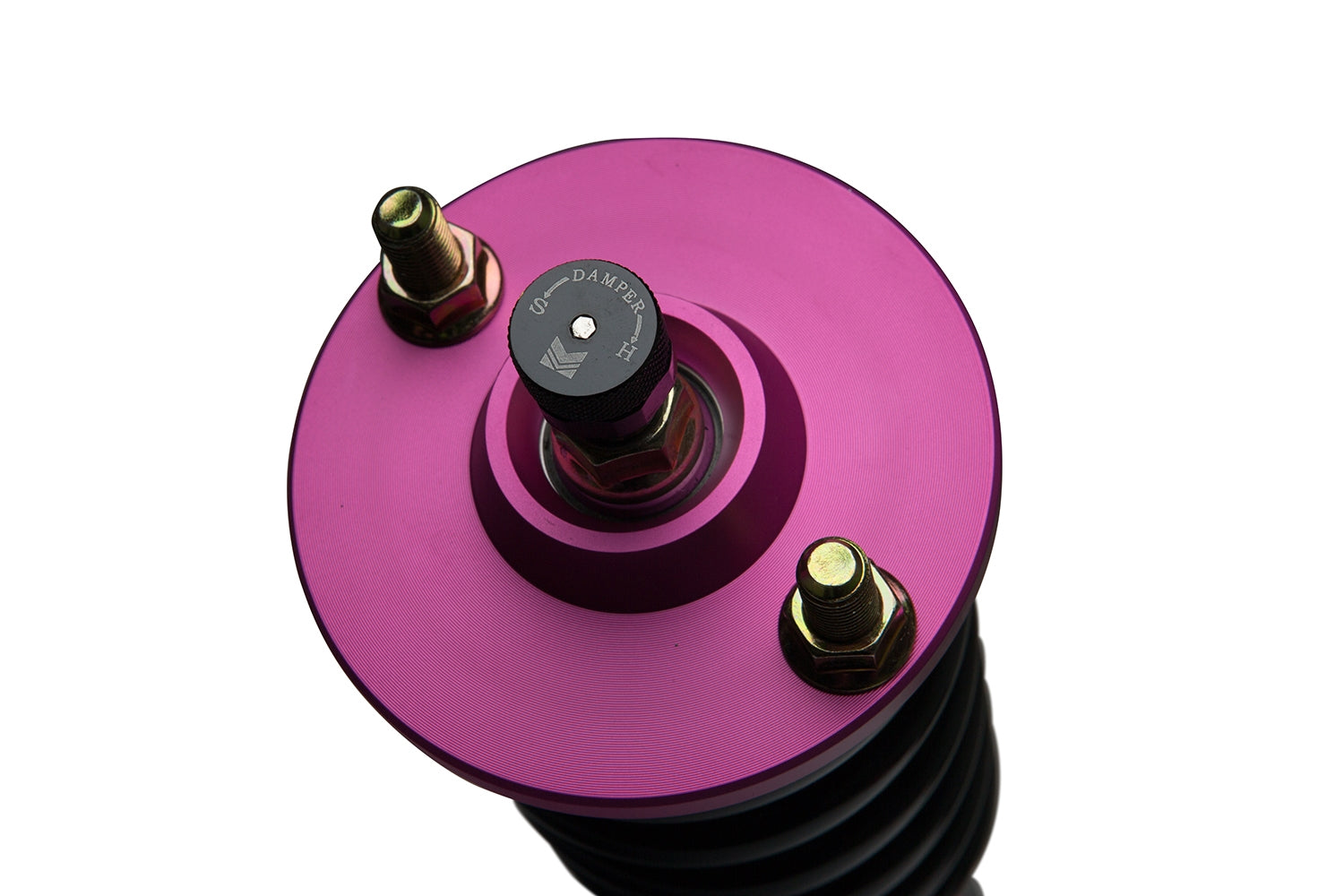

• Pillow-Ball Upper Mounts: Reduces suspension deflection and sharpens steering response.
• Adjustable Camber Plates: Allows aggressive alignment tuning for street or track use.
• Dual-Cylinder Damper Design: Improves damping consistency and performance.
• High-Strength Construction: Steel dampers with aluminum brackets for reduced weight and strength.
• Complete Hardware Kit Included: Ready for direct installation.
• Manufacturer Warranty: 1-year warranty against manufacturing defects.

Spring Rates:

• Front: 12 kg/mm
• Rear: 10 kg/mm

Damper Adjustment Guidance:

• 1–8: Track use
• 9–16: Mountain / aggressive driving
• 17–32: Street driving

Fitment:

• Honda S2000 (2000–2009)

Important Notes:

• Rear suspension includes replacement hardware for the OEM welded nut configuration (M12 × P1.25 × 15L).
• This coilover system is designed for aggressive lowering and cannot be adjusted to stock ride height.
• Intended for performance-oriented setups requiring a lowered stance.

Part Number:

• MR-CDK-S2K-RS
