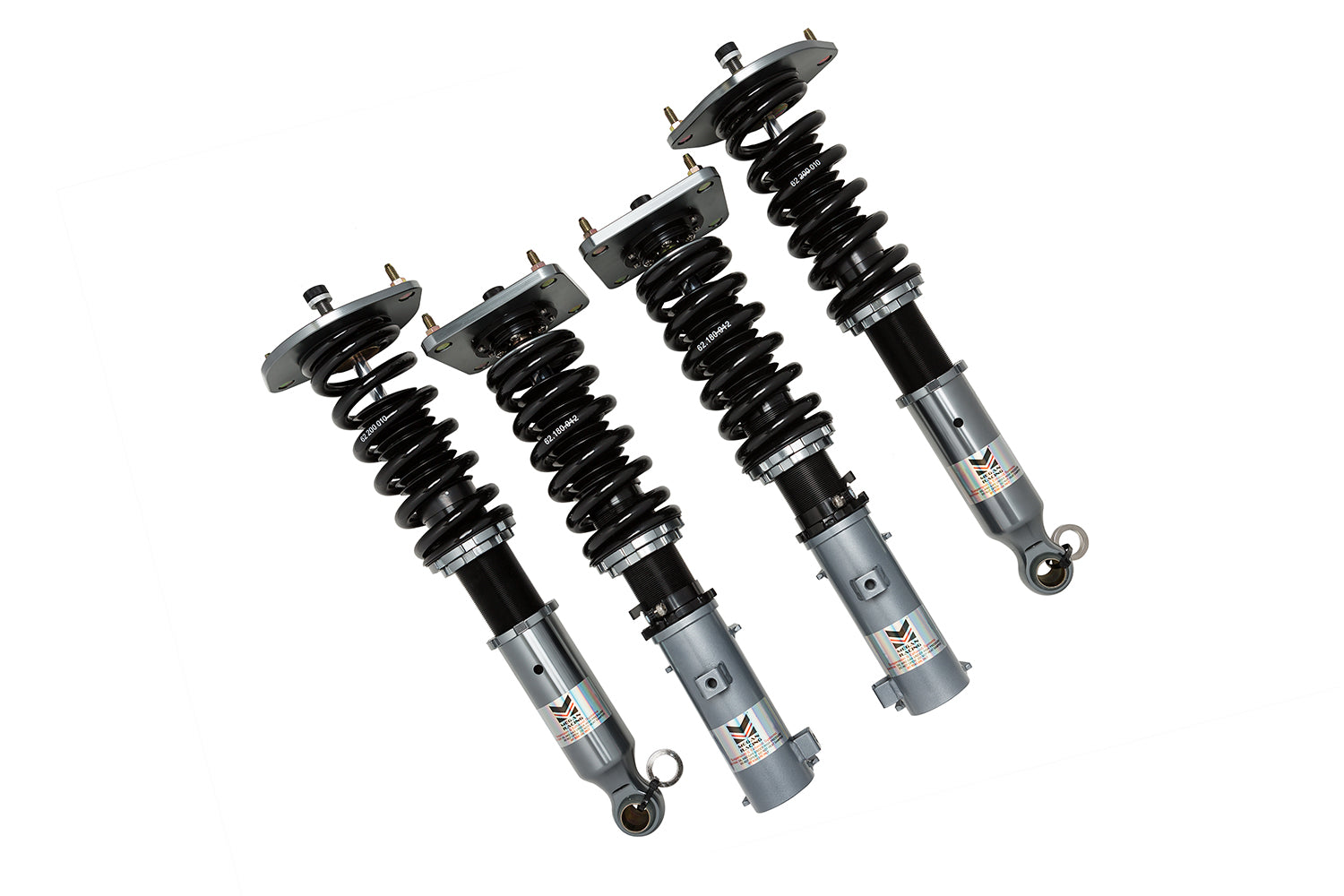

Megan Racing - Mazda RX-7 (FC) 86-92 – Track Series Coilovers – MR-CDK-MRX86TS

The Track Series Coilover System for the Mazda RX-7 FC is engineered for aggressive track-focused driving, where handling precision and suspension control take priority over ride comfort. Aggressive spring rates and performance damper valving provide superior dynamic control, especially when paired with high-grip track day tires.

The system offers a wide availability of standard coil springs, allowing further customization to match your driving style, track conditions, or personal setup preferences.

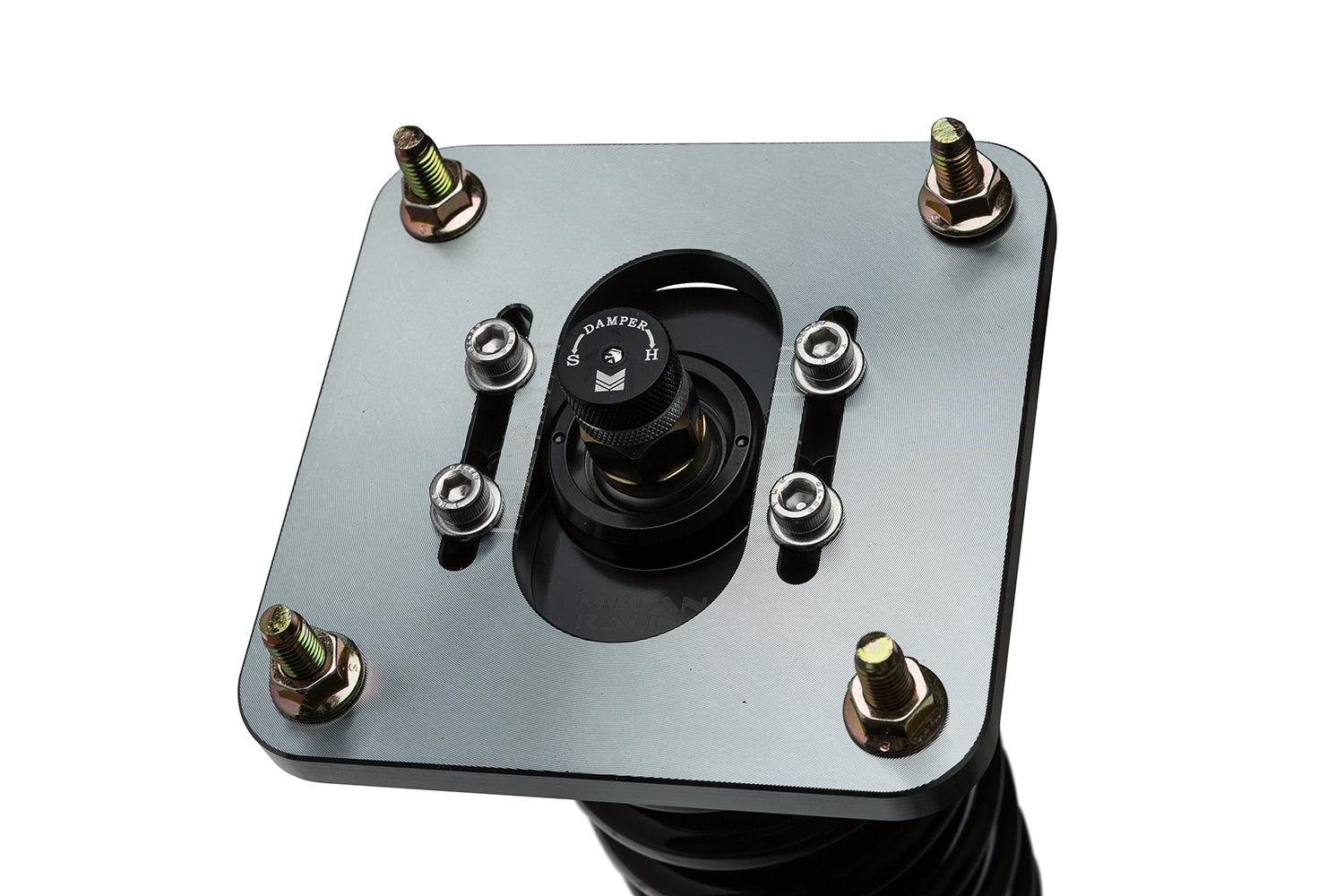

Featuring 32 levels of damper force adjustment, full shock length, and spring preload adjustment, the coilovers retain full suspension stroke while allowing fine-tuning of all suspension characteristics. Compression and rebound settings are easily adjusted via a single knob located at the top of the damper mount for quick and convenient access. These adjustments are simple to make, whether you are a professional mechanic or an enthusiast with amateur mechanical skills.

Height adjustments are achieved using precision CNC-machined locking spring perches for smooth, accurate, and repeatable adjustment. Separate shock length adjustment ensures full damper stroke is maintained, allowing precise tuning of suspension performance. The wide range of ride height adjustment accommodates anything from a mild drop to aggressive, track-ready stances, giving you full potential of your vehicle’s handling capabilities.

Constructed with durable materials and monotube internal design, the Track Series coilovers provide consistent damping performance, improved heat dissipation, and long-term reliability. This system is backed by a 1-year warranty against manufacturer defects.

Vehicle Fitment

• Mazda RX-7 FC 1986
• Mazda RX-7 FC 1987
• Mazda RX-7 FC 1988
• Mazda RX-7 FC 1989
• Mazda RX-7 FC 1990
• Mazda RX-7 FC 1991
• Mazda RX-7 FC 1992

Notes:
• Fits Mazda RX-7 FC chassis only
• Designed for aggressive performance and track applications

Specifications and Features

• Front Spring Rate: 12 kgf/mm
• Rear Spring Rate: 10 kgf/mm
• Internal Construction: Monotube
• Damping Adjustment: 32-Way Compression and Rebound (Simultaneous)
• Ride Height Adjustment: Full Length Adjustable
• Spring Preload Adjustment: Yes
• Warranty: 1-Year Against Manufacturer Defects
