Megan Racing - Nissan 370Z 09-19 Track Series Coilover (Rear Coilover Conversion) – MR-CDK-Z34-TS

The Track Series Coilover System for the Nissan 370Z is engineered specifically for aggressive track-focused driving, where handling precision and suspension control take priority over noise insulation and street comfort. Aggressive spring rates and precision damper valving deliver superior dynamic control, especially when paired with high-grip track day tires.

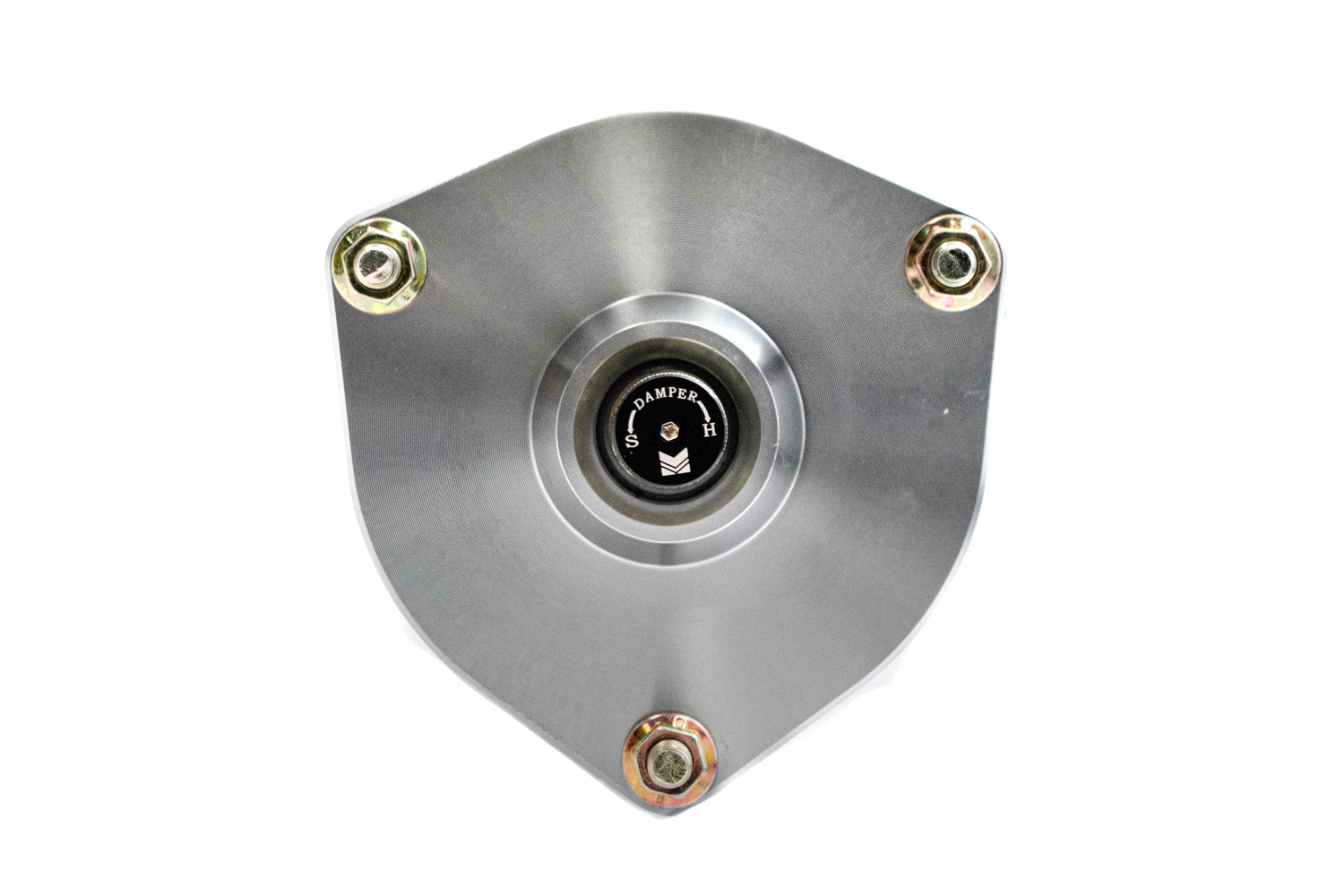

This system features front and rear pillowball top mounts that eliminate suspension deflection and unwanted compliance. By removing excess suspension slop, the springs and dampers are able to more effectively absorb and control dynamic road and track surfaces. The rear suspension is converted to a true coil-over configuration, eliminating the factory separated spring design and significantly expanding tuning flexibility. This conversion also improves compatibility with adjustable rear toe arms for advanced alignment setups.

The Track Series coilovers offer 32 levels of damper force adjustment along with full-length shock adjustability. Ride height is adjusted independently from spring preload, allowing precise suspension tuning without compromising damper travel. Compression and rebound damping are adjusted simultaneously using knobs located at the top of each damper for quick and easy access.

A wide range of ride height adjustment allows for anything from a mild drop to aggressive ride heights for a track-ready stance. This flexibility makes it easy to fine-tune the suspension for specific circuits and driving conditions to extract the full handling potential of the Nissan 370Z.

The Megan Racing Track Series coilover system is built for durability and long-term performance and is protected by a 1-year warranty against manufacturer defects. Due to the use of front pillowball top mounts, increased suspension and road noise may be transmitted into the cabin. This is a normal characteristic of this track-oriented coilover system.

Vehicle Fitment

• Nissan 370Z 2009
• Nissan 370Z 2010
• Nissan 370Z 2011
• Nissan 370Z 2012
• Nissan 370Z 2013
• Nissan 370Z 2014
• Nissan 370Z 2015
• Nissan 370Z 2016
• Nissan 370Z 2017
• Nissan 370Z 2018
• Nissan 370Z 2019

Notes:
• Designed specifically for Nissan 370Z chassis
• Intended for aggressive performance and track applications

Specifications and Features

• Front Spring Rate: 14 kgf/mm
• Rear Spring Rate: 6 kgf/mm
• Rear Suspension: Coil-Over Conversion
• Internal Construction: Monotube
• Damping Adjustment: 32-Way Compression and Rebound (Simultaneous)
• Ride Height Adjustment: Full Length Adjustable
• Top Mounts: Front and Rear Pillowball
• Warranty: 1-Year Against Manufacturer Defects
