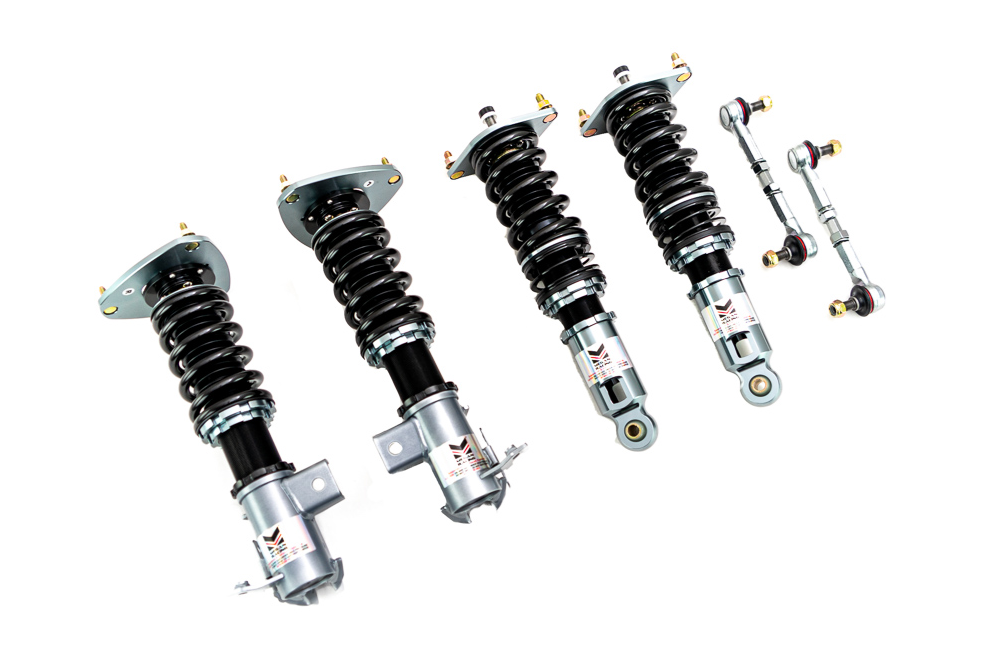

Megan Racing - Toyota GR 86 / Subaru BRZ 2022+ – Track Series Coilovers – MR-CDK-SFR12-TS

The Track Series Coilover System is engineered for aggressive performance driving and track-focused use. Aggressive spring rates and precision damper valving deliver superior dynamic control, particularly when paired with high-grip track day tires. This setup is designed to maximize chassis response, stability, and cornering confidence under demanding driving conditions.

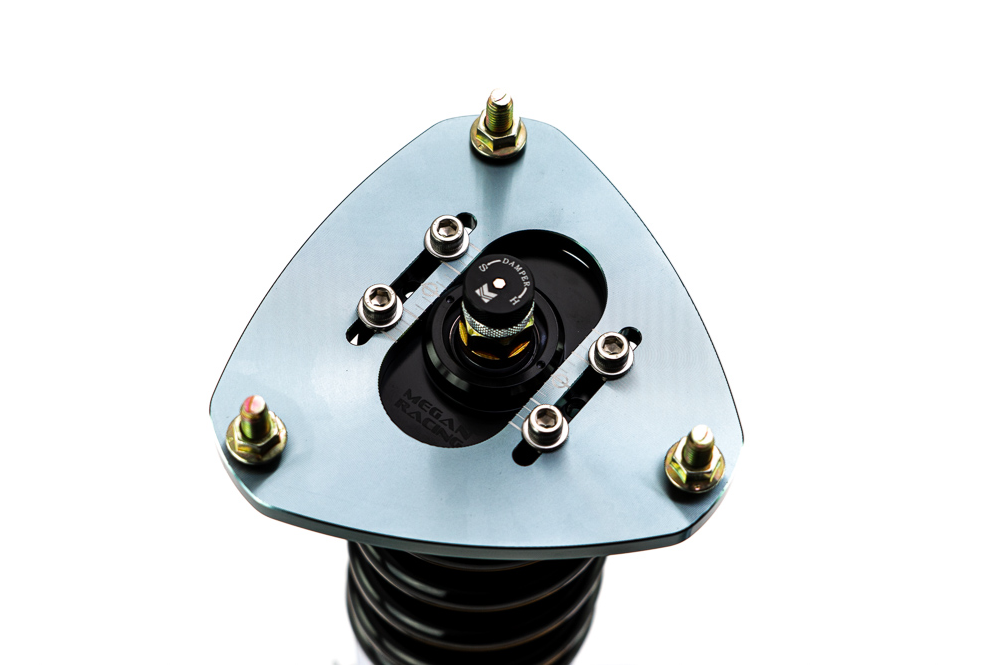

This system features 32 levels of damper force adjustment, along with full shock length and spring preload adjustment. These adjustments allow you to retain full suspension stroke while fine-tuning suspension characteristics to suit your driving style and performance goals. Compression and rebound are adjusted simultaneously through a single damper adjustment knob conveniently located at the top of the damper mount for quick and easy access.

Ride height adjustments are achieved using separate CNC-machined locking spring perches, providing smooth, precise, and repeatable adjustment. Independent damper shock length adjustment ensures full suspension travel is maintained regardless of ride height. This wide range of height adjustment allows for anything from a conservative drop for street use to aggressive ride heights optimized for circuit performance and maximum handling potential.

Constructed with durable materials and monotube internal design, the Track Series Coilover System delivers consistent damping performance, improved heat dissipation, and long-term reliability. The system is backed by a 1-year warranty against manufacturer defects.

Vehicle Fitment

• Toyota GR86 2022
• Toyota GR86 2023
• Toyota GR86 2024+

• Subaru BRZ 2022
• Subaru BRZ 2023
• Subaru BRZ 2024+

Notes:
• Fits second-generation GR86 and BRZ chassis
• Designed for track-focused performance applications

Specifications and Features

• Front Spring Rate: 10 kgf/mm
• Rear Spring Rate: 10 kgf/mm
• Internal Construction: Monotube
• Damping Adjustment: 32-Way Compression and Rebound (Simultaneous)
• Ride Height Adjustment: Full Length Adjustable
• Spring Preload Adjustment: Yes
• Warranty: 1-Year Against Manufacturer Defects
