Nissan 370Z 2009 - 2020 GTC-500 71" Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 1-2 weeks.

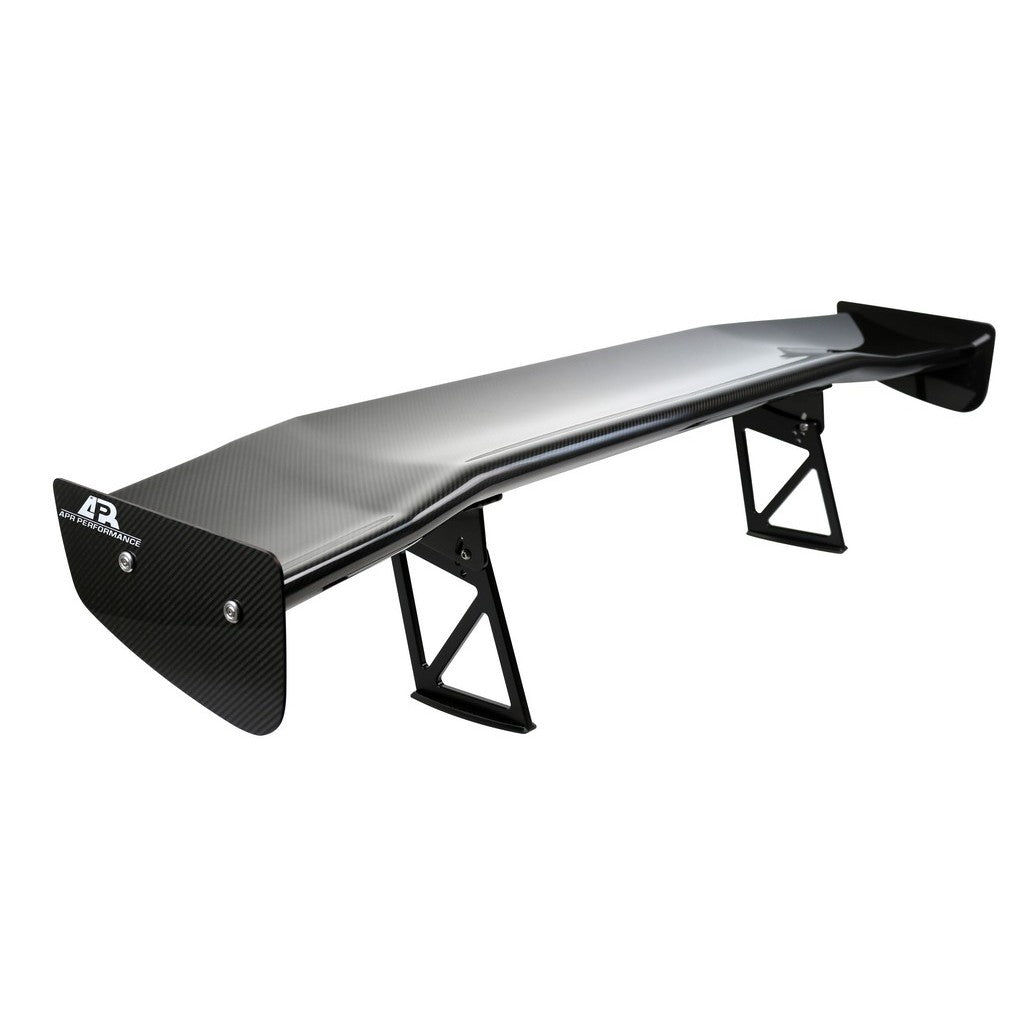

Take your Nissan 370Z (2009–2020) to the next level of performance and aerodynamic efficiency with the APR Performance GTC-500 71" Carbon Fiber Adjustable Wing. Developed through advanced Computational Fluid Dynamics (CFD), the GTC-500 provides an exceptional balance of high downforce and low drag, giving your 370Z superior cornering stability, braking traction, and high-speed confidence.

The CFD-optimized cambered airfoil is designed to maximize airflow attachment, generating consistent rear downforce without sacrificing straight-line speed. This aerodynamic advantage enhances chassis stability during aggressive cornering and track sessions while maintaining a sleek motorsport-inspired appearance.

Crafted from autoclave-cured pre-preg carbon fiber, the GTC-500 offers exceptional rigidity and minimal flex, ensuring consistent performance even under extreme aerodynamic loads. Its adjustable angle of attack (0°–15°) allows precise tuning for your setup — whether you need more grip for circuit racing or reduced drag for time-attack and straight-line runs.

Mounted via aircraft-grade 6061 billet aluminum risers, the wing provides reliable strength, adjustability, and aerodynamic precision. Engineered for both function and aesthetics, the GTC-500 is ideal for enthusiasts who demand race-level performance on street or track builds.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for lightweight rigidity and superior strength.
• CFD-Optimized Airfoil Design – Generates maximum aerodynamic efficiency for improved balance and grip.
• Adjustable Angle of Attack (0°–15°) – Tailor your aerodynamic setup for different track or street conditions.

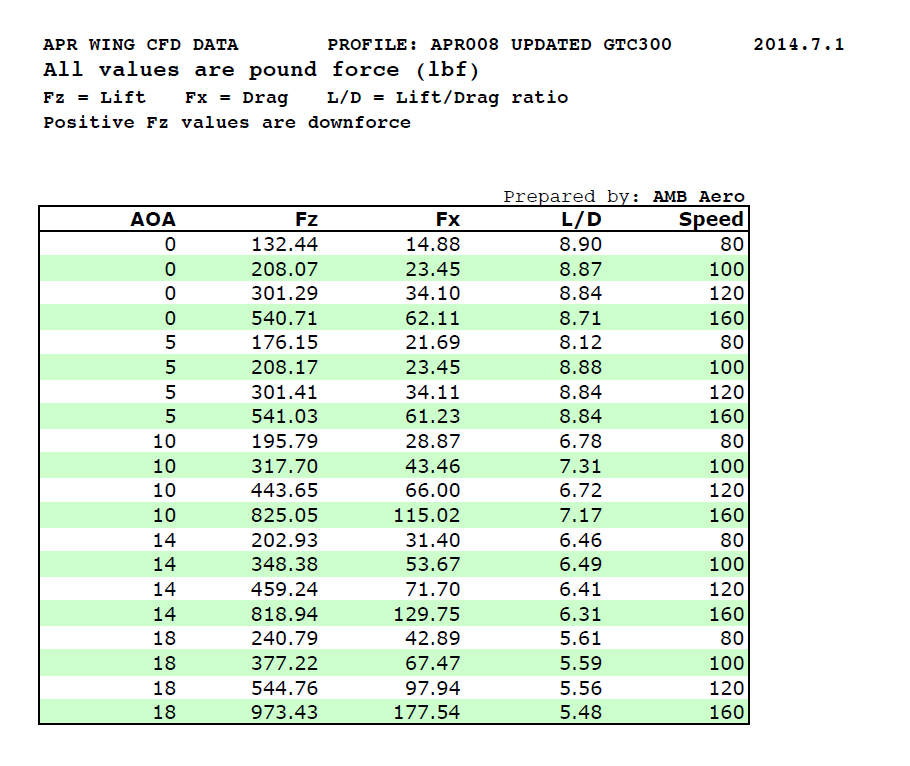

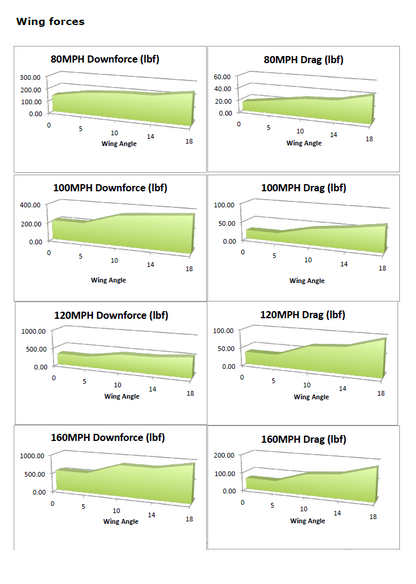

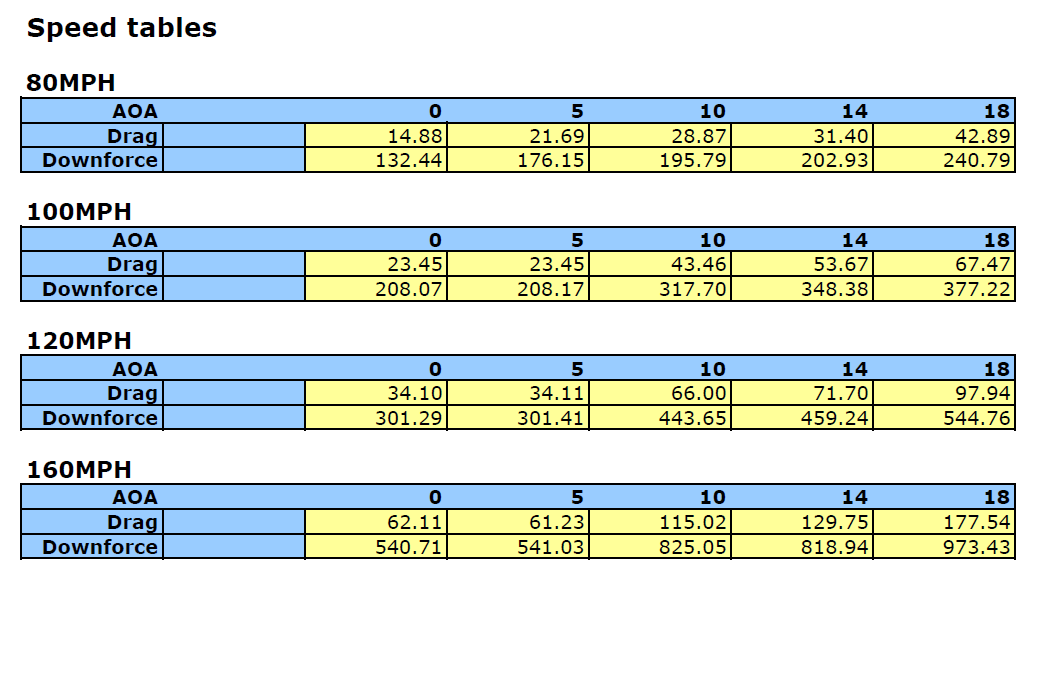

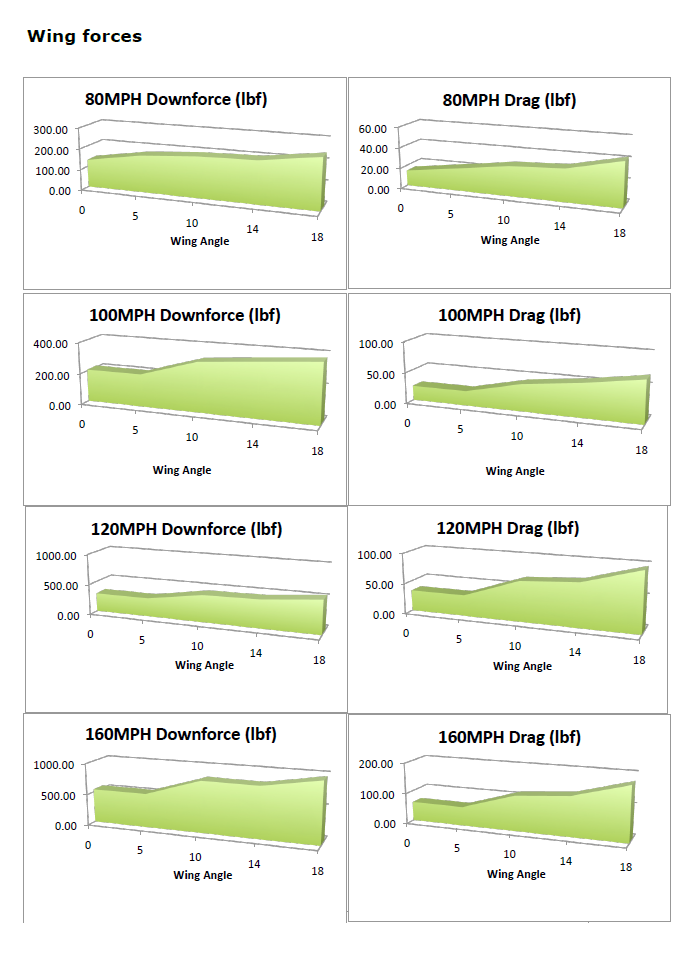

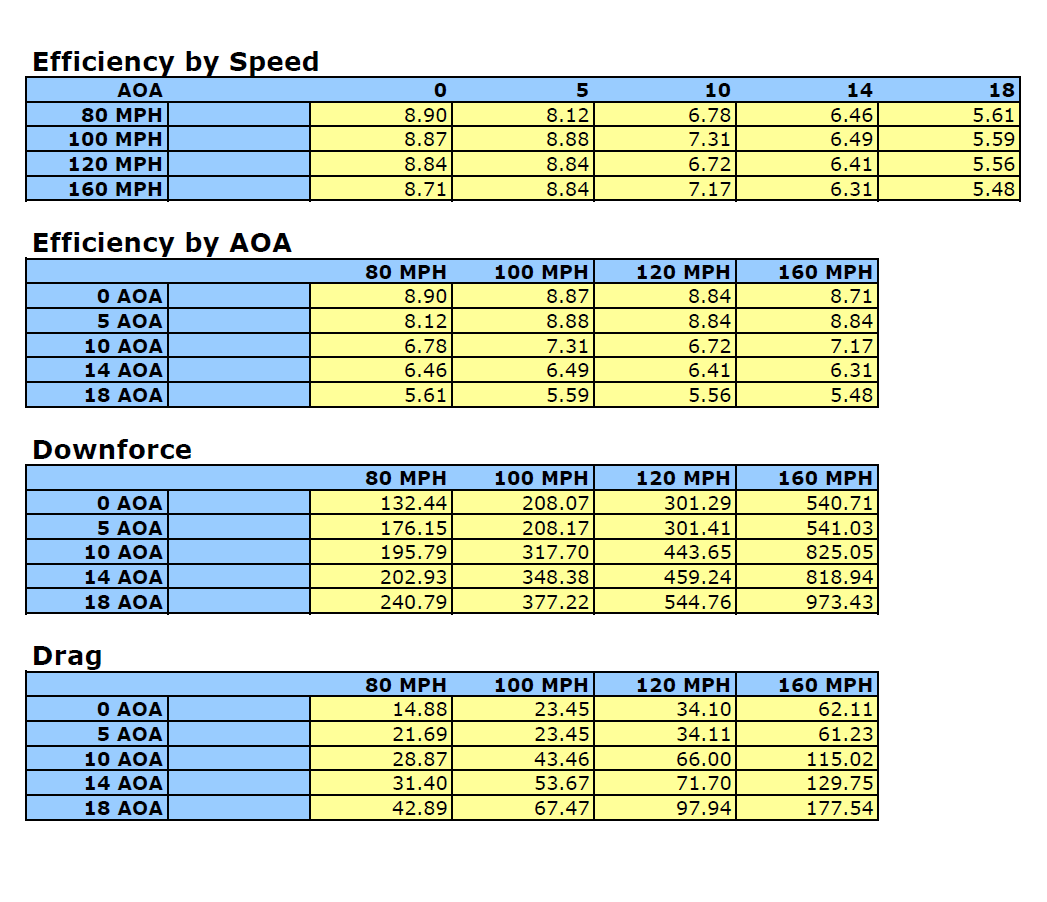

• High Downforce-to-Drag Ratio (8.88 : 1) – Optimized for superior traction and cornering stability.
• 6061 Billet Aluminum Pedestals – 10 mm aircraft-grade mounting system for durability and precision.
• 71" Wing Span – Designed to match the wide stance of the Nissan 370Z platform.
• Optional Carbon Fiber Gurney Flap – Enhances downforce and reduces flow separation at high speeds.
• UV-Resistant Gloss Finish – Protects the carbon weave and maintains a premium aesthetic.

Specifications:
• Span: 71" (1803 mm)
• Chord Depth: 10.2" – 12" (259 – 305 mm)
• Height: up to 13" (330 mm)
• Material: Pre-preg carbon fiber airfoil with 6061 billet aluminum risers
• Angle Adjustment: 0° – 15°
• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon Fiber Gurney Flap (½" height, 3M VHB mounting)

Fitment:
Nissan 370Z — 2009 – 2020
