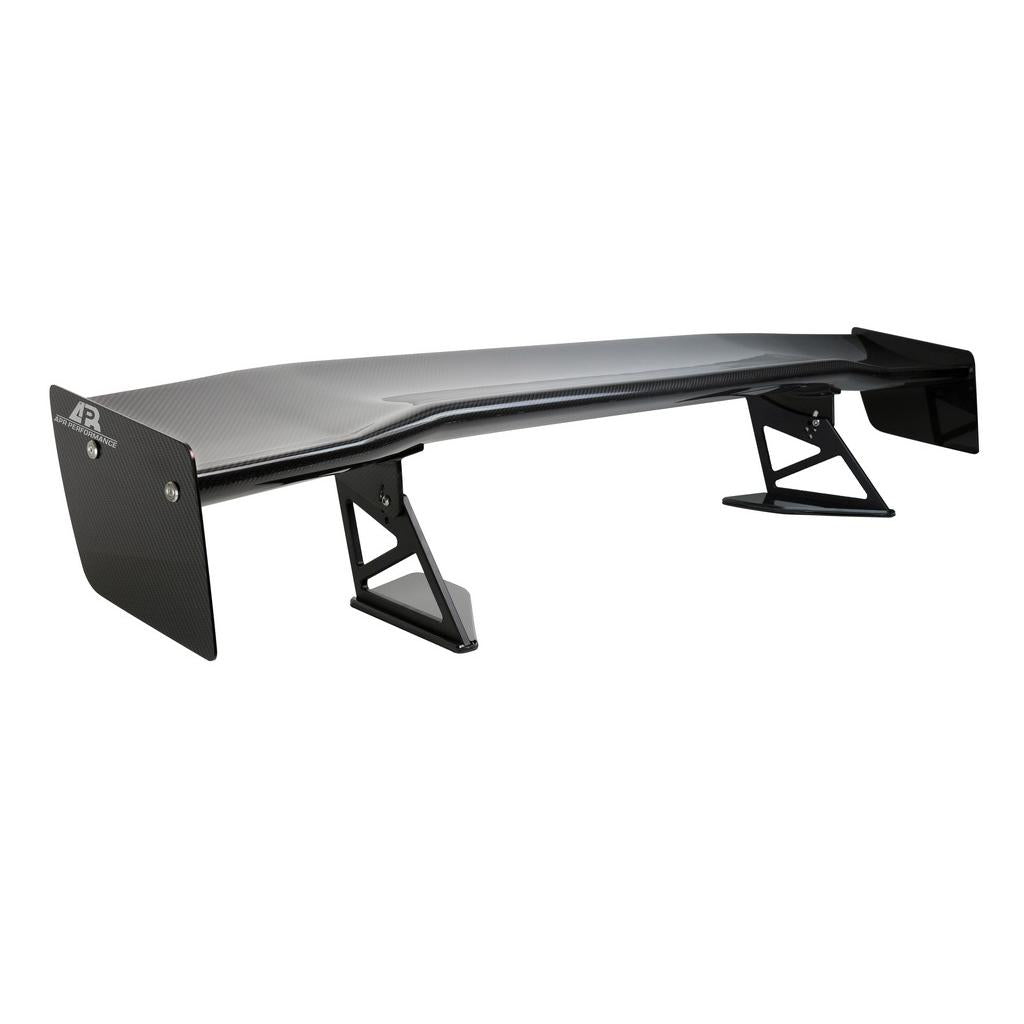

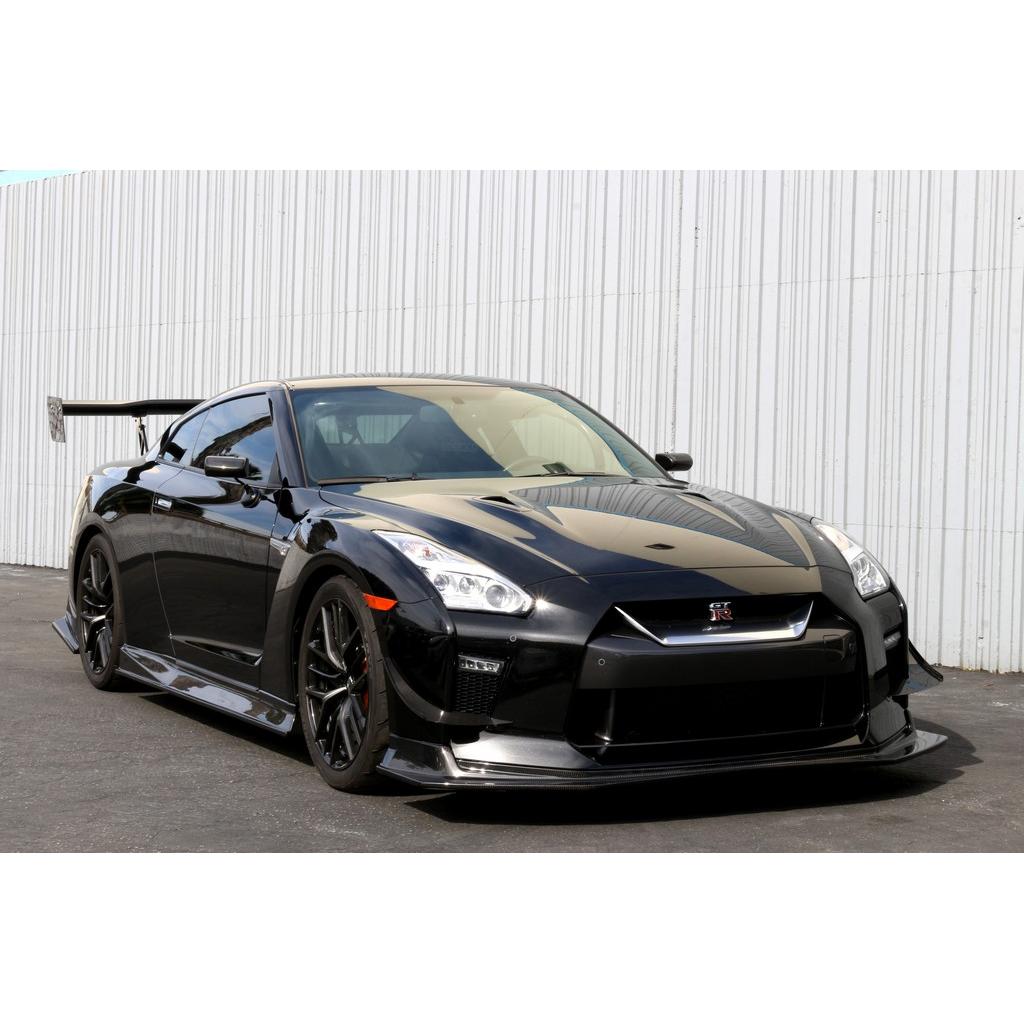

Nissan GTR R35 2008-2023 GTC-500 Carbon Fiber Adjustable Wing

This item is made to order, normal lead time is 1-2 weeks.

Upgrade your Nissan GT-R R35’s aerodynamics with the APR Performance GTC-500 Carbon Fiber Adjustable Wing, a motorsport-grade component engineered to enhance high-speed balance, braking stability, and cornering control.

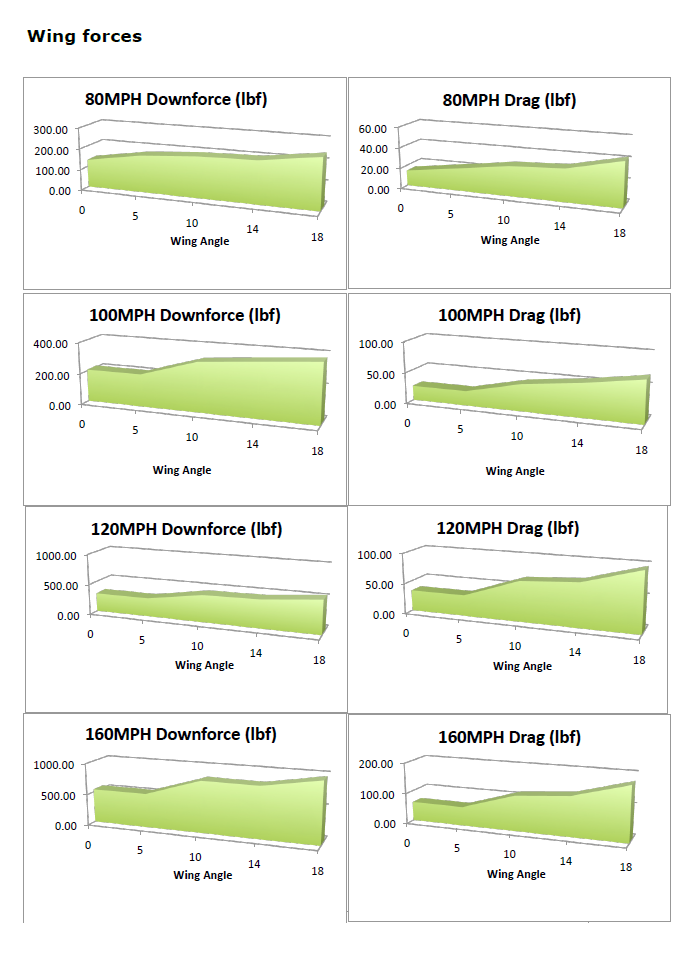

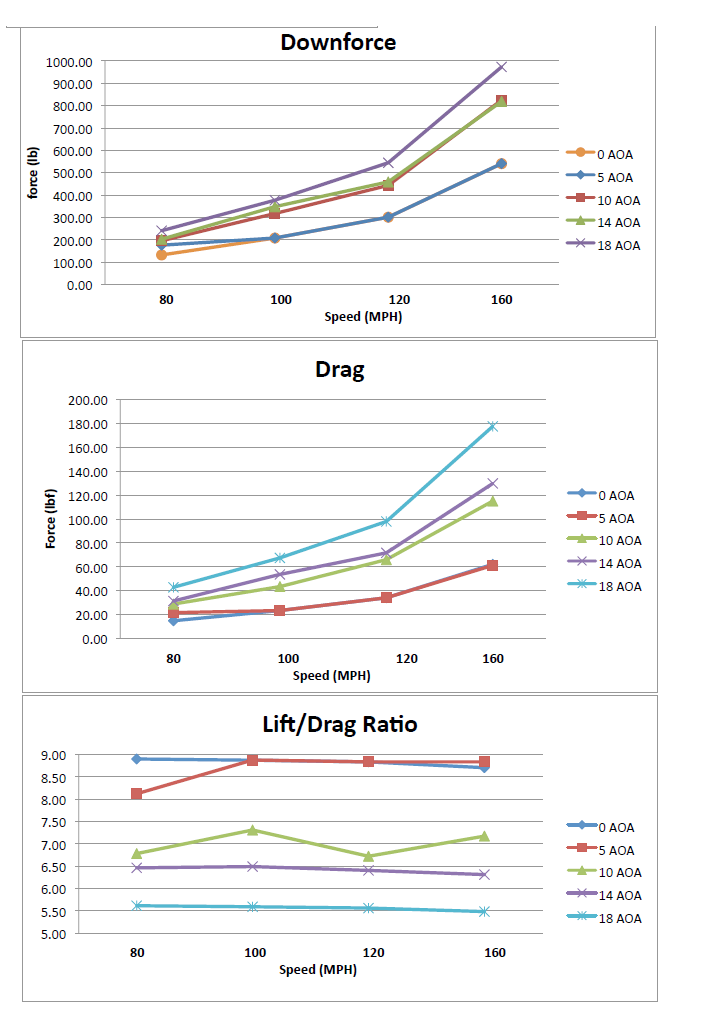

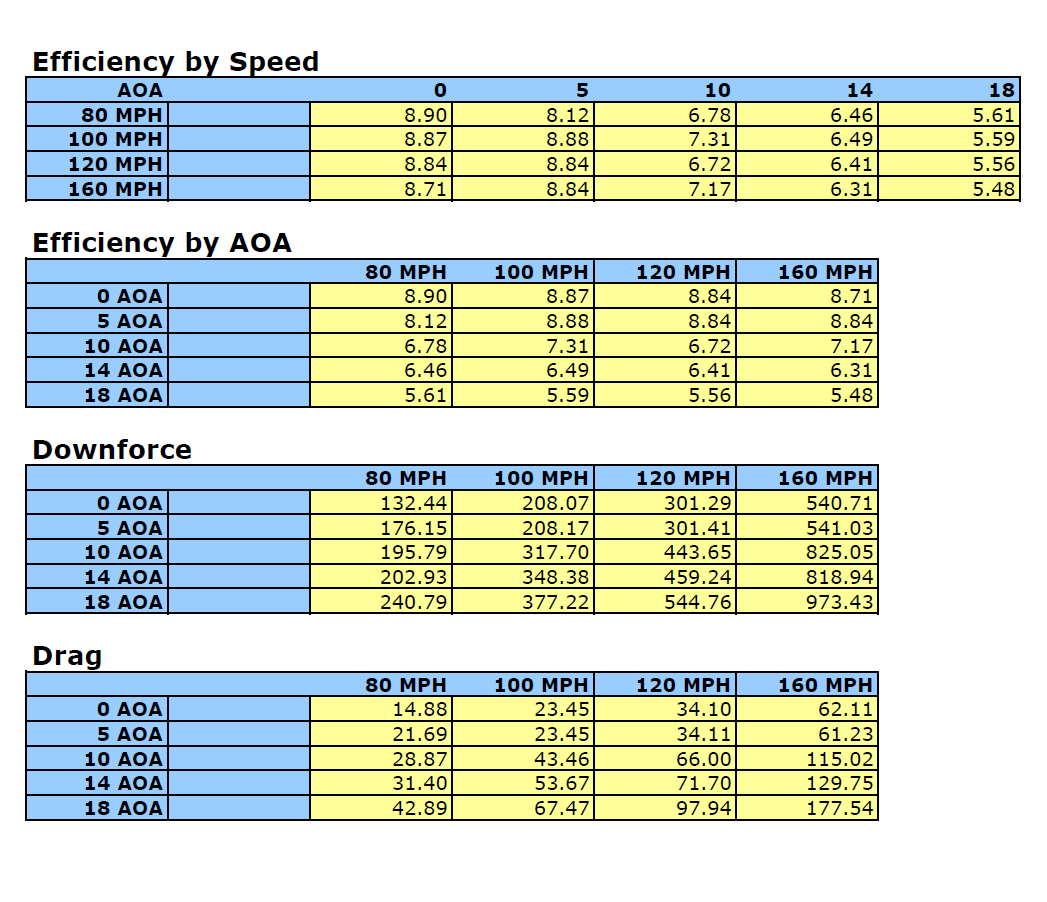

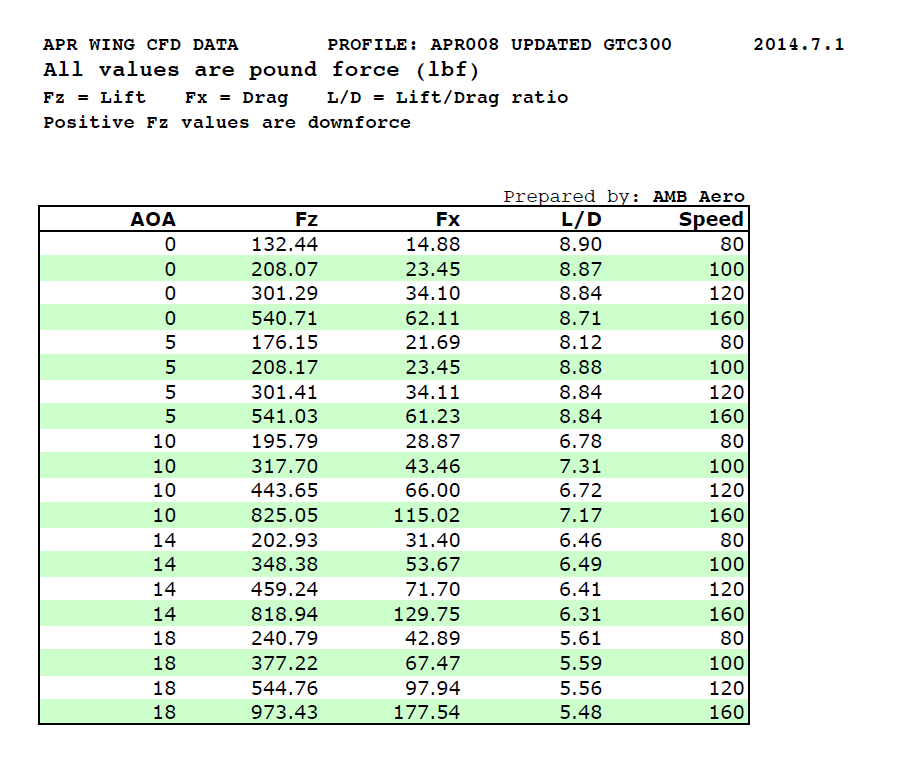

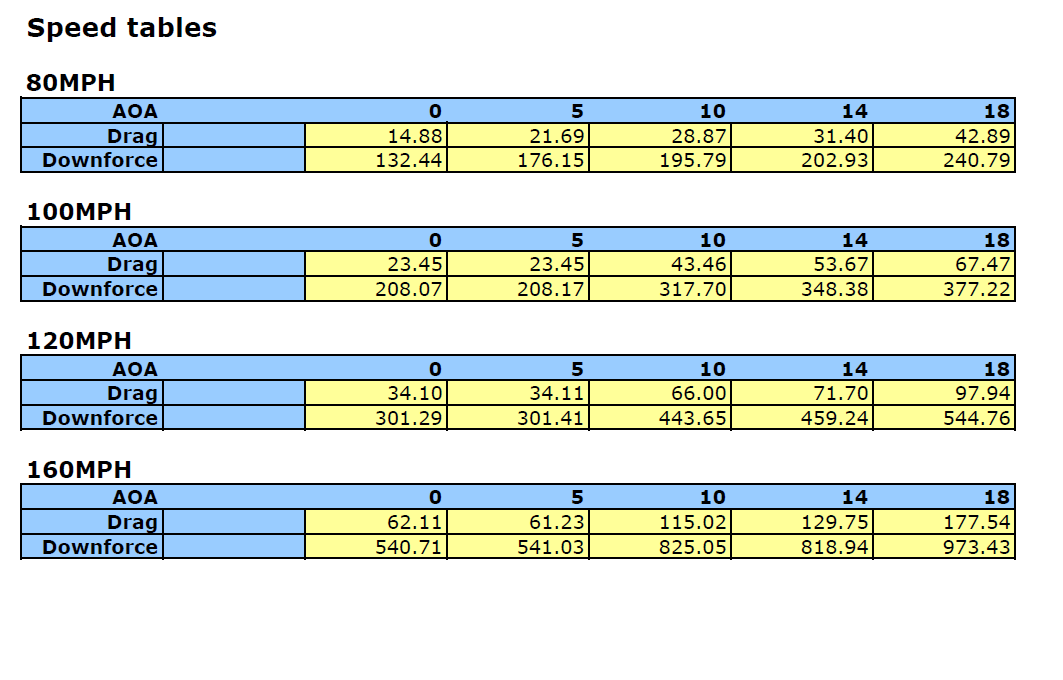

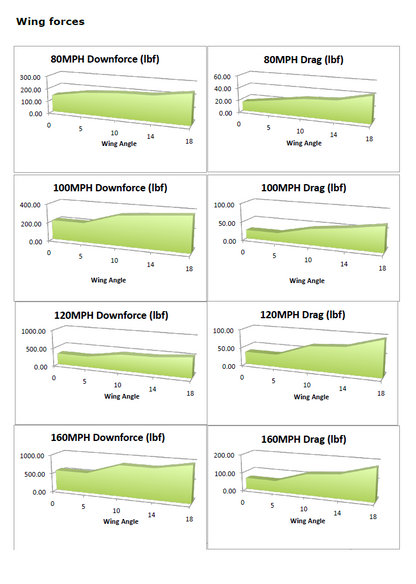

Developed using Computational Fluid Dynamics (CFD) analysis, this wing delivers an optimized downforce-to-drag ratio (8.88 : 1) for maximum stability with minimal drag. The cambered airfoil profile creates a strong pressure differential for increased rear traction and grip during aggressive cornering and acceleration.

Constructed from autoclave-cured pre-preg carbon fiber, the GTC-500 offers exceptional rigidity and lightweight strength. Its 6061 billet aluminum risers provide secure mounting and adjustability for precise aero tuning under different track conditions. With an adjustable angle of attack (0° – 15°), drivers can fine-tune their setup for maximum downforce or top-speed efficiency.

Perfect for street and track applications, the APR GTC-500 for the GT-R R35 is the ultimate blend of functional aerodynamics and high-end carbon fiber styling.

Key Features:
• Pre-Preg Carbon Fiber Construction – Autoclave-cured for lightweight strength and precision.
• CFD-Optimized Airfoil Design – Delivers maximum downforce with minimal drag.
• Adjustable Angle of Attack (0° – 15°) – Customizable for track or street conditions.
• High Downforce-to-Drag Ratio (8.88 : 1) – Maintains stability without sacrificing speed.
• 6061 Billet Aluminum Pedestals – 10 mm aircraft-grade construction for rigid mounting.
• 71" or 74" Wing Span – Proportioned for the wide body of the GT-R R35.
• Optional Carbon Fiber Gurney Flap – Enhances grip and reduces flow separation.
• UV-Resistant Gloss Finish – Protects carbon fiber from fading and discoloration.

Specifications:
• Span: 71" or 74" (1803 / 1880 mm)
• Chord Depth: 10.2" – 12" (259 – 305 mm)
• Height: Up to 13" (330 mm)
• Material: Pre-preg carbon fiber with 6061 billet aluminum risers
• Angle Adjustment: 0° – 15°
• Downforce-to-Drag Ratio: 8.88 : 1
• Optional Accessory: Carbon Fiber Gurney Flap (½" height, 3M VHB mounting)

Fitment:
Nissan GT-R R35 — 2008 – 2023
