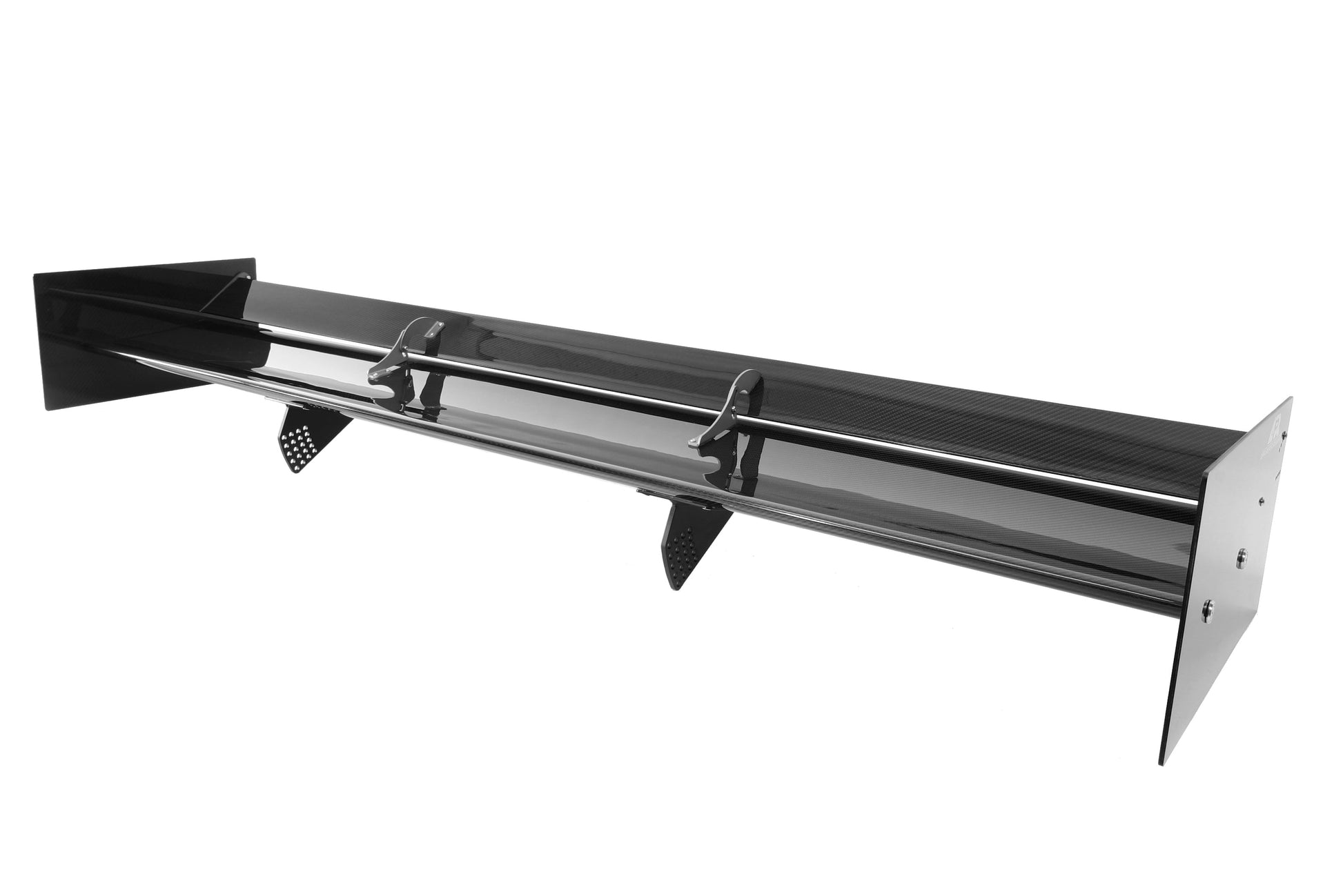

Universal Fitment Carbon Fiber GT-1000 71" Swan Neck Wing

The Universal Fitment Carbon Fiber GT-1000 71” Swan Neck Wing represents the peak of aerodynamic development from APR Performance. Engineered for time-attack, circuit, and motorsport applications, this dual-foil wing delivers uncompromising downforce with precision-tuned airflow efficiency.

Developed through Computational Fluid Dynamics (CFD), the GT-1000 Swan Neck features an advanced two-foil profile that maximizes pressure differential while minimizing drag. The adjustable upper foil (10°–52° range) allows drivers to fine-tune aerodynamic load for different track conditions, while the locked lower foil (4°) maintains baseline efficiency and stability.

Built from autoclave-cured pre-preg carbon fiber, this system offers ultra-high rigidity and a lightweight structure that resists flexing under heavy aerodynamic load. The 30-inch billet-aluminum swan-neck pedestals mount from above to maintain undisturbed airflow beneath the wing, resulting in higher efficiency and downforce.

The GT-1000 is ideal for professional-grade builds requiring maximum aerodynamic capability, rear-end stability, and a competition-proven edge.

Key Features

• Dual-Foil Airfoil Design – CFD-modeled dual profile creates optimal pressure differential for maximum downforce.
• Pre-Preg Carbon Fiber Construction – Lightweight, rigid, and heat-resistant for consistent aero performance.
• Adjustable Angle of Attack – Upper foil adjustable 10°–52°; lower foil fixed at 4° for precision control.
• High Downforce Efficiency – 9 : 1 downforce-to-drag ratio maintains speed and stability.

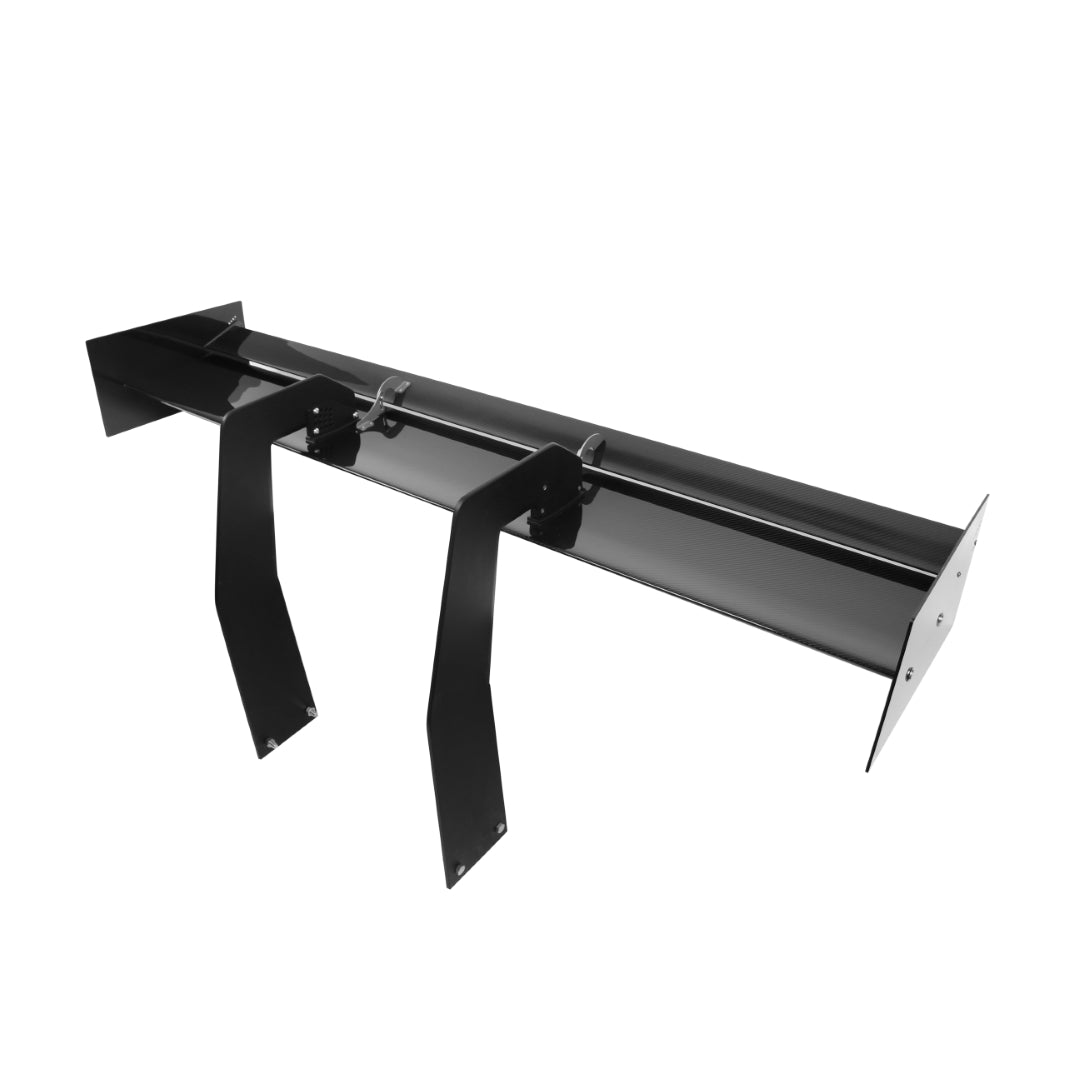

• Swan Neck Pedestal Design – 30” tall billet aluminum risers mount from above for clean under-wing airflow.
• Chassis Mount Requirement – Ensures superior strength and aerodynamic stability at race speeds.
• Universal Fitment – Configurable mounting distance (23” default; custom spacing available >30” + $185).
• UV-Protected Gloss Finish – Preserves carbon-fiber weave and prevents fading under heat and sun.
• Race-Proven Design – Engineered for time attack and track cars needing extreme aero balance.

Specifications

• Material: Pre-Preg Carbon Fiber / 6061 Billet Aluminum
• Finish: UV-Protected Gloss Clear Coat
• Wing Span: Variable – Up to 78" (1981 mm) (Standard 71")
• Chord Depth: 10" + 4" (254 mm + 101 mm)
• Pedestal Type: Swan Neck
• Pedestal Height: 30" (762 mm)
• Angle Adjustment Range: Upper Foil 10°–52°, Lower Foil Fixed 4°
• Downforce-to-Drag Ratio: 9 : 1
• Mounting Distance: Default 23" / Optional >30" (+ $185)
• Mounting Type: Chassis Mount Required
• Includes: GT-1000 Wing Assembly, Swan Neck Pedestals, Mounting Hardware

Fitment

• Universal Fitment — Compatible with most track-oriented and time-attack vehicles requiring chassis mounting.
