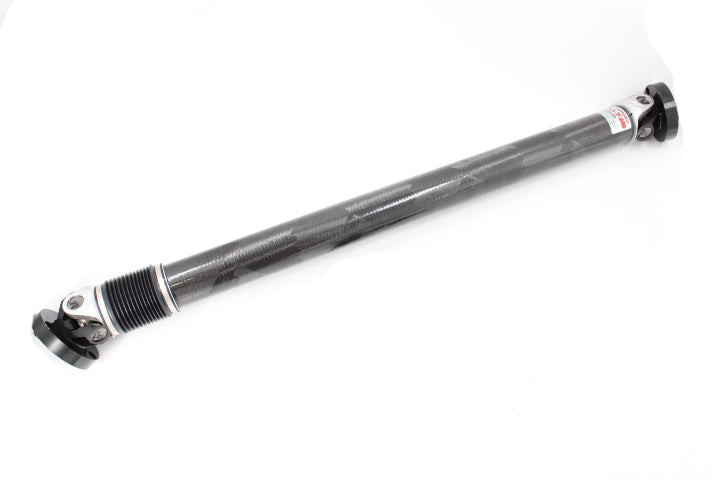

Vargas VTT BMW Carbon Fiber Driveshaft

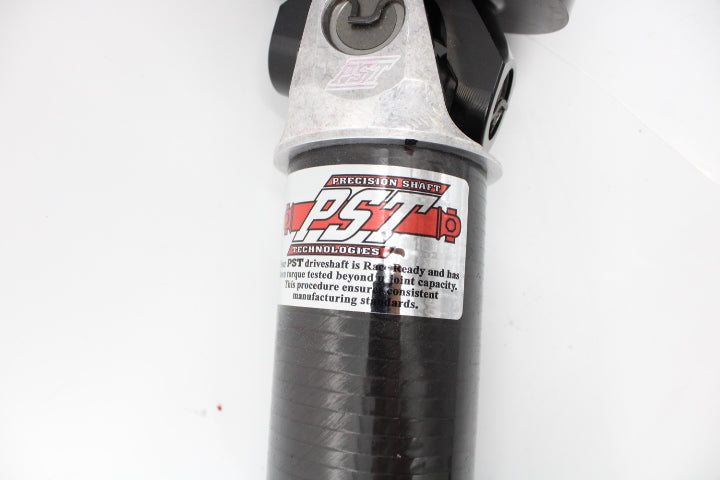

The Vargas VTT Carbon Fiber Driveshaft is engineered to deliver maximum drivetrain efficiency, strength, and reliability for high-performance BMW AWD applications. Manufactured exclusively for VTT in the United States by PST, a leader in carbon fiber driveshaft technology, this driveshaft provides a lightweight yet extremely durable solution for both street and track-driven vehicles.

Constructed using 3.25-inch carbon fiber tubing, this driveshaft is paired with Spicer 1350 yokes and U-joints for exceptional torque handling. All components are bonded using PST’s proprietary process and computer balanced as a complete assembly to extremely tight tolerances, minimizing vibration and ensuring smooth operation at high speeds.

To eliminate unnecessary factory components such as guibos, the system utilizes VTT custom-machined 7075 aluminum front adapters and a 4340 steel rear adapter. This design allows the driveshaft to connect directly to the BMW three-bolt flange while removing the factory screw-in shaft design. The result is a stronger, more responsive drivetrain with reduced rotational mass and improved power transfer.

Each shaft is manufactured with dual carbon fiber wind angles to maximize torsional strength and reduce stress on the driveline. Tube integrity is verified through high-torque testing, ensuring reliability in demanding performance environments. Optional SFI certification is available for motorsport applications when specified at time of order.

Key Features

3.25-inch carbon fiber driveshaft construction
Manufactured in the USA by PST
Spicer 1350 yokes and U-joints
VTT 7075 billet aluminum front adapters
VTT 4340 steel rear adapter
Eliminates factory guibos and screw-in shaft design
Computer balanced as a complete assembly
High torsional strength using multi-angle carbon fiber winding
Optional SFI certification available

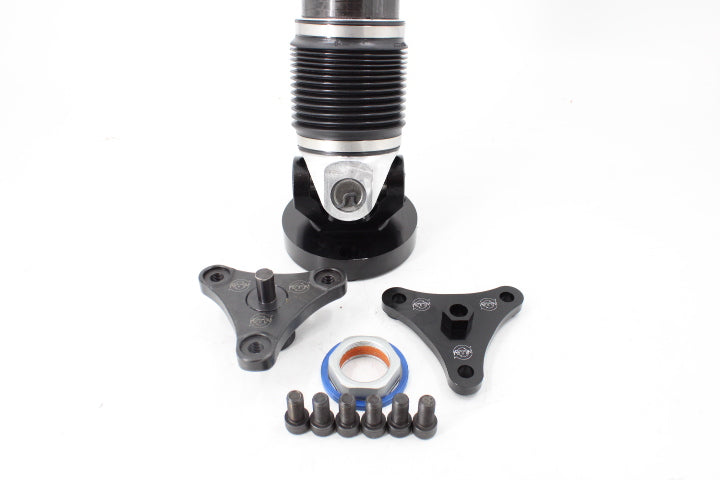

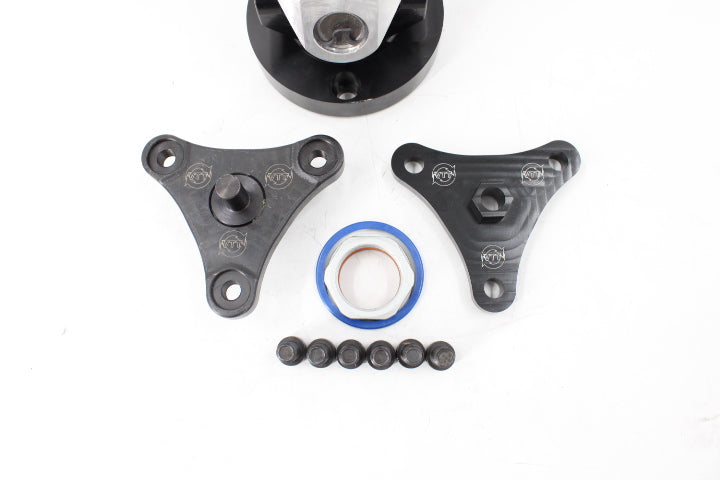

What’s Included

VTT carbon fiber driveshaft with bonded 7075 aluminum adapters
VTT 4340 rear differential adapter
VTT billet adapter installation tool
BMW nut repair kit
Rear CV joint bolts for applicable models
Front and rear flange bolts
Medium-strength thread locker

Weight

Approximate weight for AWD applications is 15.7 lbs
Final weight may vary depending on vehicle length and configuration

Installation Notes

Driveshafts are balanced as a complete assembly
Solid aluminum adapters may introduce drivetrain vibration at certain RPM ranges
Vibration sensitivity depends on drivetrain alignment and condition
Thread locker is required on all fasteners
Clearance must be verified after installation due to increased shaft diameter
Damage caused by insufficient clearance is not covered
